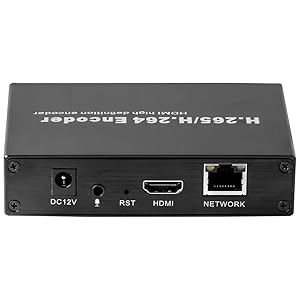

EXVIST Basic HDMI Video Encoder W/SD Card Slot

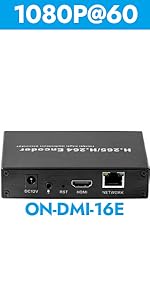

ON-DMI-16E is designed for industrial-grade applications, facilitating the transmission of real-time visual and audio data to online platforms via a wired connection. It is suitable for both professional projects and individual applications requiring the sharing of dynamic video and the capture of ongoing events.
With its latest firmware, the device offers versatile encoding capabilities, supporting independent processing of visual and audio signals. Key applications include:
- Managed Television Networks and Hospitality Systems
- Dynamic Display Solutions, Remote Collaboration, and Visual Data Acquisition

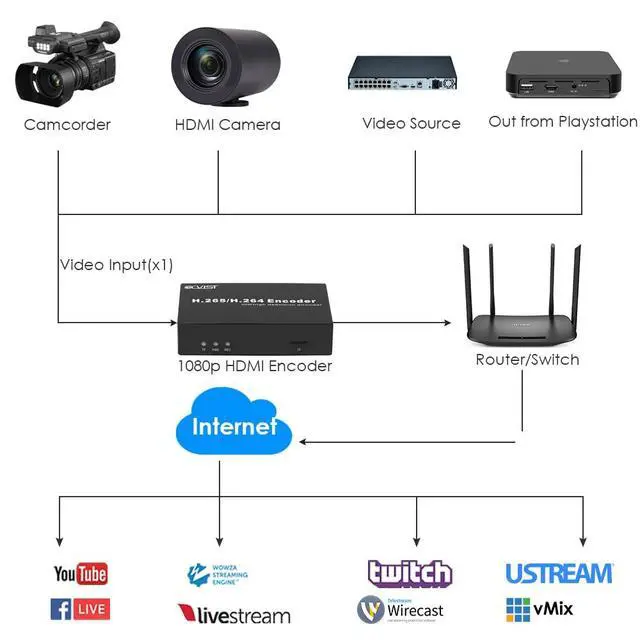

- Online Platform Integration for Real-Time Video Sharing
- Remote Learning, Institutional Announcement Systems, and Virtual Healthcare Services
- Multi-Source Visual Integration and Display
- Networked Recording Environments, Archival Systems, and Monitoring Setups
Features

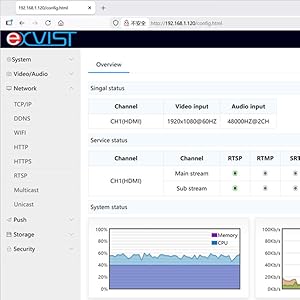

Universal Browser Compatibility

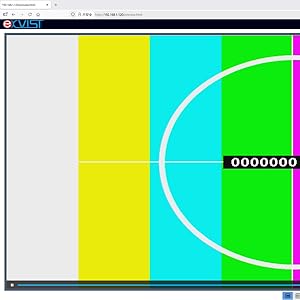

Operate the video conversion unit directly from any major web browser, including Edge, Chrome, and Firefox. Preview instantly when the device and computer are connected to the same local network.

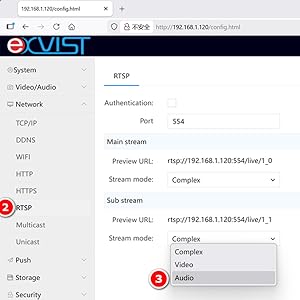

Flexible Output Modes
Configure the converter for dedicated audio output by selecting the 'Audio' option in the output format menu, effectively transforming it for high-fidelity sound signal processing without video.

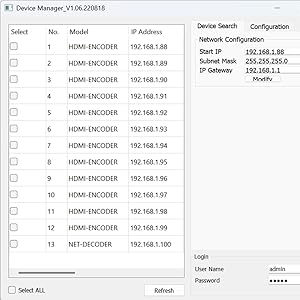

Centralized Unit Administration
Manage the configuration of multiple devices simultaneously from Device Manager. Update settings like network parameters, perform firmware upgrades, restart, or reset groups of converters back to their original state efficiently.
Extensive Format & Standard Support
The HDMI video converter is compatible with a wide range of industry-standard data transmission formats and is designed to work with common network video protocols. It also allows for independent transmission of video and audio signals.
Multi-Destination Output Routing
Convert your video signal to several different online endpoints independently by assigning unique destination addresses for the primary and secondary output channels.
Professional Software Integration
The unit is designed for direct compatibility with popular production applications for expanded functionality, including simultaneous output to multiple endpoints. For use with specific production software, a dedicated low-latency transmission mode is recommended for optimal performance.
Specifications of EXVIST Basic HDMI Video Encoder w/SD Card Slot

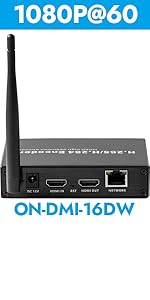

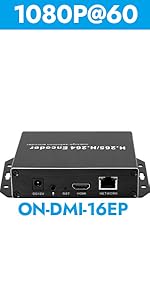

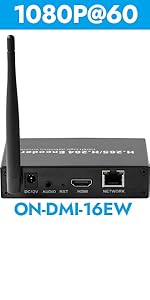

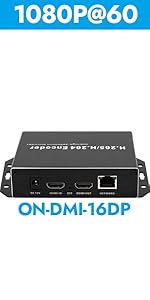

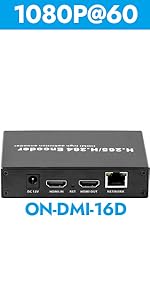

 Basic HDMI Video Encoder w/SD Card Slot for Local Recording |  WiFi HDMI Video Encoder w/SD Card Slot for CCTV Surveillance |  PoE HDMI Video Encoder w/SD Card Slot for Network Video Recorder(NVR) |  Basic HDMI Video Encoder w/Loop-Out SD Card Slot for Local Recording |  WiFi HDMI Video Encoder w/Loop-Out SD Card Slot for Surveillance Systems |  PoE HDMI Video Encoder w/Loop-Out SD Card Slot for Network Video Recorder(NVR) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Type | Encoder Only | Encoder Only | Encoder Only | Encoder Only | Encoder Only | Encoder Only |
| HDMI Input | 1ch HDMI Input, Max. 1920*1080P@50/60FPS | 1ch HDMI Input, Max. 1920*1080P@50/60FPS | 1ch HDMI Input, Max. 1920*1080P@50/60FPS | 1ch HDMI Input, Max. 1920*1080P@50/60FPS | 1ch HDMI Input, Max. 1920*1080P@50/60FPS | 1ch HDMI Input, Max. 1920*1080P@50/60FPS |
| System Mode | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 |
| Frame Rate | Up to 25/30 or 50/60, Configurable, Determined by system mode | Up to 25/30 or 50/60, Configurable, Determined by system mode | Up to 25/30 or 50/60, Configurable, Determined by system mode | Up to 25/30 or 50/60, Configurable, Determined by system mode | Up to 25/30 or 50/60, Configurable, Determined by system mode | Up to 25/30 or 50/60, Configurable, Determined by system mode |
| Video Output | Output by Ethernet | Output by Ethernet | Output by Ethernet | Output by Ethernet/HDMI | Output by Ethernet/HDMI | Output by Ethernet/HDMI |
| Loop-Out | Unavailable | Unavailable | Unavailable | 1ch HDMI Loop-Out, Max. 1920*1080P@60fps | 1ch HDMI Loop-Out, Max. 1920*1080P@60fps | 1ch HDMI Loop-Out, Max. 1920*1080P@60fps |

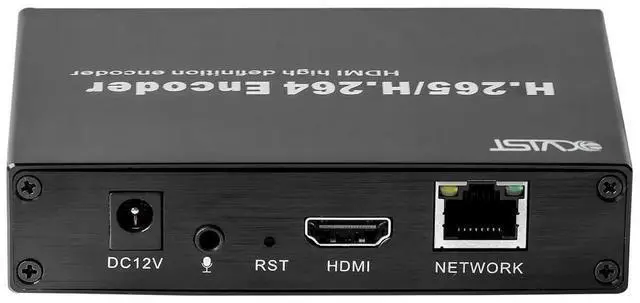

| Audio Input | Embedded over HDMI or 3.5mm TRS Line-In | Embedded over HDMI or 3.5mm TRS Line-In | Embedded over HDMI or 3.5mm TRS Line-In | Embedded over HDMI or 3.5mm TRS Line-In | Embedded over HDMI or 3.5mm TRS Line-In | Embedded over HDMI or 3.5mm TRS Line-In |

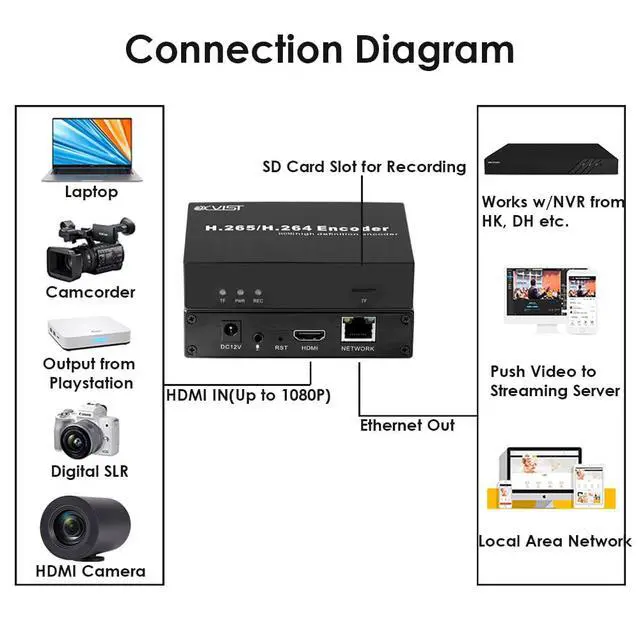

| Local Recording | Built-in Micro SD slot for Local Recording, Max. 128GB | Built-in Micro SD slot for Local Recording, Max. 128GB | Built-in Micro SD slot for Local Recording, Max. 128GB | Built-in Micro SD slot for Local Recording, Max. 128GB | Built-in Micro SD slot for Local Recording, Max. 128GB | Built-in Micro SD slot for Local Recording, Max. 128GB |
EXVIST Basic HDMI Video Encoder W/SD Card Slot
ON-DMI-16E is designed for industrial-grade applications, facilitating the transmission of real-time visual and audio data to online platforms via a wired connection. It is suitable for both professional projects and individual applications requiring the sharing of dynamic video and the capture of ongoing events.
With its latest firmware, the device offers versatile encoding capabilities, supporting independent processing of visual and audio signals. Key applications include:
- Managed Television Networks and Hospitality Systems
- Dynamic Display Solutions, Remote Collaboration, and Visual Data Acquisition
- Online Platform Integration for Real-Time Video Sharing
- Remote Learning, Institutional Announcement Systems, and Virtual Healthcare Services
- Multi-Source Visual Integration and Display
- Networked Recording Environments, Archival Systems, and Monitoring Setups
Features
Universal Browser Compatibility
Operate the video conversion unit directly from any major web browser, including Edge, Chrome, and Firefox. Preview instantly when the device and computer are connected to the same local network.
Flexible Output Modes
Configure the converter for dedicated audio output by selecting the 'Audio' option in the output format menu, effectively transforming it for high-fidelity sound signal processing without video.
Centralized Unit Administration
Manage the configuration of multiple devices simultaneously from Device Manager. Update settings like network parameters, perform firmware upgrades, restart, or reset groups of converters back to their original state efficiently.
Extensive Format & Standard Support
The HDMI video converter is compatible with a wide range of industry-standard data transmission formats and is designed to work with common network video protocols. It also allows for independent transmission of video and audio signals.
Multi-Destination Output Routing
Convert your video signal to several different online endpoints independently by assigning unique destination addresses for the primary and secondary output channels.
Professional Software Integration
The unit is designed for direct compatibility with popular production applications for expanded functionality, including simultaneous output to multiple endpoints. For use with specific production software, a dedicated low-latency transmission mode is recommended for optimal performance.
Specifications of EXVIST Basic HDMI Video Encoder w/SD Card Slot
| Video Encoding | H.265. H.264 |
| Resolution | Up to 1080P |
| Video Input | 1ch HDMI Input, Max. 1920*1080P@50/60FPS |
| System Mode | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 |
| Bitrate | CBR/VBR, 64-1200Kbit/s (500 recommended) |
| Frame Rate | Up to 25/30 or 50/60, Configurable, Determined by System Mode |
| Encoding Performance | Max. 1080p@55fps, Tested by Playing RTSP Stream in PotPlayer |
| HDMI Output | Not Supported |
| Playback | Online Playback Supported (Pack Time: 10/20/30 minutes) |
| Video Format | MP4 |
| Audio Encoding | AAC, G.711A, G.711U |
| Sampling Rate | 32K, 48K, 64K, 128K, 256K or 8000HZ(NVR) |

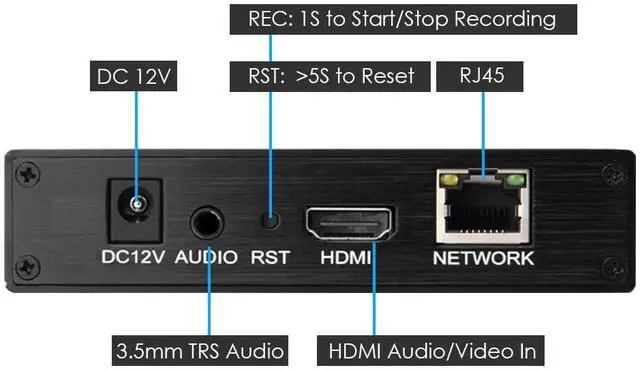

| Audio Input | Embedded over HDMI or 3.5mm TRS Line-In |
| Local Recording | Built-in Micro SD slot for Local Recording, Max. 128GB |

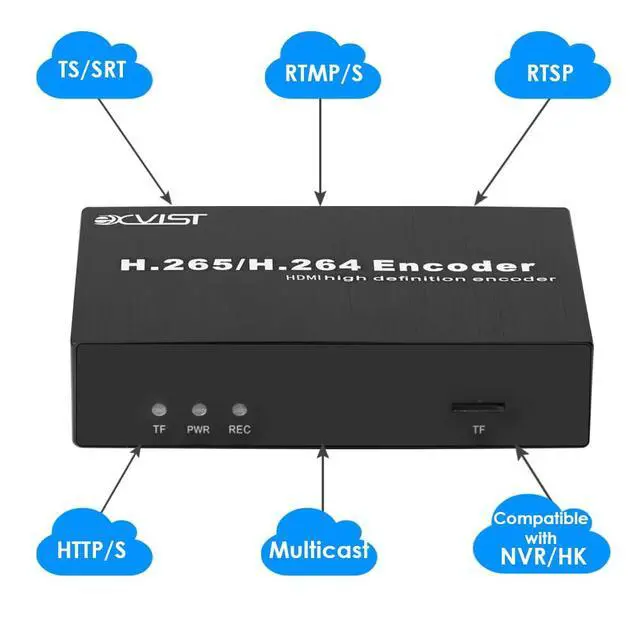

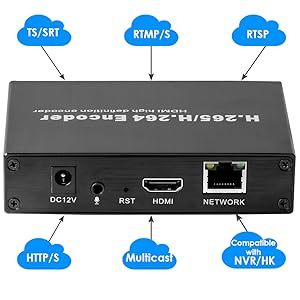

| Protocols | DDNS, HLS, HTTP, HTTPS, Real-Time Messaging Protocol, RTSP, RTP, SRT, TS, UDP and NVR/HK |
Basic HDMI Video Encoder w/SD Card Slot for Local Recording | WiFi HDMI Video Encoder w/SD Card Slot for CCTV Surveillance | PoE HDMI Video Encoder w/SD Card Slot for Network Video Recorder(NVR) | Basic HDMI Video Encoder w/Loop-Out SD Card Slot for Local Recording | WiFi HDMI Video Encoder w/Loop-Out SD Card Slot for Surveillance Systems | PoE HDMI Video Encoder w/Loop-Out SD Card Slot for Network Video Recorder(NVR) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Type | Encoder Only | Encoder Only | Encoder Only | Encoder Only | Encoder Only | Encoder Only |
| HDMI Input | 1ch HDMI Input, Max. 1920*1080P@50/60FPS | 1ch HDMI Input, Max. 1920*1080P@50/60FPS | 1ch HDMI Input, Max. 1920*1080P@50/60FPS | 1ch HDMI Input, Max. 1920*1080P@50/60FPS | 1ch HDMI Input, Max. 1920*1080P@50/60FPS | 1ch HDMI Input, Max. 1920*1080P@50/60FPS |
| System Mode | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 | Switchable, 2*1080P@25/30+D1@25/30 or 1*1080P@50/60 |
| Frame Rate | Up to 25/30 or 50/60, Configurable, Determined by system mode | Up to 25/30 or 50/60, Configurable, Determined by system mode | Up to 25/30 or 50/60, Configurable, Determined by system mode | Up to 25/30 or 50/60, Configurable, Determined by system mode | Up to 25/30 or 50/60, Configurable, Determined by system mode | Up to 25/30 or 50/60, Configurable, Determined by system mode |
| Video Output | Output by Ethernet | Output by Ethernet | Output by Ethernet | Output by Ethernet/HDMI | Output by Ethernet/HDMI | Output by Ethernet/HDMI |
| Loop-Out | Unavailable | Unavailable | Unavailable | 1ch HDMI Loop-Out, Max. 1920*1080P@60fps | 1ch HDMI Loop-Out, Max. 1920*1080P@60fps | 1ch HDMI Loop-Out, Max. 1920*1080P@60fps |
| Audio Input | Embedded over HDMI or 3.5mm TRS Line-In | Embedded over HDMI or 3.5mm TRS Line-In | Embedded over HDMI or 3.5mm TRS Line-In | Embedded over HDMI or 3.5mm TRS Line-In | Embedded over HDMI or 3.5mm TRS Line-In | Embedded over HDMI or 3.5mm TRS Line-In |
| Local Recording | Built-in Micro SD slot for Local Recording, Max. 128GB | Built-in Micro SD slot for Local Recording, Max. 128GB | Built-in Micro SD slot for Local Recording, Max. 128GB | Built-in Micro SD slot for Local Recording, Max. 128GB | Built-in Micro SD slot for Local Recording, Max. 128GB | Built-in Micro SD slot for Local Recording, Max. 128GB |
