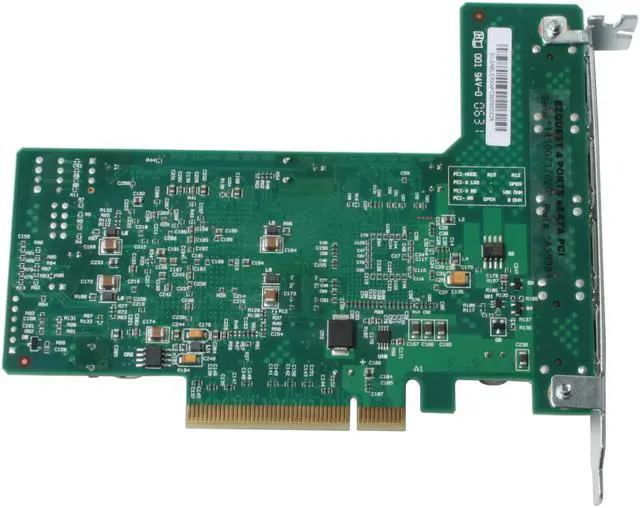

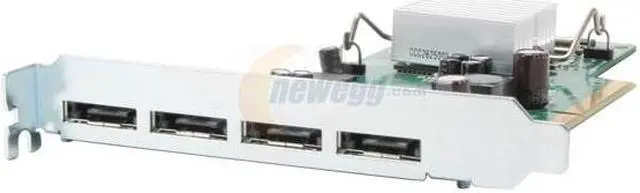

EZQUEST 4 Port eSATA 8X PCI Express Controller Card Model A59984

Be the first to review this product...
  • 4 Port eSATA 8X PCI Express Controller Card
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the EZQuest A59984

Model
Brand EZQUEST
Model A59984
Type 4 Port eSATA 8X PCI Express Controller Card
Features
Features EZQuest introduces the 4 Port eSATA 8X PCI Express Controller Card. Designed to the latest 3Gbits/sec ASIC from Silicon Image and eSATA connector, this 4-port controller incorporates many advanced features such as huge bandwidth for data throughput. The 4 eSATA ports can be easily configured as 4 individual ports with no RAID or with RAID 0 or RAID 1. It has the ability for developing the raw and high definition video and other applications.

When installed into the fast PCI-Express BUS, this controller ensures maximum data throughput of 3 Gbits/sec per port. In addition, the latest External SATA (eSATA) connector also provides more secured cable connection, improved durability, increased EMI protection, supports advanced SATA II features such as native command queuing, port multipliers with FIS-based switching, and up to 2 meters cable length.

• Supports Windows NT, 2000, 2003, XP, Linux and Mac drivers available
• Each port can support single direct connected drive or Port Multiplier with up to 5 drives
• SATA II bus compliance -- 300 MB/sec burst transfers! Auto switch 150/300 MB/sec auto negotiation
• Supports full Hot-Swap capability
• Silicon Image Chipset
• Built in RAID functions include RAID 0, RAID 1, RAID 1+0, JBOD
• RAID 5 Capable with the Windows Platform
• 4 External eSATA Ports
• Spread Spectrum Clocking compatibility with all SATA drives
• Firmware is upgradeable via future updates
• Port Multiplier capable
Additional Information
First Listed on Newegg May 08, 2007
