Question 1

Will this work with an ASRock X570 PRO4?

Accepted Answer

I think so, yes.   "- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module"   from the motherboard spec page at asrock dot com    Do a google search for the motherboard name. Should lead you to that spec page.

Question 2

Will this fit an MSI GE62 2QD Apache Pro? I need to replace my Intel 7260NGW card

Accepted Answer

Looking at that laptop's manual on MSI's web page, I would suspect it very likely this card would work. The manual shows a separate card for Wi-Fi/Bluetooth as opposed to on-the-motherboard Wi-Fi.

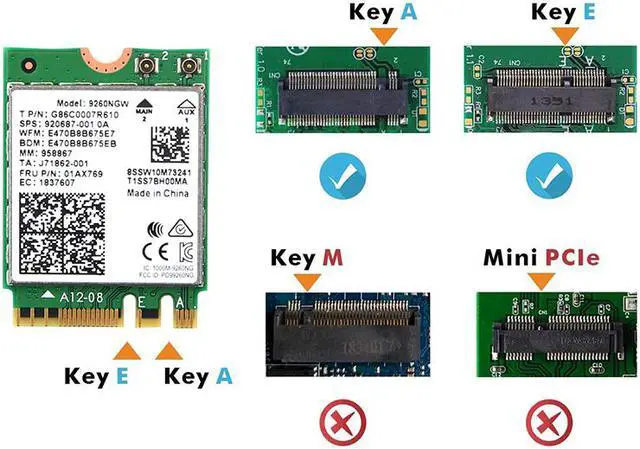

To be certain, you might consider disassembling your laptop according to manufacturer's directions, check the Wi-Fi card to make sure it has the two A-E slots as shown in the product image.

Question 3

Will this works for MSI Z390A PRO?

Accepted Answer

It will not, from MSI's website "M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only" and you can google "Intel® Integrated Connectivity (CNVi)" and find more info on intel's website. I hope that helps!

Question 4

Will this fit in Dell Inspiron 5759?

Accepted Answer

Very likely. The specifications for that laptop from Dell's website says "One M.2 slot for Wi‑Fi and Bluetooth combo card"   The M.2 slot for WiFi cards is A-E Key, as is this card.  Perhaps follow the Dell service manual for this laptop and inspect your WiFi card to make 100% sure. The WiFi card seems very accessible.

Question 5

Is it compatible with ASUS GL702ZC?

Accepted Answer

from what I can see the WIFi card on the GL702ZC is integrated into the mother board. if this is true then you cannot change it out. You would have to do more research to see if this is true. if not then you need to find out if it takes a M.2 card or a mini PCIe. this card is a M.2 so if your ASUS has this then yes it will work for you. good luck hope this helps.

Question 6

Can this be used on a Samsung rf710 laptop?

Accepted Answer

You have to check the specification of your laptop on the Samsung website to see if it uses NGFF slot for wifi.

Question 7

Will this work with a Dell  3521 and is this WIFI 6 compatible?

Accepted Answer

My search of "Dell 3521" indicates that is a laptop with no M2 port. This particular Fenvi card is designed to mount directly on an Intel-based motherboard provided the mb that has an M2 slot on the board.  In addition, two wired antennae need to connect to this card and be mounted on the computer.  With regard to the wi-fi question, Wi-fi 6 is defined by and uses the IEEE 802.11AX standard; if you look at the description of this Fenvi card, it supports the IEEE 802.11AC standard, i.e., Wi-fi 5.  If you could have used this card, it may have worked, but you would just not have the extra speed benefit (typically a 50% increase) of Wi-fi 6 over Wi-fi 5.  I see the laptop comes with Wi-fi 4 (IEEE 802.11N) built in.  It sounds like your best course is to get a USB-based Wi-fi 6 adapter designed to be plugged into one of your USB ports and then turn off the built-in Wi-fi 4 adapter in your bios.

Question 8

is it compatible with HP PAVILION NOTEBOOK?

Accepted Answer

Most HP notebooks can only use whitelisted wifi cards, so you would need to check with HP's list of approved cards. If I had to guess, I would say no, unless they sell it themselves. One of the reasons I got away from HP laptops!!!

Question 9

What Lenovo Laptops are supported?

Accepted Answer

Check the service manual of the model in which you are interested.

Question 10

this one works with the asrock mini a300?
Thanks :)

Accepted Answer

From Asrock's website, "M.2 (key E 2230) Slot for Wi-Fi + BT Module" So yes, this should fit in the socket on board.

Brand	fenvi
Model	For 9260NGW

Standards	IEEE 802.11ac, IEEE 802.11a/b/g/n
Wireless Data Rates	Up to 1.7Gbps
Interface	M.2 slot for Wi-Fi, not M.2:CNVI, not M.2 for SSD
Frequency Band	2.4 GHz / 5 GHz

Meet Your Seller

Wireless-AC Intel 9260 9260NGW Adapter For M.2 Key E NGFF Wifi Network Card 9260AC, Wi-Fi + Bluetooth 5.0, Up to 1730Mbps-5G, 300Mbps-2.4G, Dual Band, IEEE 802.11ac, MU-MIMO, Windows 10 for Laptop PC
