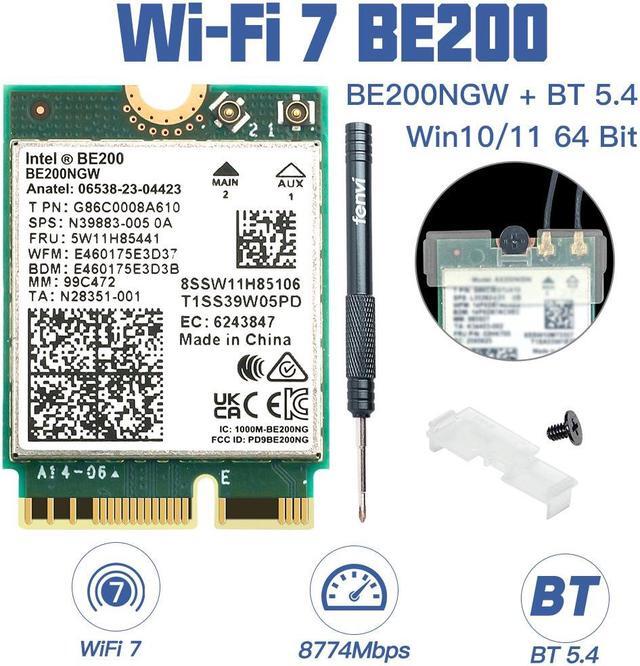

Wi-Fi 7:With Intel Wi-Fi 7 technology network adapter provides strong performance and good compatibility, while reducing power consumption and improving service life.
Provides Tri-band (6GHz, 5GHz and 2.4GHz) signal. Based on technologies such as 4096-QAM, MU-MIMO, and 320MHz bandwidth, Maximum speed up to 8774Mbps(5800Mbps @6GHz + 2400Mbps @5GHz + 574Mbps @2.4GHz).
Bluetooth 5.4:Based on Bluetooth 5.3, Bluetooth 5.4 adds LE enhanced connection/Host set Controller key length function/LE channel hierarchy function. Make Bluetooth 5.4 lower latency, stronger anti-interference, improve battery life.

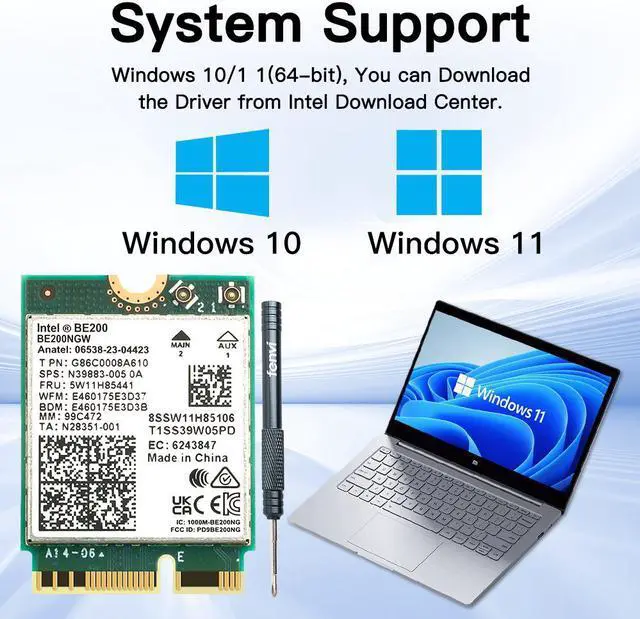

Compatible System:Support Windows 11/10 64-bit, WiFi and Bluetooth drivers need to be installed on the running PC (search "BE200" from Intel website to download and install wifi and Bluetooth drivers).

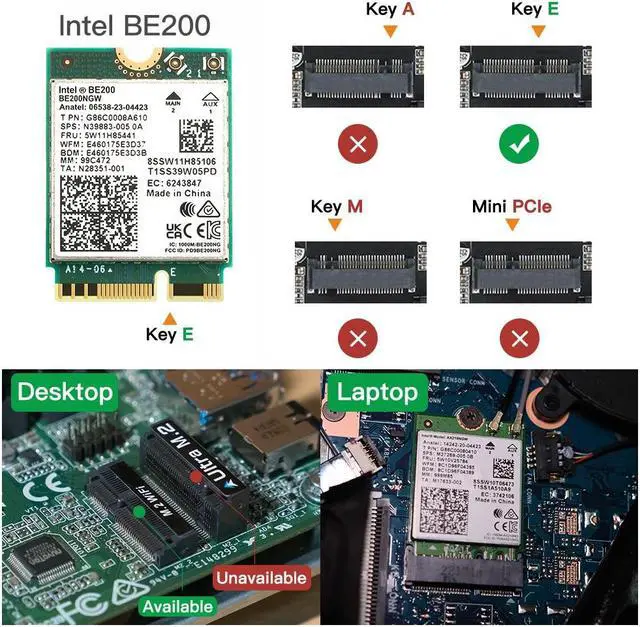

Installation Requirements: For motherboards with Intel CPU and M2 network slot, NGFF M2 2230 E key.
Not support AMD Laptop.
+
+
Overview
Specs
Reviews (5)
Any questions? Our AI beta will help you find out quickly.
Try me now
BE200NGW is a WIFI 7 module designed and developed by Intel Corporation. This module integrates advanced wireless technology to provide high-speed and reliable wireless connectivity for various devices. With support for the latest WIFI 7 standard, the BE200 offers significant improvements in data transfer rates and network capacity compared to its predecessors. Wi-Fi 7 also introduces 320MHz wide bands double that of Wi-Fi 6 thanks to channel banding alongside 4096 QAM. The WiFi 7 BE200NGW WiFi Card supports 2x2 TX/RX streams, uses 2.4GH z, 574Mbps, 5GHz, 2400Mbps, and 6GHz, 5800Mbps bands, and the BE200 has a maximum speed of 5Gbit/s, which is significantly below the maximum transfer rate supported by the standard. WiFi 7 BE200NGW also supports PCIe (With a PCIe Adapter) and USB interfaces and can be used for desktop motherboards and laptops. It can also achieve "self" load balancing, using its own multi-channel advantages for concurrent data transmission. Solve the problem that WiFi 6 cannot automatically switch bands. In theory, this WiFi 7 BE200NGW Adapter on 320MHz channels allows devices to enjoy higher single-device throughput. WiFi 6 can achieve a maximum of 160MHz, and WiFi 7 directly doubled, so that the access of digital devices can have greater wireless throughput capacity. Faster speed and lower latency. WiFi 7 can support data transmission rates of up to 30Gbps, which is equivalent to three times that of WiFi 6 and can meet the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing, and cloud computing scenarios. Only support Windows 10/11 64 bit and Bluetooth 5.4 version, Bluetooth 5.4 adds LE enhanced connection Host set Controller key length function LE channel hierarchy function. Make Bluetooth 5.4 lower latency, stronger anti-interference, improve battery life. If you get and install it and you could download the driver fron I-n-t-e-l official website at the first time.
Installation Requirements: For motherboards with Intel CPU and M2 network slot, NGFF M2 2230 E key. Not support AMD Laptop.
Specification
Installation Requirements: For motherboards with Intel CPU and M2 network slot, NGFF M2 2230 E key.
Model: BE200NGW Tri band: 2.4GHz/5GHz/6GHz Speed up to 2.4Ghz-574Mbps (80Mhz), 5Ghz-2400Mbps (160Mhz), 6Ghz-5800Mbps (320Mhz) Interface: NGFF (M.2), 22x30mm
Bluetooth Version: BT 5.4 Supported Operating Systems: Only work on Microsoft Windows 10/11 64-Bit Note: Not support Windows 7/8/8.1

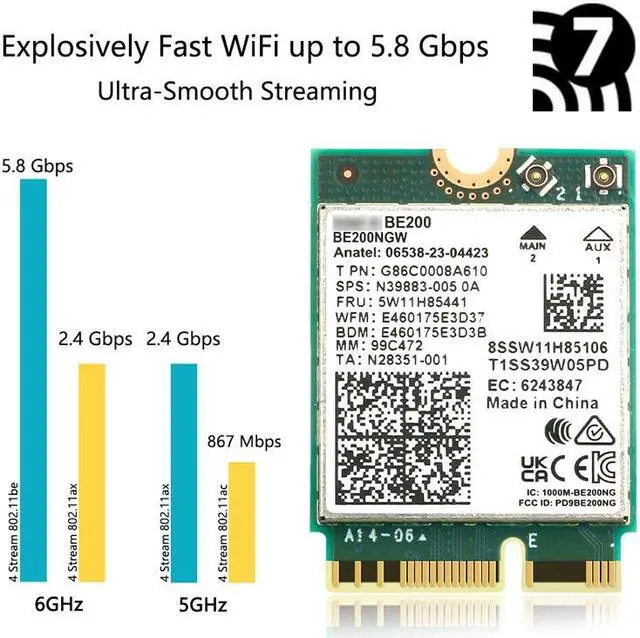

Max Speed: 5.8Gbps on 6Ghz (The router must support 802.11be, 320Mhz)

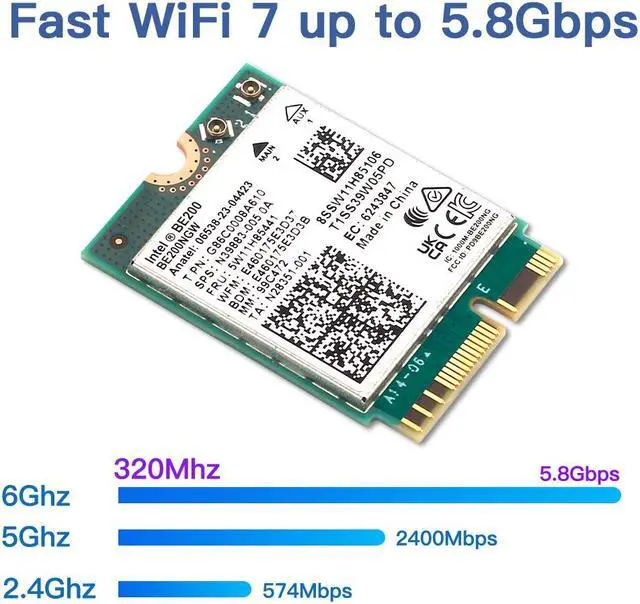

WiFi 7-New generation WiFi Standard
2.4Ghz up to 574Mbps (80Mhz)
5Ghz up to 2400Mbps (160Mhz)
6Ghz up to 5800Mbps (320Mhz)
WiFi 7 features, including MU-MIMO and OFDMA
WiFi 7 technology
6GHz - 5800Mbps
5GHz - 2400Mbps
2.4GHz - 574Mbps

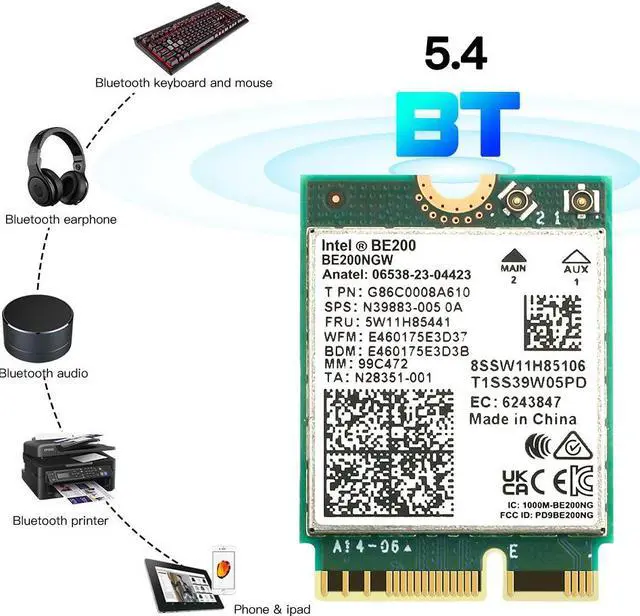

Bluetooth Version
Support connecting with Bluetooth headset, Bluetooth stereo, Bluetooth keyboard, Bluetooth mouse and others for more conveniences and demands.
WPA3 Advanced Security
WPA3 provides more secure and individualized encryption in personal password safety, protecting your network from wireless hacking. Always keep your network safe while gaming online.
