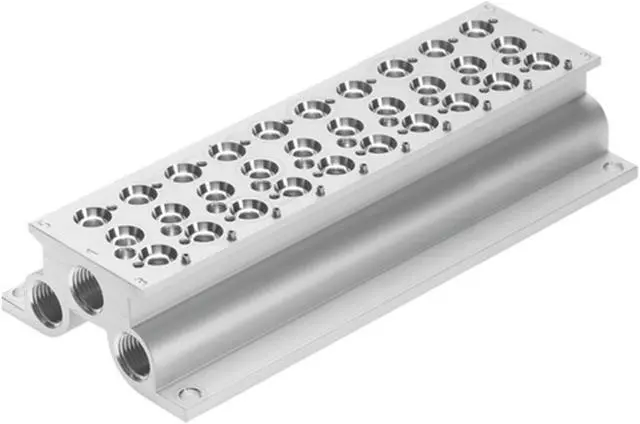

FESTO CPE18-PRS-3/8-10-NPT 550096 Connection Block New
- FESTO CPE18-PRS-3/8-10-NPT 550096 Connection Block New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Width dimension
26 mm
Type code
CPE18-PRS
Mounting position
Any
Max. no. of valve positions
10
Max. no. of pressure zones
2
Operating pressure
-0.896 bar ... 9.997 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Max. tightening torque for valve mounting
2.034 Nm
Product weight
1375.259 g
Manifold block type of mounting
With through-hole
Pneumatic valve mounting type
With internal thread
Pneumatic connection 1
3/8 NPT
Pneumatic connection 3
3/8 NPT
Pneumatic connection 5
3/8 NPT
Note on materials
RoHS-compliant
Manifold rail material
Wrought aluminum alloy
26 mm
Type code
CPE18-PRS
Mounting position
Any
Max. no. of valve positions
10
Max. no. of pressure zones
2
Operating pressure
-0.896 bar ... 9.997 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Max. tightening torque for valve mounting
2.034 Nm
Product weight
1375.259 g
Manifold block type of mounting
With through-hole
Pneumatic valve mounting type
With internal thread
Pneumatic connection 1
3/8 NPT
Pneumatic connection 3
3/8 NPT
Pneumatic connection 5
3/8 NPT
Note on materials
RoHS-compliant
Manifold rail material
Wrought aluminum alloy
