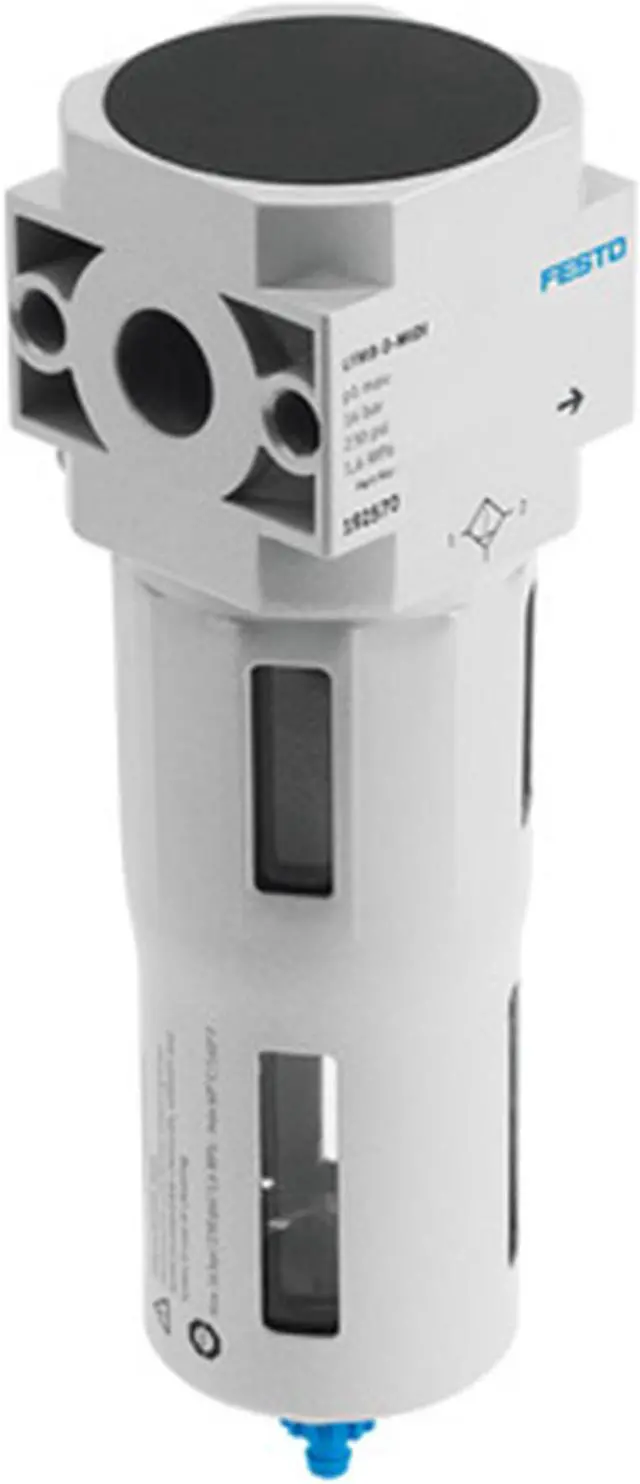

FESTO LF-D-5M-MINI-A-U Basic Valve 546453 New
- FESTO LF-D-5M-MINI-A-U Basic Valve 546453 New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Size
Mini
Maritime classification
See certificate
Type code
LF
Series
D
Mounting position
Vertical +/- 5°
Grade of filtration
5 µm
Condensate drain
Fully automatic
Design
Sinter filter with centrifugal separator
Max. condensate volume
21.991 ml
Bowl guard
Metal bowl guard
Symbol
00991520
Operating pressure
1.931 bar ... 12.411 bar
Standard nominal flow rate
3559.32 l/min
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
248.062 g
Note on materials
RoHS-compliant
Compressed air filter material
PE
Housing material
Die-cast zinc
Material of bowl
PC
Mini
Maritime classification
See certificate
Type code
LF
Series
D
Mounting position
Vertical +/- 5°
Grade of filtration
5 µm
Condensate drain
Fully automatic
Design
Sinter filter with centrifugal separator
Max. condensate volume
21.991 ml
Bowl guard
Metal bowl guard
Symbol
00991520
Operating pressure
1.931 bar ... 12.411 bar
Standard nominal flow rate
3559.32 l/min
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
248.062 g
Note on materials
RoHS-compliant
Compressed air filter material
PE
Housing material
Die-cast zinc
Material of bowl
PC
