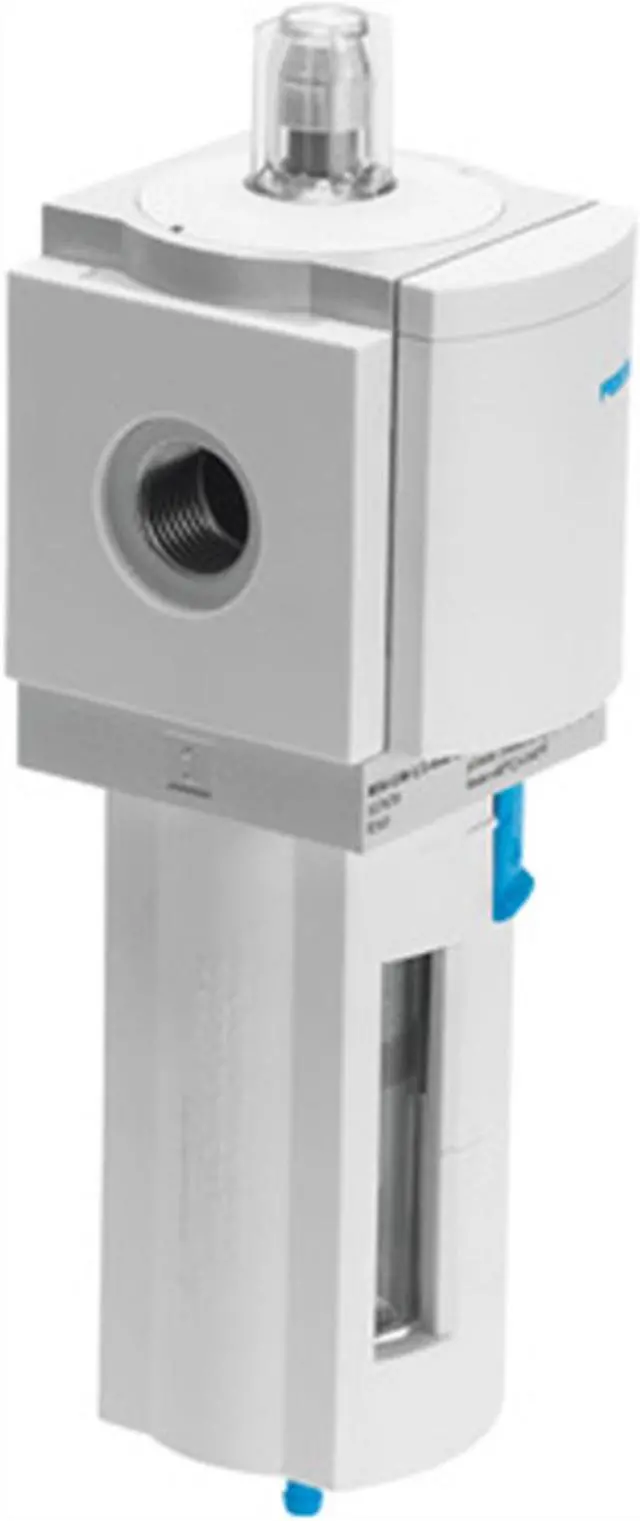

FESTO MS4N-LFM-1/8-AUV-DA Micro Filter 537221 Size 4 New
- FESTO MS4N-LFM-1/8-AUV-DA Micro Filter 537221 Size 4 New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Series
MS
Size
4
Type code
MS4N-LFM
Design
Fiber filter
Grade of filtration
0.01 µm
Condensate drain
Fully automatic
Symbol
00991544
Operating pressure
2 bar ... 12 bar
Max. standard flow rate for air quality class
360 l/min
Min. standard flow rate for air quality class
54 l/min
Filter efficiency
99.9999 %
Max. condensate volume
25 ml
Bowl guard
Integrated as metal bowl guard
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
5 °C ... 60 °C
Ambient temperature
5 °C ... 60 °C
Storage temperature
-10 °C ... 60 °C
Residual oil content
0.01 mg/m3
Differential pressure display
Visual display
Mounting position
Vertical +/- 5°
Pneumatic connection 1
1/8 NPT
Pneumatic connection 2
1/8 NPT
Housing material
Die-cast aluminum
Compressed air filter material
Borosilicate fiber
Product weight
350 g
MS
Size
4
Type code
MS4N-LFM
Design
Fiber filter
Grade of filtration
0.01 µm
Condensate drain
Fully automatic
Symbol
00991544
Operating pressure
2 bar ... 12 bar
Max. standard flow rate for air quality class
360 l/min
Min. standard flow rate for air quality class
54 l/min
Filter efficiency
99.9999 %
Max. condensate volume
25 ml
Bowl guard
Integrated as metal bowl guard
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
5 °C ... 60 °C
Ambient temperature
5 °C ... 60 °C
Storage temperature
-10 °C ... 60 °C
Residual oil content
0.01 mg/m3
Differential pressure display
Visual display
Mounting position
Vertical +/- 5°
Pneumatic connection 1
1/8 NPT
Pneumatic connection 2
1/8 NPT
Housing material
Die-cast aluminum
Compressed air filter material
Borosilicate fiber
Product weight
350 g
