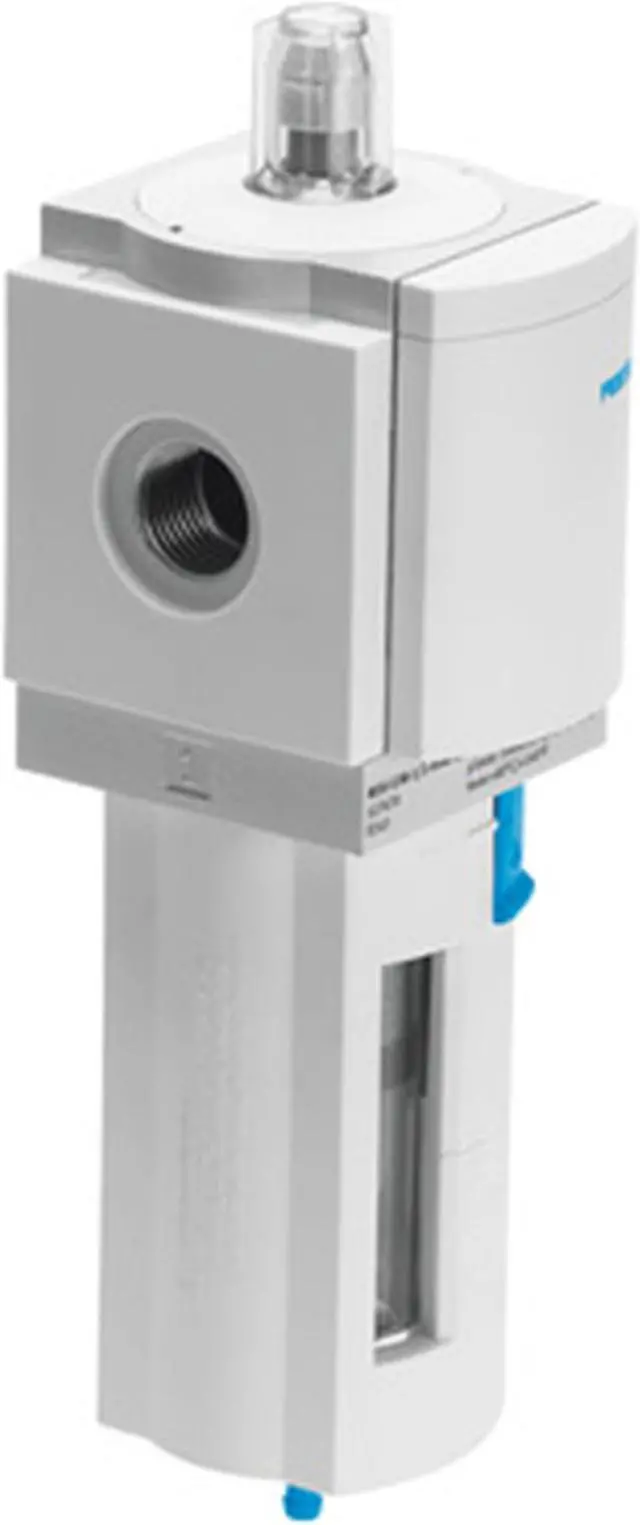

FESTO MS4N-LFM-1/8-BUV-DA Fine Filter 537217 New
- FESTO MS4N-LFM-1/8-BUV-DA Fine Filter 537217 New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Series
MS
For use in the food industry
See supplementary material information
Size
4
Type code
MS4N-LFM
Design
Fiber filter
Grade of filtration
1 µm
Condensate drain
Fully automatic
Symbol
00991544
Operating pressure
2 bar ... 12 bar
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [5:7:3]
Max. standard flow rate for air quality class
360 l/min
Min. standard flow rate for air quality class
54 l/min
Filter efficiency
99.99 %
Max. condensate volume
25 ml
Bowl guard
Integrated as metal bowl guard
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
5 °C ... 60 °C
Ambient temperature
5 °C ... 60 °C
Storage temperature
-10 °C ... 60 °C
Residual oil content
0.5 mg/m3
Differential pressure display
Visual display
Mounting position
Vertical +/- 5°
Pneumatic connection 1
1/8 NPT
Pneumatic connection 2
1/8 NPT
Product weight
350 g
MS
For use in the food industry
See supplementary material information
Size
4
Type code
MS4N-LFM
Design
Fiber filter
Grade of filtration
1 µm
Condensate drain
Fully automatic
Symbol
00991544
Operating pressure
2 bar ... 12 bar
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [5:7:3]
Max. standard flow rate for air quality class
360 l/min
Min. standard flow rate for air quality class
54 l/min
Filter efficiency
99.99 %
Max. condensate volume
25 ml
Bowl guard
Integrated as metal bowl guard
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
5 °C ... 60 °C
Ambient temperature
5 °C ... 60 °C
Storage temperature
-10 °C ... 60 °C
Residual oil content
0.5 mg/m3
Differential pressure display
Visual display
Mounting position
Vertical +/- 5°
Pneumatic connection 1
1/8 NPT
Pneumatic connection 2
1/8 NPT
Product weight
350 g
