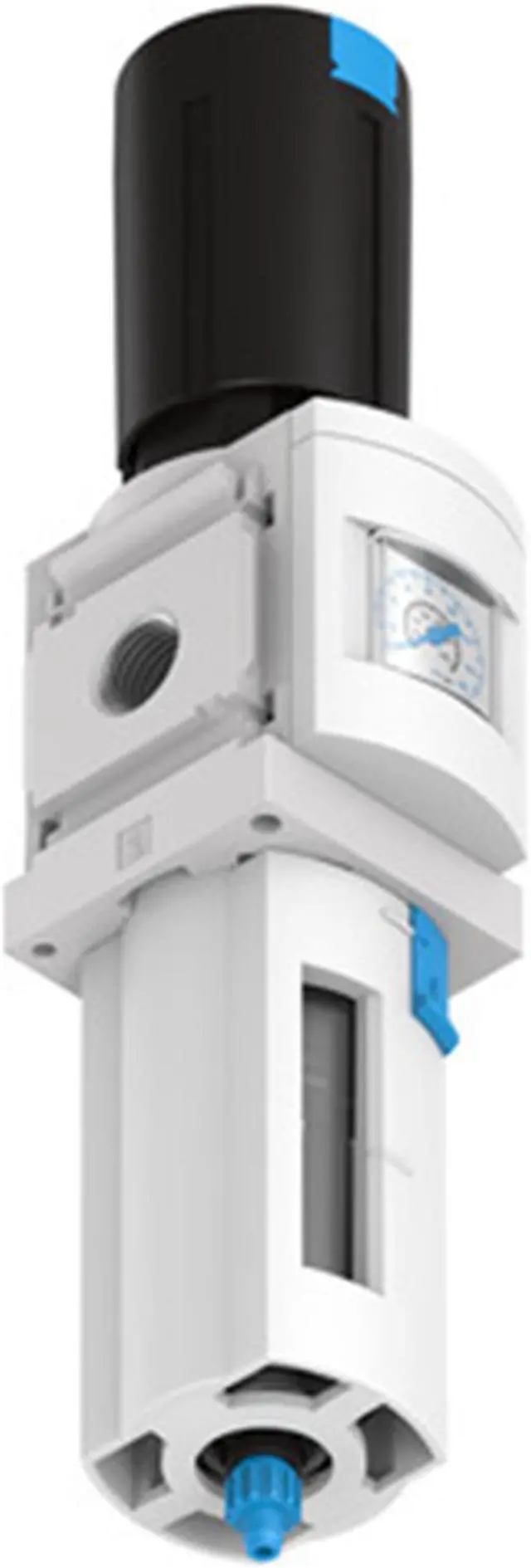

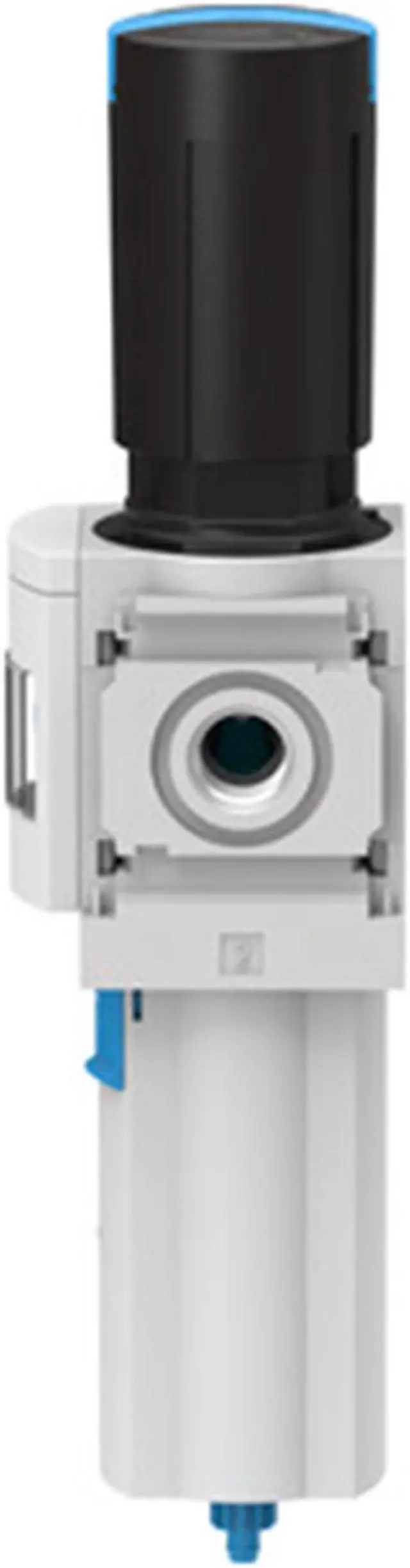

FESTO MS6-LFR-1/2-D7- CRV-AS Filter Regulator 529186 New

Size
6
For use in the food industry
See supplementary material information
Type code
MS6-LFR
Series
MS
Actuator lock
Rotary knob with detent can be closed with accessories
Mounting position
Vertical +/- 5°
Grade of filtration
5 µm
Condensate drain
Fully automatic
Design
Filter regulator with pressure gauge
Max. condensate volume
38 ml
Controller function
With secondary exhausting Outlet pressure constant
Bowl guard
Plastic bowl guard
Symbol
00991587
Pressure gauge
with pressure gauge
Operating pressure
2 bar ... 12 bar
Pressure regulation range
0.5 bar ... 12 bar
Max. pressure hysteresis
0.25 bar
Standard nominal flow rate
4000 l/min
Operating medium
Inert gas Compressed air as per ISO 8573-1:2010 [7:4:-]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-10 °C ... 60 °C
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [6:4:4]
Temperature of medium
5 °C ... 60 °C
Ambient temperature
5 °C ... 60 °C
Product weight
875 g
Pneumatic connection 1
G1/2
Pneumatic connection 2
G1/2
Note on materials
RoHS-compliant
Material of operator panel
POM
PA
Seals material
NBR
Compressed air filter material
PE
