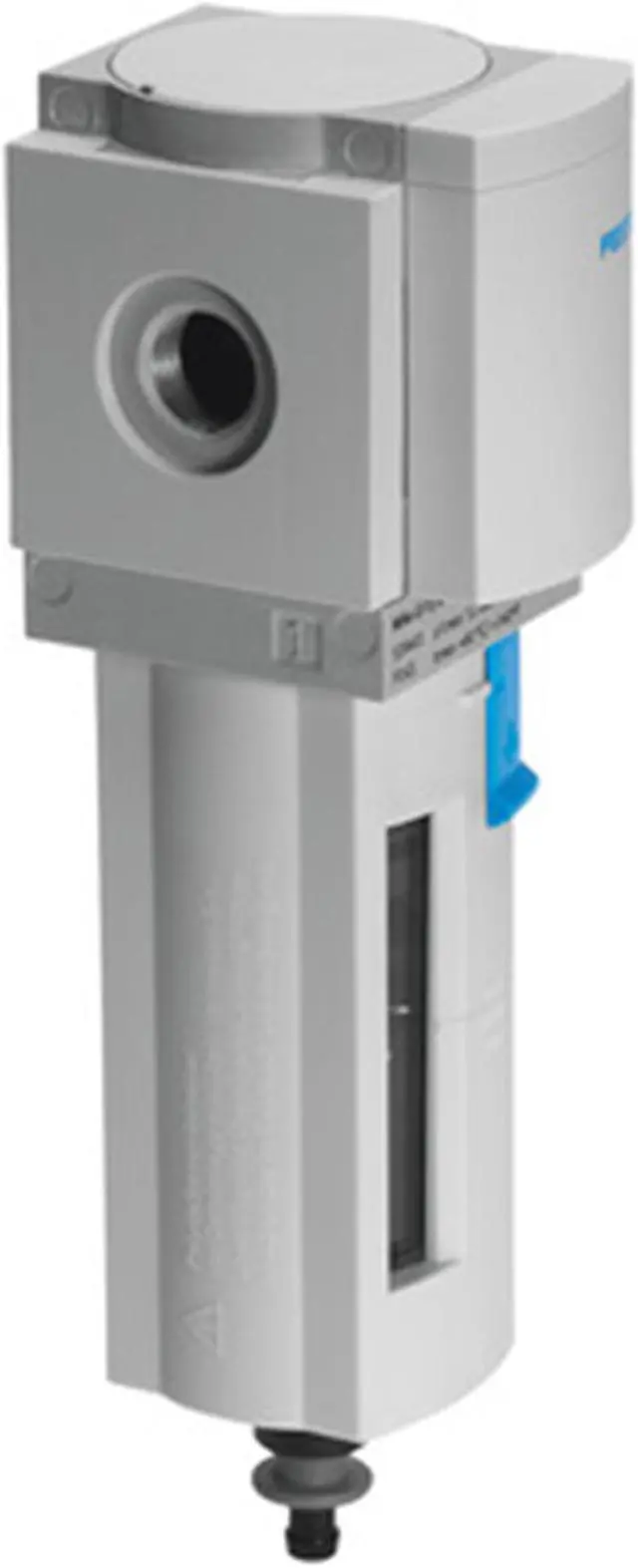

FESTO MS6N-LF-3/8-CUV Compressed Air Filter 531545 New
- FESTO MS6N-LF-3/8-CUV Compressed Air Filter 531545 New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Size
6
For use in the food industry
See supplementary material information
Type code
MS6N-LF
Series
MS
Mounting position
Vertical +/- 5°
Grade of filtration
5 µm
Condensate drain
Fully automatic
Design
Sinter filter with centrifugal separator
Max. condensate volume
38 ml
Bowl guard
Integrated as metal bowl guard
Symbol
00991520
Operating pressure
2 bar ... 12 bar
Standard nominal flow rate
3000 l/min
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-10 °C ... 60 °C
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [6:8:4]
Temperature of medium
5 °C ... 60 °C
Ambient temperature
5 °C ... 60 °C
Product weight
820 g
Pneumatic connection 1
NPT3/8-18
Pneumatic connection 2
NPT3/8-18
Seals material
NBR
Compressed air filter material
PE
Housing material
Die-cast aluminum
Material of bowl
Wrought aluminum alloy
Separating disc material
POM
6
For use in the food industry
See supplementary material information
Type code
MS6N-LF
Series
MS
Mounting position
Vertical +/- 5°
Grade of filtration
5 µm
Condensate drain
Fully automatic
Design
Sinter filter with centrifugal separator
Max. condensate volume
38 ml
Bowl guard
Integrated as metal bowl guard
Symbol
00991520
Operating pressure
2 bar ... 12 bar
Standard nominal flow rate
3000 l/min
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-10 °C ... 60 °C
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [6:8:4]
Temperature of medium
5 °C ... 60 °C
Ambient temperature
5 °C ... 60 °C
Product weight
820 g
Pneumatic connection 1
NPT3/8-18
Pneumatic connection 2
NPT3/8-18
Seals material
NBR
Compressed air filter material
PE
Housing material
Die-cast aluminum
Material of bowl
Wrought aluminum alloy
Separating disc material
POM
