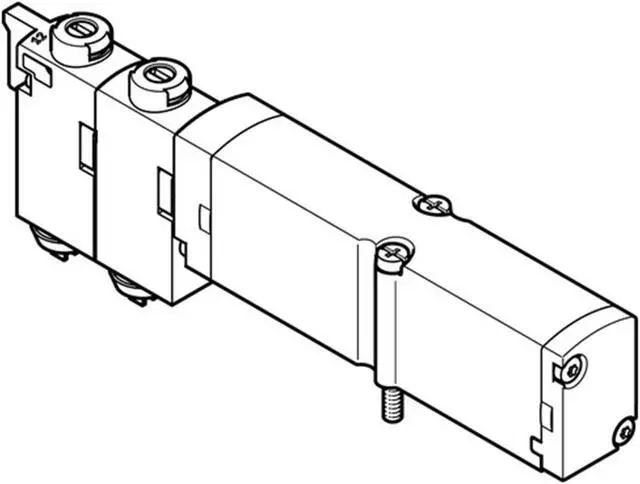

FESTO VMPA14-M1HF-B-PI 578807 Air Solenoid Valve New
- FESTO VMPA14-M1HF-B-PI 578807 Air Solenoid Valve New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Valve function
5/3, pressurized
Relative air humidity
Max. 90 % at 40 °C
Lap
Overlap
Actuation type
Electrical
Valve size
14 mm
Standard nominal flow rate
690 l/min
Operating voltage
24V DC
Operating pressure
-0.9 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
ype code
VMPA14
Sealing principle
Soft
Mounting position
Any
Symbol
00991031
Signal status display
yes
Pilot pressure
3 bar ... 8 bar
Suitability for vacuum
yes
Standard nominal flow rate with QS-8
690 l/min
Switching time off
50 ms
On switching time
16 ms
Changeover time
26 ms
Max. positive test pulse with 0 signal
400 µs
Max. negative test pulse on 1 signal
200 µs
Permissible voltage fluctuations
+/- 25 %
Storage temperature
-20 °C ... 40 °C
For use in the food industry
See supplementary material information
Temperature of medium
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 60 °C
Max. tightening torque for valve mounting
0.65 Nm
Product weight
77 g
5/3, pressurized
Relative air humidity
Max. 90 % at 40 °C
Lap
Overlap
Actuation type
Electrical
Valve size
14 mm
Standard nominal flow rate
690 l/min
Operating voltage
24V DC
Operating pressure
-0.9 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
ype code
VMPA14
Sealing principle
Soft
Mounting position
Any
Symbol
00991031
Signal status display
yes
Pilot pressure
3 bar ... 8 bar
Suitability for vacuum
yes
Standard nominal flow rate with QS-8
690 l/min
Switching time off
50 ms
On switching time
16 ms
Changeover time
26 ms
Max. positive test pulse with 0 signal
400 µs
Max. negative test pulse on 1 signal
200 µs
Permissible voltage fluctuations
+/- 25 %
Storage temperature
-20 °C ... 40 °C
For use in the food industry
See supplementary material information
Temperature of medium
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 60 °C
Max. tightening torque for valve mounting
0.65 Nm
Product weight
77 g
