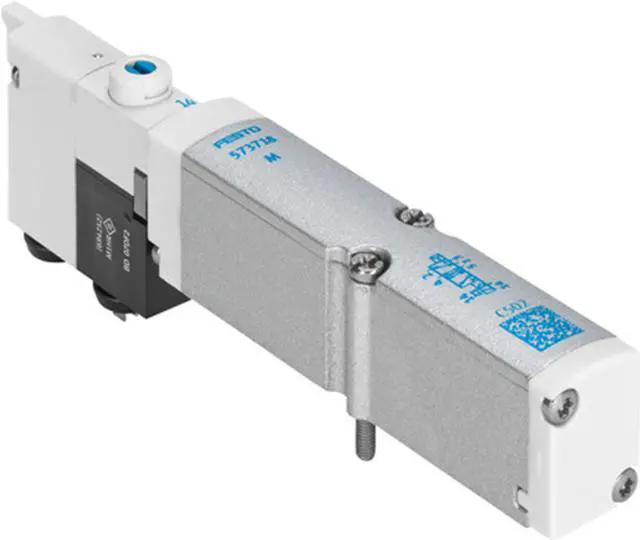

FESTO VMPA14-M1HF-W-PI 578811 Air Solenoid Valve New

Lap
Overlap
Actuation type
Electrical
Valve size
14 mm
Standard nominal flow rate
450 l/min
Operating voltage
24V DC
Operating pressure
-0.9 bar ... 10 bar
Design
Piston gate valve
Reset method
Pneumatic spring
Degree of protection
IP65
In mounted state
as per IEC 60529
Certification
c UL us - Recognized (OL)
Type code
VMPA14
Sealing principle
Soft
Mounting position
Any
Type of control
Pilot-controlled
Flow direction
Reversible
Symbol
00991789
Signal status display
yes
Pilot pressure
3 bar ... 8 bar
Suitability for vacuum
yes
Standard nominal flow rate with QS-8
450 l/min
Switching time off
20 ms
On switching time
12 ms
Max. positive test pulse with 0 signal
400 µs
Max. negative test pulse on 1 signal
200 µs
Permissible voltage fluctuations
+/- 25 %
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
CE marking (see declaration of conformity)
As per EU EMC directive
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
1 - Low corrosion stress
Storage temperature
-20 °C ... 40 °C
For use in the food industry
See supplementary material information
Temperature of medium
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 60 °C
Max. tightening torque for valve mounting
0.65 Nm
Product weight
77 g
