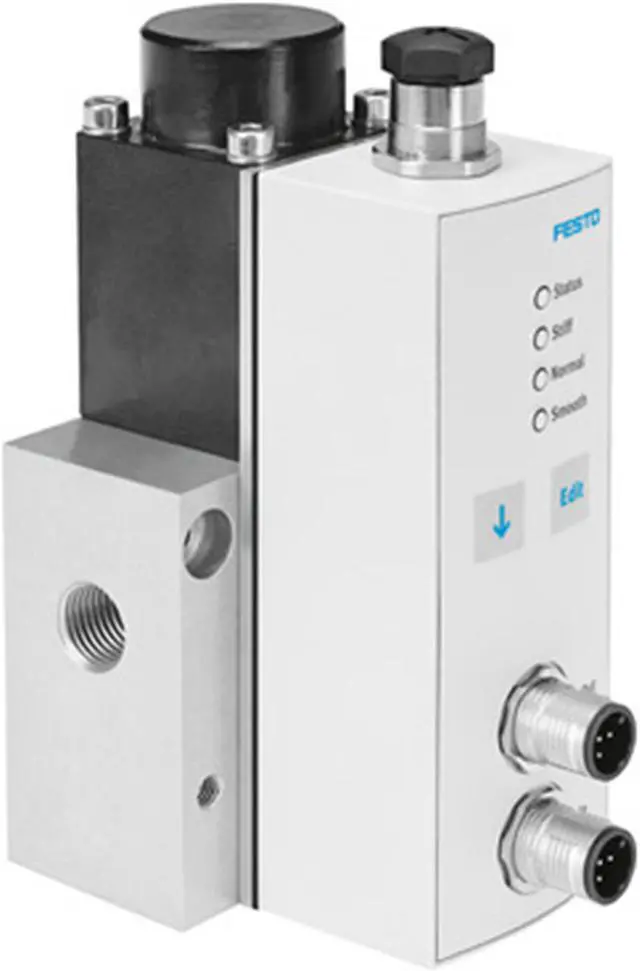

FESTO VPPL-3L-3-G14-0L40H-A4-A-S1-7 1635983 Proportional Pressure Control Valve New

KC characters
KC EMC
Nominal width pressurization
2.5 mm
Exhaust nominal width
2.5 mm
Type code
VPPL
Actuation type
Electrical
Sealing principle
Soft
Symbol
00991479
Reverse polarity protection
for all electrical connections
Reset method
Mechanical spring
Type of control
Direct
Valve function
3-way proportional pressure control valve closed
Display type
LED display
Operating pressure
= 50 bar
Pressure regulation range
0.4 bar ... 40 bar
Inlet pressure 1
0 bar ... 50 bar
Max. pressure hysteresis
0.3 bar
b-value
0.25
C value
0.8 l/sbar
Standard nominal flow rate
300 l/min
Switching time off
550 ms
On switching time
300 ms
DC operating voltage range
21.6 V ... 27.6 V
Duty cycle
100%
Max. electrical power consumption
26.7 W
Residual ripple
10 %
Analog output signal range
4 - 20 mA
Analog input signal range
4 - 20 mA
Information on operating and pilot media
Operation with oil lubrication not possible
CE marking (see declaration of conformity)
As per EU EMC directive
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
5 °C ... 50 °C
Degree of protection
IP65
Ambient temperature
5 °C ... 50 °C
Product weight
1100 g
Linearity error in ± % FS
1 %FS
Temperature coefficient
0.04 %/K
Repetition accuracy in ± %FS
1 %FS
