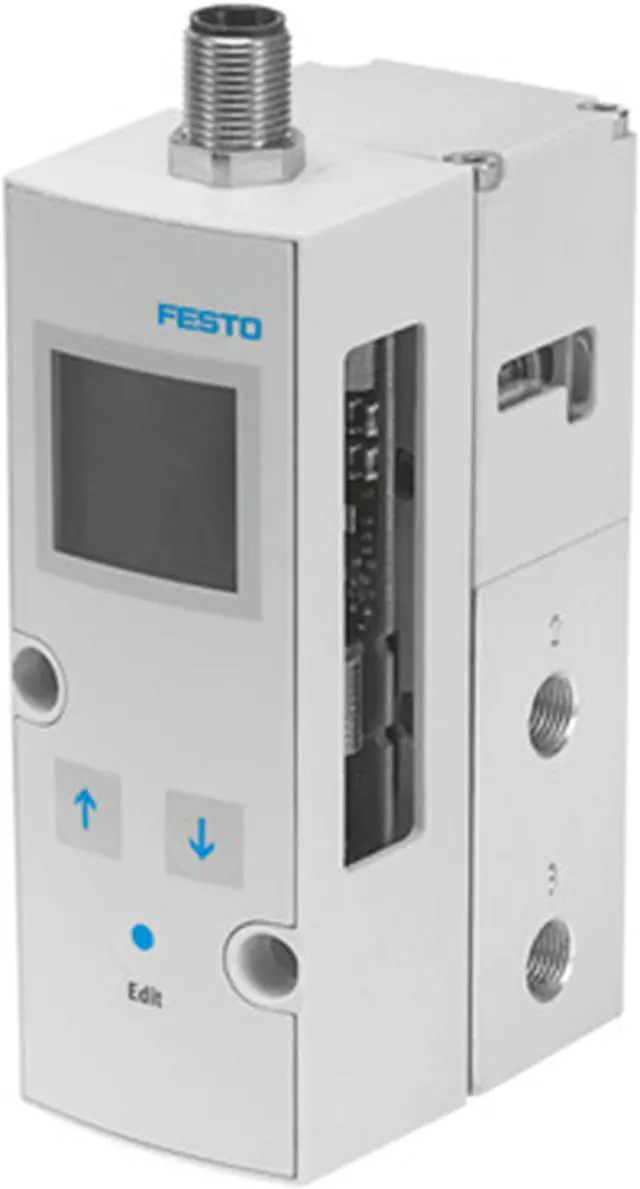

FESTO VPPM-6L-L-1-N18-0L6H-A4P-C1 558344 Proportional Pressure Control Valve New

KC characters
KC EMC
Nominal width pressurization
6 mm
Exhaust nominal width
4.5 mm
Type code
VPPM
Actuation type
Electrical
Sealing principle
Soft
Mounting position
Any
Design
Pilot-controlled diaphragm regulator
Short-circuit protection
For all electrical connections
Safety instructions
VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
Symbol
00995303
Reverse polarity protection
for all electrical connections
Reset method
Mechanical spring
Type of control
Pilot-controlled
Valve function
3-way proportional pressure control valve
Display type
Back-lit LCD
Pressure regulation range
0.06 bar ... 6 bar
Inlet pressure 1
0 bar ... 8 bar
Max. pressure hysteresis
0.03 bar
Standard nominal flow rate
900 l/min
DC operating voltage range
21.6 V ... 26.4 V
Max. current consumption
300 mA
Duty cycle
100%
Max. electrical power consumption
7 W
Residual ripple
10 %
Switching output
PNP
Analog output signal range
4 - 20 mA
Analog input signal range
4 - 20 mA
Information on operating and pilot media
Operation with oil lubrication not possible
CE marking (see declaration of conformity)
As per EU EMC directive
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
10 °C ... 50 °C
Degree of protection
IP65
Ambient temperature
0 °C ... 50 °C
Product weight
400 g
Linearity error FS
2 %
