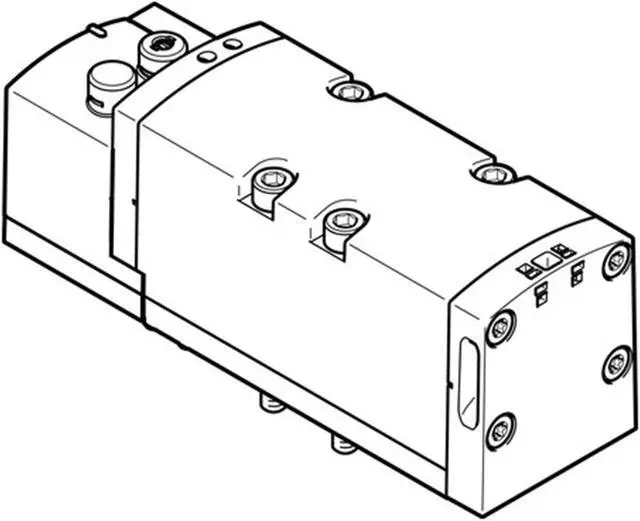

FESTO VSVA-B-M52-AZD-D2-2AT1L 560801 Air Solenoid Valve New

Valve function
5/2, monostable
Actuation type
Electrical
Width
52 mm
Standard nominal flow rate
2900 l/min
Operating pressure
-0.9 bar ... 10 bar
Design
Piston gate valve
Reset method
Pneumatic spring
Width dimension
59 mm
Type code
VSVA
Sealing principle
Soft
Mounting position
Any
Conforms to standard
ISO 5599-2
Type of control
Pilot-controlled
Pilot air supply port
External
Flow direction
Any
Symbol
00991050
Signal status display
LED
Pilot pressure
3 bar ... 10 bar
Flow rate of pneumatic valve
4000 l/min
Flow rate of pneumatic valve on individual sub-base
3400 l/min
Switching time off
90 ms
On switching time
70 ms
Duty cycle
100%
Coil characteristics
110/120 V AC: 50/60 Hz, power 1.6 VA
Surge resistance
2.5 kV
Contamination level
3
Permissible voltage fluctuations
+/- 10 %
Corrosion resistance class (CRC)
0 - No corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Ambient temperature
-5 °C ... 50 °C
Product weight
702 g
