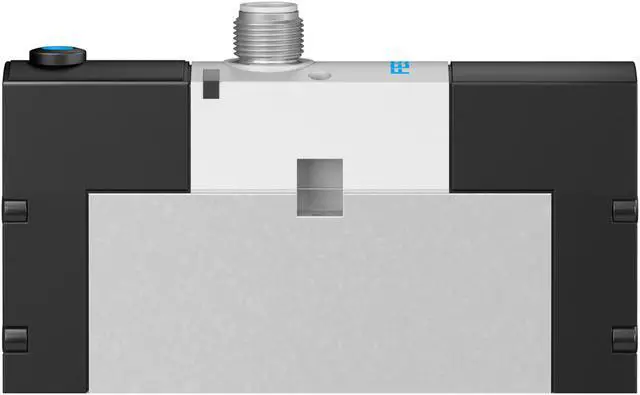

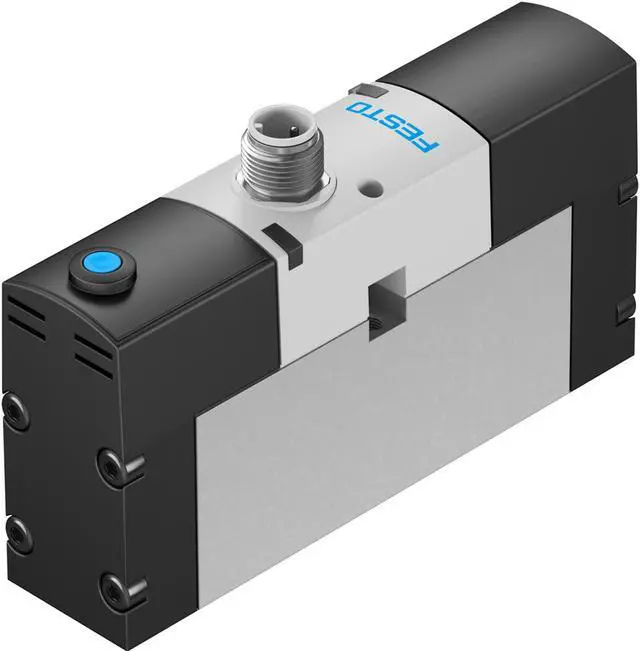

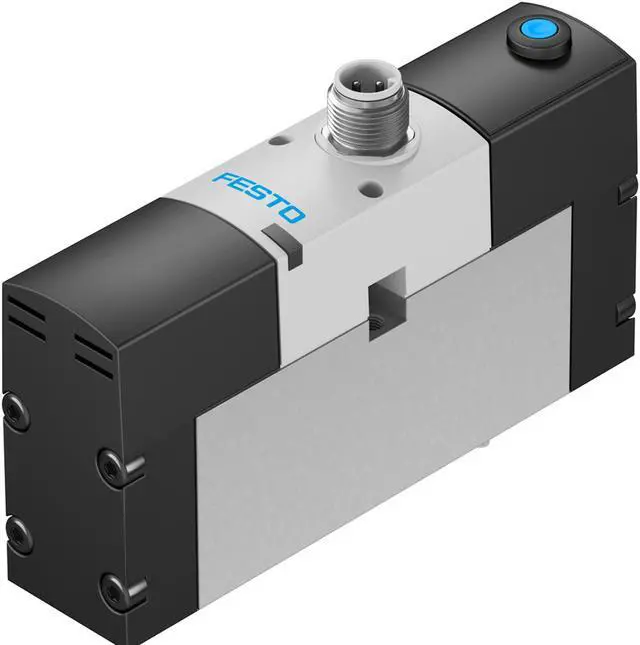

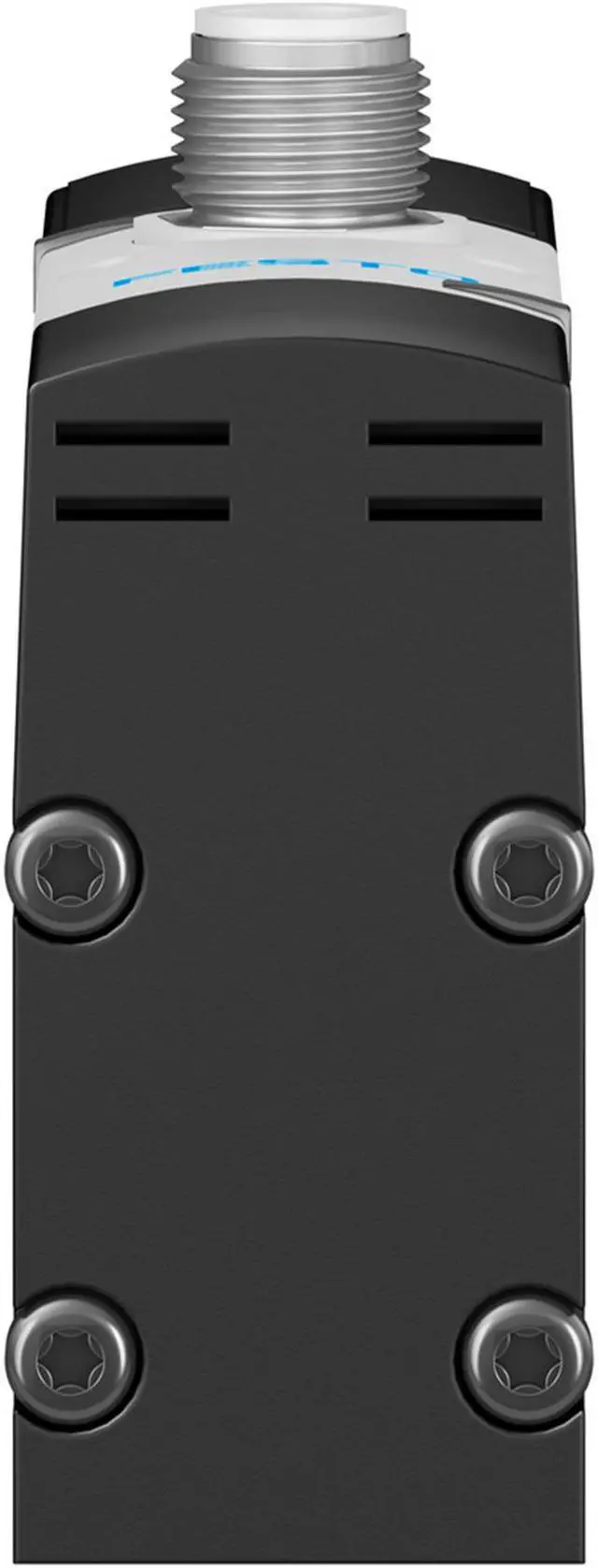

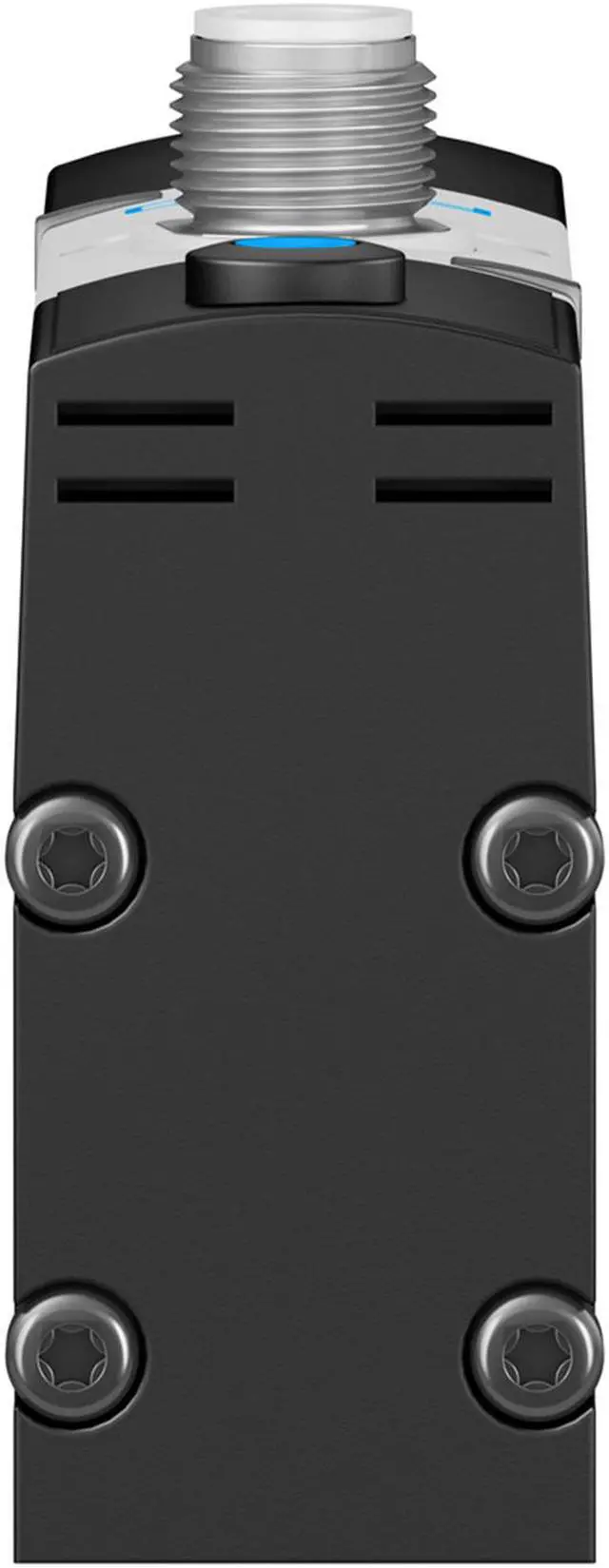

FESTO VSVA-B-M52-MZH-A1-1R2L Air Solenoid Valve 534526 Width 26mm
- FESTO VSVA-B-M52-MZH-A1-1R2L Air Solenoid Valve 534526 Width 26mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Valve function
5/2, monostable
Lap
Overlap
Actuation type
Electrical
Width
26 mm
Pneumatic working port
Sub-base, size 26 mm as per ISO 15407-1
Operating voltage
24V DC
Operating pressure
-0.9 bar ... 16 bar
Design
Piston gate valve
Reset method
Mechanical spring
Degree of protection
IP65
Nominal width
9 mm
Width dimension
27 mm
Type code
VSVA
Exhaust air function
With flow control option
Via individual sub-base
Via throttle plate
Sealing principle
Soft
Mounting position
Any
Conforms to standard
ISO 15407-1
5/2, monostable
Lap
Overlap
Actuation type
Electrical
Width
26 mm
Pneumatic working port
Sub-base, size 26 mm as per ISO 15407-1
Operating voltage
24V DC
Operating pressure
-0.9 bar ... 16 bar
Design
Piston gate valve
Reset method
Mechanical spring
Degree of protection
IP65
Nominal width
9 mm
Width dimension
27 mm
Type code
VSVA
Exhaust air function
With flow control option
Via individual sub-base
Via throttle plate
Sealing principle
Soft
Mounting position
Any
Conforms to standard
ISO 15407-1
