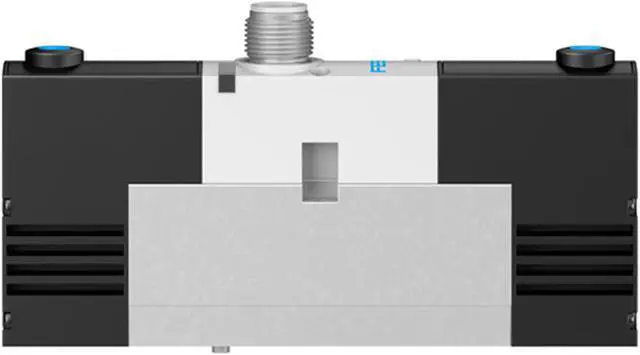

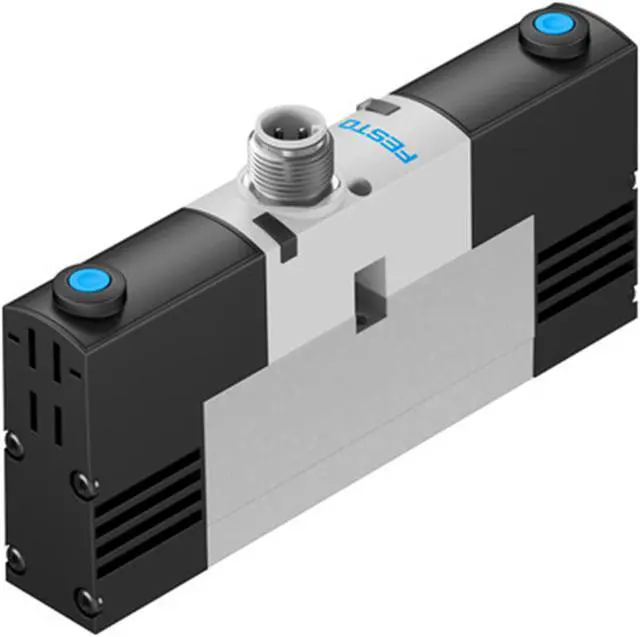

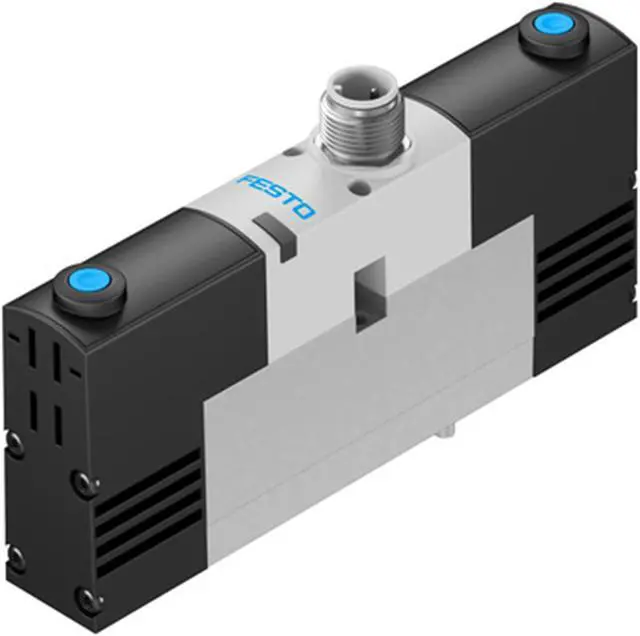

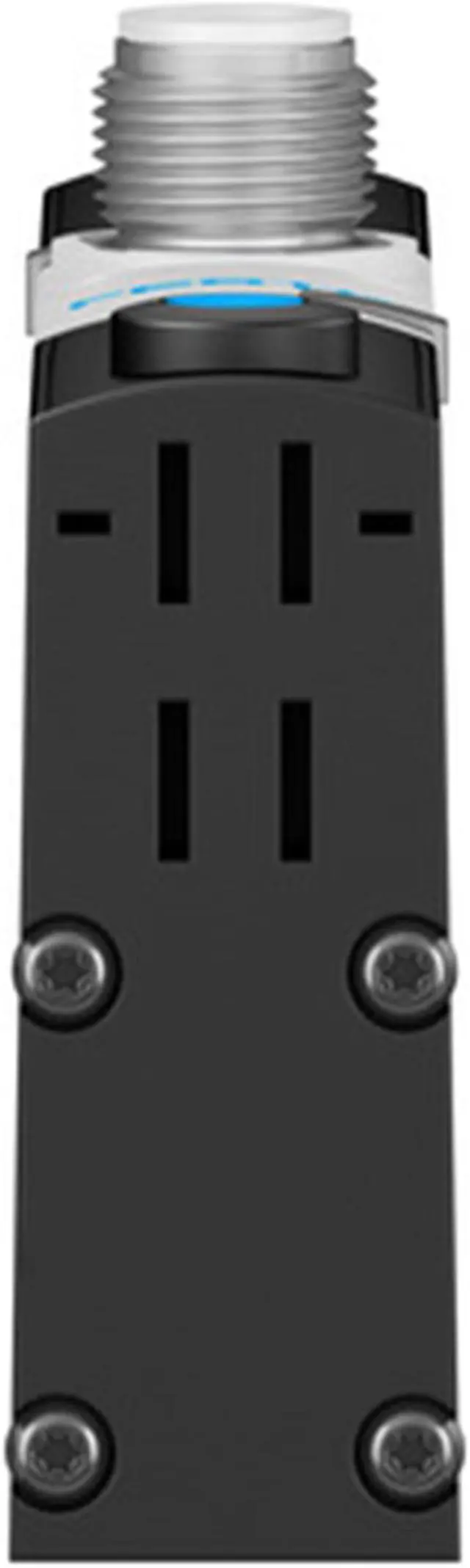

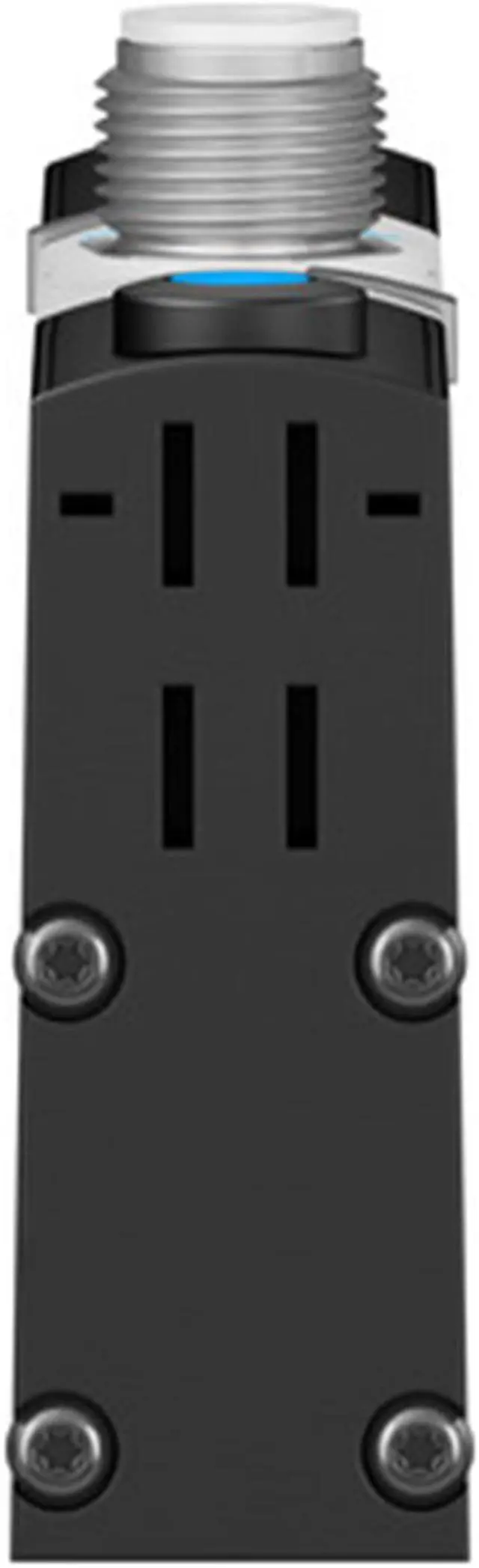

FESTO VSVA-B-P53E-ZH-A2-1R2L 534789 Air Solenoid Valve New

Valve function
5/3, exhausted
Lap
Overlap
Actuation type
Electrical
Width
18 mm
Standard nominal flow rate
450 l/min
Operating voltage
24V DC
Operating pressure
-0.9 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
Degree of protection
IP65
Nominal width
5 mm
Type code
VSVA
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Non-detenting
Type of control
Pilot-controlled
Pilot air supply port
External
Flow direction
Reversible
Symbol
00992939
Signal status display
LED
Pilot pressure
3 bar ... 8 bar
Flow rate of pneumatic valve
650 l/min
Flow rate of pneumatic valve on individual sub-base
500 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow
450 l/min
Switching time off
36 ms
On switching time
15 ms
DC operating voltage range
21.6 V ... 26.4 V
Duty cycle
100%
Max. positive test pulse with 0 signal
500 µs
Max. negative test pulse on 1 signal
500 µs
Coil characteristics
24 V DC: low-current phase 1.0 W, high-current phase 2.4 W
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
CE marking (see declaration of conformity)
As per EU EMC directive
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Ambient temperature
-5 °C ... 50 °C
Max. tightening torque for valve mounting
0.9 Nm ... 1.1 Nm
Product weight
140 g
