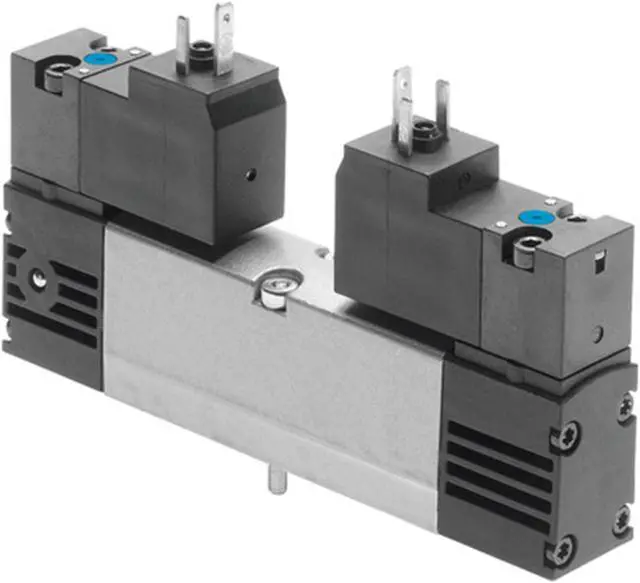

FESTO VSVA-B-P53U-ZH-A2-3AC1 547243 Air Solenoid Valve New

Valve function
5/3, pressurized
Lap
Overlap
Actuation type
Electrical
Valve size
18 mm
Standard nominal flow rate
450 l/min
Operating voltage
230V AC
Operating pressure
-0.9 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
Degree of protection
IP65 NEMA 4
Nominal width
5 mm
Type code
VSVA
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Non-detenting
Type of control
Pilot-controlled
Pilot air supply port
External
Flow direction
Reversible
Symbol
00992940
Signal status display
LED
Pilot pressure
3 bar ... 10 bar
Flow rate of pneumatic valve
650 l/min
Flow rate of pneumatic valve on individual sub-base
500 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow
450 l/min
Switching time off
30 ms
On switching time
18 ms
Changeover time
20 ms
Duty cycle
100%
Coil characteristics
230 V AC: 50/60 Hz, initial power 2.9 VA, holding power 2.1 VA
Permissible voltage fluctuations
-15 % / +10 %
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
CE marking (see declaration of conformity)
As per EU low voltage directive
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
0 - No corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Noise level
85 dB(A)
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 50 °C
Max. tightening torque for valve mounting
1 Nm
Product weight
174 g
