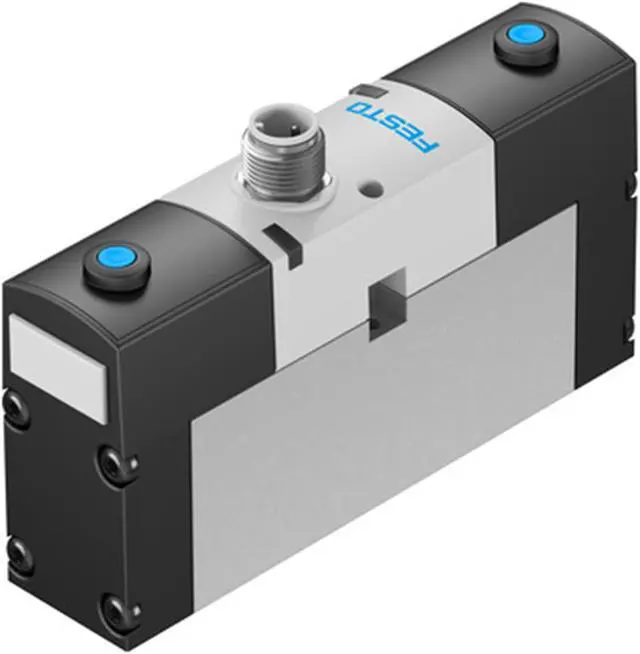

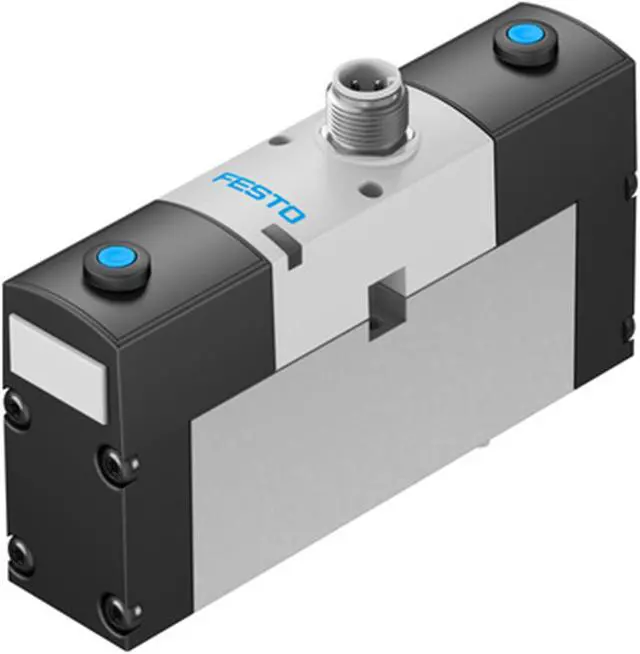

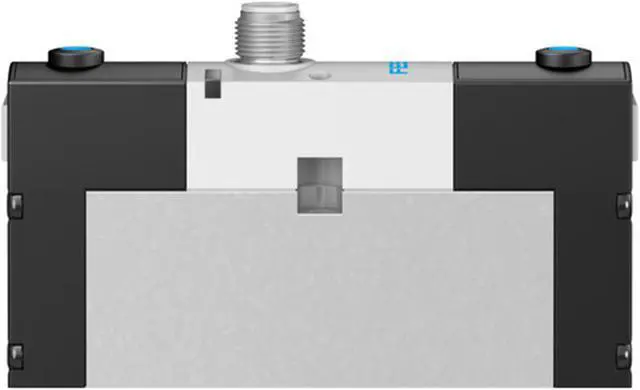

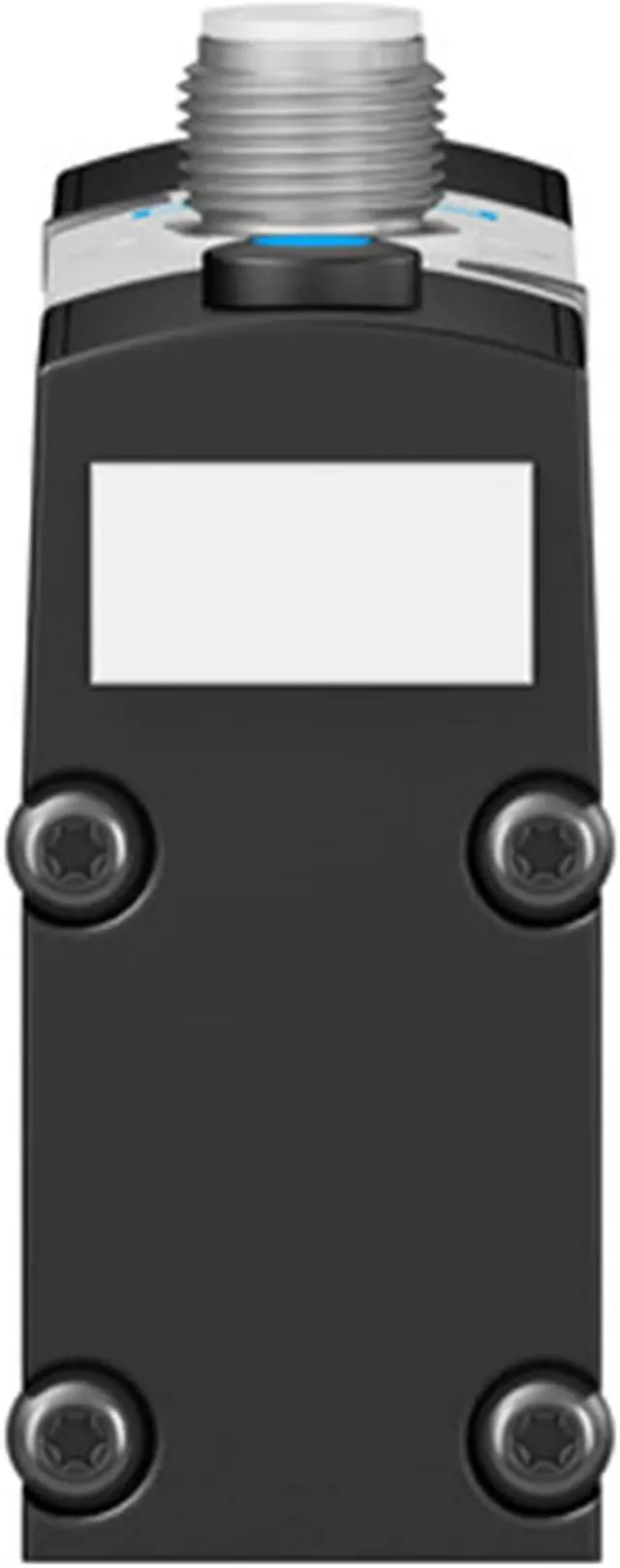

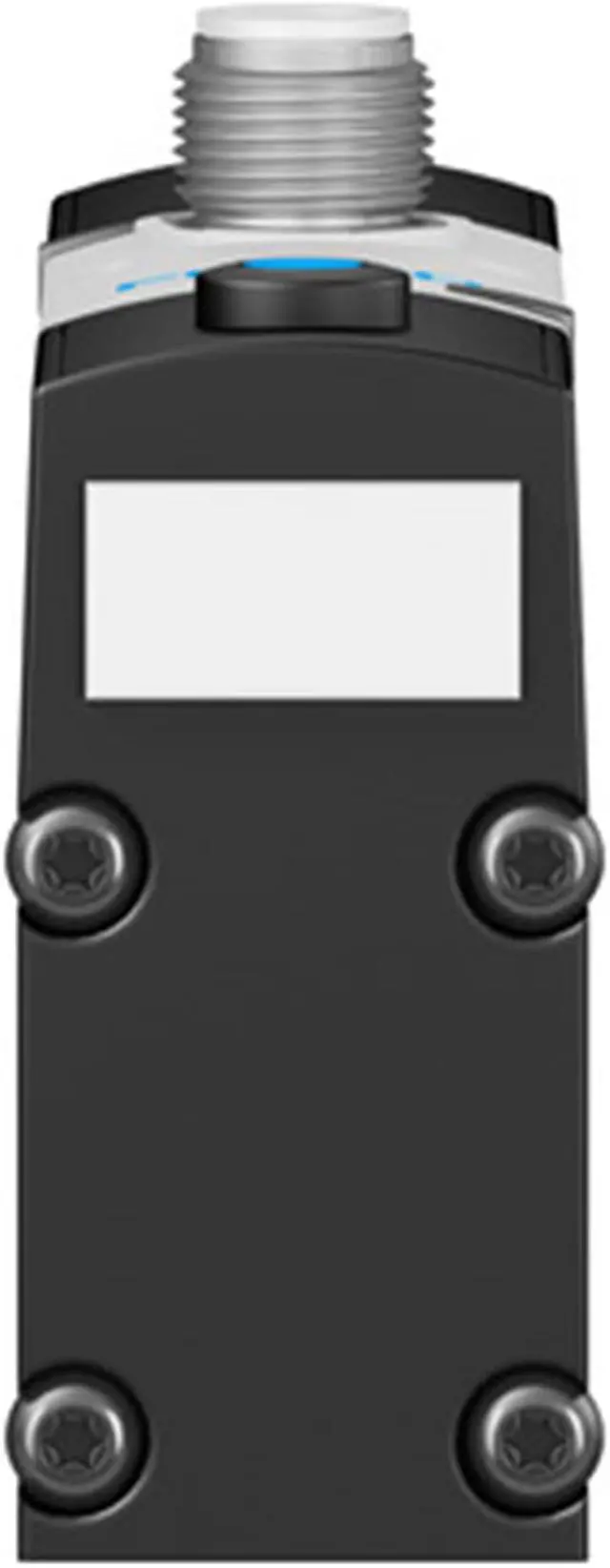

FESTO VSVA-B-T32C-AZH-A1-1R2L 534522 Air Solenoid Valve New

Valve function
2x3/2, closed, monostable
Lap
Overlap
Actuation type
Electrical
Width
26 mm
Pneumatic working port
Sub-base, size 26 mm as per ISO 15407-1
Operating voltage
24V DC
Operating pressure
3 bar ... 10 bar
Design
Piston gate valve
Reset method
Pneumatic spring
Degree of protection
IP65 NEMA 4
Sealing principle
Soft
Mounting position
Any
Conforms to standard
ISO 15407-1
Manual override
Non-detenting
Type of control
Pilot-controlled
Pilot air supply port
External
Flow direction
Non-reversible
Symbol
00991817
Signal status display
LED
Pilot pressure
3 bar ... 8 bar
b-value
0.25
C value
4 l/sbar
Flow rate of pneumatic valve
1250 l/min
Flow rate of pneumatic valve on individual sub-base
1000 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow
900 l/min
Switching time off
33 ms
On switching time
20 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
500 µs
Max. negative test pulse on 1 signal
500 µs
Nominal pick-up current per solenoid coil
110 mA to 20 ms
Nominal current with current reduction
30 mA after 20 ms
Coil characteristics
24 V DC: low-current phase 1.0 W, high-current phase 2.4 W
Permissible voltage fluctuations
+/- 10 %
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
CE marking (see declaration of conformity)
As per EU EMC directive
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 50 °C
Max. tightening torque for valve mounting
1.8 Nm ... 2.2 Nm
Product weight
270 g
