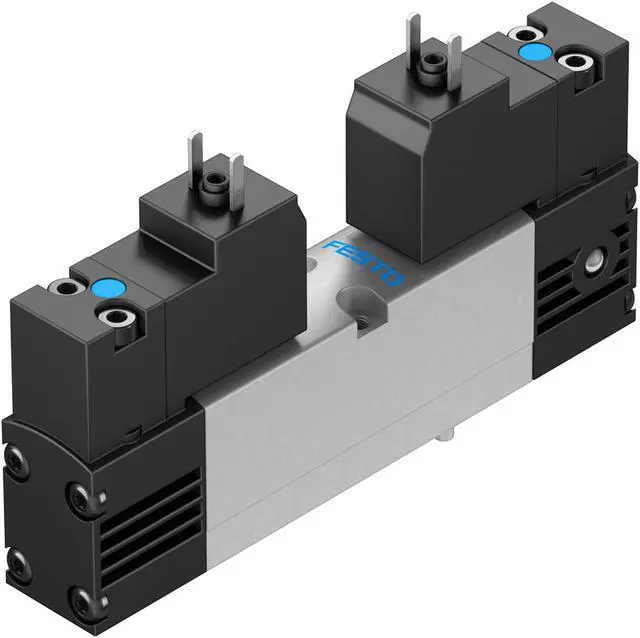

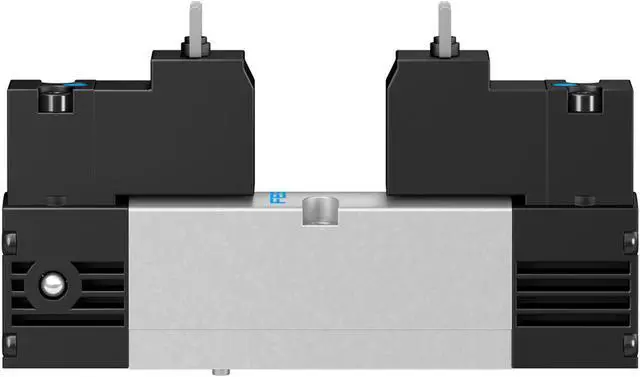

FESTO VSVA-B-T32H-AH-A2-5C1 547133 Air Solenoid Valve New

Valve function
2x3/2, open/closed, monostable
Lap
Overlap
Actuation type
Electrical
Valve size
18 mm
Standard nominal flow rate
400 l/min
Operating voltage
12V DC
Operating pressure
2 bar ... 10 bar
Design
Piston gate valve
Reset method
Pneumatic spring
Degree of protection
NEMA 4 IP65
Nominal width
5 mm
Type code
VSVA
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Type of control
Pilot-controlled
Pilot air supply port
Internal
Flow direction
Non-reversible
Symbol
00992808
Signal status display
LED
Flow rate of pneumatic valve
600 l/min
Flow rate of pneumatic valve on individual sub-base
450 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow
400 l/min
Switching time off
21 ms
On switching time
13 ms
Duty cycle
100%
Coil characteristics
12 V DC: 1.8 W
Permissible voltage fluctuations
-15 % / +10 %
Corrosion resistance class (CRC)
0 - No corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Noise level
85 dB(A)
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 50 °C
Max. tightening torque for valve mounting
1 Nm
Product weight
174 g
