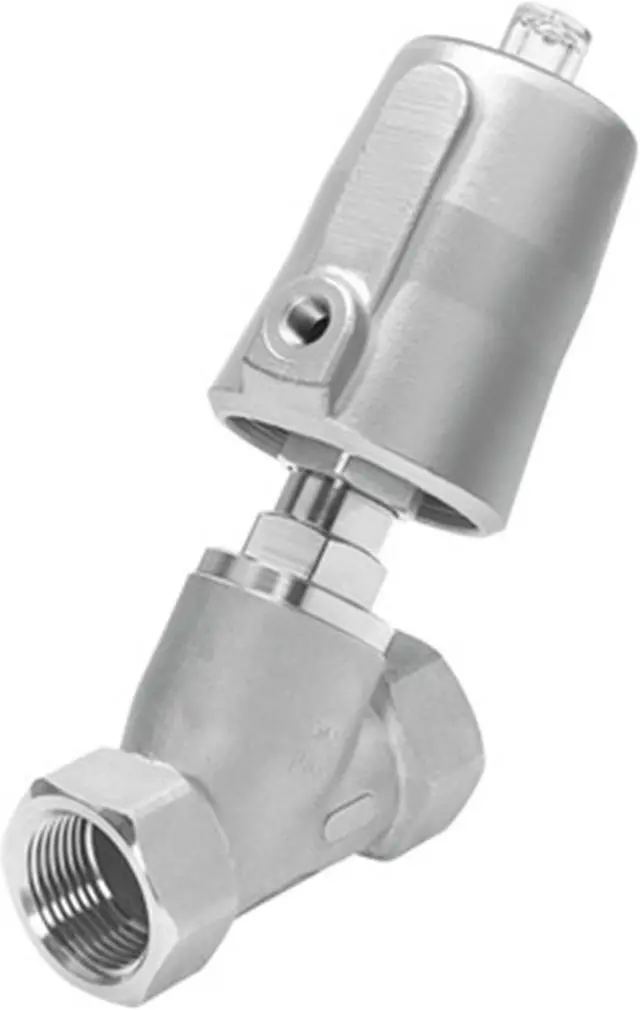

FESTO VZXF-L-M22C-M-A-G112-350-H3B1-50-7-EX4 Angle Seat Valve 3539369 New

Type code
VZXF
Design
Poppet valve with piston actuator
Actuation type
Pneumatic
Sealing principle
Soft
Mounting position
Any
Type of mounting
Line installation
Cable connection
Threaded sleeve G1 1/2 as per DIN ISO 228
Nominal width
35 mm
Valve function
2/2, closed, monostable
Flow direction
Non-reversible
Medium pressure
0 bar ... 7 bar
Nominal pressure of fitting PN
16
Exhaust air function
Without flow control option
Reset method
Mechanical spring
Type of control
Externally controlled
Pneumatic connection
Internal thread G1/8
Operating pressure
6 bar ... 10 bar
Symbol
00991367
Flow direction
Above valve seat, for gaseous media
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity
600 mm2/s
Temperature of medium
-10 °C ... 80 °C
Ambient temperature
-10 °C ... 60 °C
Flow rate Kv
23 m3/h
Valve housing material
Red brass
Material number, fitting housing
CC499K
Spindle seal material
NBR
Seat seal material
PTFE
Product weight
2300 g
ATEX category gas
II 2G
Type of ignition protection for gas
Ex h IIC T6...T3 Gb X
ATEX category for dust
II 2D
Type of (ignition) protection for dust
Ex h IIIC T80°C...T200°C Db X
Explosive ambient temperature
-10°C <= Ta <= +60°C
