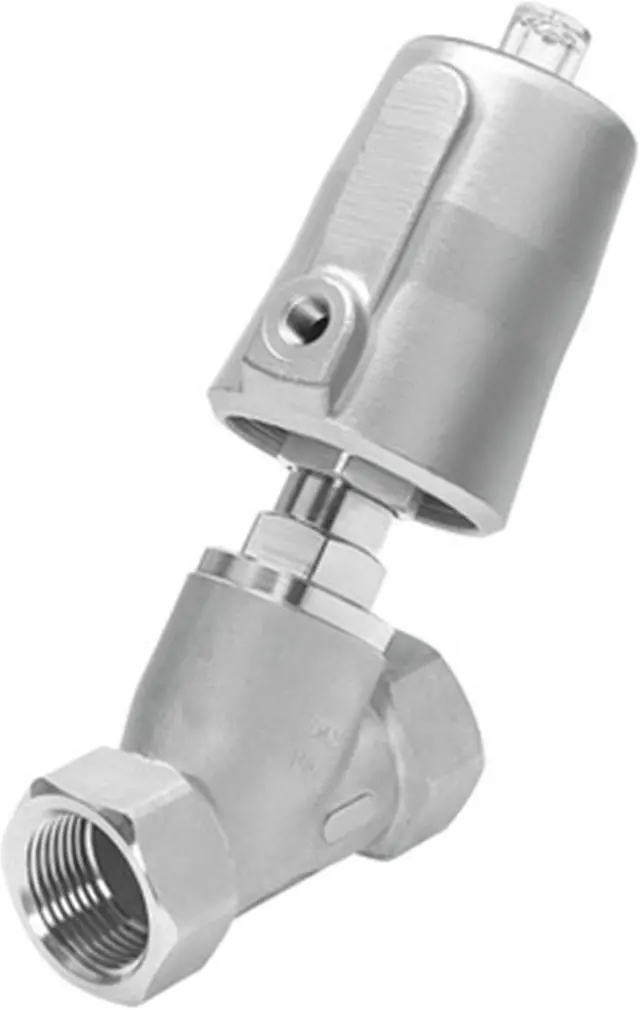

FESTO VZXF-L-M22C-M-A-N114-310-M1-V4B2T-50-9 Angle Seat Valve 3539817 New
- FESTO VZXF-L-M22C-M-A-N114-310-M1-V4B2T-50-9 Angle Seat Valve 3539817 New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Type code VZXF
Design Poppet valve with piston actuator
Actuation type Pneumatic
Sealing principle Soft
Mounting position Any
Type of mounting Line installation
Cable connection Threaded sleeve NPT1 1/4 as per ANSI/ASME B 1.20.1
Nominal width 31 mm
Valve function 2/2, closed, monostable
Flow direction Non-reversible
Medium pressure 0 bar ... 9 bar
Nominal pressure of fitting PN 40
Exhaust air function Without flow control option
Reset method Mechanical spring
Type of control Externally controlled
Pneumatic connection Internal thread G1/8
Operating pressure 6 bar ... 10 bar
Symbol 00991367
Flow direction Above valve seat, for gaseous media
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity 600 mm2/s
Temperature of medium -40 °C ... 200 °C
Ambient temperature -10 °C ... 60 °C
Flow rate Kv 18.5 m3/h
Note on materials RoHS-compliant
Contains paint-wetting impairment substances
Valve housing material Cast stainless steel
Material number, fitting housing 1.4408
Spindle seal material PTFE
Seat seal material PTFE
Product weight 2200 g
Design Poppet valve with piston actuator
Actuation type Pneumatic
Sealing principle Soft
Mounting position Any
Type of mounting Line installation
Cable connection Threaded sleeve NPT1 1/4 as per ANSI/ASME B 1.20.1
Nominal width 31 mm
Valve function 2/2, closed, monostable
Flow direction Non-reversible
Medium pressure 0 bar ... 9 bar
Nominal pressure of fitting PN 40
Exhaust air function Without flow control option
Reset method Mechanical spring
Type of control Externally controlled
Pneumatic connection Internal thread G1/8
Operating pressure 6 bar ... 10 bar
Symbol 00991367
Flow direction Above valve seat, for gaseous media
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity 600 mm2/s
Temperature of medium -40 °C ... 200 °C
Ambient temperature -10 °C ... 60 °C
Flow rate Kv 18.5 m3/h
Note on materials RoHS-compliant
Contains paint-wetting impairment substances
Valve housing material Cast stainless steel
Material number, fitting housing 1.4408
Spindle seal material PTFE
Seat seal material PTFE
Product weight 2200 g
