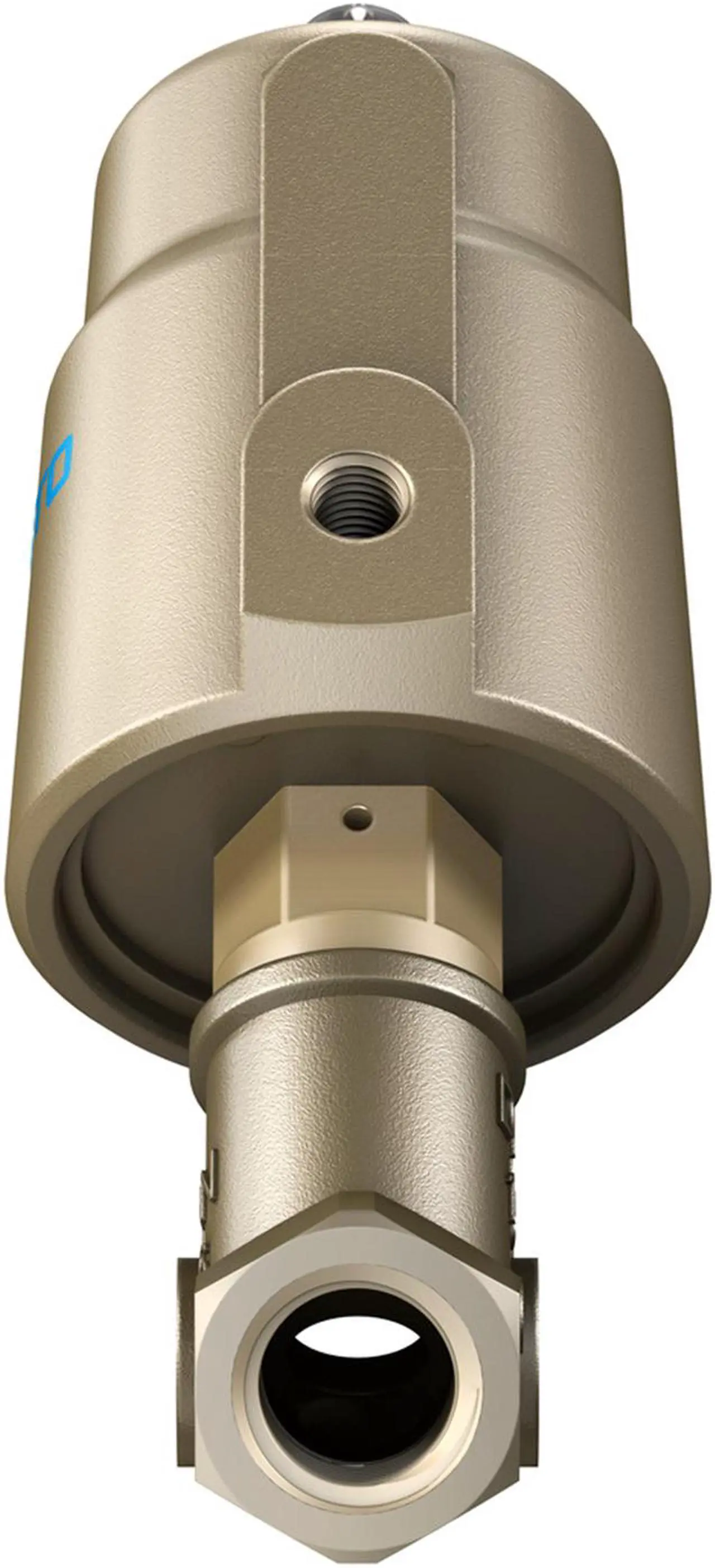

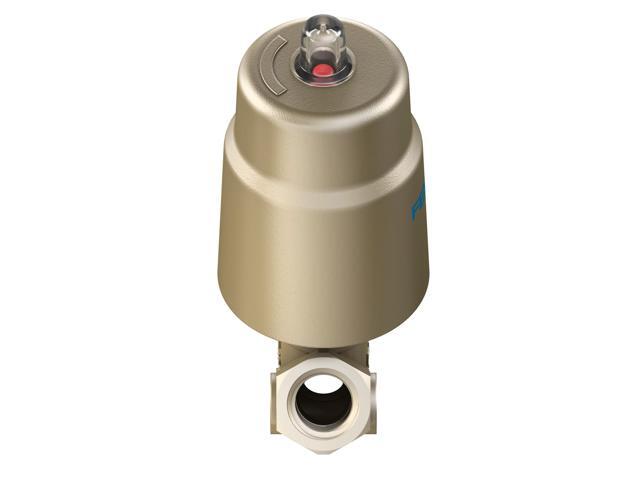

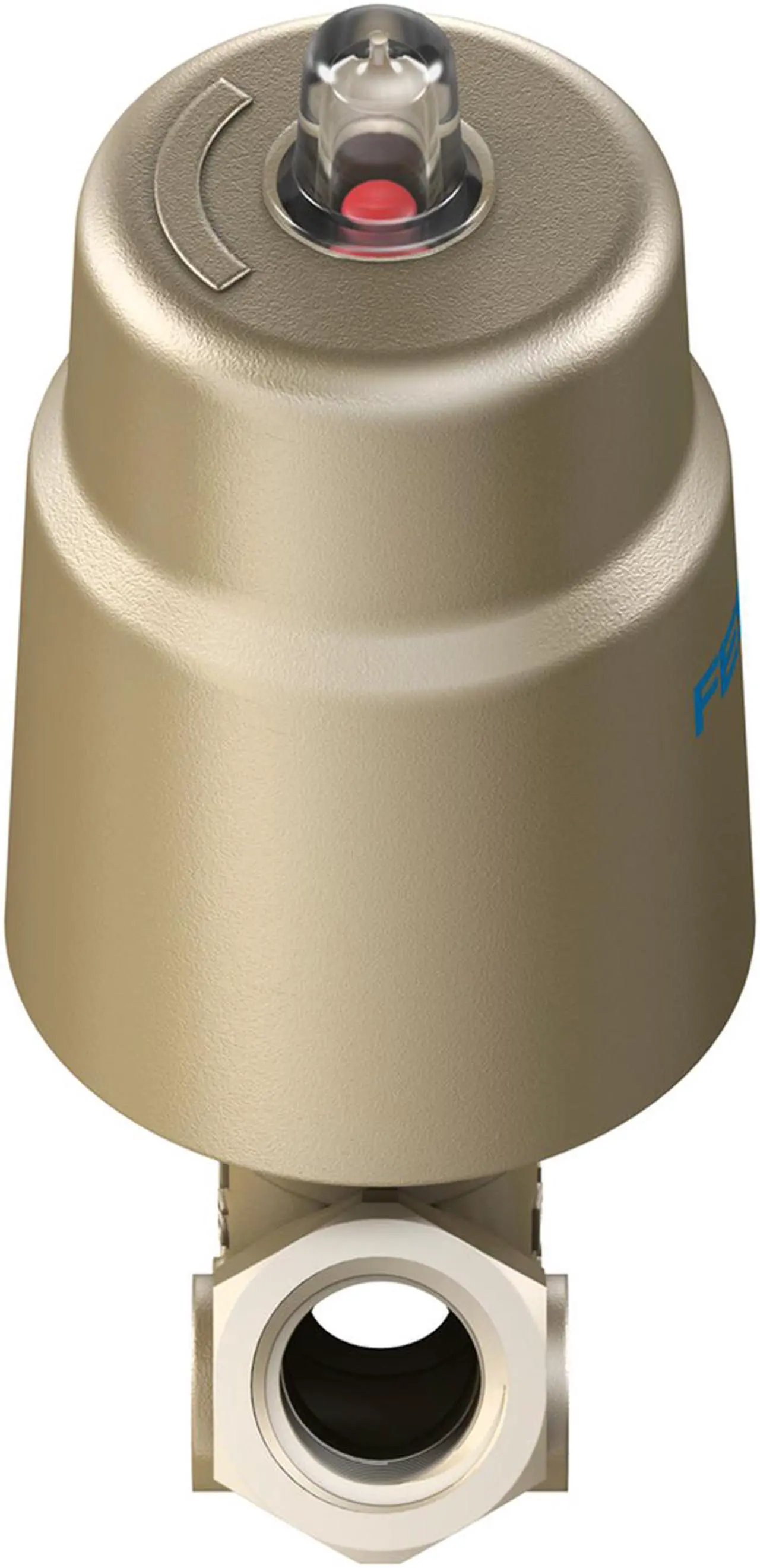

FESTO Vzxf-L-M22C-M-B-G12-120-M1-H3B1T-50-16 Angle Seat Valve 3535620

Type code
VZXF
Design
Poppet valve with piston actuator
Actuation type
Pneumatic
Sealing principle
Soft
Mounting position
Any
Type of mounting
Line installation
Cable connection
Threaded sleeve G1/2 as per DIN ISO 228
Nominal width
12 mm
Valve function
2/2, closed, monostable
Flow direction
Non-reversible
Medium pressure
0 bar ... 16 bar
Nominal pressure of fitting PN
16
Exhaust air function
Without flow control option
Reset method
Mechanical spring
Type of control
Externally controlled
Pneumatic connection
Internal thread G1/8
Operating pressure
6 bar ... 10 bar
Symbol
00991367
low direction
Under valve seat, for gaseous and liquid media
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity
600 mm2/s
Temperature of medium
-40 °C ... 200 °C
Ambient temperature
-10 °C ... 60 °C
Flow rate Kv
3.7 m3/h
Note on materials
RoHS-compliant
Contains paint-wetting impairment substances
Valve housing material
Red brass
Material number, fitting housing
CC499K
Spindle seal material
PTFE
Seat seal material
PTFE
Product weight
1200 g
