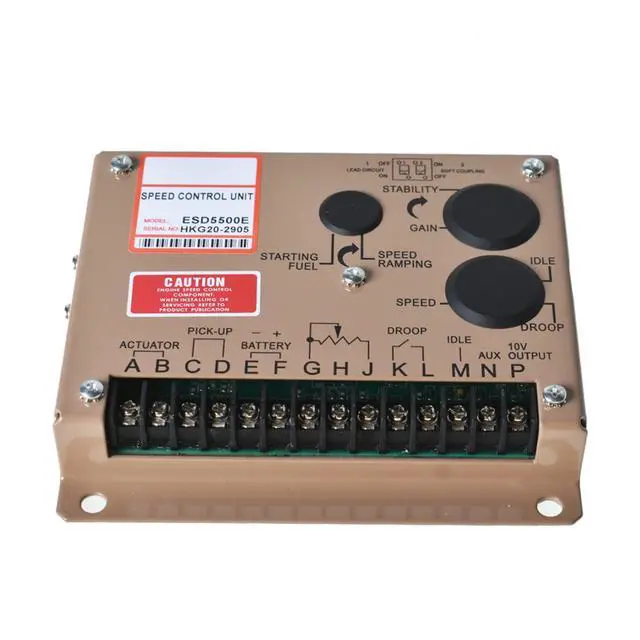

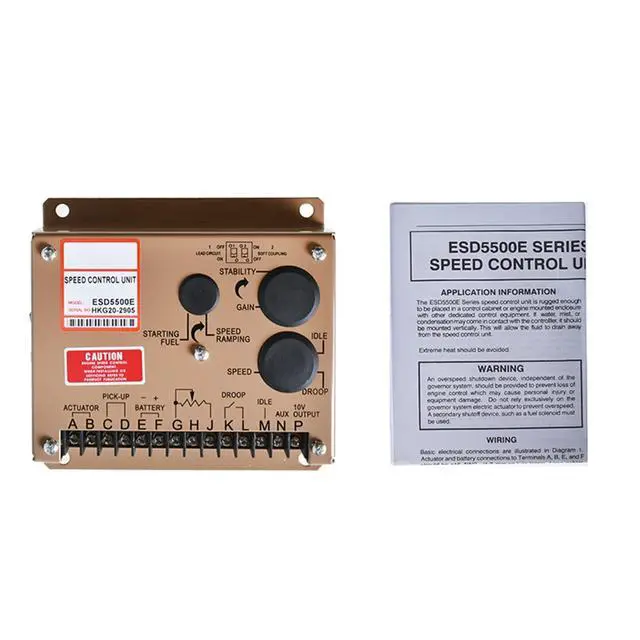

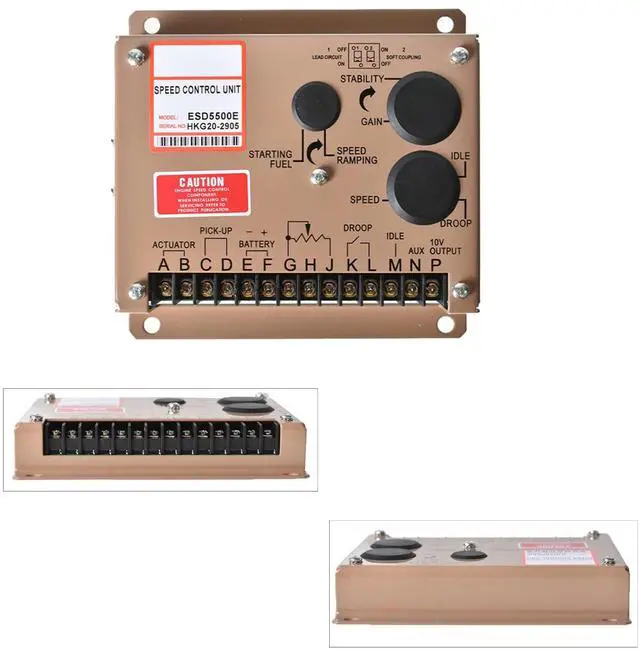

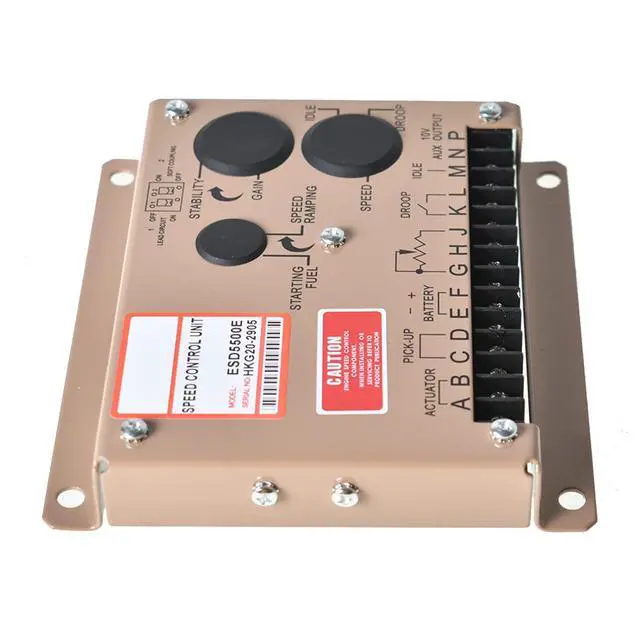

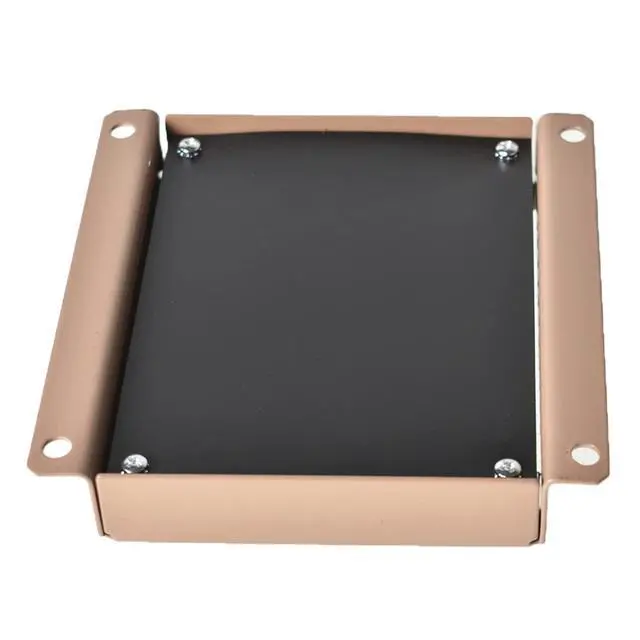

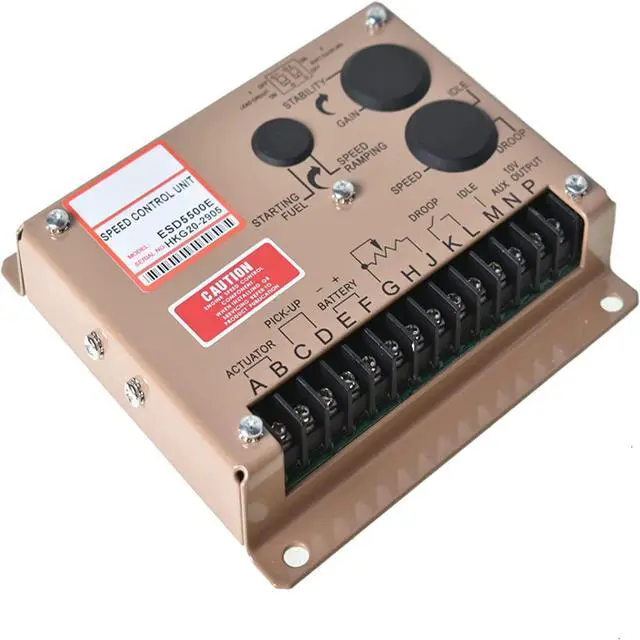

findmall ESD5500E 12V 24V Generator Control Panel Electronic Engine Speed Controller Governor Generator Genset Parts
- Part Number: ESD5500E.
- Benefits: 12 or 24V DC system.
- Speed: Remote variable speed range 500-7.5Hz or any part thereof, terminal sensitivity.
- Compatible Models: Fit for speed controllers.
- Features: Constant speed operation/steady state stability ± 0.25% or better Speed range/controller 1K-7.5K Hz continuous Speed drift (temperature dependent) ± 1% max.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Isochronous Operation/Steady State Stability ± 0.25% or better
Speed Range/Governor 1K-7.5K Hz continuous
Speed Drift with Temperature ± 1% Maximun
IDLE Adjustment 160±20Hz - 60% of set speed
Droop adjustment Min.(K-L Jumpered) 15Hz. ±6Hz. per 1.0 A change
Droop adjustment Max.(K-L Jumpered) 400Hz. ±75Hz. per 1.0 A change
Droop Adj. Max. (K-L Jumpered) 875Hz., ±75Hz. per 1.0 A change
Droop Adj. Min. (K-L Jumpered) 15Hz.,±6Hz. per 1.0 A change
Speed Trim Range±200Hz
Remote Variable Speed Range 500 -7.5Hz. or any part thereof
Terminal Sensitivity
J: 100Hz., ±15Hz/Volt @ 5.0 K Impedance
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance
N: 148Hz., ±10Hz/Volt @ 1Meg. Impedance
P: 10V DC Supply @ 20ma Max.
Speed Switch Adjustment Range 1000-10000Hz.
Environmental:Ambient Operating Temperature Range -40 to +85
Relative Humidity up to 95%
Storage Temperature -55- 90
Shock 20-100HZ 500mm/Sec
Input power:Supply 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
Polarity Negative Ground(Case Isolated)
Power Consumption 50mA continuous plus actuator current
Actuator Current Range @ 25-(Inductive Load) Min. 2.5 Amps, Max. 10 Amps continuous
Speed Sensor Signal 0.5-120 V RMS
Speed Switch Relay Contacts(N.O.and N.C.) 10Amp
Product information
| Brand | findmall |
| Wattage | 1.2 watts |
| Power Source | Battery Powered |
| Recommended Uses For Product | Commercial, Residential, Camping |
| Item Weight | 0.61 Kilograms |
| Voltage | 24 Volts |
| Special Feature | Overload Protection, Short Circuit Protection |
| Material | iron |
| Model Name | ESD5500E |
| Engine Type | 4 Stroke |
| Ignition System Type | Electronic |
| Frequency | 7.5E+3 Hz |
| Current Rating | 2.5E+3 Milliamps |
| Engine Power Maximum | 1.2 Watts |
| Starting Wattage | 1.2 Watts |
| Manufacturer | findmall |
| Package Dimensions | 7.32 x 6.81 x 2.13 inches |
| Country of Origin | China |
| Item model number | ESD5500E |
