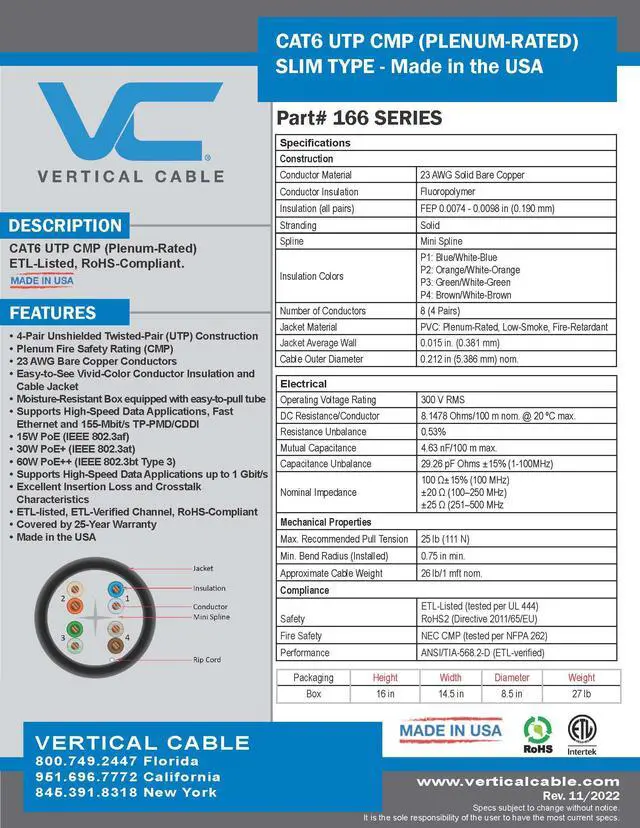

USA 1000ft, 23AWG, Vertical Cable CAT6, 550 MHz, UTP, 8C Solid Bare Copper, Plenum, Bulk Ethernet Cable - Made in USA, Blue
- Conductor: 23AWG Solid Bare Copper
- Insulation: FEP
- Conductor: 23AWG Solid Bare Copper
- Number of Conductors or Pairs: 4 Pair
- Jacket Material: Low Smoke Flame Retardent Polyvinyl Chloride
- Nominal Overall Cable Diameter: 0.200 inch
- Approximate Cable Weight: 30 lb/1,000 ft
- Temperature Rating: Installation: 0°C to 50°C, Operation: -2°C to 60°C
- Velocity of Propagation: 72%
- Mutual Capacitance: 14 pF/ft Nominal
- Capacitance Unbalance: 330 pF/ft Maximum
- Maximum Conductor D.C.R.: 28.6 /1,000 ft
- Maximum D.C.R. Unbalance: 5%
- Maximum Delay Skew: 45.0ns/100m
- Characteristic Impedance: From 0.772 MHz — 100 MHz: 100 ± 15%, From 101 MHz — 250 MHz: 100 ± 22%
- Color of Pairs: Pair 1: Blue,White-Blue; Pair 2: Orange,White-Orange; Pair 3: Green,White-Green; Pair 4: Brown,White-Brown
- Surface Print: VERTICAL ETL VERIFIED CAT6 TO TIA-568C.2 3147706 CMP 23AWG UTP-C(ETL)US FT6 MADE IN USA V1574 ROHS + Footage Marking
- Certifications: RoHS Compliant
- High-Grade CAT6 Plenum Cable

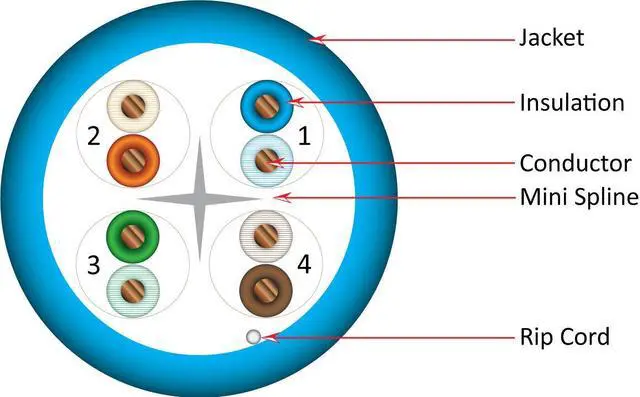

- Spineless Construction
- Made in the USA
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

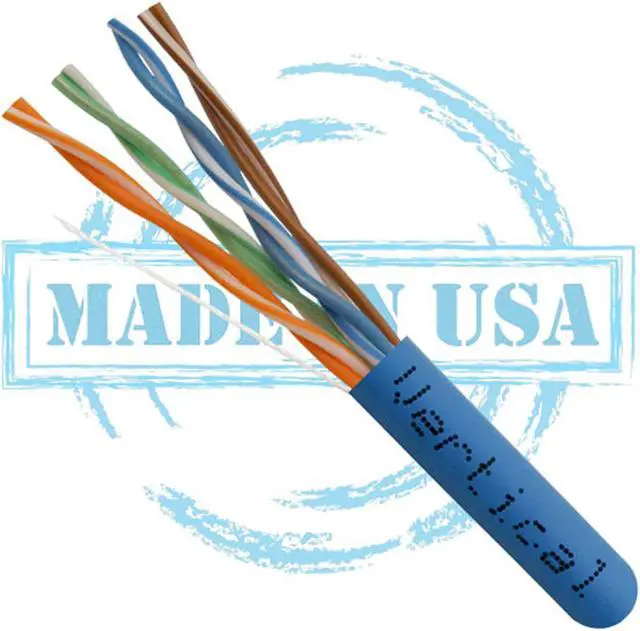

1000ft Solid Cat6 Plenum-Rated Bulk Cable - Made in the USA
Perfect for any networking application where Plenum Rated network cable is a requirement. FireFold's Cat6 Plenum-Rated Bulk Cable is a must-have for any extensive networking installation.
Plenum (CMP) Rated PVC Jacket
Plenum-rated Cat5E cable contains a flame retardant PVC jacket and is designed for cable runs being laid in spaces defined as "Air Plenums", this includes raised flooring systems, air handling ducts, etc. Plenum jackets produce less smoke than traditional PVC jackets.
Solid Cable Design
Designed for more straight-forward, simple installations, this particular style of Solid cable is perfect for most installations where cable runs do not require several bends and twists in the line.
23 AWG
For this particular cable, the gauge is 24 AWG, which is a diameter of about 0.0226 Inches, or 0.573 mm. 24AWG is the Industry Standard for any typical network cable installation. American Wire Gauge (AWG) is the standardized gauging system for measuring wire sizes.

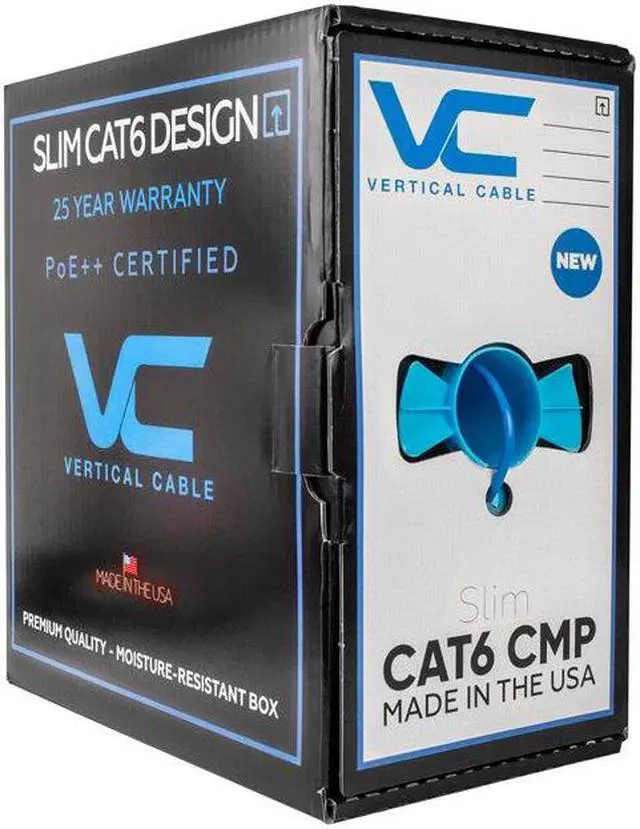

Pull-Through Design
Since bulk cable is generally used in intervals, the box that it comes in is almost as important as the cable itself. This is the reason why our boxes are reinforced to provide excellent protection and are made with a simple pull-through design to keep your bulk cable free of kinks and knots while being pulled from the box.
