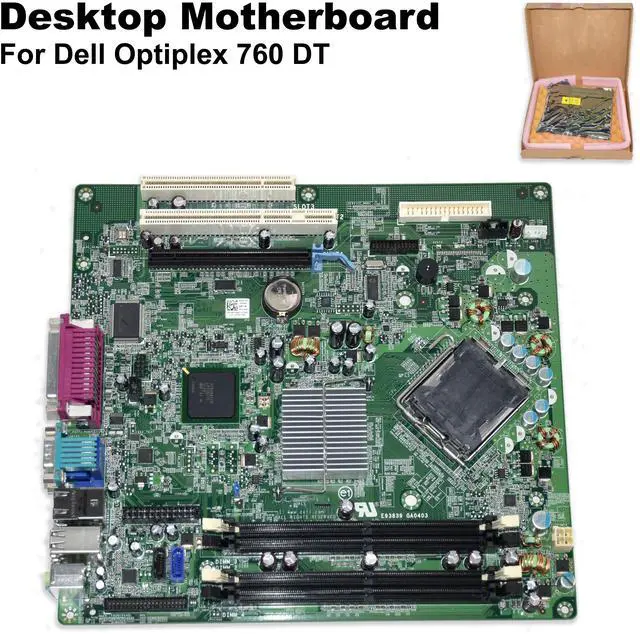

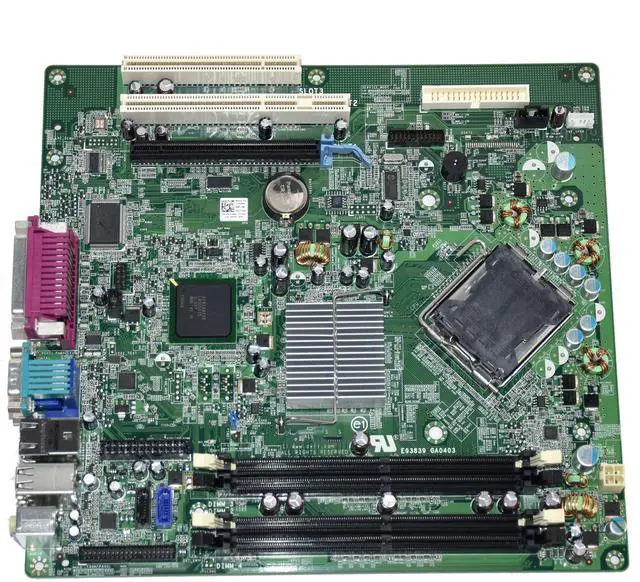

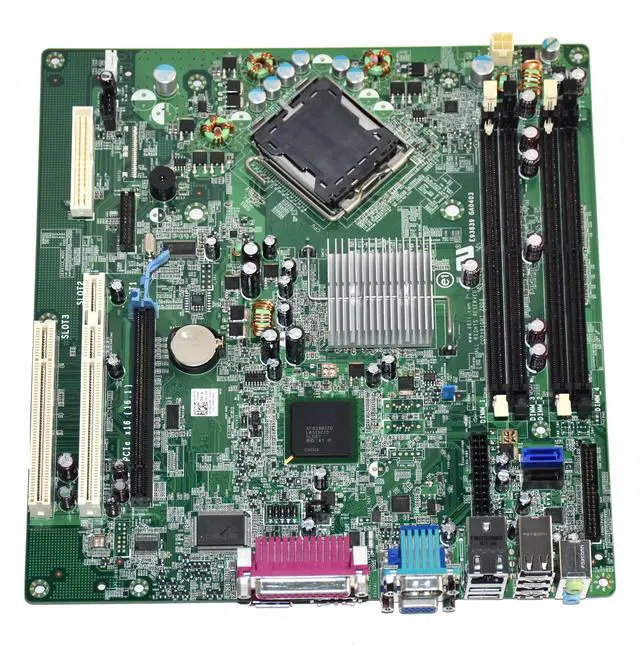

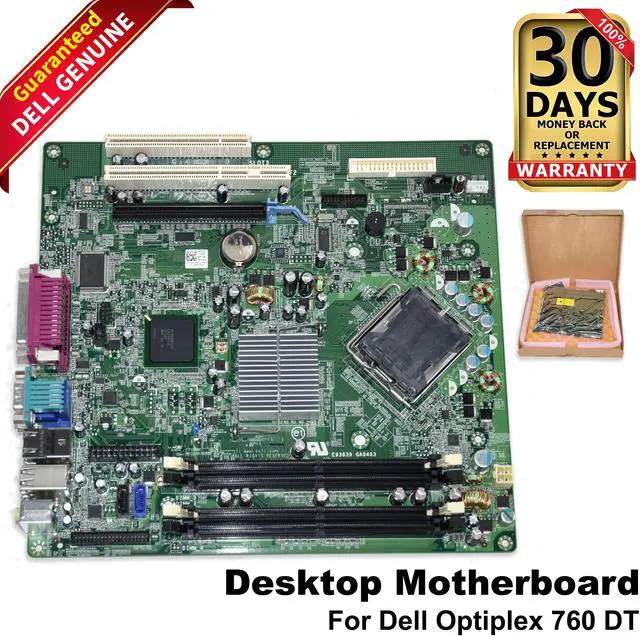

Dell Optiplex 760 DT Desktop Intel Motherboard DDR2 LGA775 R230R
- Brand: Dell
- Part Number: R230R
- MPN: 0R230R
- Model: Optiplex 760 DT Motherboard
- Type: Desktop Motherboard
- Compatible Brand: For Dell
- Compatible Model: For Dell Optiplex 760 DT
- Socket: LGA775 (Supports Intel Core 2 Duo/Quad, Pentium, Celeron)
- Chipset: Intel Q45 Express + ICH10DO
- Memory: 4 × DDR2 DIMM Slots (Max 8GB, 800MHz Non-ECC)
- Expansion Slots: 1 × PCIe x16, 1 × PCIe x1, 2 × PCI
- Storage: 2 × SATA 3Gb/s, 1 × PATA (IDE)
- Graphics: Integrated Intel GMA 4500 (VGA Out)
- Audio: Integrated ADI 1884 Codec (5.1-Channel HD)
- LAN: Integrated Broadcom BCM5764 Gigabit Ethernet

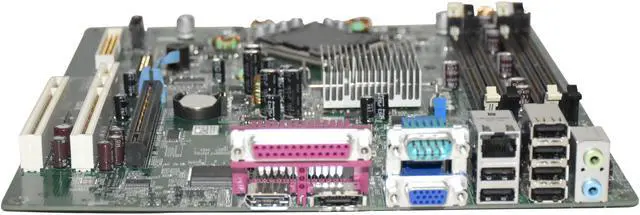

- Rear I/O: 4 × USB 2.0, 1 × VGA, 1 × RJ-45, 3 × Audio Jacks, Serial/Parallel Ports
- Internal Headers: 4 × USB 2.0 (2 Headers), Front Audio, SYS Fan
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Upgrade or repair your Dell Optiplex 760 DT desktop with this OEM-replacement motherboard. Designed for reliability, this Intel LGA775 motherboard features the Q45 Express chipset, DDR2 memory support (up to 8GB), and integrated Intel GMA 4500 graphics. Ideal for business environments, legacy systems, or cost-effective builds, it ensures seamless compatibility with Optiplex 760 DT chassis and components. Includes essential ports like SATA, PATA, Gigabit LAN, and USB 2.0.
LGA775 Socket: Supports Intel Core 2 Duo, Quad, and Pentium processors.
DDR2 Memory Support: 4 DIMM slots for 800MHz DDR2 RAM (non-ECC).
Integrated Graphics: Intel GMA 4500 with VGA output for basic display needs.
Expansion Flexibility: PCIe x16 for dedicated GPUs + PCIe x1 and legacy PCI slots.
Legacy I/O: Serial/parallel ports for industrial/compatibility use.
Gigabit Ethernet: Broadcom BCM5764 for high-speed wired networking.
Easy Installation: MicroATX form factor fits Optiplex 760 DT chassis.
OEM Reliability: Genuine Dell part (R230R) for stable performance.
LGA775 Socket: Supports Intel Core 2 Duo, Quad, and Pentium processors.
DDR2 Memory Support: 4 DIMM slots for 800MHz DDR2 RAM (non-ECC).
Integrated Graphics: Intel GMA 4500 with VGA output for basic display needs.
Expansion Flexibility: PCIe x16 for dedicated GPUs + PCIe x1 and legacy PCI slots.
Legacy I/O: Serial/parallel ports for industrial/compatibility use.
Gigabit Ethernet: Broadcom BCM5764 for high-speed wired networking.
Easy Installation: MicroATX form factor fits Optiplex 760 DT chassis.
OEM Reliability: Genuine Dell part (R230R) for stable performance.
