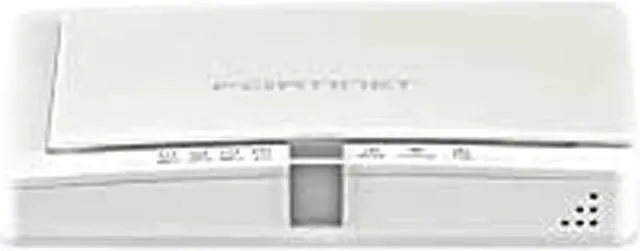

Fortinet FortiAP-220B FAP-220B-A Wireless AP Integrated Wireless Security and Access
- Up to 300Mbps+300Mbps Wireless Data Rates
- IEEE 802.11a/b/g/n, IEEE 802.3/3u/3ab, IEEE 802.3af
- Ethernet Port
- 2.4GHz/5GHz Selectable; 2.4GHz
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Fortinet FAP-220B-A
| Brand | Fortinet |
|---|---|
| Series | FortiAP-220B |
| Model | FAP-220B-A |
| Standards | IEEE 802.11a/b/g/n, IEEE 802.3/3u/3ab, IEEE 802.3af |
|---|---|
| Wireless Data Rates | Up to 300Mbps+300Mbps |
| Security | WEP, WPA and WPA2, 802.11i, WEP, 802.1X, PSK |
| Frequency Band | 2.4GHz/5GHz Selectable; 2.4GHz |
| Antenna | 4 x Internal Antenna |
| Transmitted Power | 17dBm (50mW) max |
| Interface | Ethernet Port |
| WAN Ports | 1 x 10/100/1000M, 1 x Serial Console Port |
| Power Supply | Adapter Input: 100-240V 50/60Hz 0.6A Output: 12V DC 1.5A - center positive Power over Ethernet (PoE): 802.3af (15.4W) |
| Temperature | 0°C - 40°C (32°F - 104°F) |
|---|---|
| Humidity | 10% - 90%, Non-Condensing |
| Dimensions | 6.4" x 5.1" x 1.1" |
|---|---|
| Weight | 11.3 oz. |
| Features | Indoor/Outdoor Deployment: Indoor Tx/Rx Streams (802.11n mode): 2x2 MIMO dual stream - 300 Mbps/Radio (600 Mbps Total) WME Multimedia Extensions: Yes (4 priority queues for voice, video, data and background traffic) WMM Multimedia Features: Certified by the Wi-Fi Alliance's Wi-Fi Multimedia certification program Simultaneous SSIDs: 16 (14 for client access, 2 for monitoring) Physical Security: Kensington Lock Target Application: Simultaneous AP and dedicated air monitor or concurrent 2.4Ghz and 5Ghz AP with background scan. Traffic Control: Layer 7 traffic prioritization for business-grade application performance guarantees Fast roaming for uninterrupted Wi-Fi connectivity and VOIP over WLAN operations 2 dedicated SSIDs (1 per radio) for monitoring Management: Centralized management with FortiManager Centralized reporting with FortiAnalyzer Global profile management WME with 4 priority queues for voice, video, data & background traffic Distributed Automatic Radio Resource Provisioning (DARRP): No dependency on client software or hardware Fully utilizes available spectrum Reduces load on the controller Reduces chatter between APs Automatic client channel migration |
|---|
| First Listed on Newegg | April 24, 2012 |
|---|
