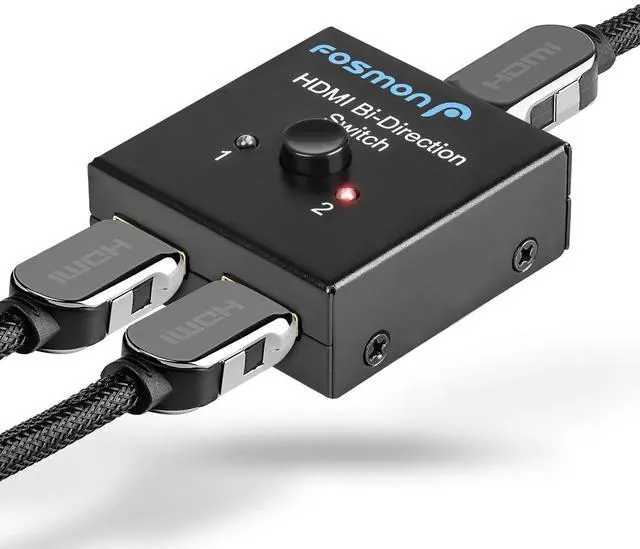

Fosmon 2-Port 4K HDMI Switch 2 in 1 Out, 3D Bi-Direction HDMI Splitter Switcher Adapter, 2x1 HDMI Splitter for PS5, Xbox X

Latest HDMI 2.0 Standard

Why HDMI 2.0 for 4K? Nowadays, most high frame rate movies and games are running at 60Hz. With Fosmon's 2-Port HDMI switch with HDMI 2.0, you can enjoy full 4K 3D and 60Hz frame rates.


Supports 4Kx2K 60Hz UHD

Fosmon's Bi-Directional HDMI switcher supports 4K@60Hz, 3D, 1080p, HDCP pass through, UHD Dolby Vision, as well as uncompressed and compressed audio formats. Enjoy maximum video resolution and audio quality while using all of your favorite new generation gaming consoles!


2 Input 1 Output or 1 Input 2 Output

Fosmon HDMI Switch with Bi-Directional function and HDCP Passthrough allows you to connect two high-definition HDMI sources like Blu-ray or PS4 to a single HDMI display. It also allows you to output single high-definition source to two displays.


Powered from Connected Devices

No power adapter is necessary for this switch to function, as long as the connected devices supply sufficient power through the HDMI cable.


Note

• This switch works best with HDMI cables that are 16 feet (5 meters) or shorter and 26AWG or better.


• This switch is powered by HDMI source. Signal stability depends highly on the HDMI source.


• Will not output to both displays simultaneously; select which one to use with the select button.

Specifications

• Latest standard HDMI 2.0


• 3 HDMI Type-A ports


• Easily switch between two HDMI video sources to one HDMI display


• Easily switch a single HDMI video source between two displays (not simultaneously)


• Supports 4k x 2k, 3D, 1080P resolution


• Supports HDCP pass-through


• Supports 12-bit Deep color per channel; maximum of 32-bits across all channels


• Supports uncompressed audio such as LPCM


• Supports compressed audio such as DTS Digital, Dolby Digital, DTS-HS and Dolby TrueHD


• No power source needed; plug and play functionality


• Maximum operating current: 15mA

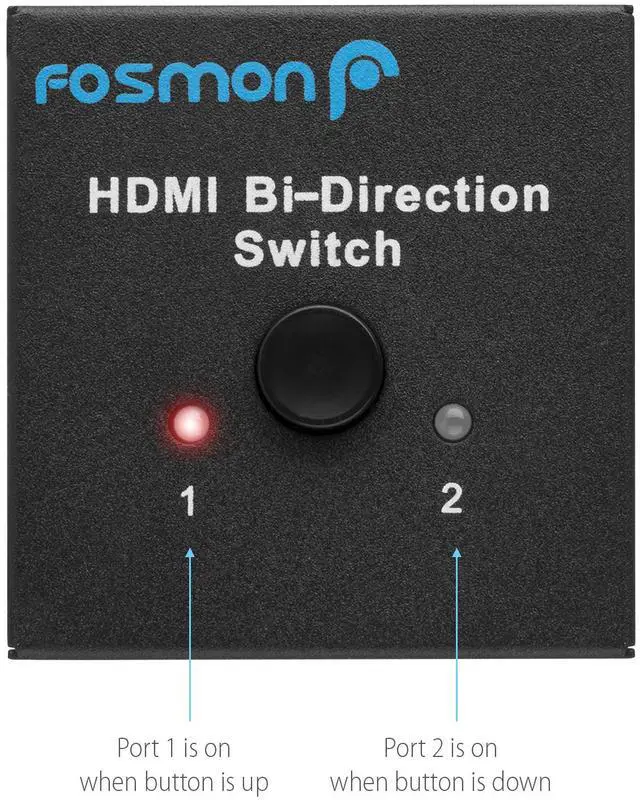

• Manual select push button to alternate between modes


• Dual LEDs to display status

Model: HD8024-OD
