Question 1

Does this unit support Windows 7 64 bit?

Accepted Answer

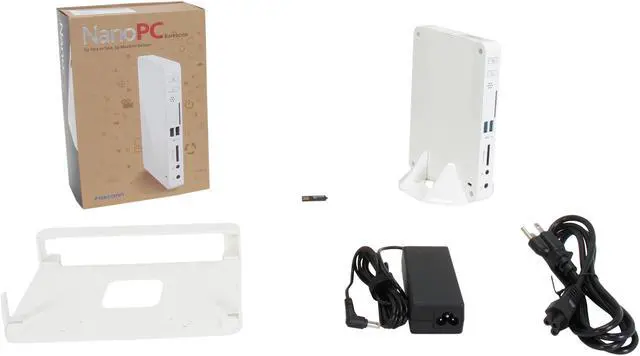

According to the manual, yes, it will support it as long as you disable the "Launch CSM" setting the in the bios first (manual page 22). There is a small flash drive included in the box with drivers. It's easy to miss since it's attached to a cardboard divider and I almost threw it out.

I'm using Ubuntu 64-bit on it, though, so I can't be 100% sure it works with Windows 7 64-bit.

Question 2

Can this use either 1.35V or 1.5V So-Dimm or do you have to use a specific voltage?

Accepted Answer

Either 1.35v or 1.5v should work. (I'm using 1.5v.)

It's just the 1.65v you want to avoid with Intel systems. (AMD memory controllers are a bit more forgiving.)

The "standard" according to JEDEC is 1.5v. Can't go wrong with that.

Question 3

Can I put an i3-3225 55W processor in this?

Accepted Answer

Hello, Thank you for contacting us with your question. We apologize that we are unable to provide you with direct technical assistance; however, we recommend visiting our online community forum. www.eggxpert.com. At EggXpert you can chat with someone who may assist you with your question. Hope this information is helpful. Have an Eggcellent Day! Newegg.com

Question 4

I installed an 8GB DDR3 1600 module and both BIOS and Win7 show that the full 8GB are recognized (7.89GB available as shown in Win7). Does this product in fact support 8GB of RAM?

Accepted Answer

Interesting, I'll try the same thing - I should have an 8G SO-DIMM I can test with - as the specs say only 4G, but I notice the chipset should be able to handle it.  You could always run something like memtest86+ or the like and give it a good workout...

Question 5

does it take a standard HD or a laptop Hd? and same for the ram is it standard or laptop size

Accepted Answer

These units only accept laptop size hard drives and ram.  But it also has 2 USB 3.0 ports so you could easily expand using any USB 2.0 or 3.0 external storage.  Hope this helps.

Question 6

I was excited to receive this box and was soon planning to order some more, but then i tried to boot from an SDCard and that plain didn't work. So my question is, does this box's motherboard support SDCard Boots?. USB Boots work though.
Thanks

Accepted Answer

Sorry, I can't help you with the SD Boot.
I gave the unit to my sister who fell in love with it.
Next time I visit, I'll try an SDCard Boot.

Question 7

Does this have Wifi built in?  I do not see an antenna and wanted to make sure

Accepted Answer

Yes,

Go to there website for detail. The antenna is in the outside edge of the case.

Question 8

Does this suport UEFI?

Accepted Answer

I believe it does. I didn't install Windows 8 on it, but when I booted with a Windows 8 USB, it did detect UEFI boot.

Question 9

please provide all the specs for this unit. does it have an OS? will it run audio files from a 3rd party source or back pack hard drive?  Why do I not see an Ethernet port?

Accepted Answer

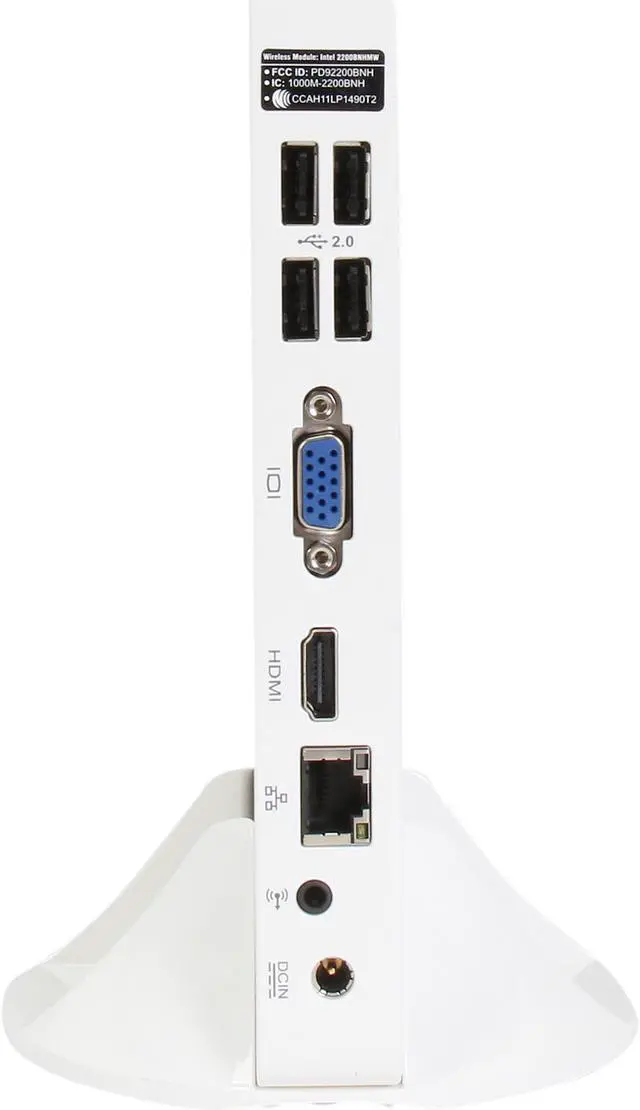

This unit is a barebones computer which does not include a hard drive, memory, or OS.  It should have no problems playing audio files from a 3rd party source like Pandora or a backpack hard drive, assuming the hard drive connects using usb or wifi.  The ethernet port is on the back of the machine.  There is a picture of the back of the machine in the extend list of pictures.

Question 10

Is there an IR header onboard?  And if so, from what power states can it listen?

Accepted Answer

no

Brand	Foxconn
Model	nT-i2847 White

Memory slot	1 x 204Pin SO-DIMM
Memory Type Supported	DDR3 1333
Max Memory Supported	4GB

Max LAN Speed	10/100/1000Mbps
Wireless LAN	802.11n

Front USB	2 x USB 3.0
Front Audio Ports	Audio line in 3.5mm jack (digital/analog) headphone 3.5mm jack
Card Reader	SD/SDHC/SDXC/MS/MS Pro/MMC 6 in 1 Card Reader

VGA	1 x D-sub
HDMI	1
Rear USB	4 x USB 2.0
RJ45	1
