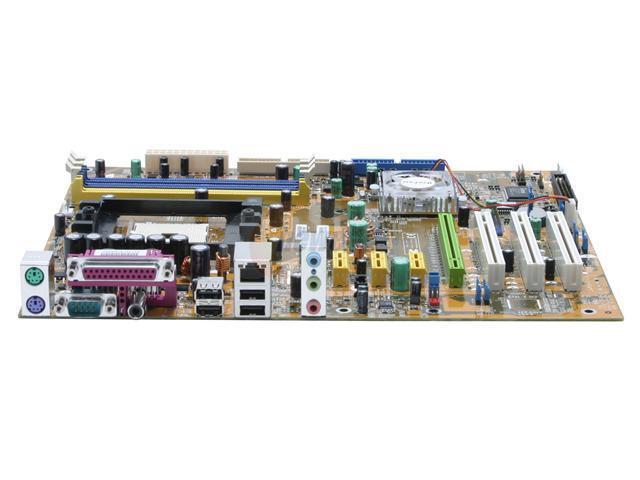

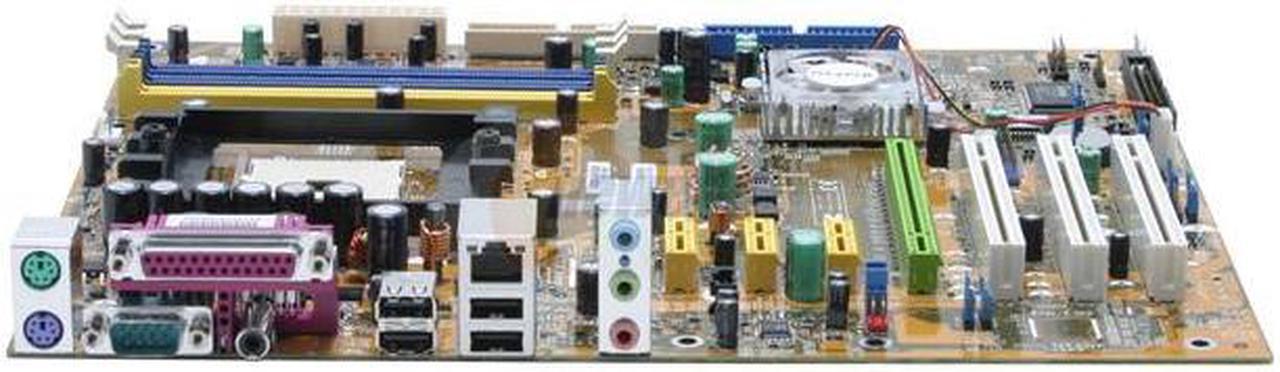

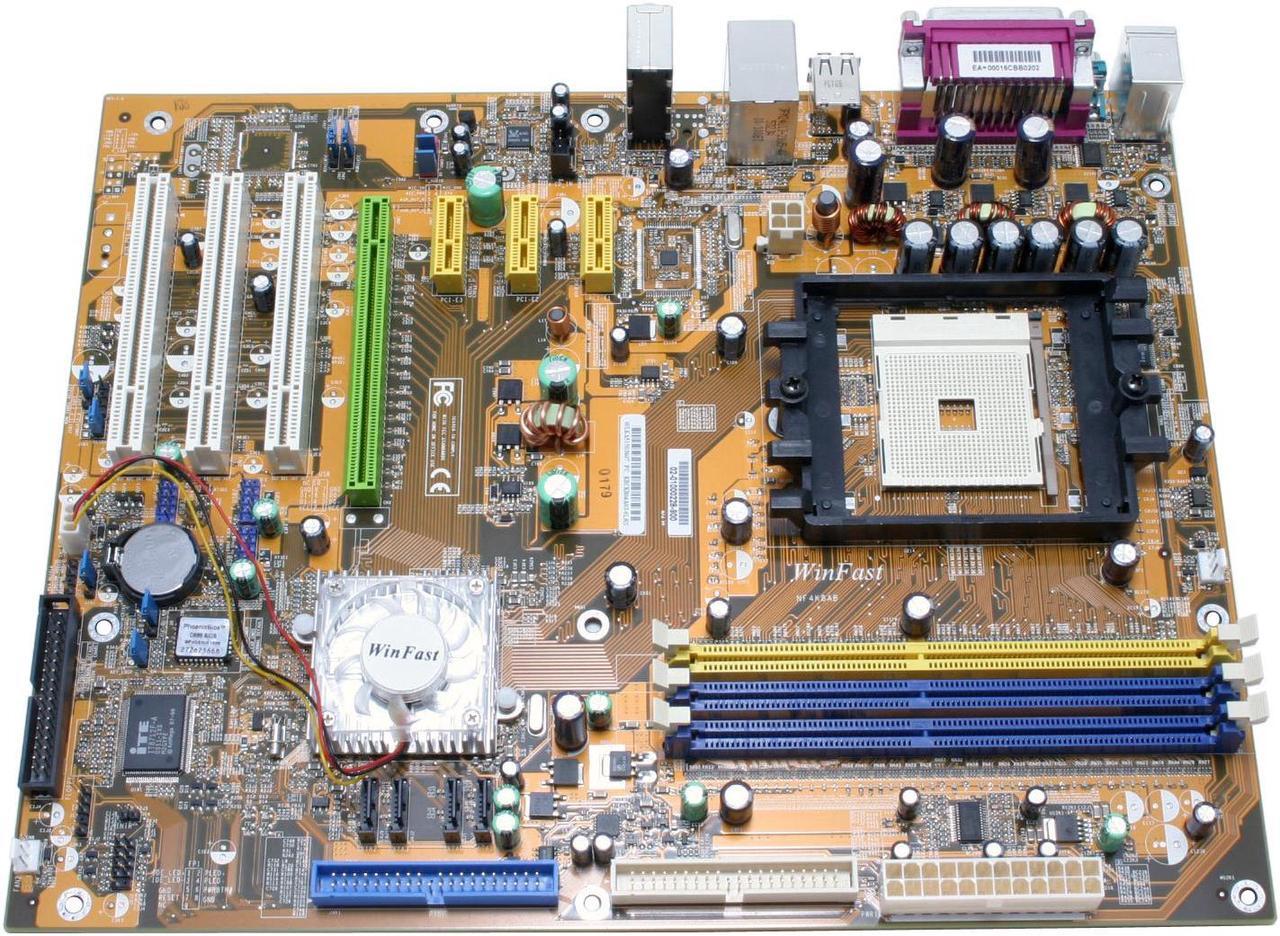

Foxconn NF4K8AB-RS PX6200TC 754 NVIDIA nForce4 ATX Motherboard / VGA Combo
- Athlon 64/Sempron
- DDR 400
- None
Specs
Reviews (59)
Learn more about the Foxconn NF4K8AB-RS PX6200TC
| Brand | Foxconn |
|---|---|
| Model | NF4K8AB-RS PX6200TC |
| Combo Type | Motherboard / VGA Combo |
| CPU Socket Type | 754 |
|---|---|
| CPU Type | Athlon 64/Sempron |
| FSB | 800 MHz |
| North Bridge | NVIDIA nForce4 |
|---|
| Number of Memory Slots | 3x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 3GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA 100 4 Dev. Max |
|---|---|
| SATA | 4 x SATA 1.5Gb/s |
| SATA RAID | 0/1/0+1 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Broadcom AC131 PHY |
|---|---|
| LAN Speed | 10/100Mbps |
| Max LAN Speed | 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|

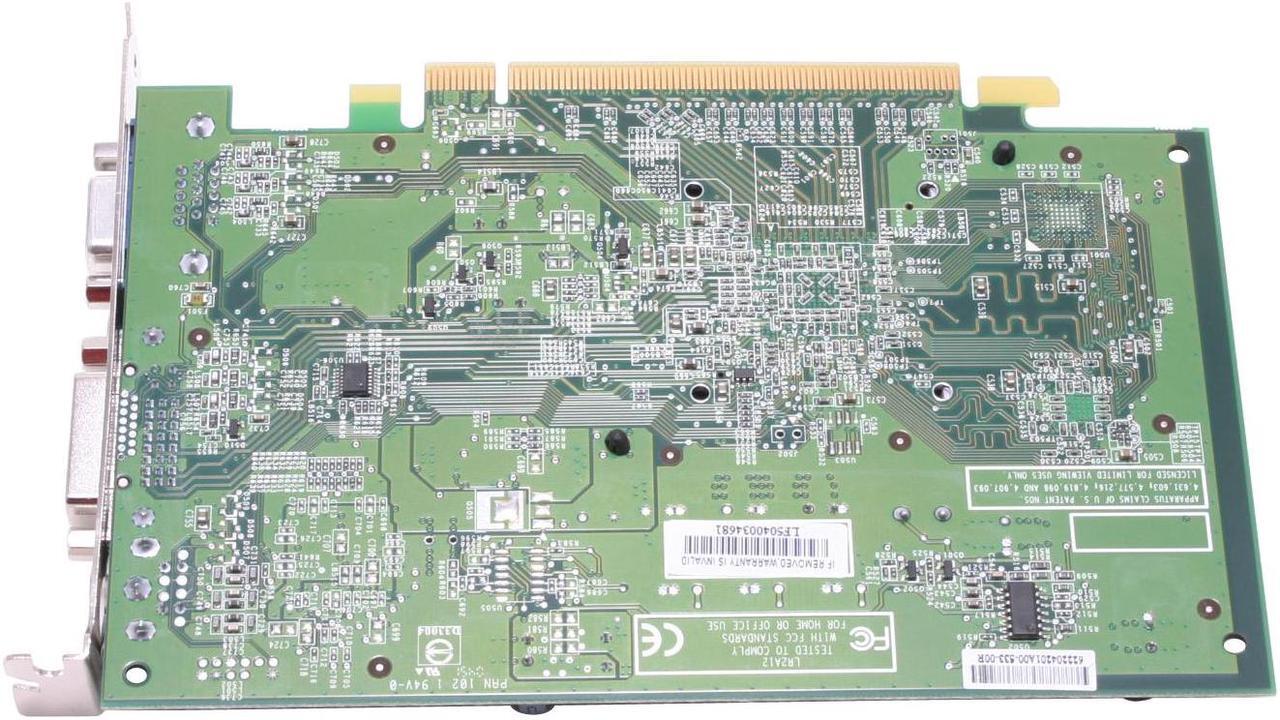

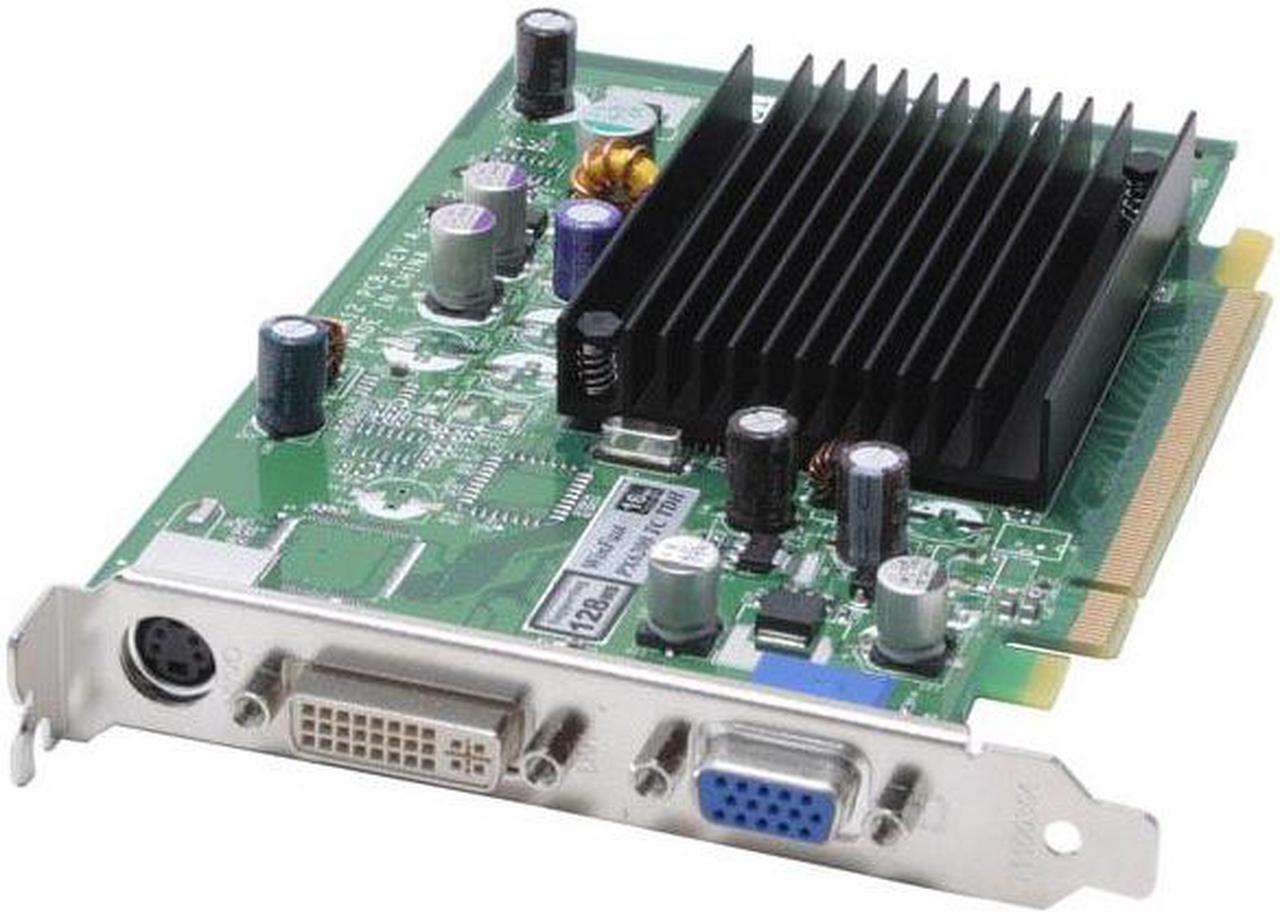

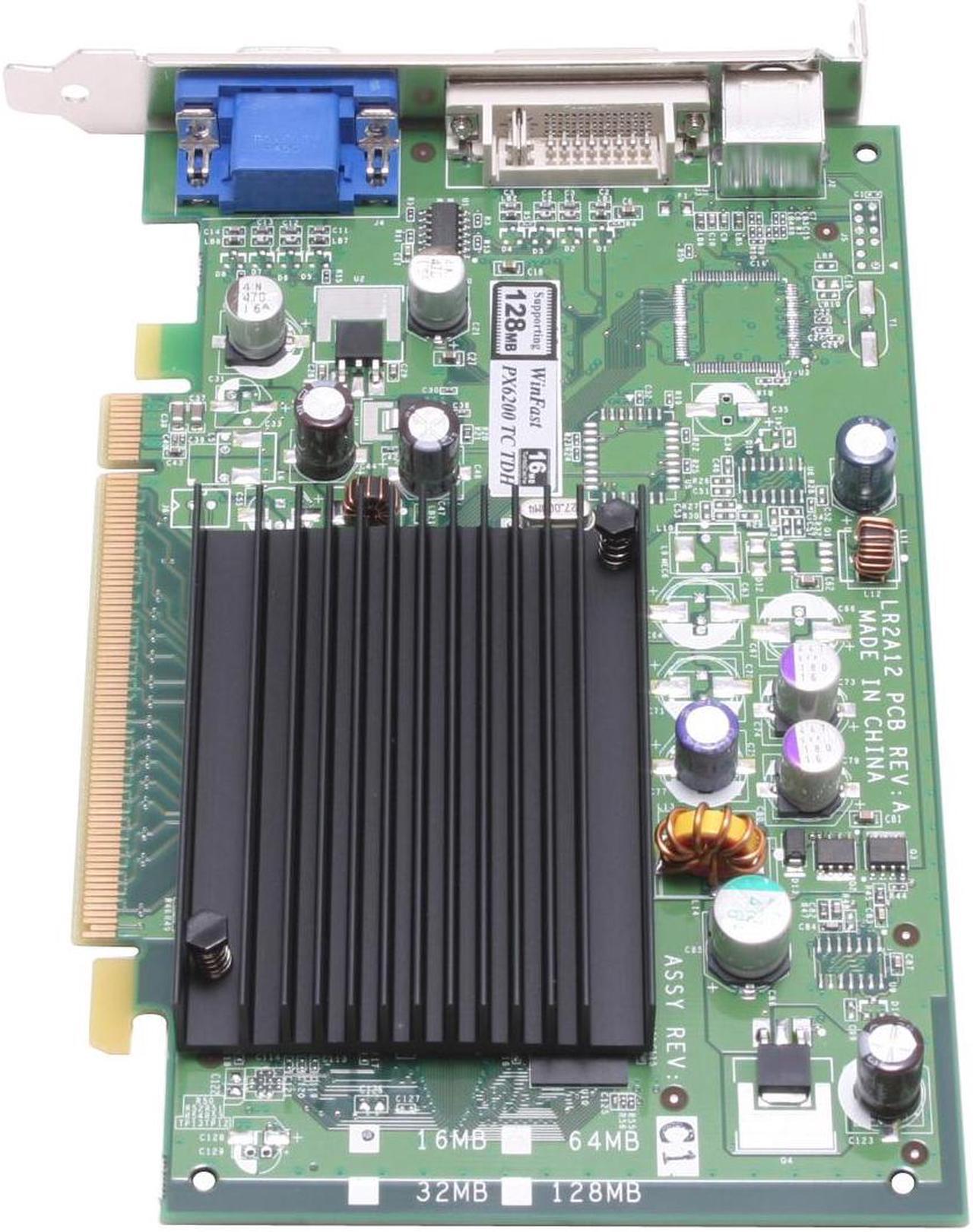

| Features | VGA Specifications: Chipset: nVIDIA GeForce 6200 Turbo Cache Memory: Supporting 128MB BUS: PCI-Express x16 Ports: VGA Out(15 Pin D-Sub) + TV-Out (S-Video/Composite) + DVI Support 3D API: DirectX 9(Shader Model 3.0), OpenGL 1.5 Max Resolution@32bit Color: 2048 x 1536 Retail Box (See pics for details) NVIDIA(r) TurboCache(tm) technology shares the capacity and bandwidth of dedicated video memory and dynamically available system memory for turbocharged performance and larger total graphics memory |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |

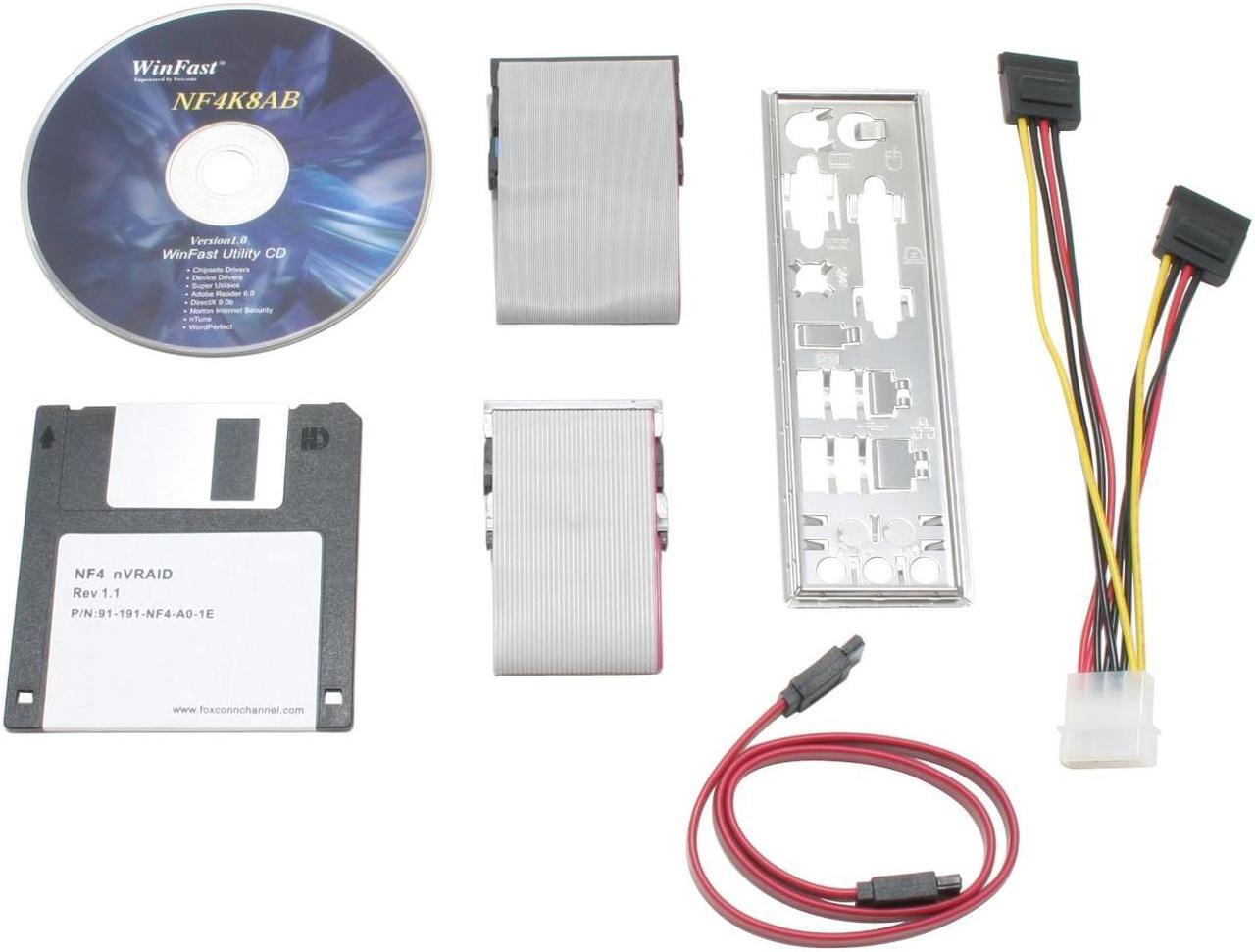

| Package Contents | NF4K8AB-RS PX6200TC User Manual Driver Disk Floppy Drive Diskette Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| Date First Available | July 29, 2005 |
|---|
