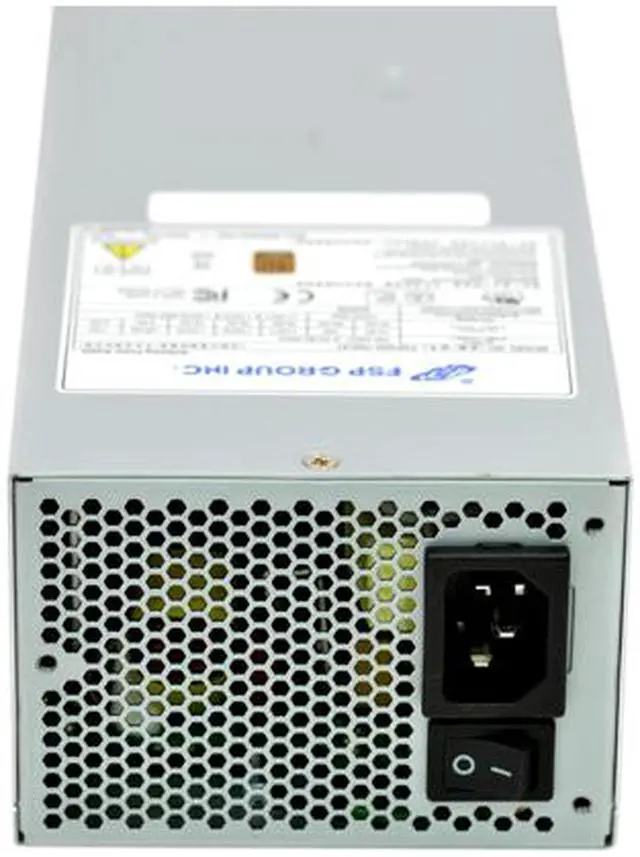

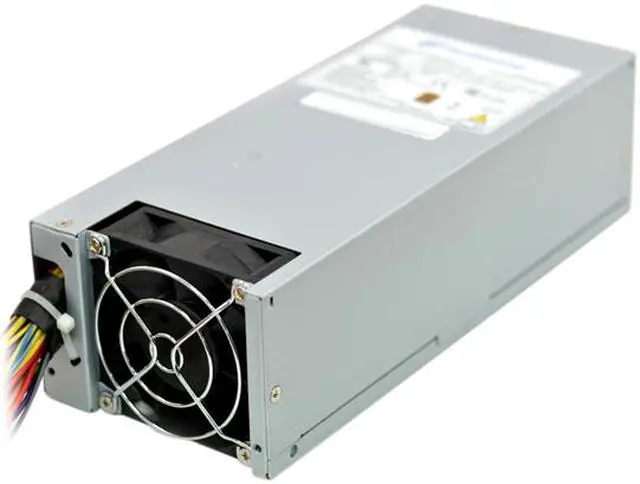

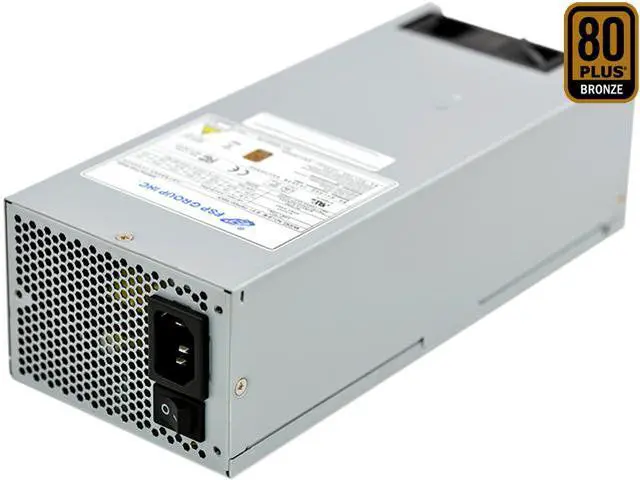

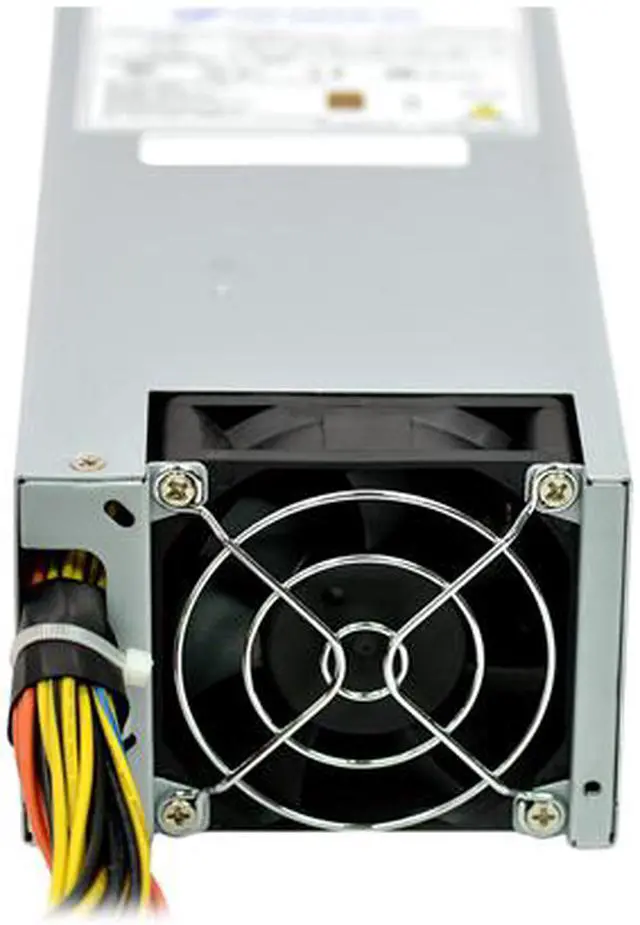

FSP Group 500W ATX Power Supply Single 2U Size 80 PLUS Bronze Certified for Rack Mount Case (FSP500-702UH) - OEM

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the FSP FSP500-702UH

Model
Brand	FSP Group
Model	FSP500-702UH

Details
Maximum Power	500W
Output	Output Voltage: +3.3Vdc output : +3.5 Vdc minimum, + 4.5Vdc maximum +5Vdc output : +5.5 Vdc minimum, + 6.82Vdc maximum +12Vdc output : +13.4 Vdc minimum, + 15.6Vdc maximum
Input Frequency Range	47 - 63 Hz
Input Current	115V @ 8.0 Amps-rms maximum 230V @ 4.0 Amps-rms maximum
MTBF	The power supply have a minimum predicted MTBF(MIL-HDBK-217) of 100,000 hours of continuous operation at 25 degree C, maximum-output load, and nominal AC inout voltage
Efficiency	85% 230V AC
Hold-up Time	115V / 60Hz 16mSec. Minimum @ 100% Load, 230V / 50Hz 16mSec. Minimum @ 100% Load
Protection	Over current protection 3.3V:50mV p-p 5V:50mV p-p 12V1:120mV p-p 12V2:120mV p-p 12V3:120mV p-p -12V:120mV p-p 5Vsb:50mV p-p -5V:100mV p-p

Features
Features	80 Plus Bronze Low Ripple & Noise Output over voltage protection Short circuit protection on all outputs Resettable power shut down INTERNAL 4 cm fan 100% burn-in under high ambient temperature (50 degree C) Vacuum-impregnated transformer MTBF:100K hours at 25 degree C 100% Hi-pot tested Line input fuse protection

Dimensions & Weight
Dimensions	2.76" x 9.45" x 3.94"

Environmental
Humidity	Operating : 85% to % RH, Non-condensing Storage : 95% to % RH, Non-condensing
Temperature	Operating : 0 to +50 degree C Storage :-20 to +80 degree C
