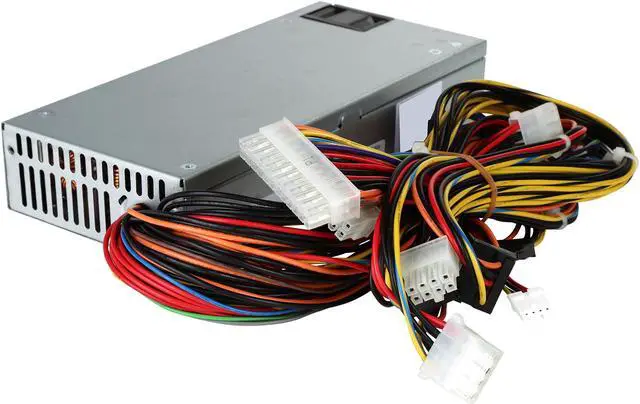

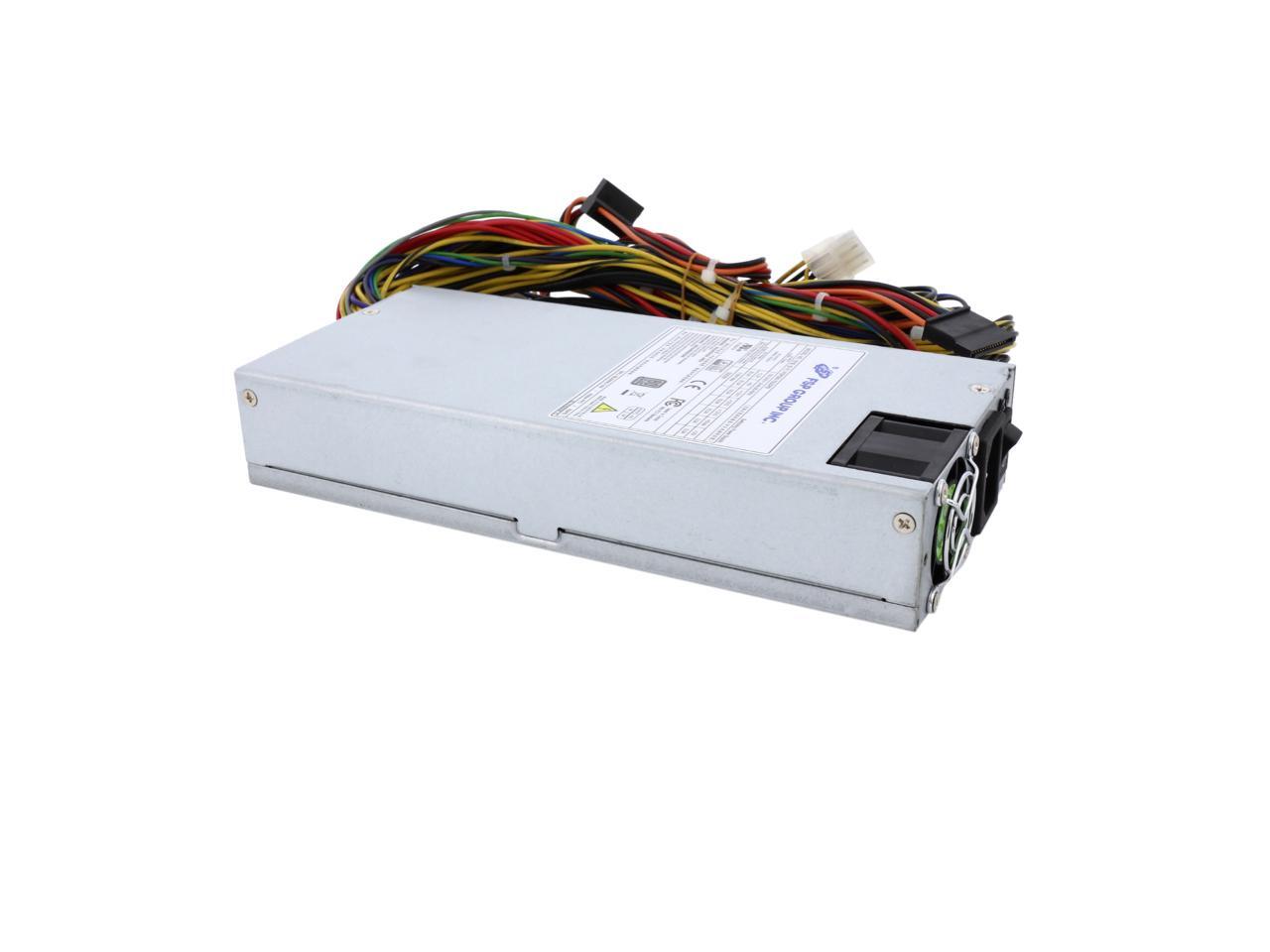

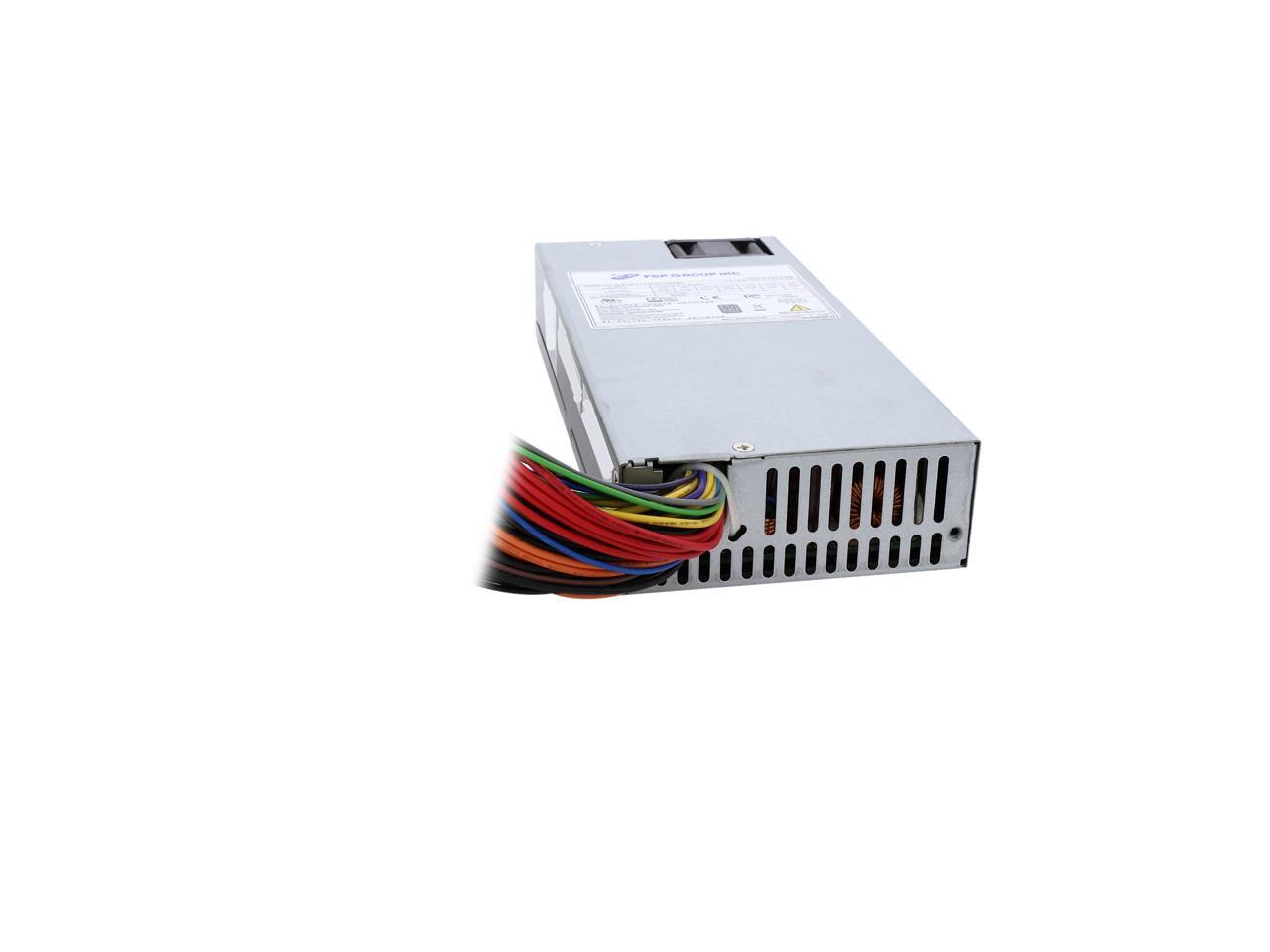

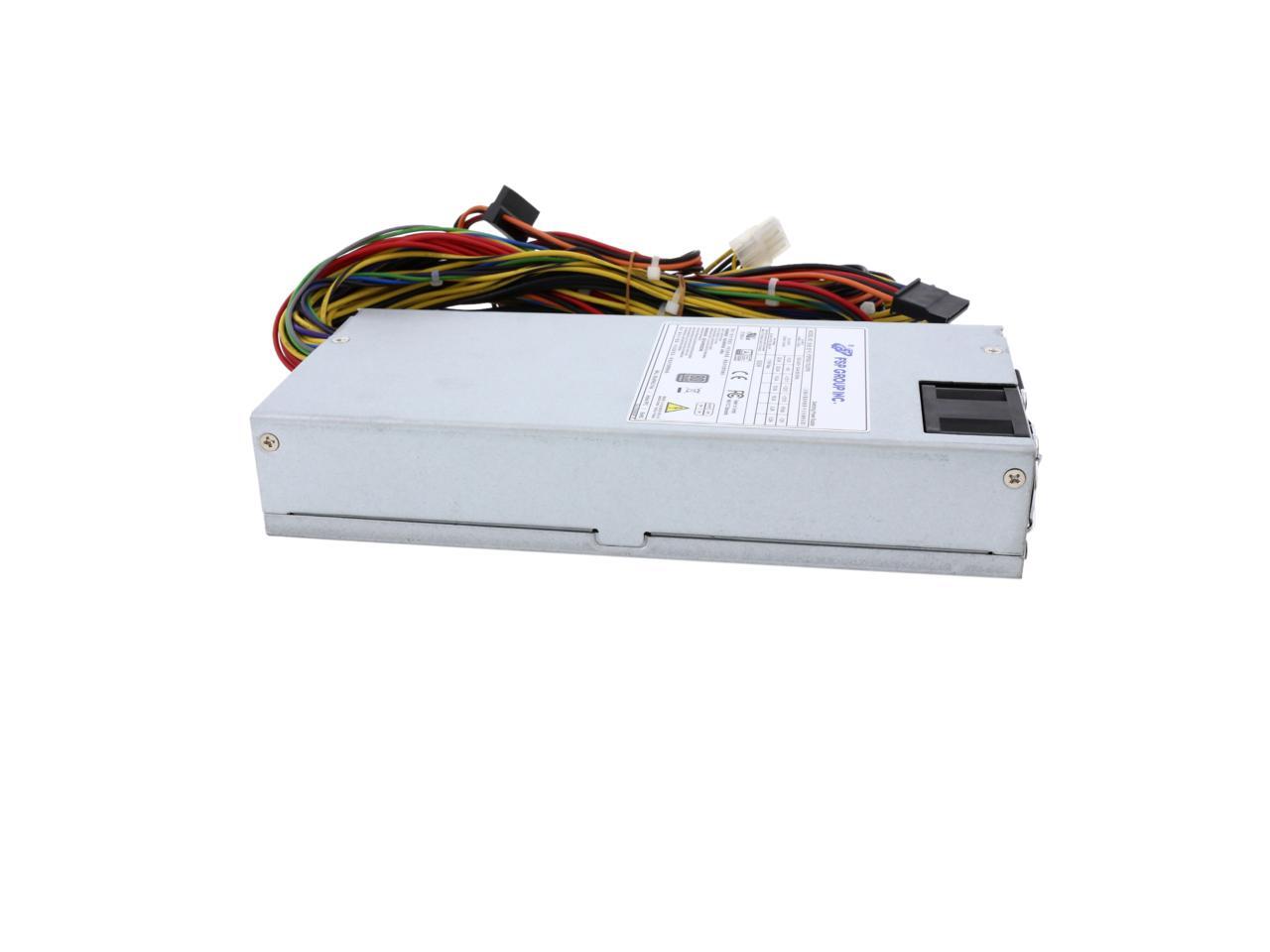

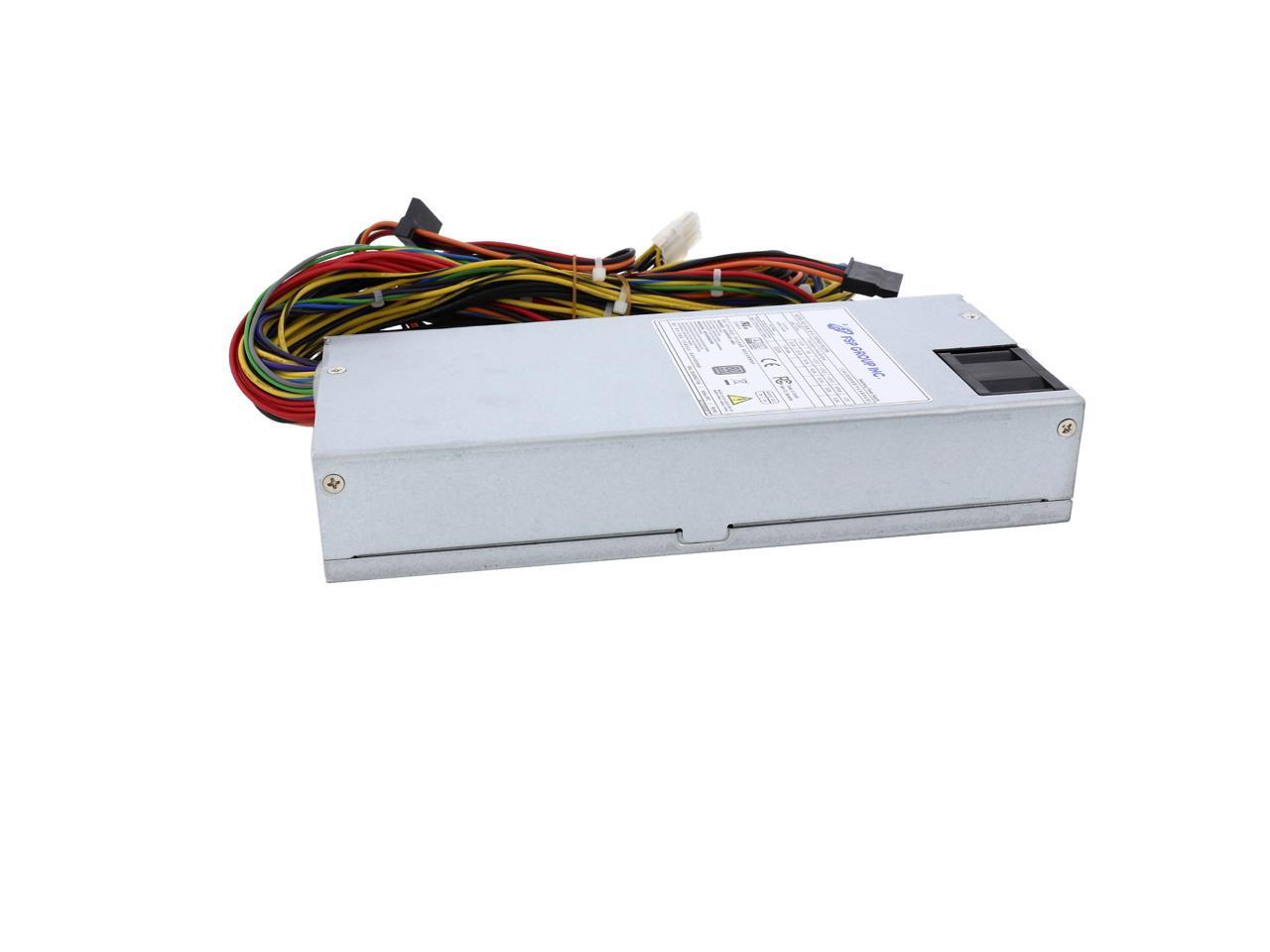

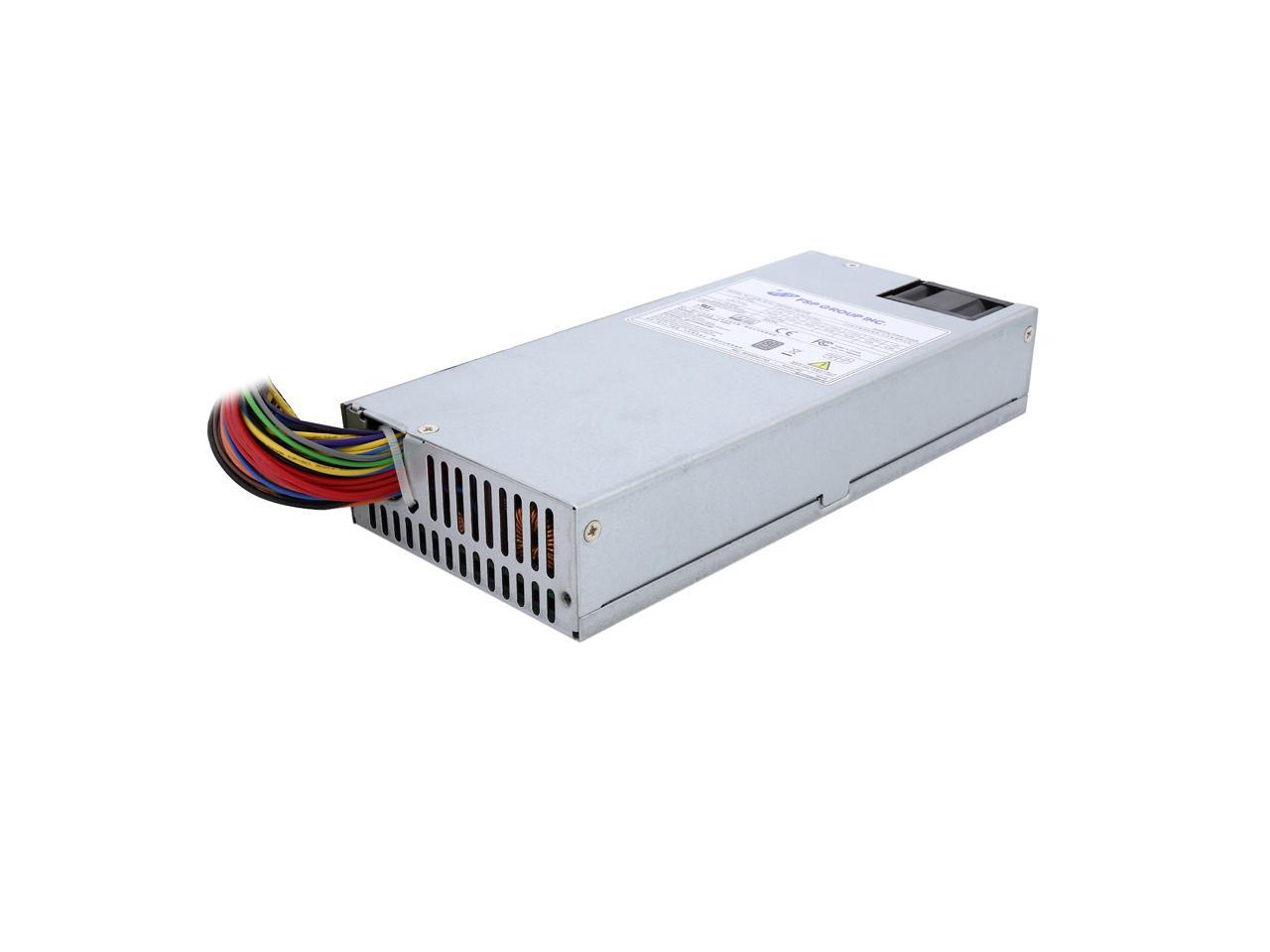

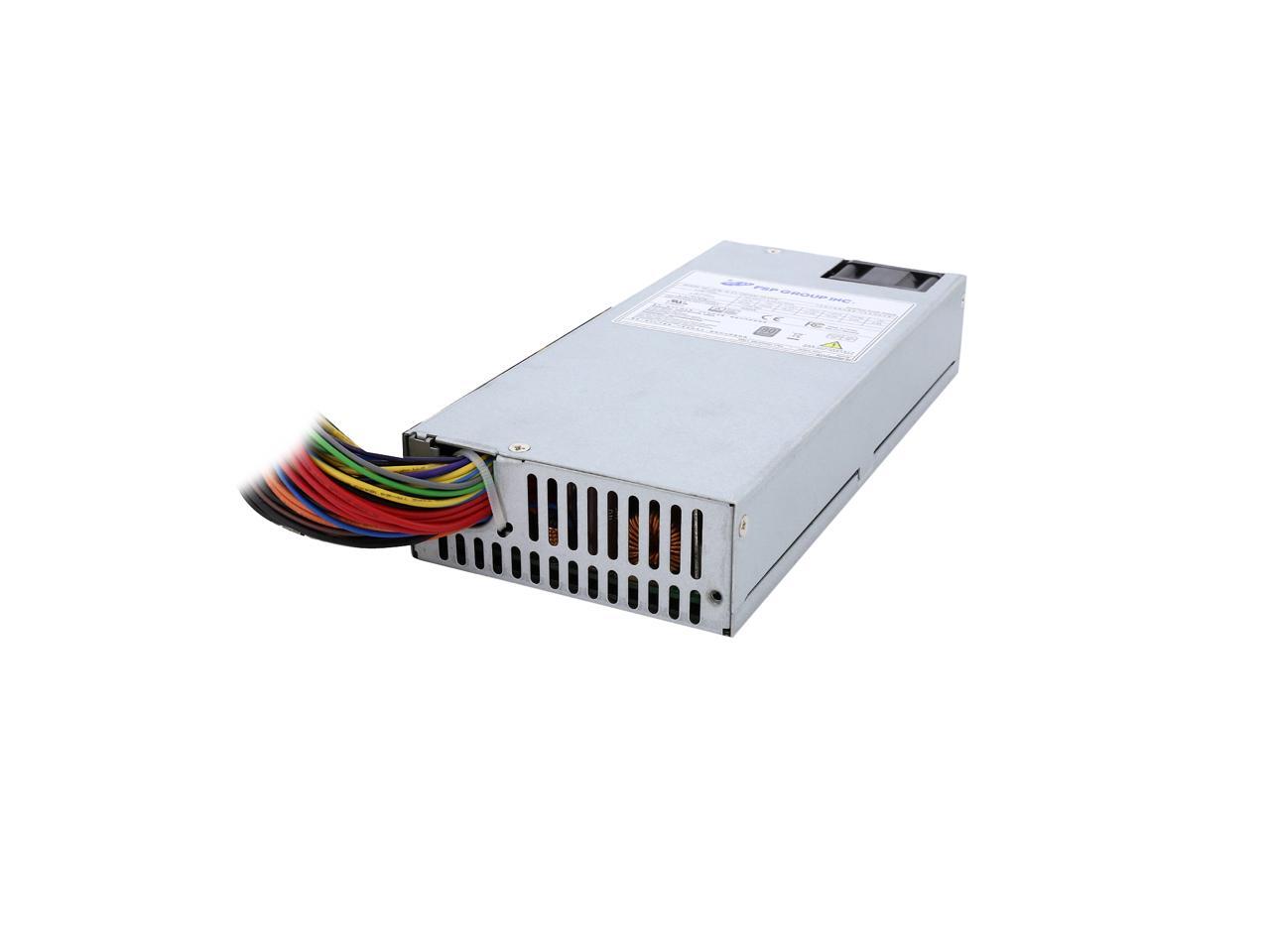

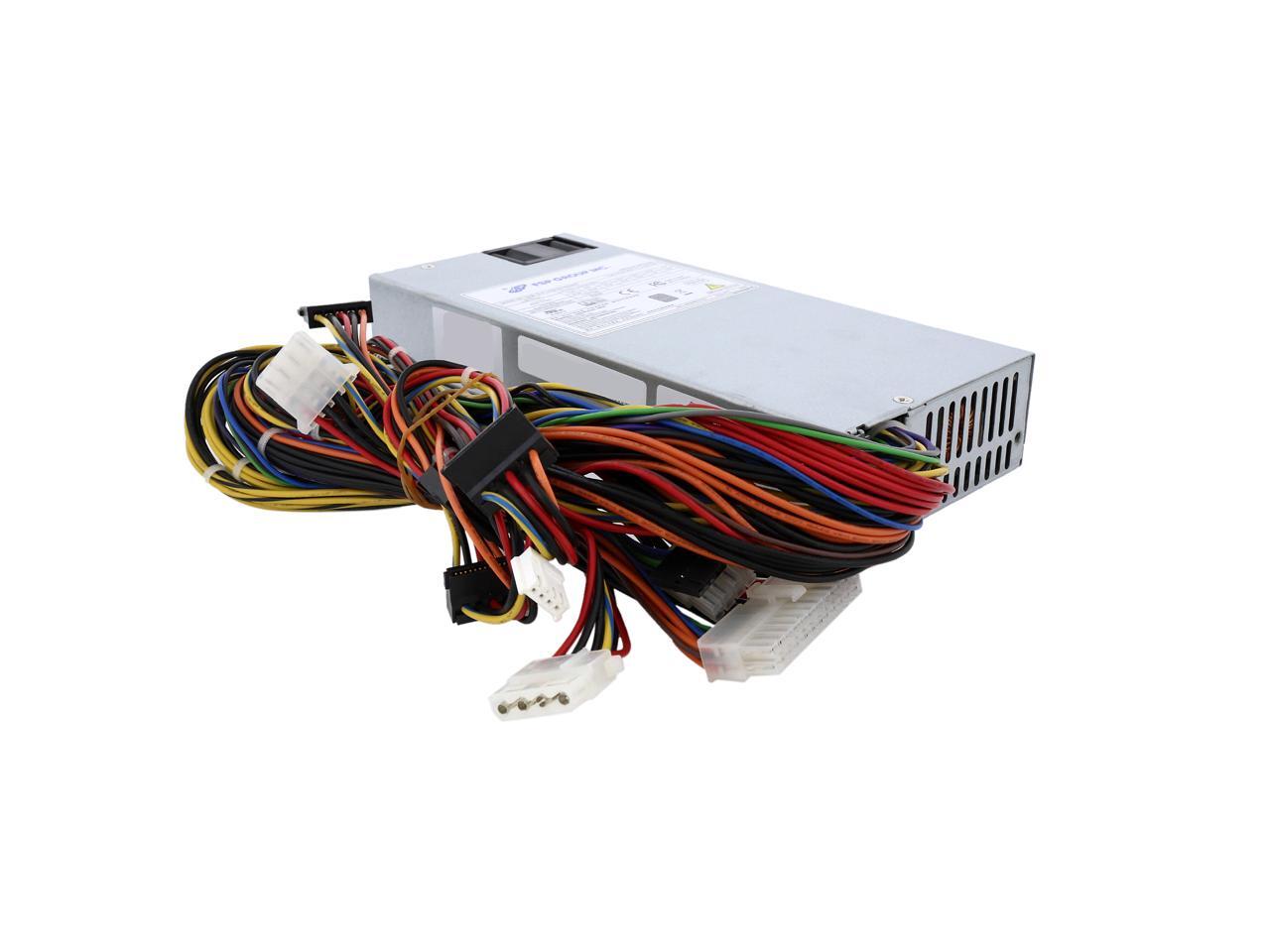

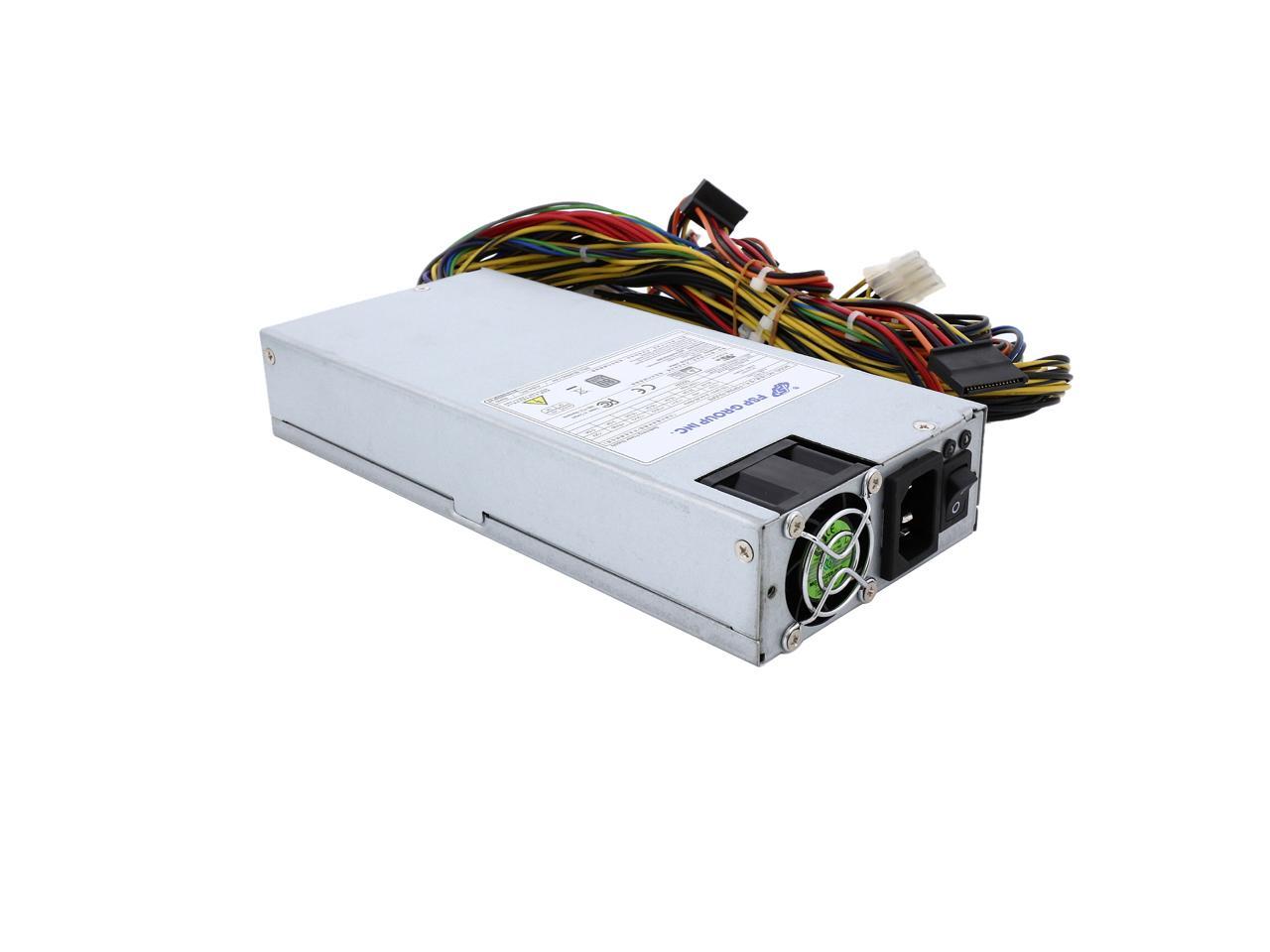

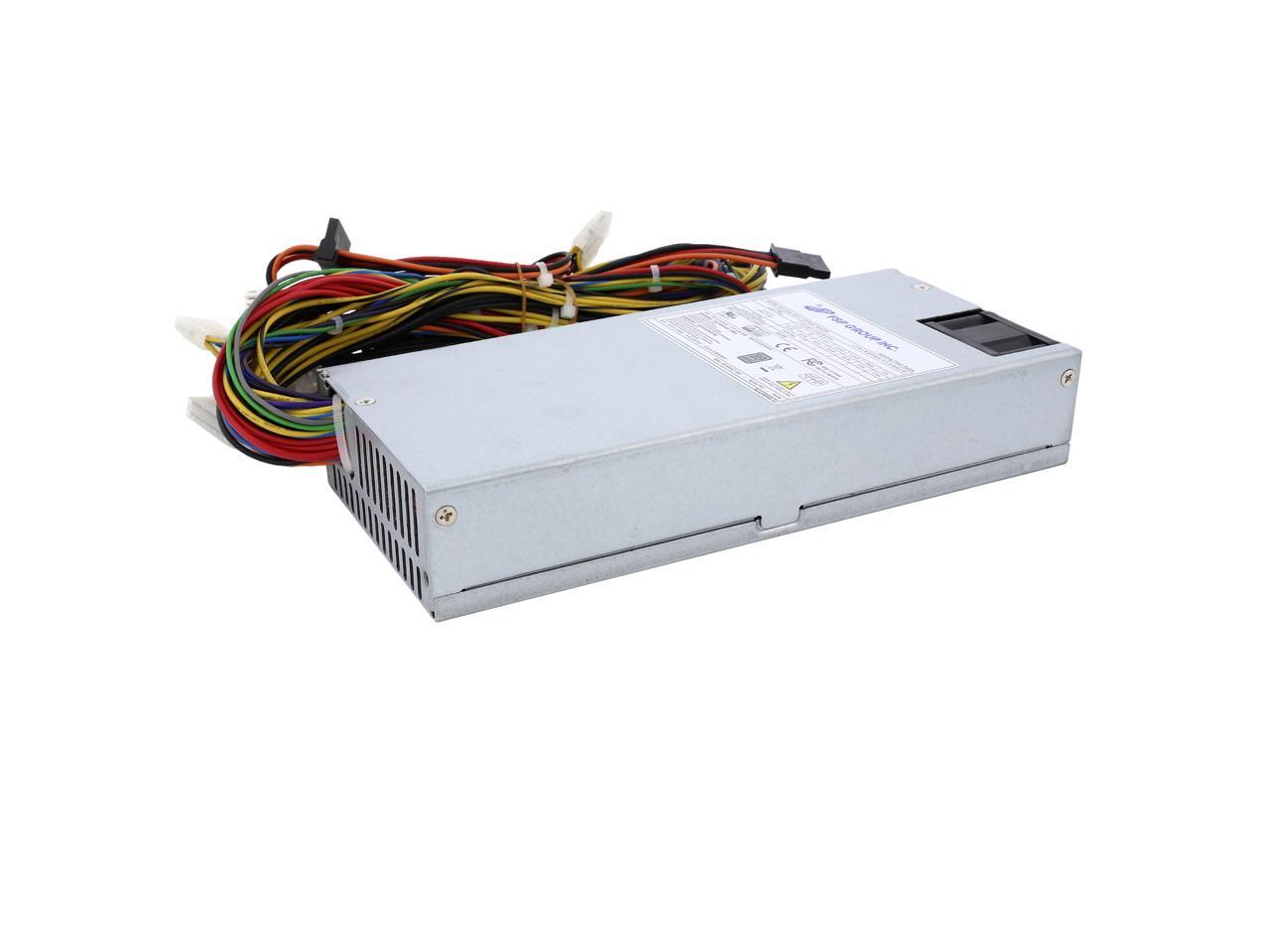

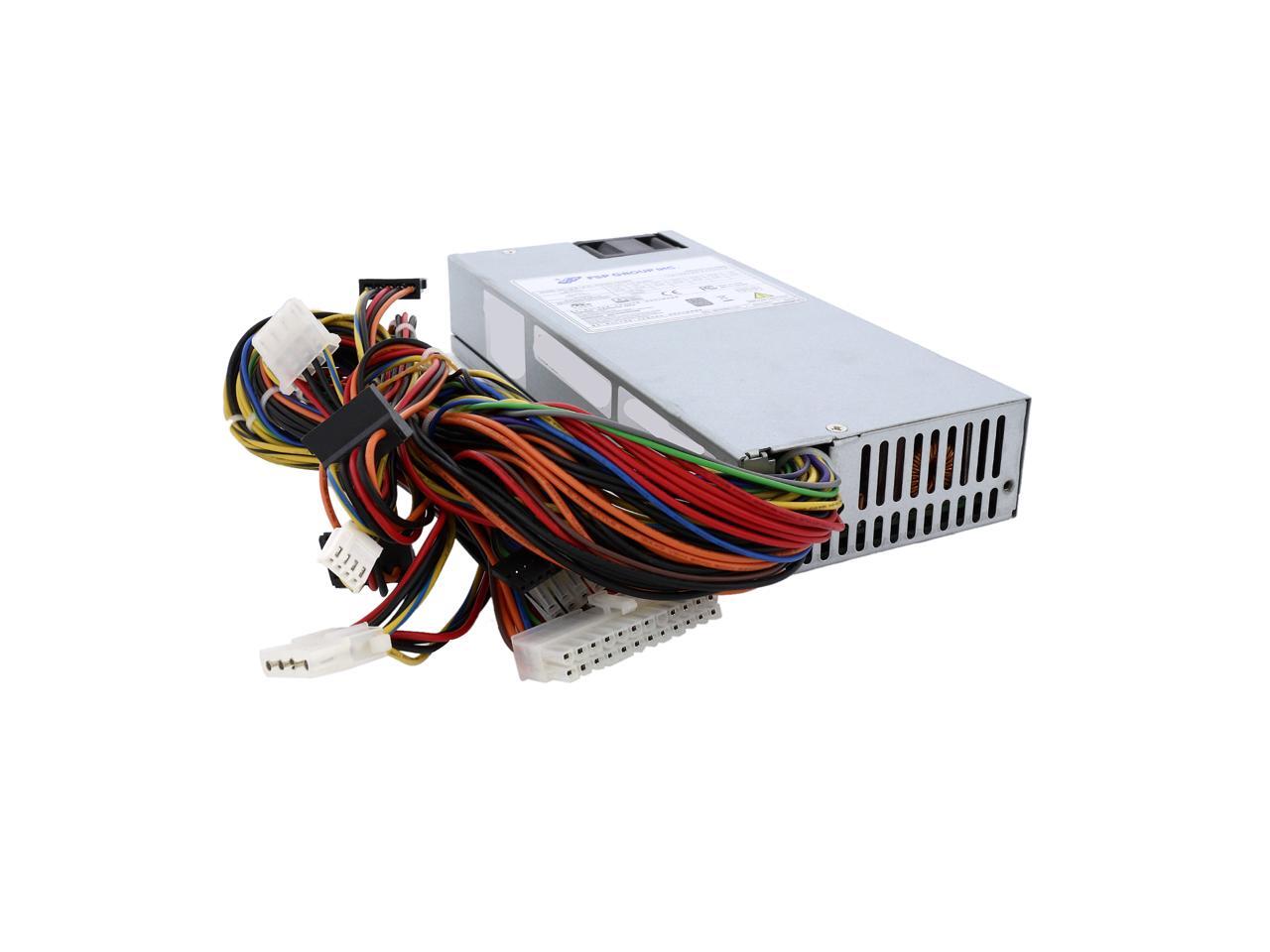

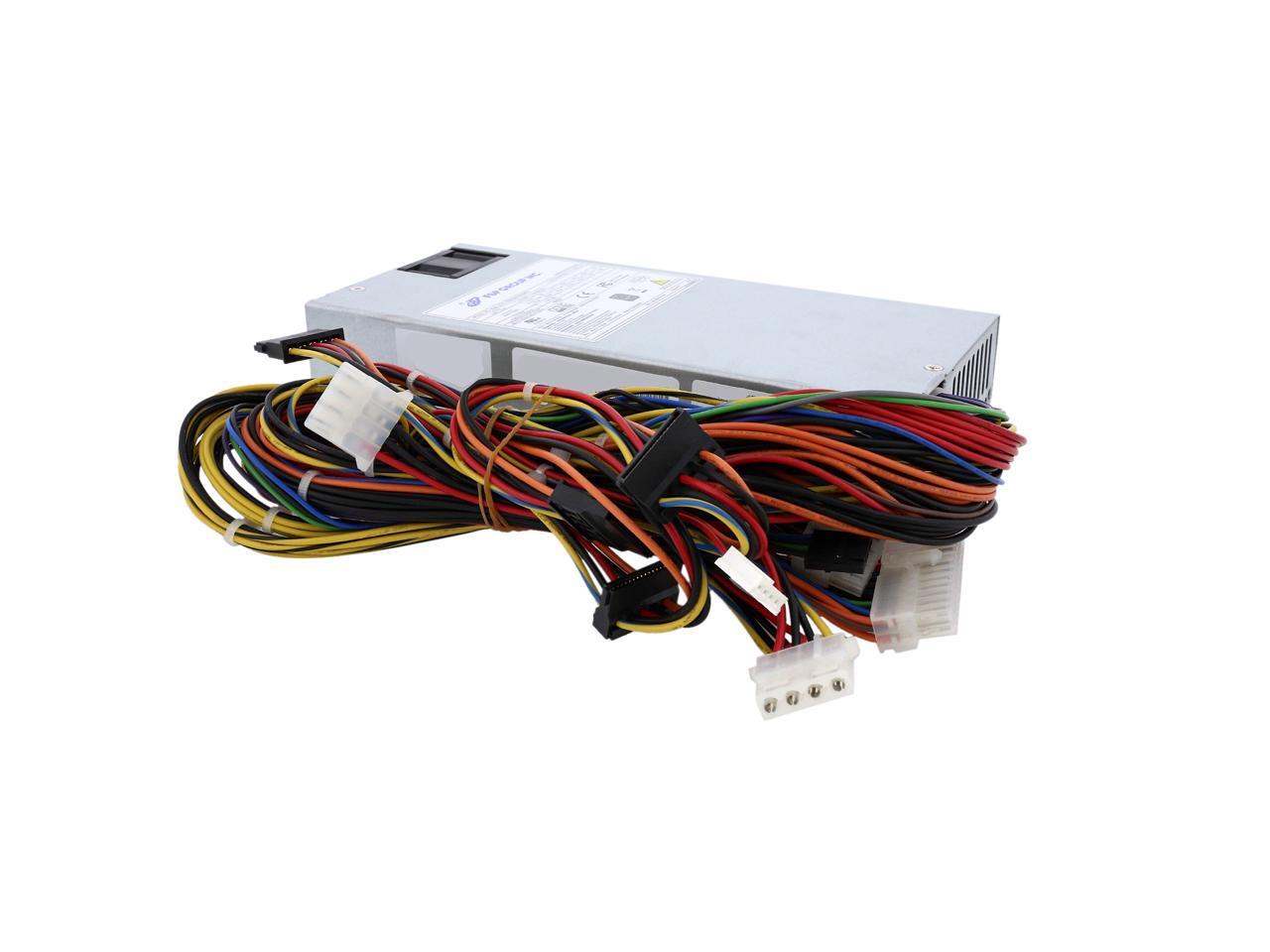

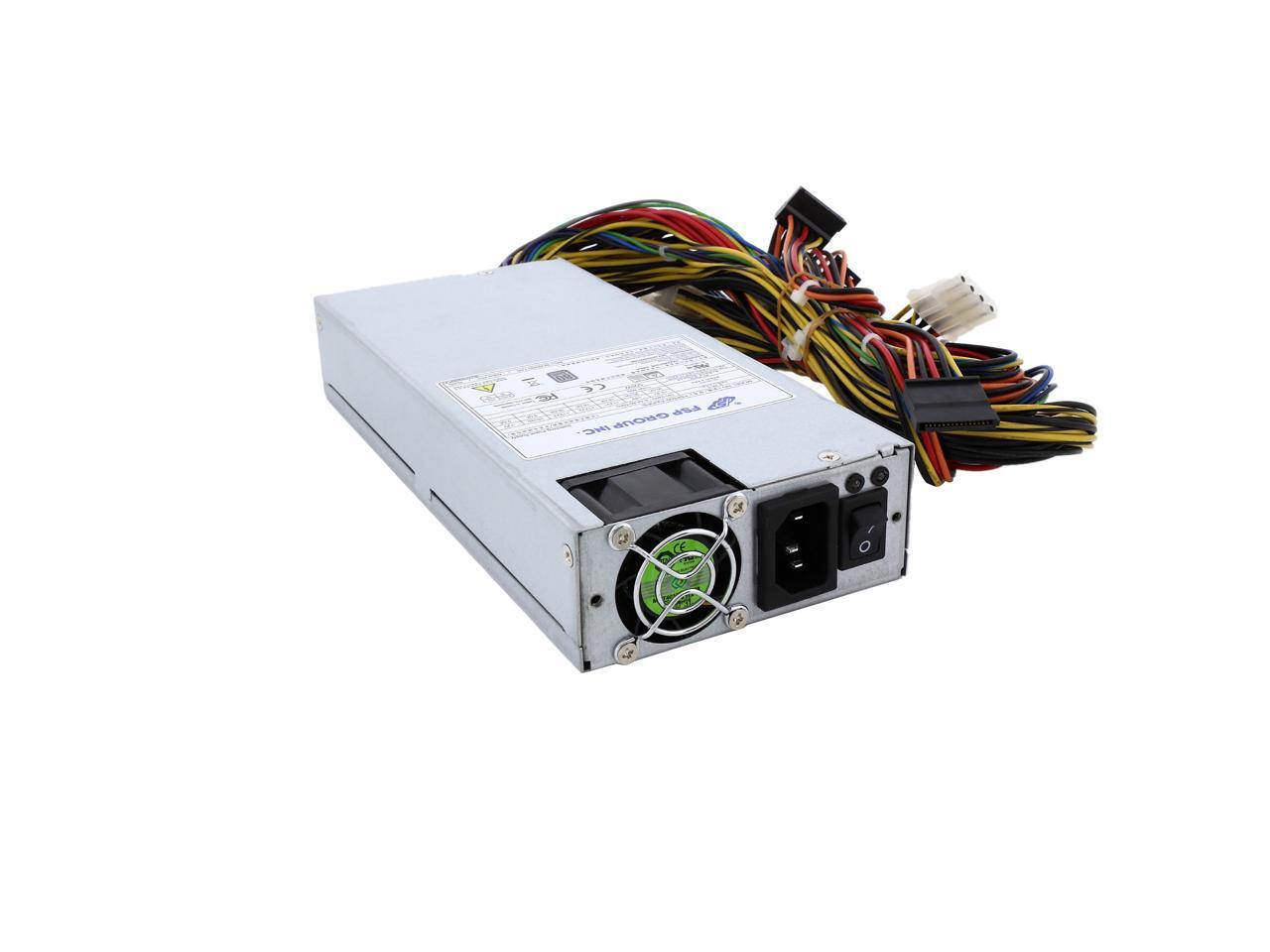

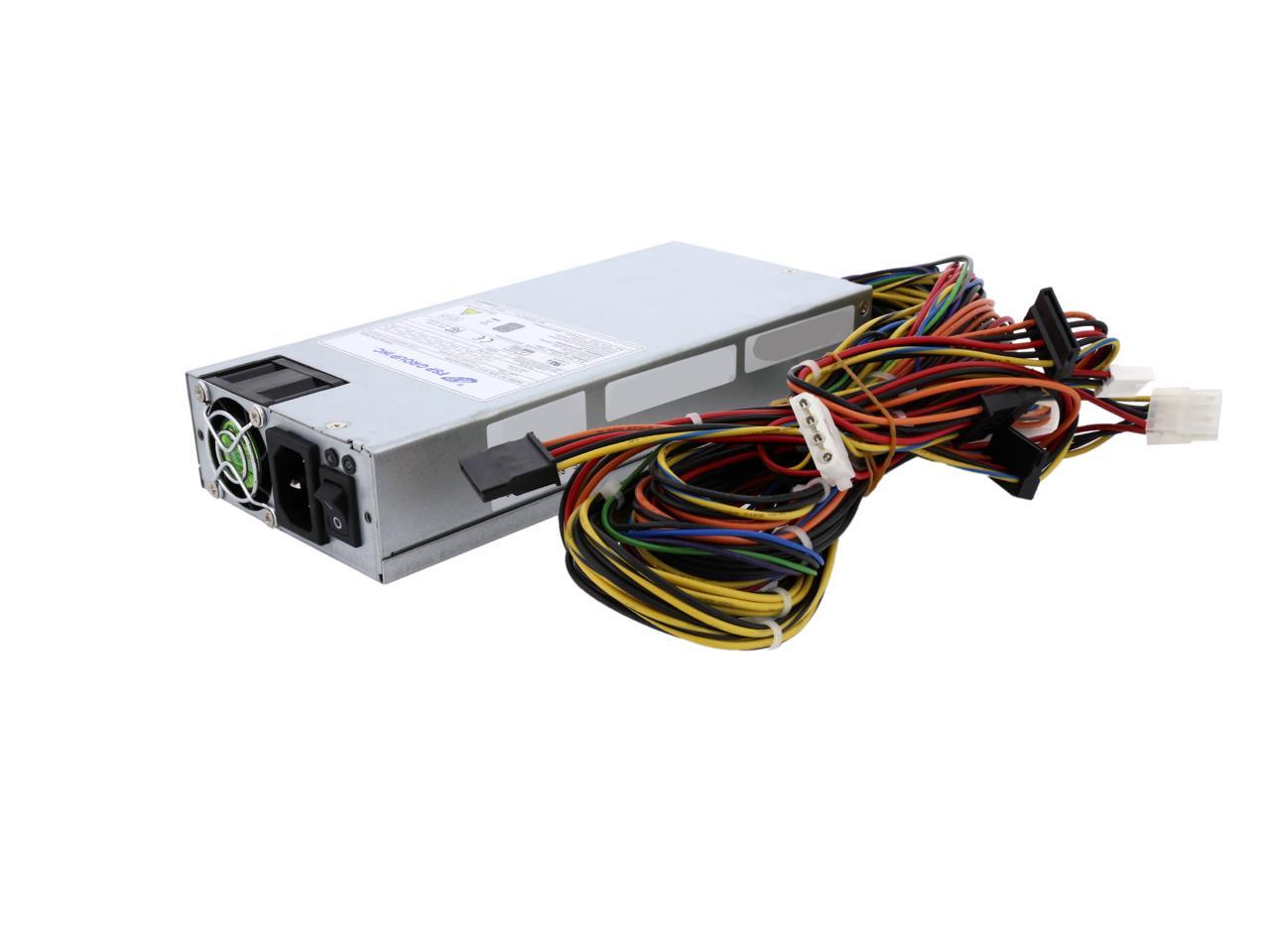

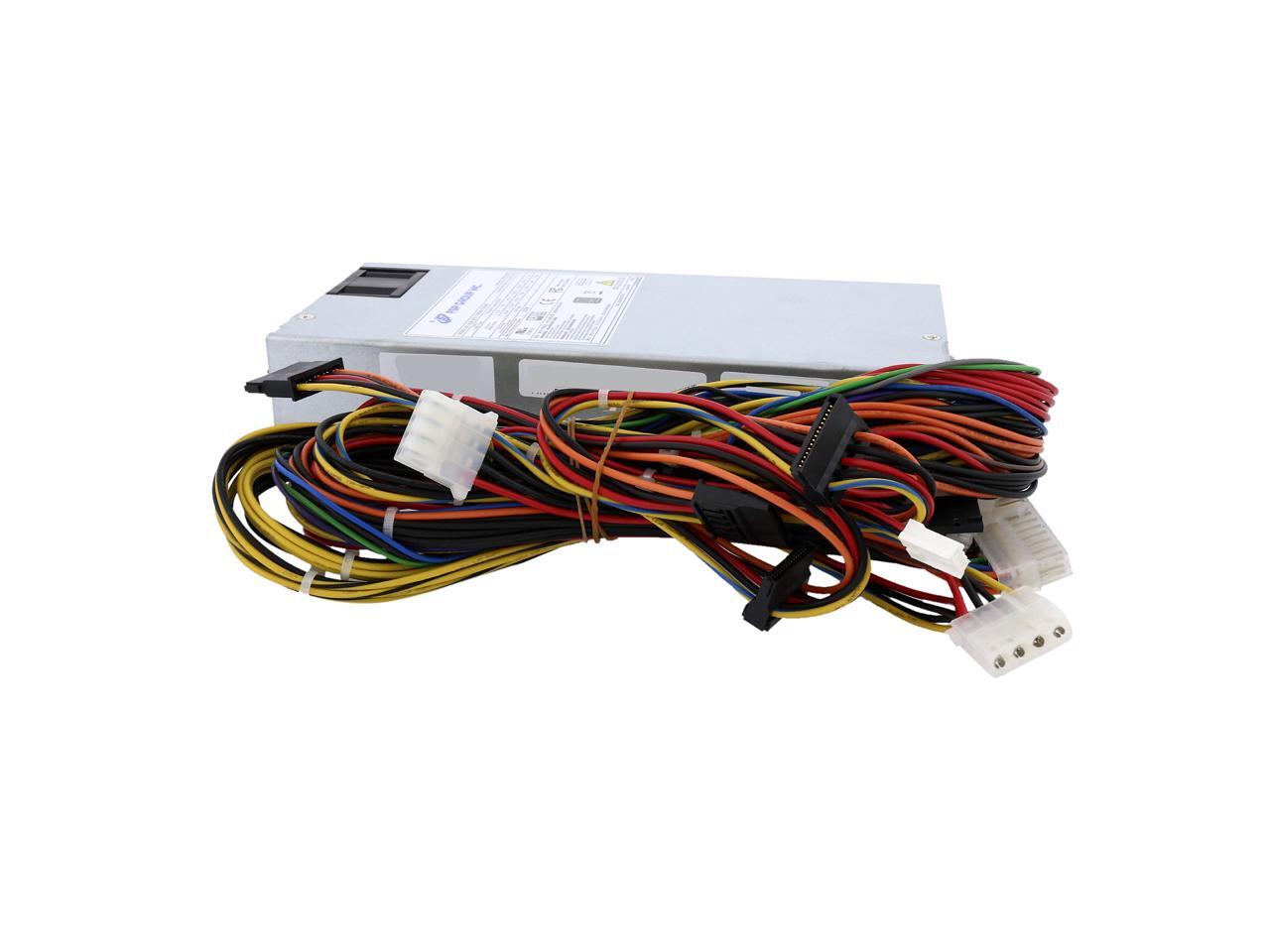

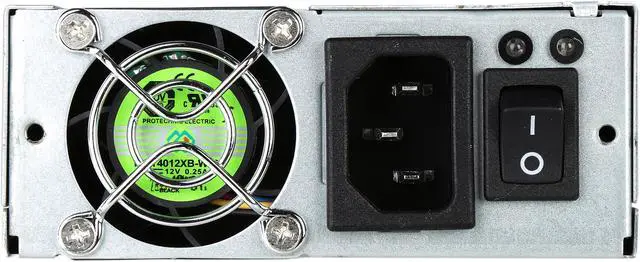

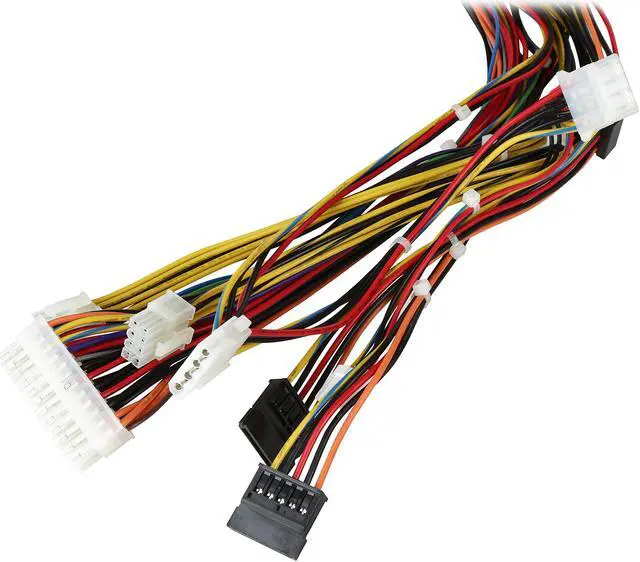

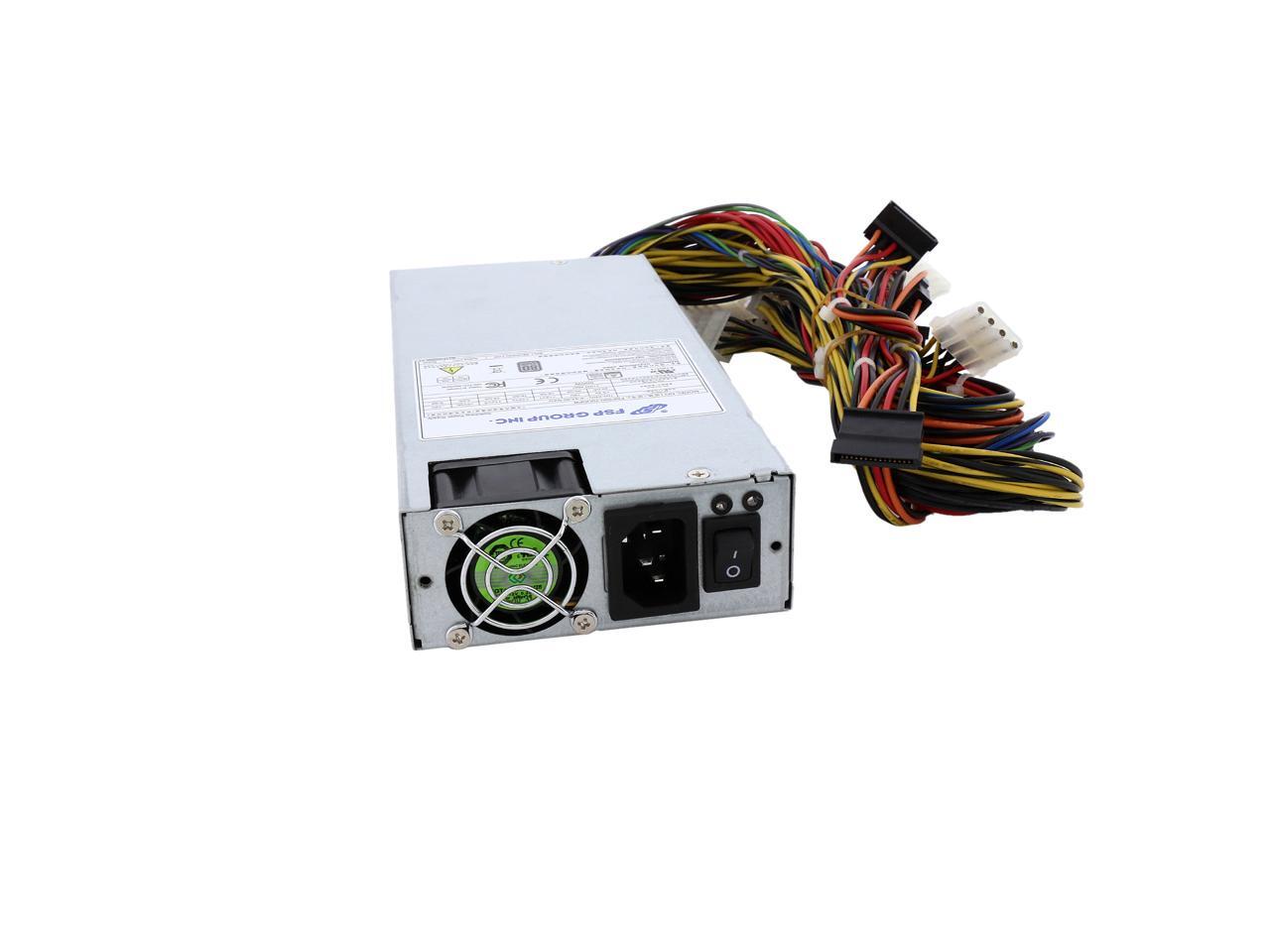

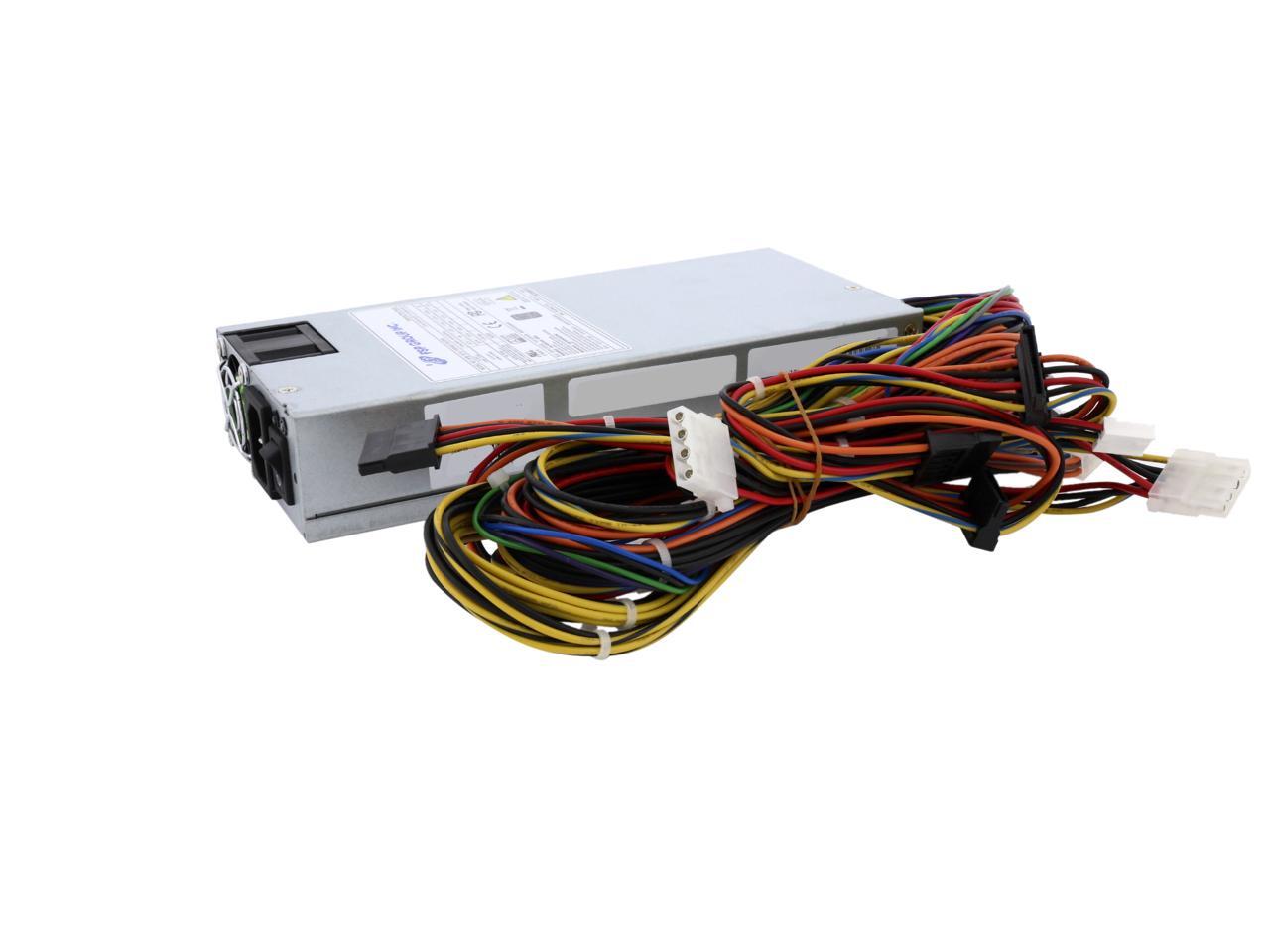

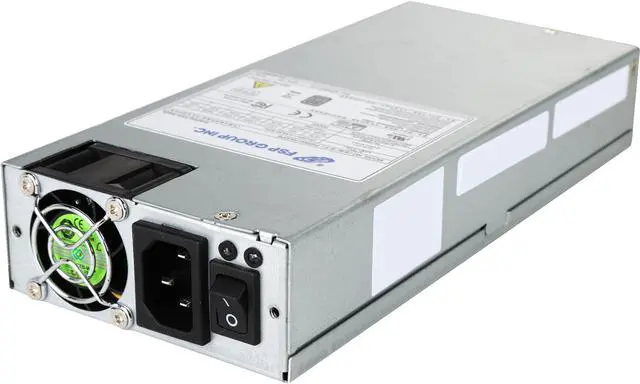

FSP Group 500W ATX Power Supply PMBus V1.2 Single 1U Size 80 PLUS Platinum Certified for Rack Mount Case (FSP500-70UDPB) - OEM

Be the first to review this product...
  • 500W
  • 80 Plus Platinum
Specs
Reviews
avatar

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the FSP FSP500-70UDPB

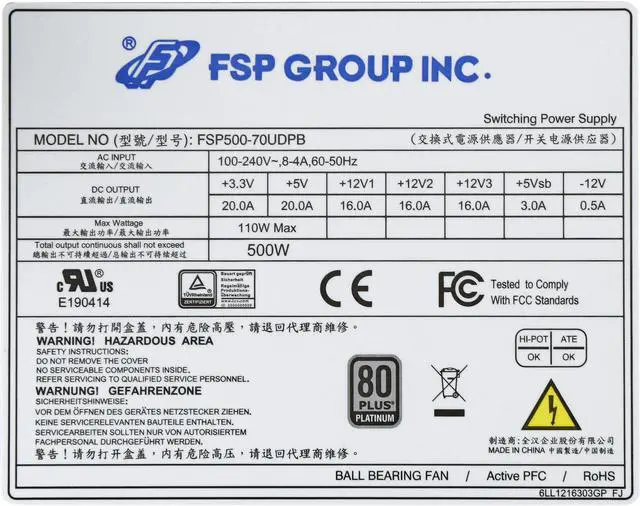

Model
Brand FSP Group
Model FSP500-70UDPB
Details
Maximum Power 500W
Output Output Voltage:
+3.3Vdc output : +3.5 Vdc minimum, + 4.8Vdc maximum
+5Vdc output : +5.5 Vdc minimum, + 7Vdc maximum
+12Vdc output : +13.4 Vdc minimum, + 16Vdc maximum
Input Frequency Range 47 - 63 Hz
Input Current 115V @ 6.3 Amps-rms maximum
230V @ 3.0 Amps-rms maximum
MTBF The power supply have a minimum predicted MTBF (MIL-HDBK-217) of 100,000 hours of continuous operation at 25 degree C, maximum-output load, and nominal AC inout voltage
Efficiency > 90%
Hold-up Time 115V / 60Hz 16mSec. Minimum @ 100% Load, 230V / 50Hz 16mSec. Minimum @ 100% Load
Protection Over current protection
3.3V:50mV p-p
5V:50mV p-p
12V1:120mV p-p
12V2:120mV p-p
12V3:120mV p-p
-12V:120mV p-p
5Vsb:50mV p-p
Features
Features 80 Plus Platinum
Low Ripple & Noise

Output over voltage protection

Short circuit protection on all outputs

Resettable power shut down

INTERNAL 4 cm fan


Triple +12V output (+12V/1, +12V/2, +12V/3)


100% burn-in under high ambient temperature (50 degree C)

Vacuum-impregnated transformer

MTBF:100K hours at 25 degree C

100% Hi-pot tested

Line input fuse protection
Dimensions & Weight
Dimensions 1.59" x 8.66" x 3.94"
Environmental
Humidity Operating : 85% to % RH, Non-condensing
Storage : 95% to % RH, Non-condensing
Temperature Operating : 0 to +50 degree C
Storage :-20 to +80 degree C
Additional Information
First Listed on Newegg October 25, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
