FSP Group FSP700-802UK 20+4Pin 700W Single Server Power Supplies - OEM
- 700W Single
- 20+4Pin
- Dual 40mm ball-bearing fan linked with Thermal Sensor Fans
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the FSP FSP700-802UK
| Brand | FSP Group |
|---|---|
| Model | FSP700-802UK |
| Single/Redundant | Single |
|---|---|
| Maximum Power | 700W |
| Main Connector | 20+4Pin |

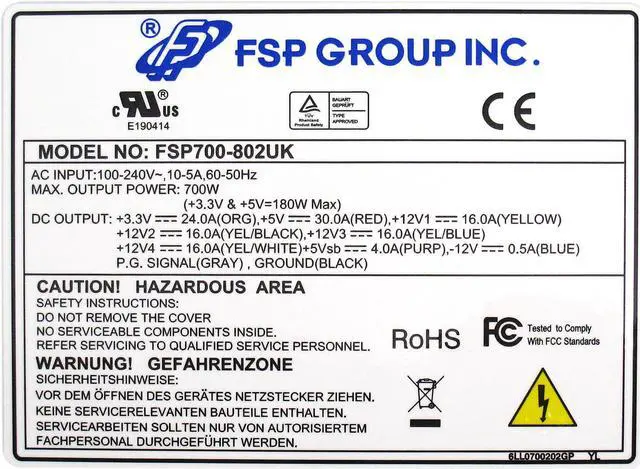

| Output Current | +3.3V@24A, +5V@30A, +12V1@16A, +12V2@16A, +12V3@16A, +12V4@16A, [email protected], +5Vsb@4A |
| Input Voltage | 115V AC to 230V AC, 50 ~ 60Hz |
| Input Current | 10.0A @ 115 Vrms, 60 Hz. 5.0A @ 230 Vrms, 50 Hz. |

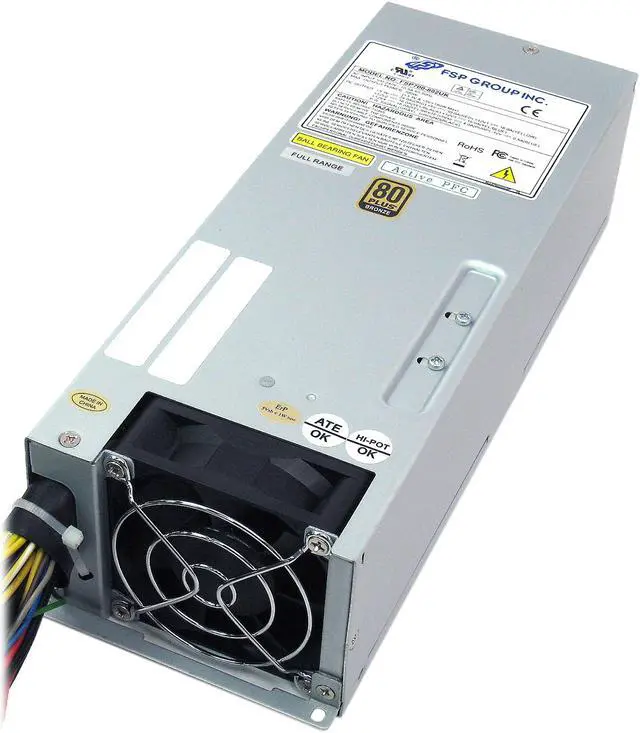

| Fans | Dual 40mm ball-bearing fan linked with Thermal Sensor |
| MTBF | 100,000 HOURS @ TYPICAL |
| Protection | OVP : Over Voltage Protection OCP : Over Current Protection SCP : Short-circuit Protection |
| Features | Ultra High Efficiency @85%+ | 80+ Bronze Level Certified Energy Saver 1-watt Standby Active PFC | Full Range Input |
|---|
| Dimensions | 9.84" x 3.94" x 2.76" |
|---|---|
| Weight | 4.20 lbs. |
| Humidity | Operating : 5-85% to % RH, Non-condensing Storage : 5-95% to % RH, Non-condensing |
|---|---|
| Temperature | Operating : 0 to +50 degree Storage :-20 to +80 degree |
| First Listed on Newegg | October 25, 2016 |
|---|
