DTech 2-Port RS232 Serial Splitter Box COM Port Expander 1x2 with Power Adapter for Sharing PCs and Capture Data
- Expands 2 RS232 Serial Ports: This splitter box adds 2 RS232 serial ports to your computer for sharing data with other devices.
- Simple Installation: The splitter box connects directly to your computer's USB port and includes a power adapter for easy setup.
- Compatible with Windows, Mac, and Linux: This serial splitter works with all major operating systems for seamless data transfer.
- High-Speed Data Transfer: The splitter box supports full-duplex communication for fast and reliable data transfer.
- Durable and Robust: Crafted from rugged plastic and metal components, this splitter box is built to last for years of reliable use.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2 way serial data splitter is a cost effective solution when you need to manage and control multiple DB9 RS232 serial devices (monitor, printer, modem, scales, scanner) via computer.

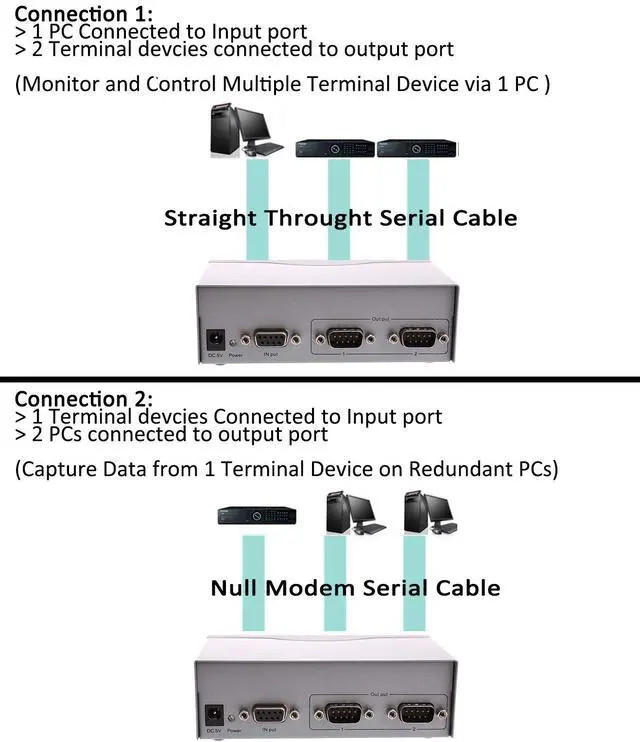

Connection 1: Monitor and Control Multiple Terminal Device via 1 PC
1 PC connected to input port, and 2 devices to output ports via Straight Through serial cable separately (functioned as RS232 splitter: 1 master controls 2 slave).
Serial port combiner splits 1 port in multi hardware COM ports that are used by several applications, so the applications can receive the same data from PC at once (duplicator).
Connection 2: Capture Data from 1 Terminal Device on Redundant PCs
2 PCs connected to output port, 1 data acquisition equipment to input port via Null Modem serial cable separately. (functioned as RS-232 switch: 2 masters control 1 slave)
Several PCs receive data from 1 device, sharing multiple PCs on a single peripheral; only 1 terminal device can send data to a laptop at a time.
Powered serial port hub auto-outputs the values as long as its wired and powered. DC 5V 1A power adapter provides stable power to transmit and receive data without any delay; serial adapter supports ±8kV ESD electrostatic discharge protection.
3 Wire RS 232 Connection: TxD, RxD, GND

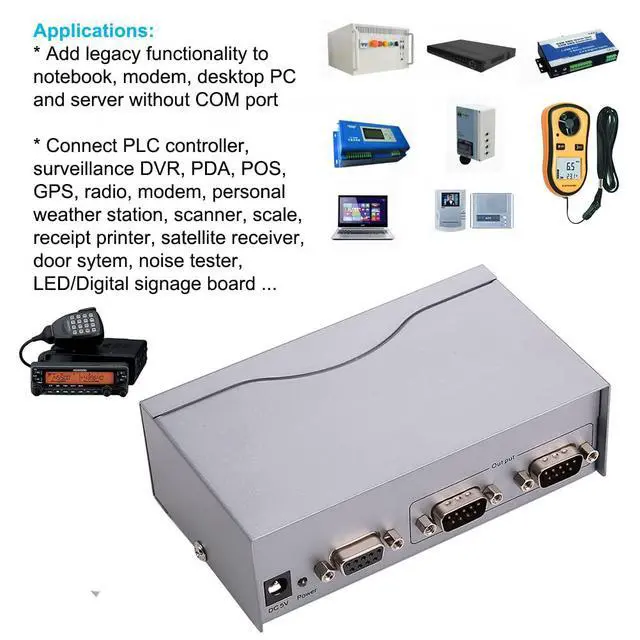

For IT Administrators to add legacy functionality to notebook, desktop PC and server without COM port
Connect monitors and control industrial / automotive sensors equipment, barcode scanner, scale, GPS, POS, radio, personal weather station, receipt printer, satellite receiver, modem, PDA with serial sync
Connect and program LED/Digital signage board ...

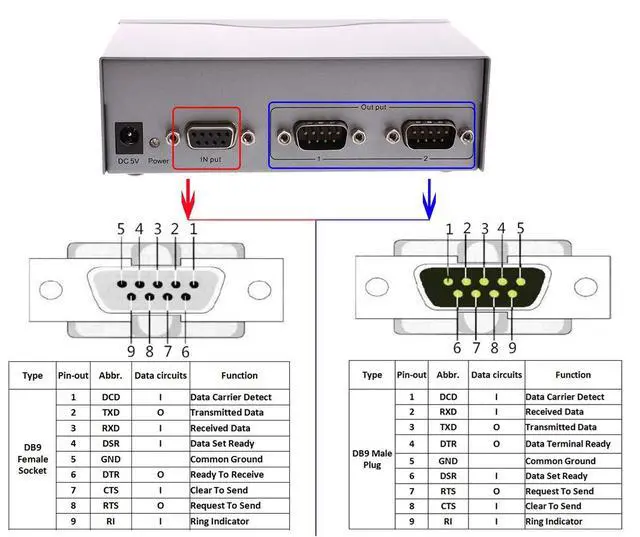

Master bus: 1x DB9 female (pin2-TxD, pin3-RxD, pin5-GND)
Slave bus: 2 x DB9 male (2-RxD, 3-TxD, 5-GND)
Input/Output Level: RS232-C
Cascade: Yes
Whats Included:
1x Serial Splitter Box
1x Power Supply Adaptor
1x Manual
Product information
| Compatible Devices | Data Acquisition Equipment, Modem, Monitor, PC, Printer, Scales, Scanner |
| Specific Uses For Product | Monitor |
| Connector Type | Serial Adapter |
| Item dimensions L x W x H | 5.12 x 2.95 x 1.61 inches |
| Brand | DTECH |
| Number of Ports | 2 |
| Input Voltage | 5 Volts |
| Current Rating | 1 Amps |
| Power Plug Type | No Plug |
| Item Dimensions | 5.12 x 2.95 x 1.61 inches |
| Item Weight | 0.58 Pounds |
| Package Quantity | 1 |
| Unit Count | 1.0 Count |
| Model Number | DT-5047 |
| UPC | 714131651726 |
| Manufacturer | Guangzhou DTECH Electronics Technology Co.,Ltd |
| Mfr Part Number | DT-5047 |
