Jonsbo T6 Mini-ITX Black RGB Build

[WhiteWolfPCs]

Youtube Shorts: https://youtube.com/shorts/gmzceEhKFek

PC Part Picker: Jonsbo T6 Mini-ITX Black RGB Build by saurabh1312 - AMD Ryzen 5 9600X, GeForce RTX 5060 Ti, Jonsbo T6 Mini ITX Tower - PCPartPicker

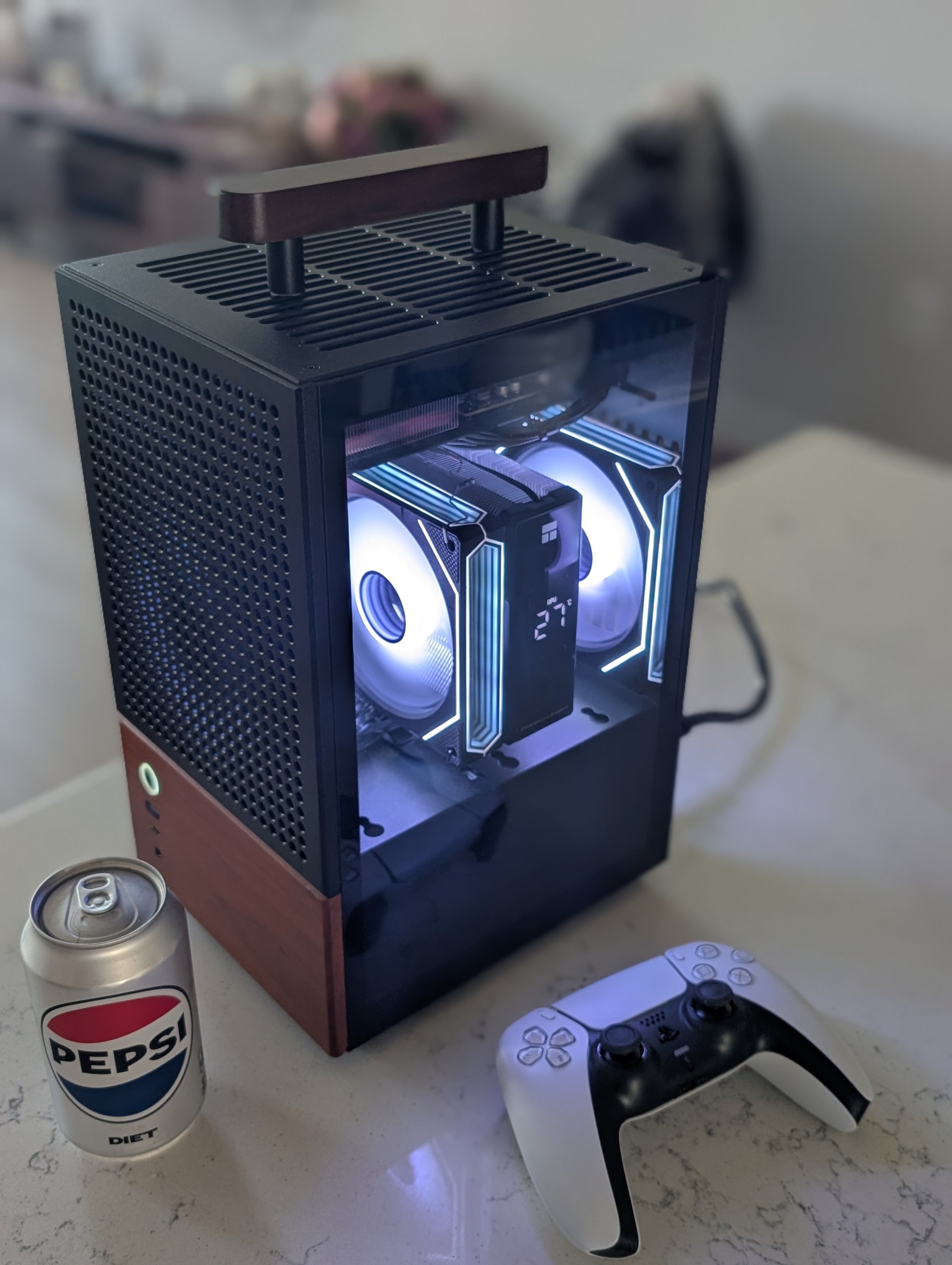

This is a unique case. Not many mini ITX cases out there with glass panels.

Pros:

1. The case seems very high premium quality and very sturdy, including the handle on top.
2. The air cooler also looks and works great especially for that price point.
3. The case’s airflow design puts the air cooler right in the path of the airflow, so that helps with great cooling.

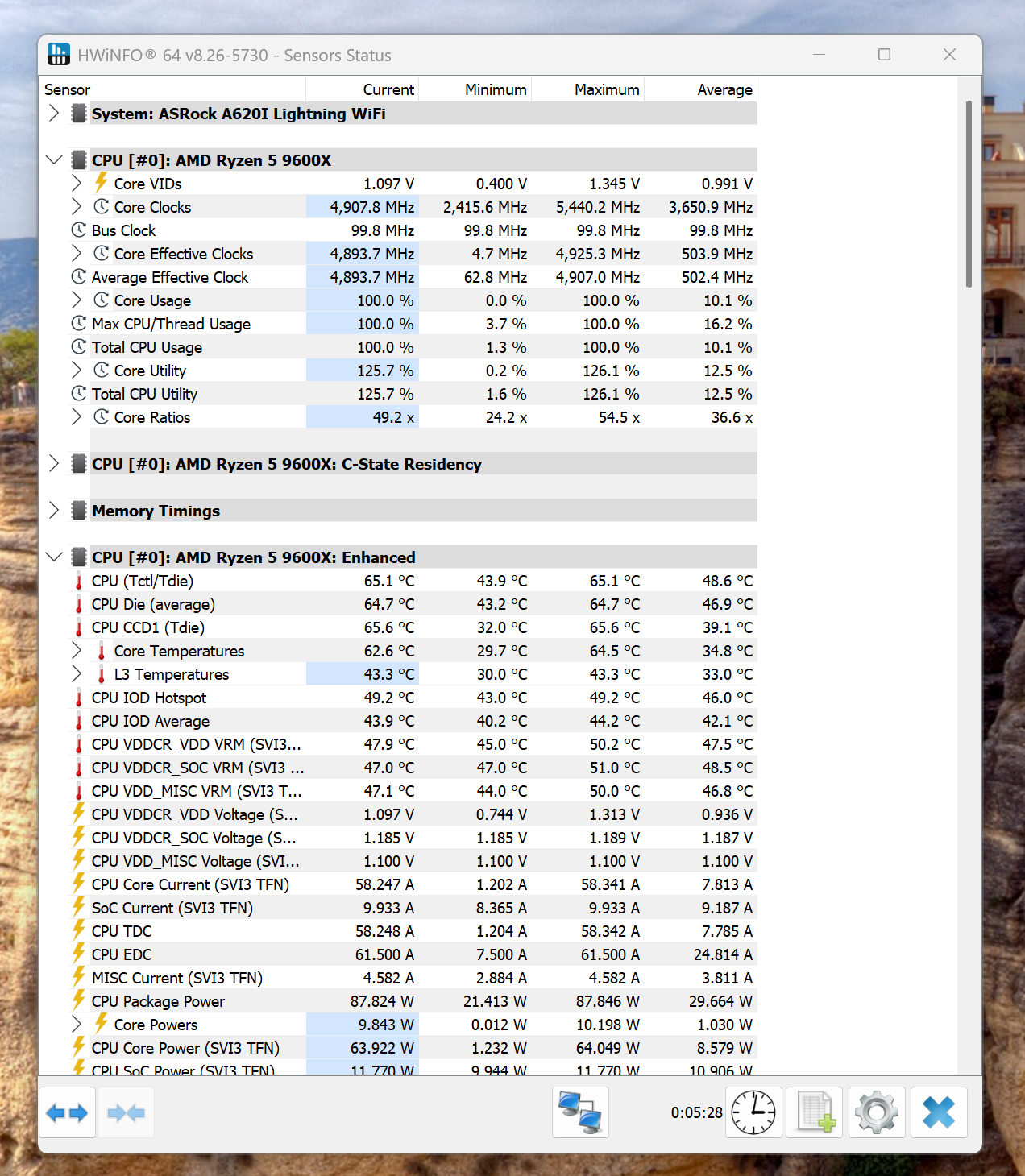

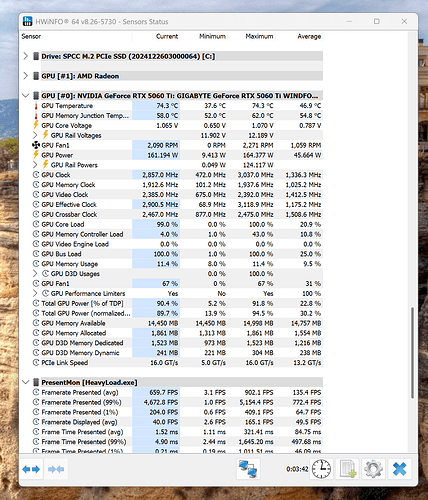

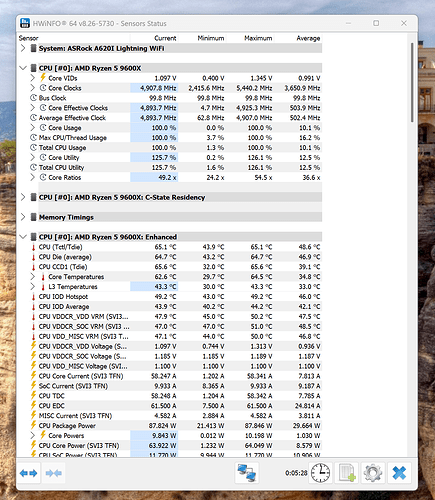

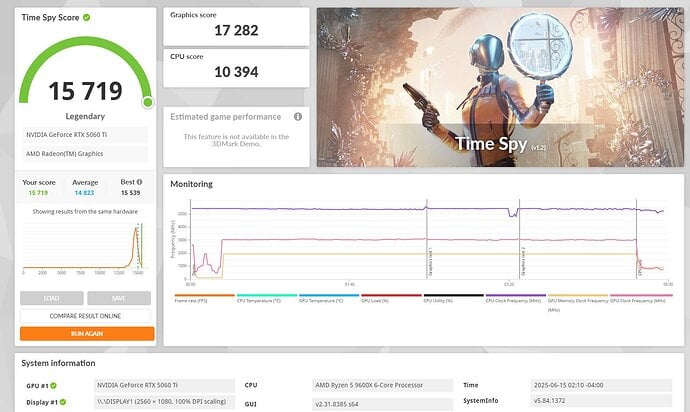

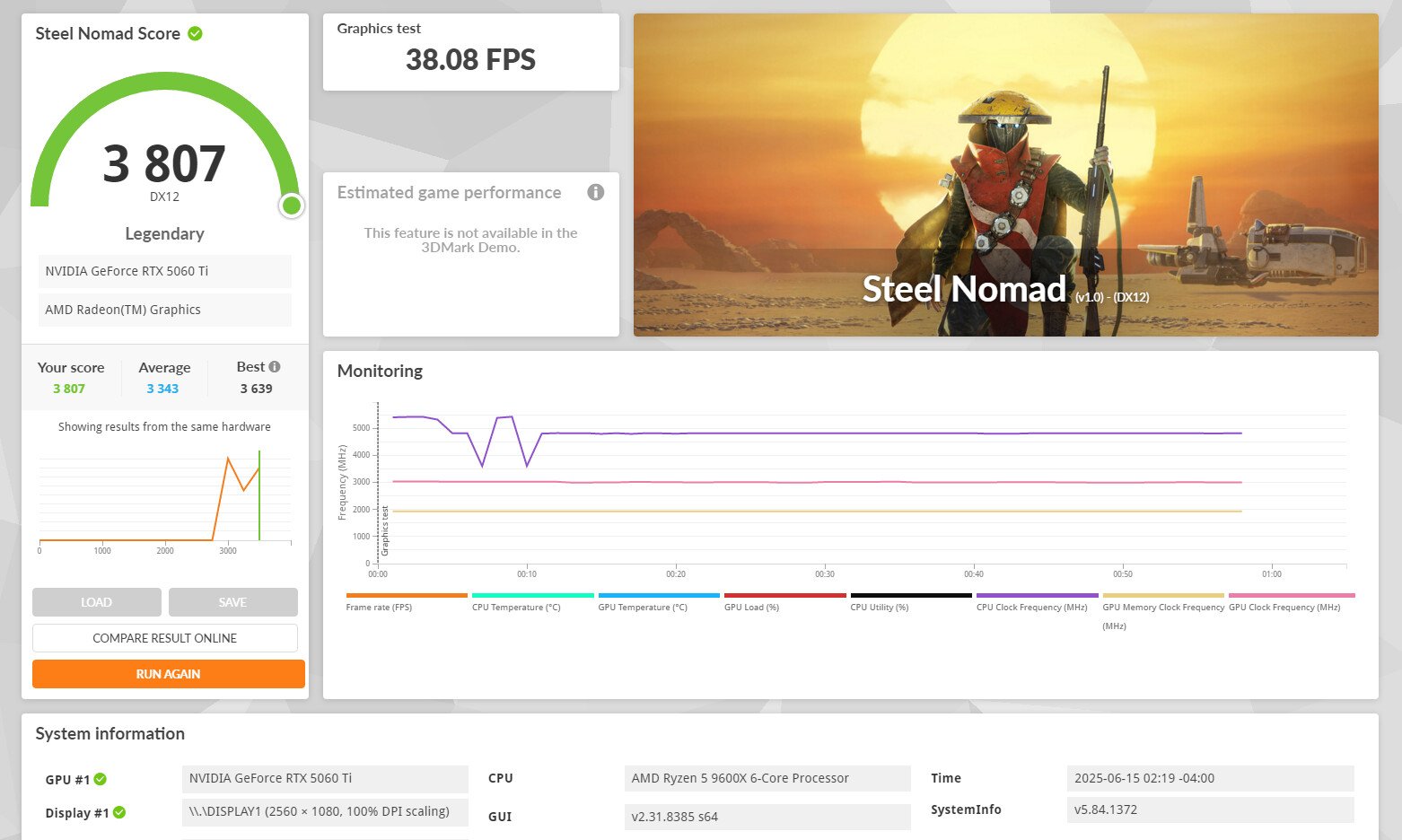

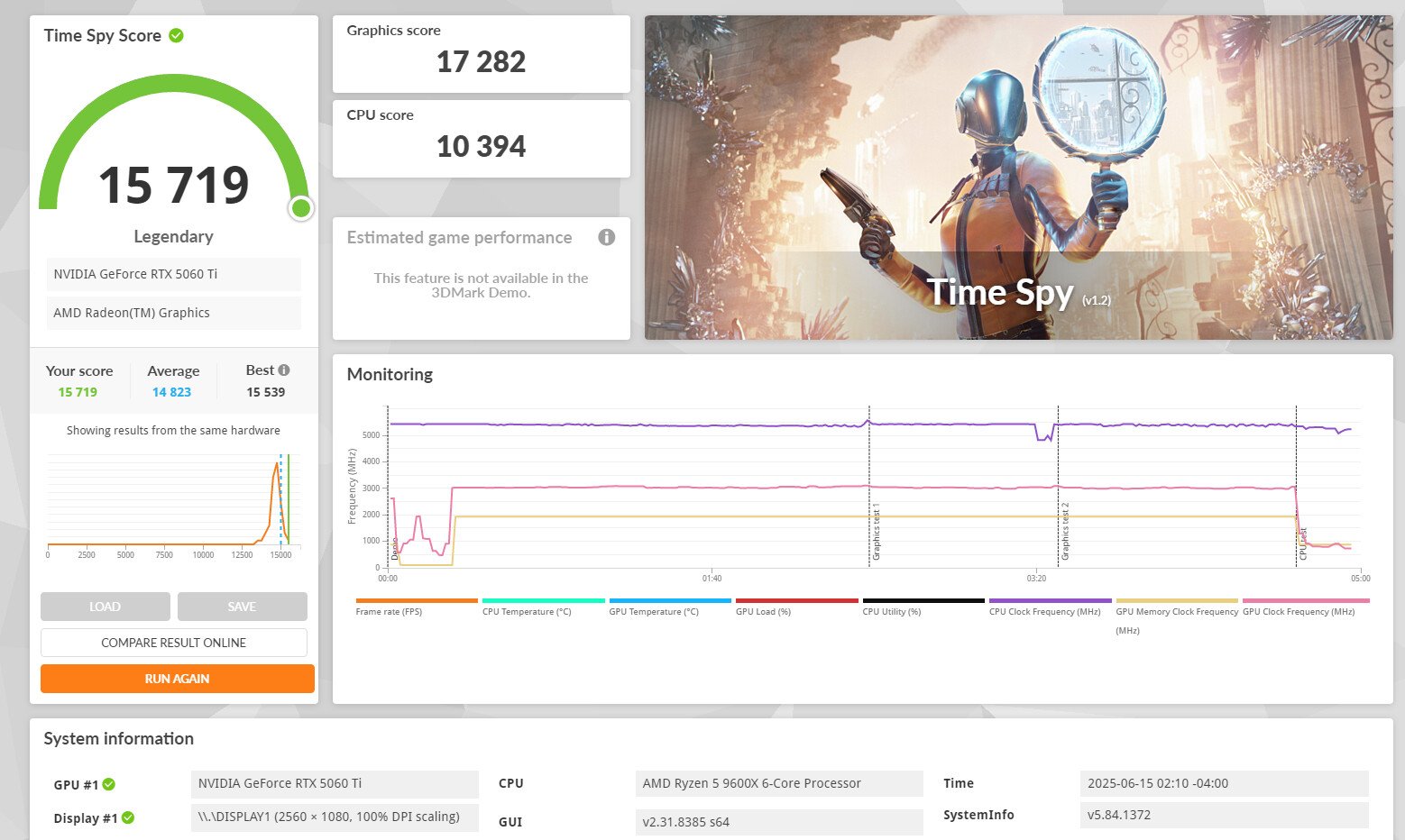

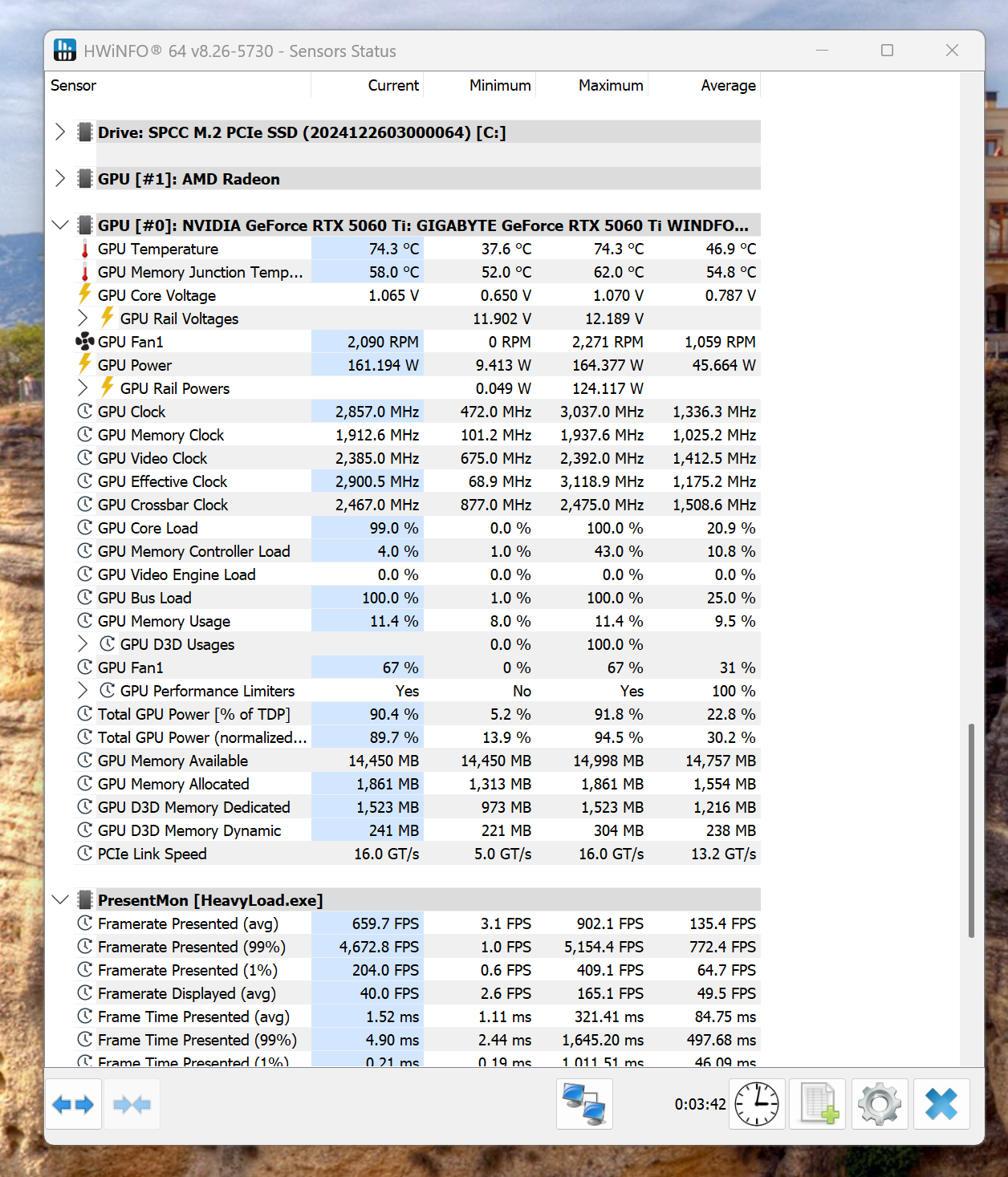

4. Amazing benchmarks and CPU cooling (see screenshots for 100% load stress tests).

Neutral: GPU clearance is limited, but 5060 Ti 16GB works decently well. Especially with MFG.

Cons:

1. Not enough room for hiding the cables. This is a tiny mini ITX case (13.7L) that isn’t dual chamber like Jonsbo TK-0 (Jonsbo TK-0 - Smallest Fishtank Mini ITX build). It just has a PSU shroud.

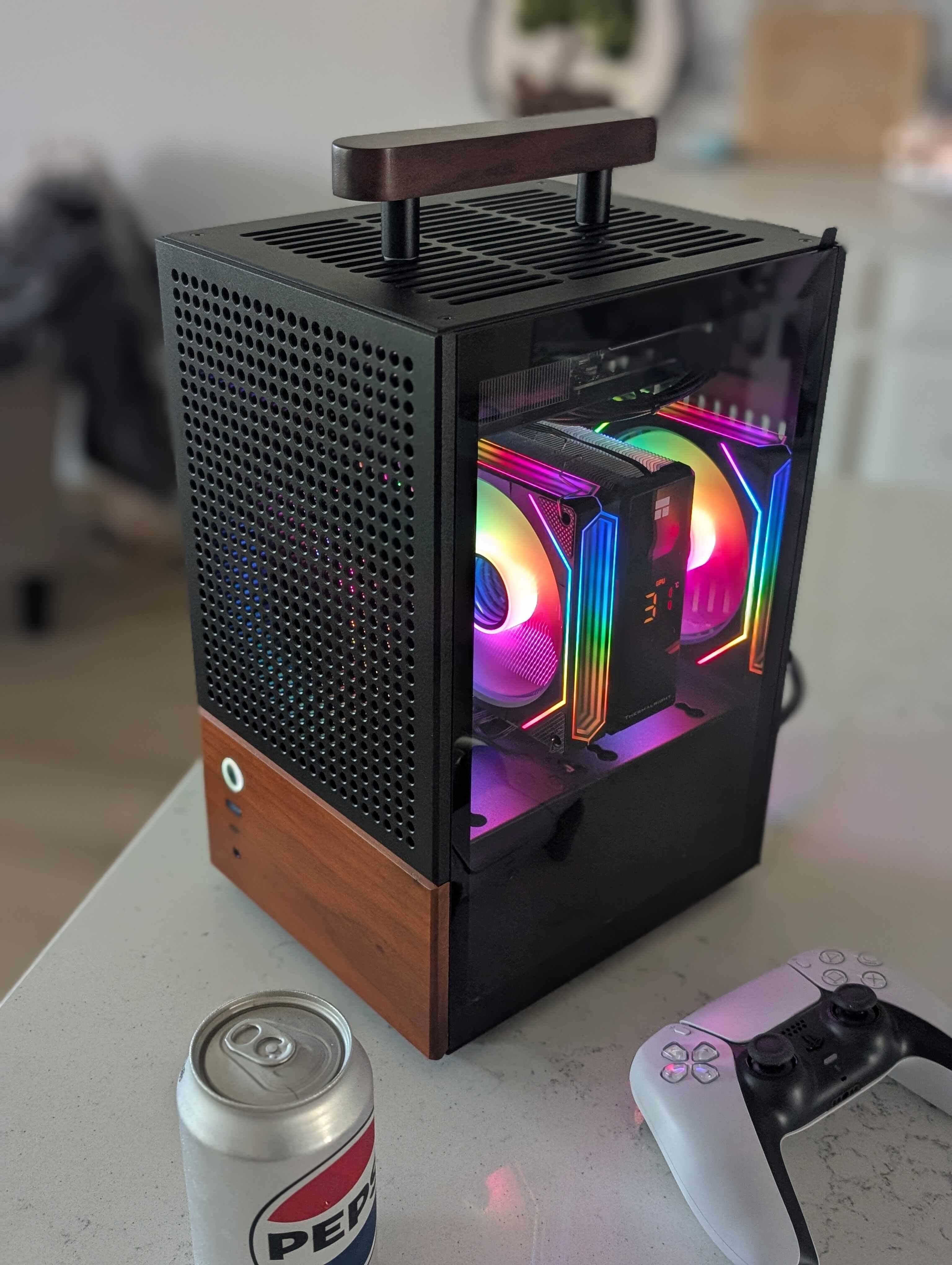

2. Adding RGB in this case shows the cables even more.
3. Used a non-SFX power supply which makes cable management even harder.
4. No dust filter at the PSU intake. Had to add one myself.

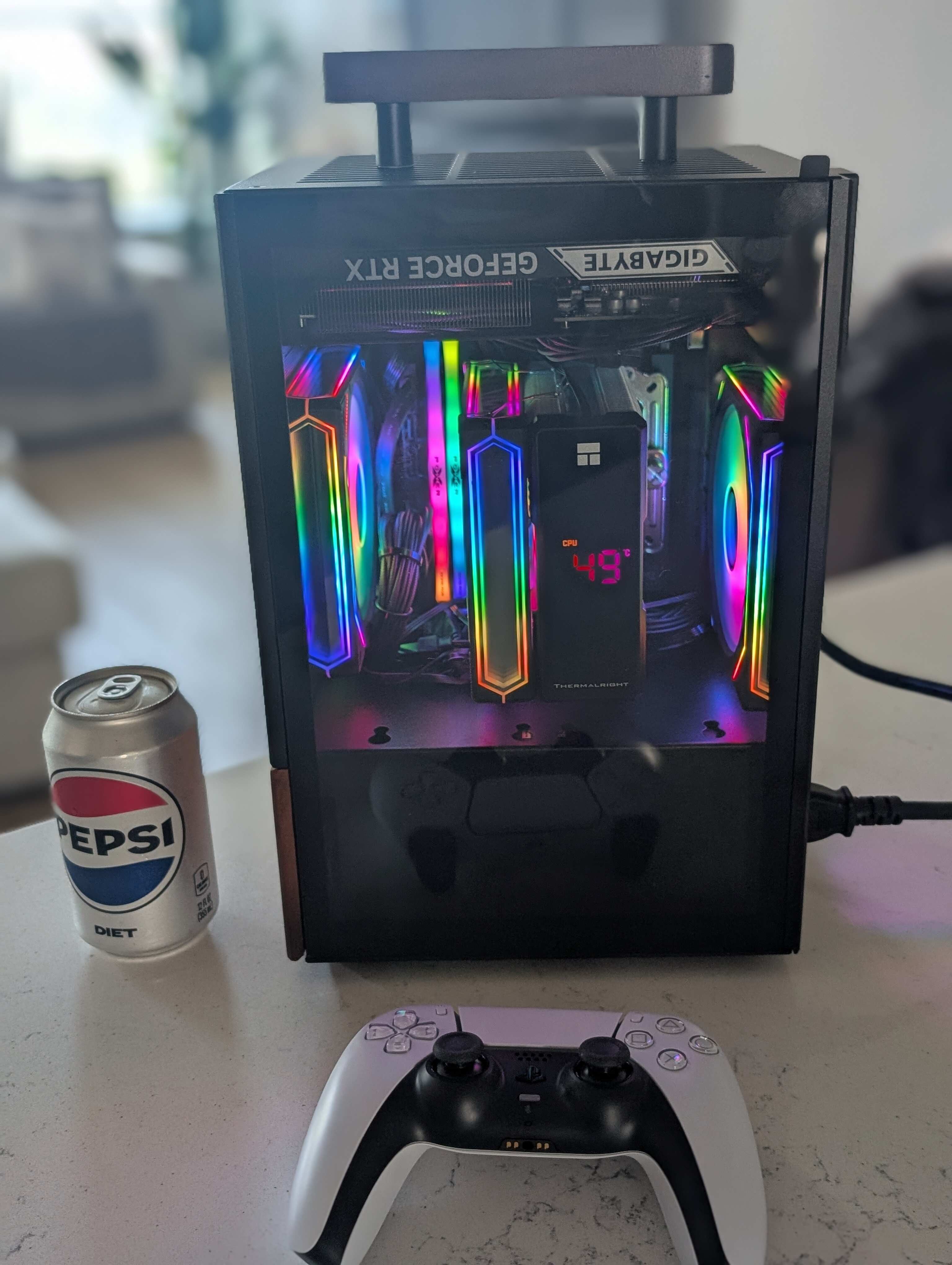

Messy cables when viewed directly from the front.

[Viraco]

It’s different for sure and I like it. Thinking outside the box here. Could you cut the power cables to size and repin the conectors. Ive done it when building cars. It would definitely clean up the build. Not for the weak for sure, but you have some skills.

[WhiteWolfPCs]

Haha, thanks!

The main issue is that there is no route for the wires to stay hidden to go from the PSU to the headers / ports. Even if the wires were shorter, they would need to become visible around the motherboard, CPU and GPU headers (along with the fan and argb cables).

Other cases allow a second chamber to hide the wires until they reach the headers (behind the motherboard).
