JUXINICE 5Pack DB9 Breakout Connector Male, RS232/RS485 Serial adapters,D-SUB 9-pin Male to ScrewTerminal Connector Signal Module with Shell

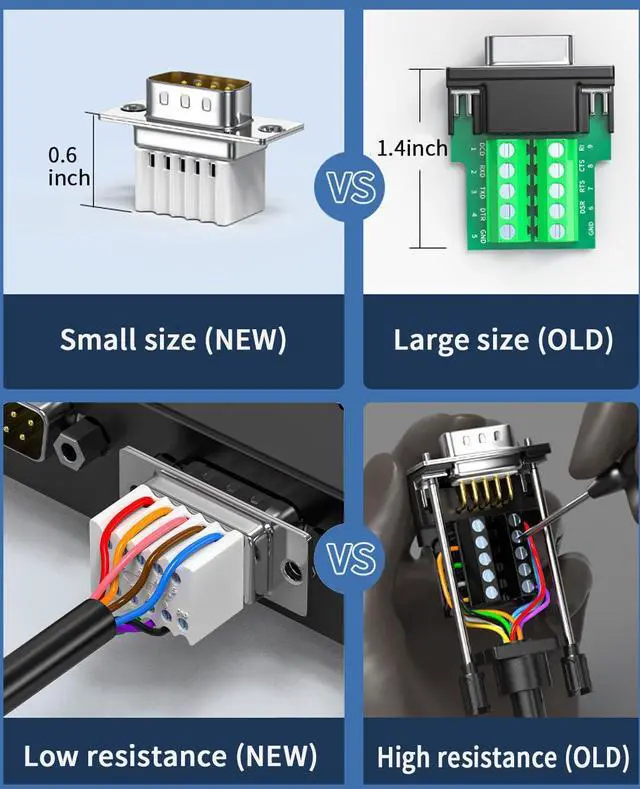

- Simplified design: This new DB9 adapter connects directly to the terminal pin, eliminating the need for additional wiring or board conversion, thereby eliminating the PCB board and reducing space. The new DB9 disconnect connector design is simpler, smaller and more compact with less resistance.

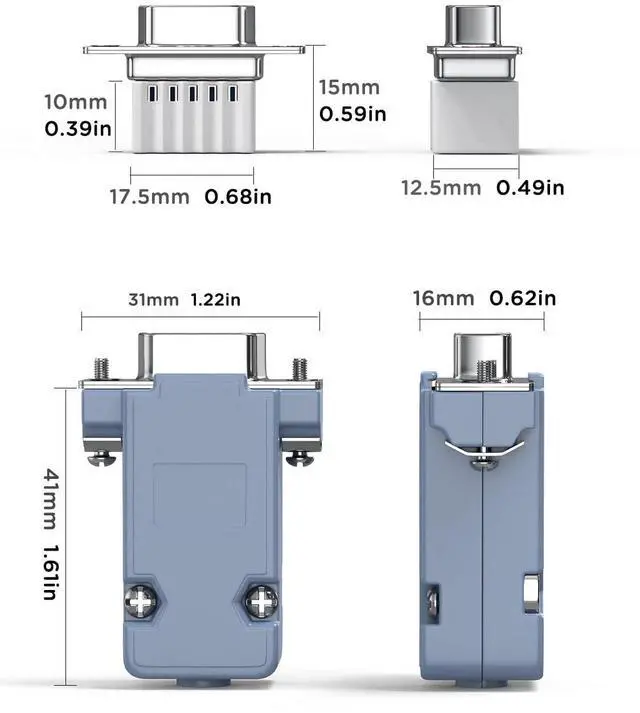

- Compact Size: New DB9 breakout terminal only 16mm thick, the smaller profile of this DB9 connector allows it to fit into applications with limited space better than older models.
- Robust Construction: A screw-connected copper alloy terminal provides a strong connection that can withstand upwards of 30 pounds of force for long-lasting reliability. Suitable for 30-18AWG cables.

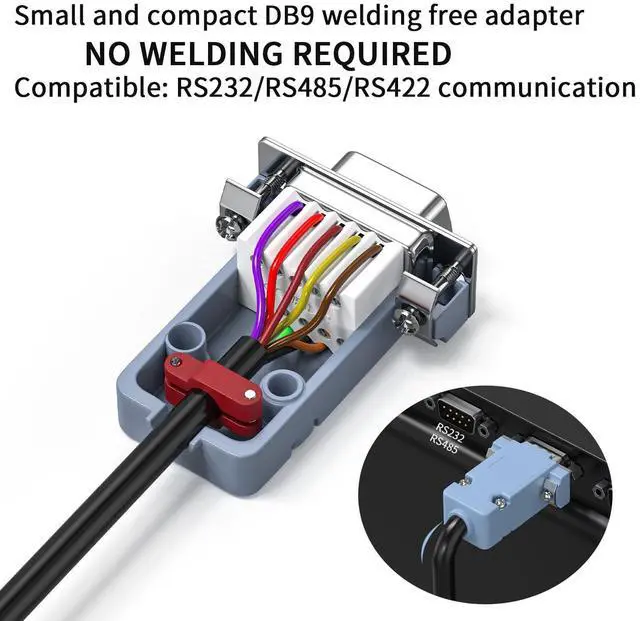

- DB9 breakout board RS232 screw connectors, suitable for RS232/RS485/RS422 serial adapter COM port, such as computers and 3d printed, PLC, MODEM, printer, industrial instruments and other devices to communicate.

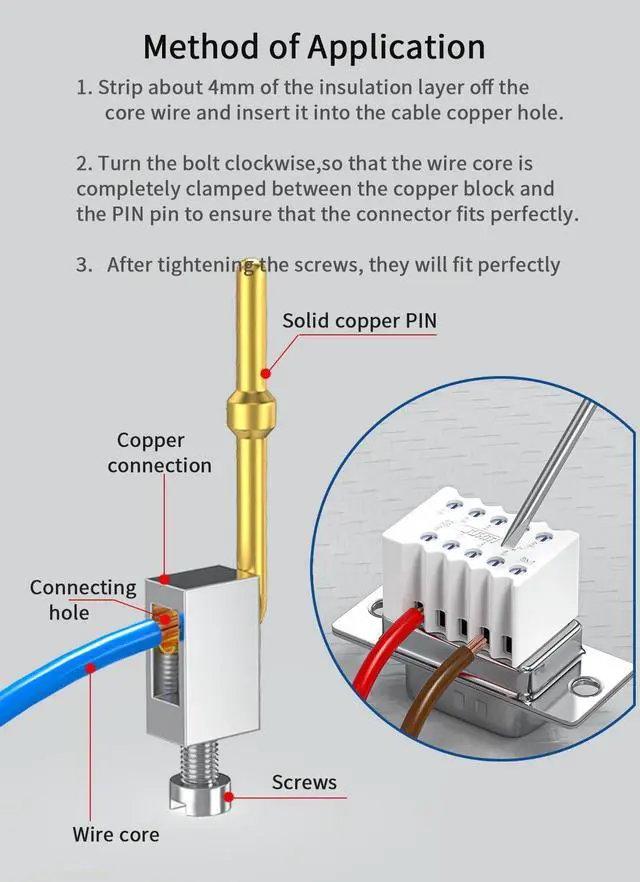

- Usage: Strip about 22mm of the PVC sheath and 4mm of the insulation layer off the cable core, insert the cable into the adapter wiring hole, and turn the bolt clockwise to make the cable core completely stuck between the copper block and the PIN pin, ensuring that the connector is fully fitted.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Streamlined Connectivity Solution:
- This compact DB9 adapter offers a straightforward and dependable solution for connectivity needs.
Space-Saving Design:
- With a slim profile measuring just 16mm thick, it easily fits into tight spaces where larger adapters cannot.
Direct Terminal Connection:
- By directly connecting to terminals, it eliminates the need for an intermediary circuit board, reducing resistance and ensuring clearer signal transmission.
Enhanced Performance:

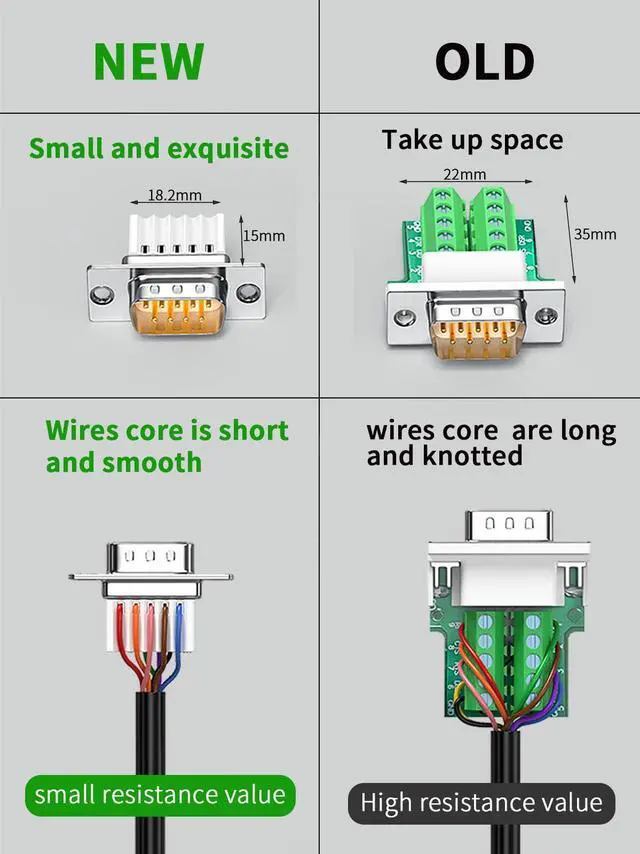

- Compared to older models, its smaller footprint and direct-connect design provide a more robust connection in less space.
Secure Connection:
- The screw terminals guarantee a strong and secure connection capable of withstanding up to 30 pounds of force.
Versatile Application:
- Whether interfacing with serial devices, modems, or other electronics with 9-pin ports, these adapters handle connections with sturdiness and simplicity.
Portable Convenience:
- Weighing under an ounce, their lightweight yet robust construction makes them convenient for transportation or incorporation into portable devices.

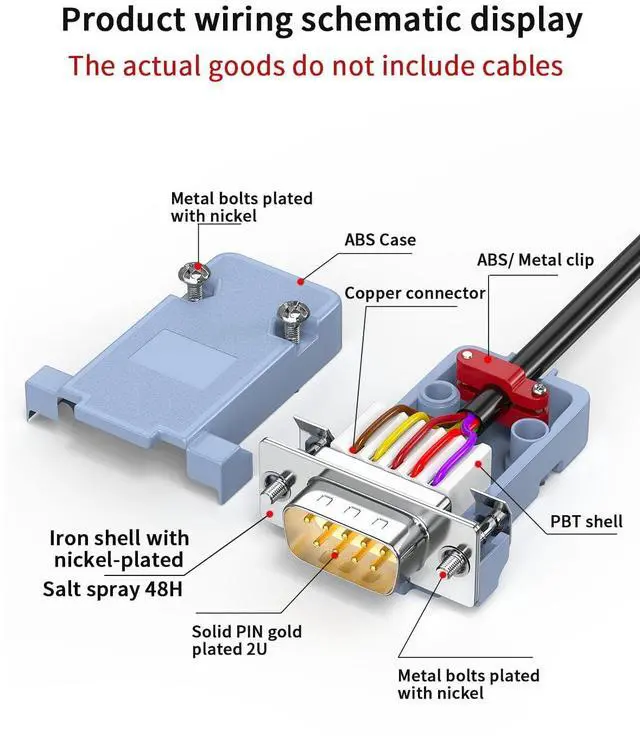

New DB9 adapter with ABS plastic shell:
- Interface: D-SUB 9 PIN Male adapters
- Pin Type: Copper Alloy Solid Pin, Gold-Plated 3U
- Iron Shell Type: Nickel Plated Iron Shell, Salt Spray Time 24H
- Rated Current: 5A
- Operating Temperature: -45°C to 85°C
- Single Product Weight: 15g/PCS

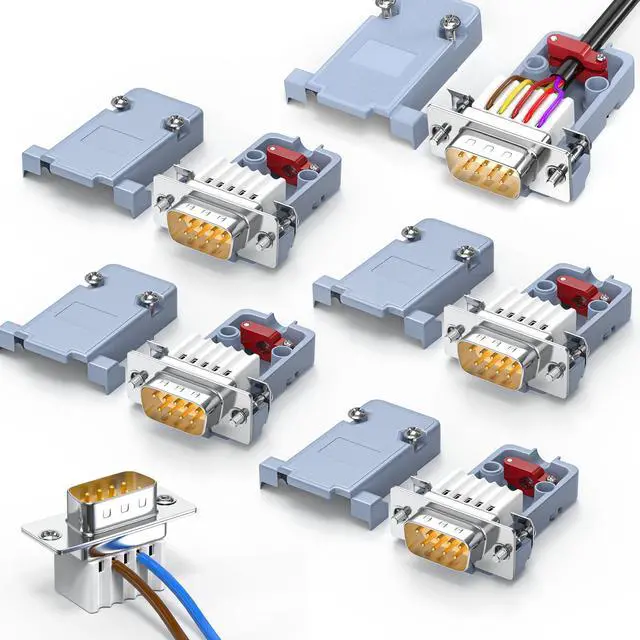

- Packaging accessories: 5xDB9 male adapters, 5X ABS plastic shell, 10X bolts and nuts, 1X screwdriver
