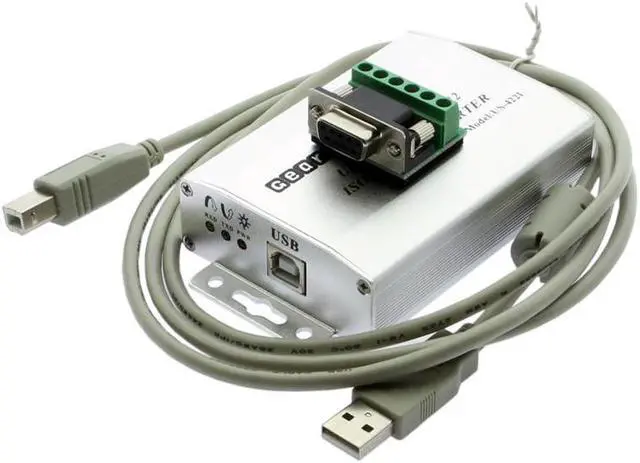

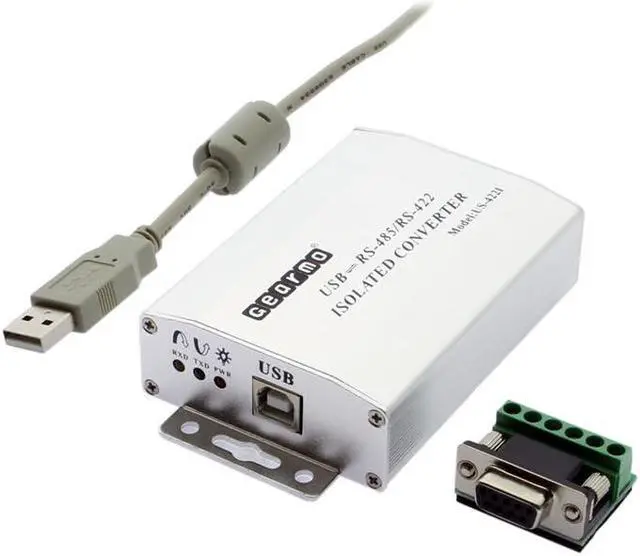

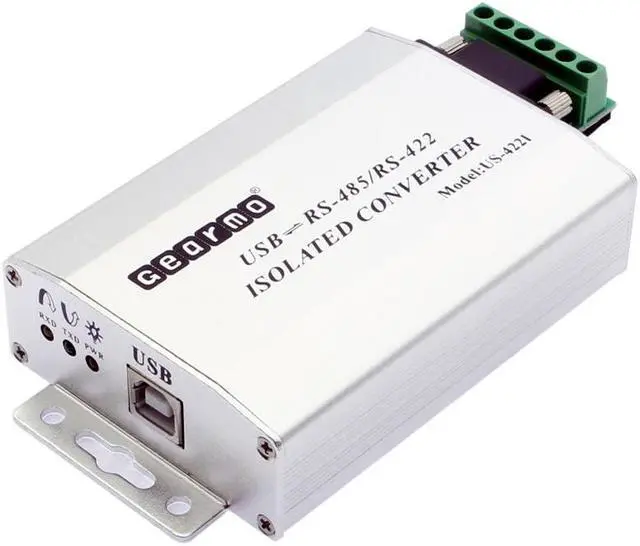

Gearmo FTDI Chip USB to RS-485/422 Industrial Isolated w/ DB-9/RJ45/Terminal Screw
- Industrial grade, DIN mountable, isolated USB to RS485 / RS422 converter with aluminum housing ideal for any industrial and commercial application
- This unit is powered from the USB port so no additional external power supply is needed.
- The serial RS485 / RS422 interface offers three different connector types: RJ45 socket, DB9 connector and screw terminal header, which makes this unit campatible with the majority of industrial interface connectors.
- Optical isolators and Transient Voltage Suppressors (TVS) effectively isolates and protects your data signals and your equipment from dangerous high voltage spikes, surges, ground loops and static electricity with up to 2500Vrms/600W and 15KV EDS protecti
- This converter is built around the highly reliable and effective FT232RL chipset from FTDI, which ensures 100% compatibility with all versions of Windows, Linux and Mac.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Optically Isolated USB RS485/422 Serial Adapter
Need to convert RS485 and RS422 signals? The US-422i is a Aluminum housed USB to RS485/422 optically isolated serial adapter that interfaces with DB-9 pin, RJ-45, and a screw terminal header that converts between USB and various serial signals such as RS-232. Backward compatible with USB 1.1 and USB 2.0 specifications.
This USB to RS485 serial adapter comes in handy for connecting to equipment such as scanners, printers, and scales while remaining versatile enough to support both commercial and industrial environments.
Newer model computers lack the serial technology and don't incorporate a serial port, the serial adapter will act as a new COM port to support your common and industrial environments, including labs, office and business.
USB to RS485/422 Features:
- Power 5VDC provided by USB cable
- Installation DIN mounts (not included) or screws

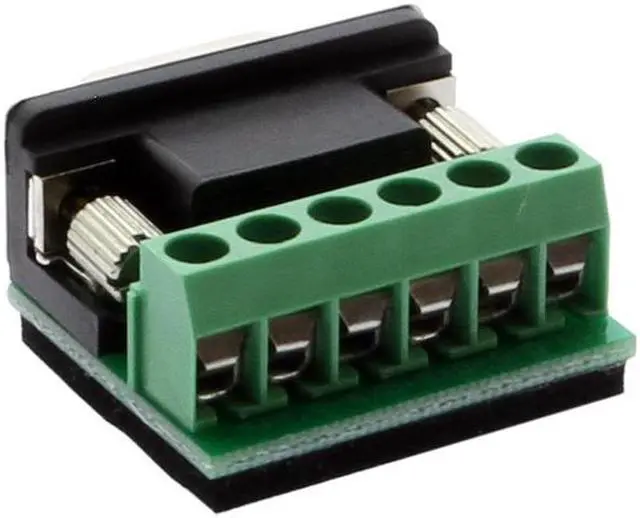

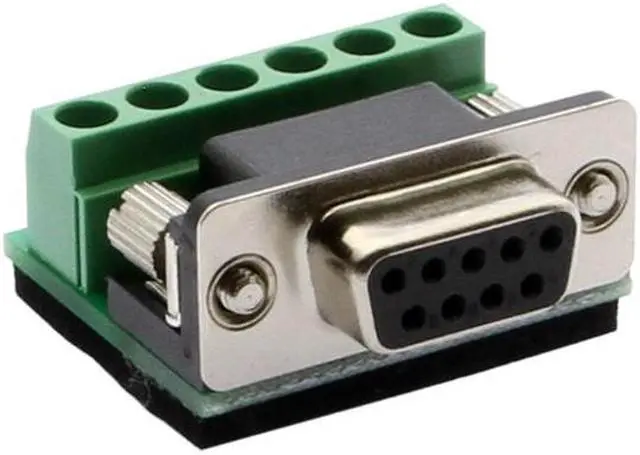

- Interfaces DB9, RJ45, screw terminal header
- Indication lights RX, TX and Power
- Baud rate 300bps - 1Mbps
- Optical Isolation 2500Vrms / 500VDC isolation
- ESD protection 15KV / 600W
- Operating Temp. -40 to 85C
- Dimensions 97mm x 64mm x 26mm
Operating System Support:
