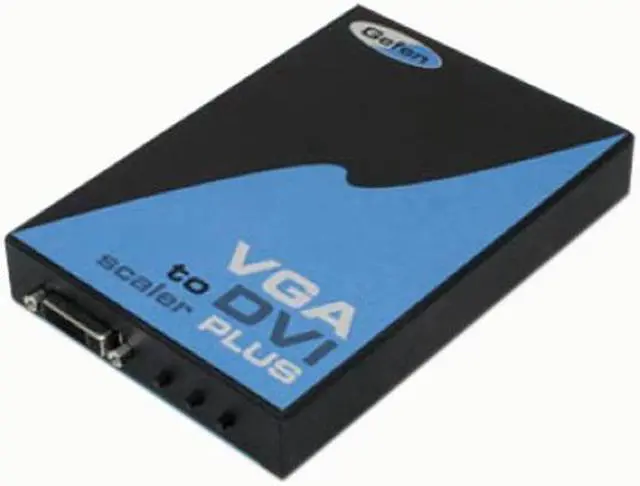

Gefen EXTVGA2DVISP VGA to DVI Scaler PLUS Converter

Be the first to review this product...
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Gefen EXTVGA2DVISP

Model
Brand Gefen
Model EXTVGA2DVISP
Details
Type VGA to DVI
Color Gray
Specifications Maximum Pixel Clock: 165MHz (DVI)
Video Amplifier Bandwidth: 350MHz (VGA)
Input Sync Signal: 5V p-p (TTL)
Horizontal Frequency Range: 15 - 70kHz
Vertical Frequency Range: 30 - 170Hz
Power Supply: 5V DC
Power Consumption: 10W (max.)
Connectors
Connector A (1) VGA HD-15, male (YPbPr or YCbCr via optional adapters)
Connector B (1) DVI-I 29 pin, female
Features
Features Supports resolutions up to 1920 x 1200
Output resolution can be easily selected using an On-Screen Display (OSD) Menu
Aspect ratio control for native and full-view modes
48MB frame memory for frame rate conversion.
Accepts analog PC or HDTV input signals in RGBHV, YPbPr, or YCbCr formats
DVI output enables an all digital rendering of video without the losses associated with an analog interface and is an ideal for use with digital display such as LCD, Plasma and DLP projectors.
High Performance Scaler that converts and scales analog RGB inputs to DVI-I (digital or analog) outputs
Output adjustment of picture brightness, contrast, color, RGB level, and H-V position
Output is DVI or VGA with adapter
Supports DDWG standard for DVI compliant monitors
Aspect ratio control for native and full view modes
IR Remote Available (shown at left under Optional Accessories sidebar)
Dimensions & Weight
Dimensions 1.00" x 5.80" x 4.10"
Additional Information
First Listed on Newegg October 18, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
