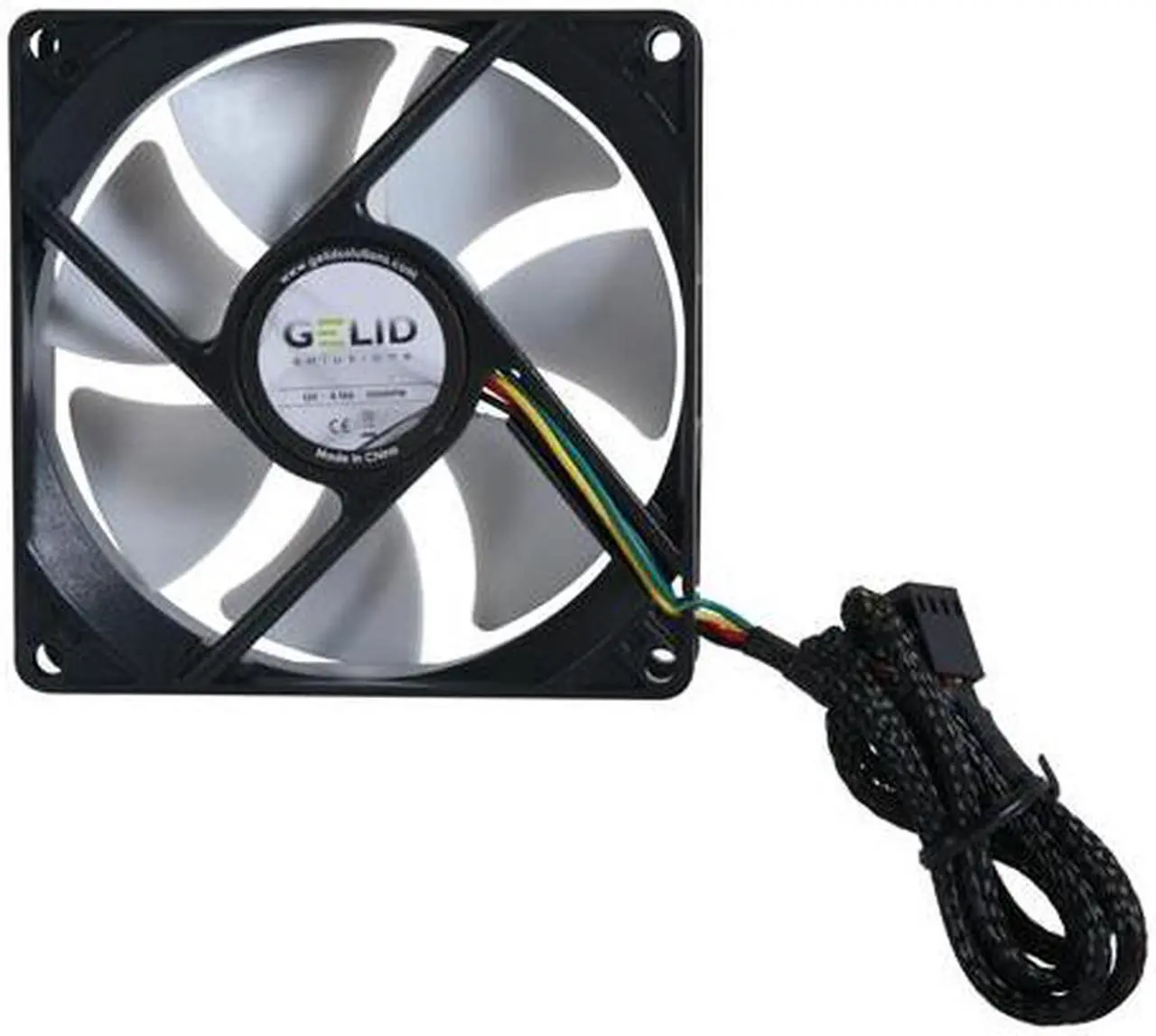

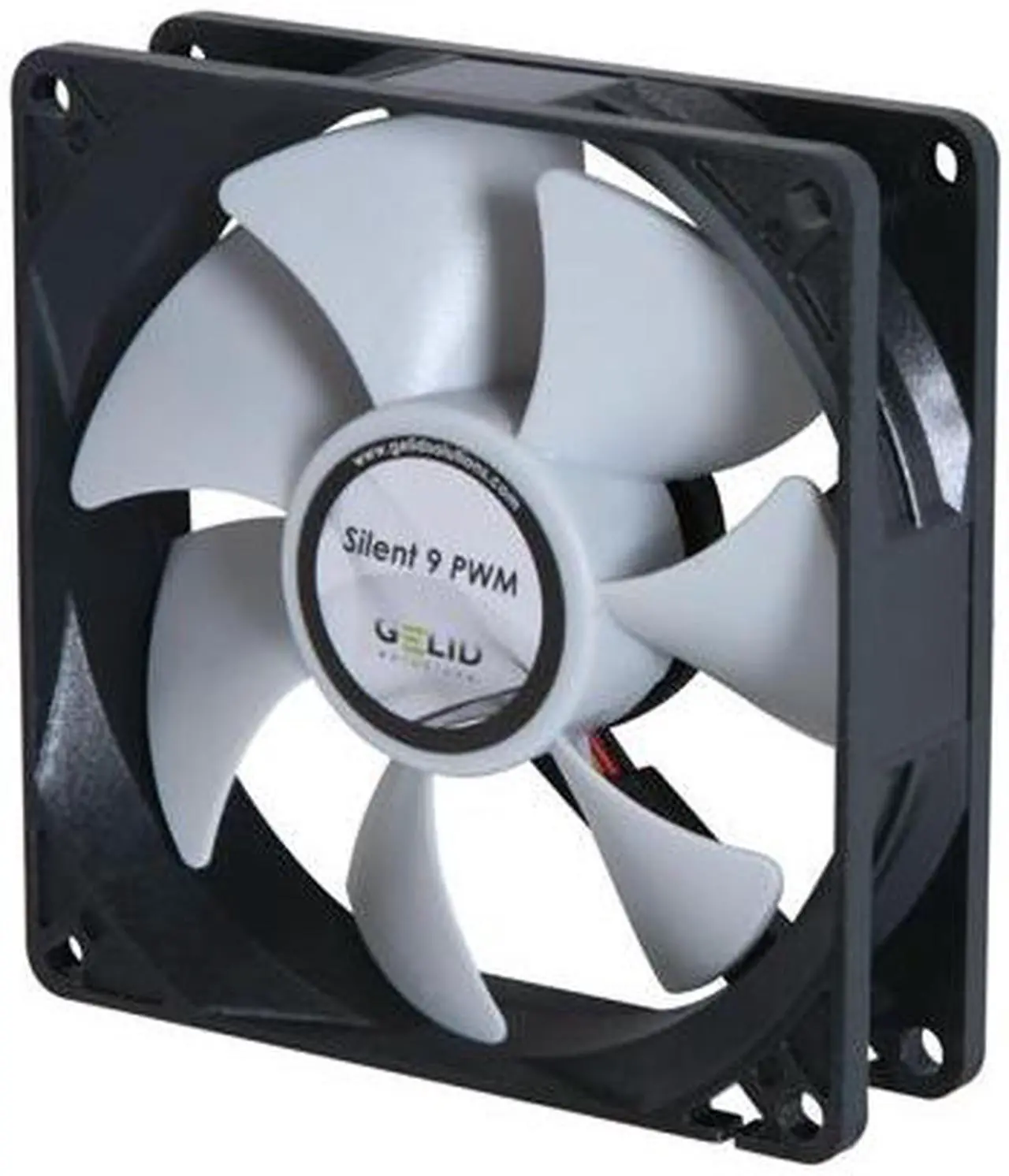

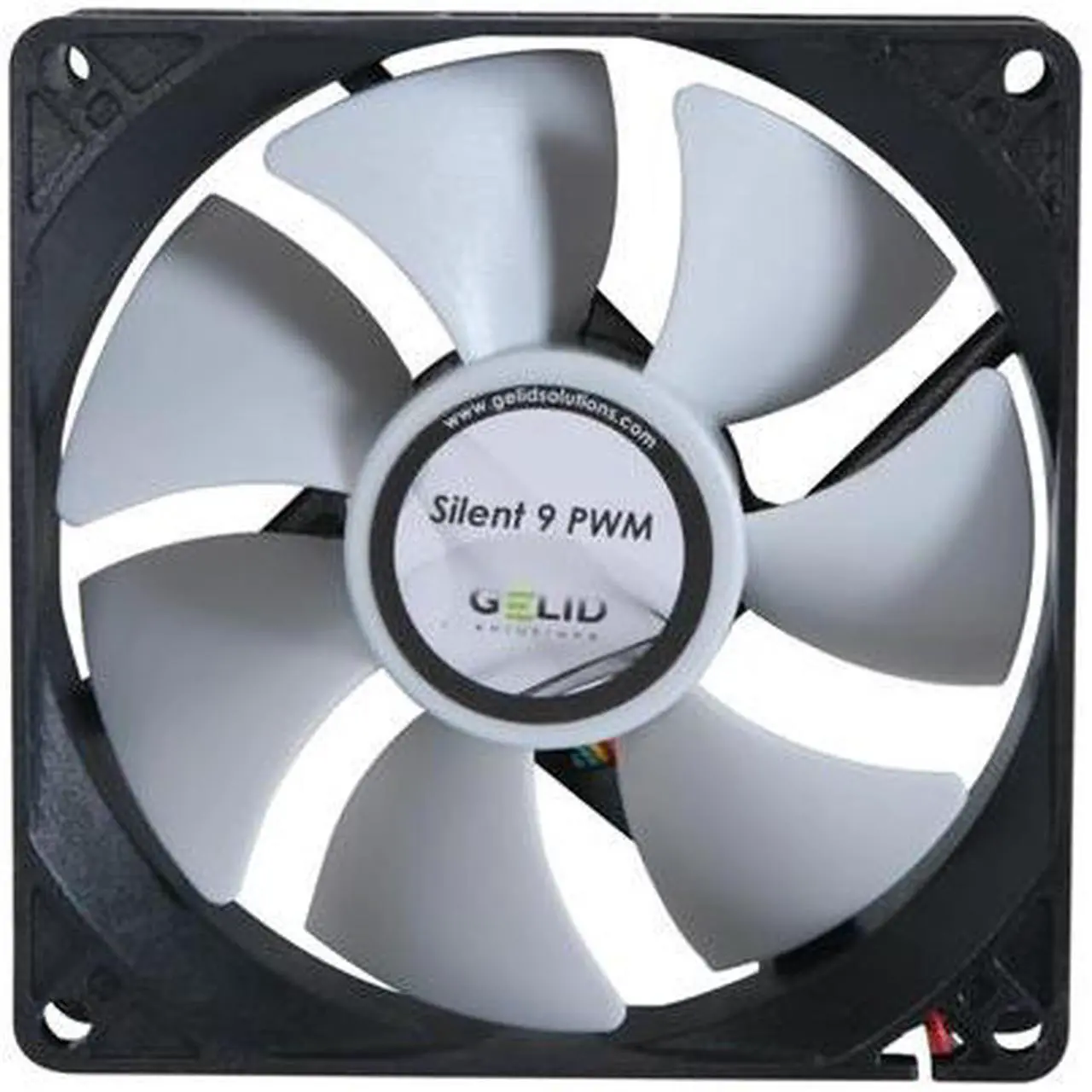

Gelid Silent9 PWM 92mm Silent Fan Designed for advanced users GELID Silent PWM fans provide additional airflow by using Pulse Width Modulation (PWM) to automatically adjust fan speed according to the CPU load. The fan can be idled down and thus be much quieter. An intelligent IC had been integrated into the fan's PCB to exploit your mainboard's BIOS software. This technology is more efficient and convenient than using an external fan controller to adjust the voltage. Each fan impeller has been individually balanced using the latest technology to guarantee steady, unwavering operation. To add to the silence fan mounts replace traditional screws and are made of high quality, temperature resistant, extra long lasting rubber and stop vibrations from the fan motor from travelling into your PC case. Features: Pulse Width Modulation (PWM) Silent Operation w/ Rubber Fan Mounts Optimized Fan Blades High Airflow & High Static Pressure Long Lifetime (50'000 h MTTF at 40°C) Advanced Features: Air Flow (CFM) 37.89 Bearing: Hydro Dynamic Bearing Cable Length (mm): 500 Connector: 4 Pin Molex Current (A): 0.13 Dimensions (mm): 80 x 80 x 25 Fan Speed (RPM): 900 - 2000 Noise Level (dBA): 11 - 23.5 Safety Approvals: CE, RoHS Compliant Static Pressure (mmAq): 1.65 Voltage (V): 12
Designed for advanced users GELID Silent PWM fans provide additional airflow by using Pulse Width Modulation (PWM) to automatically adjust fan speed according to the CPU load. The fan can be idled down and thus be much quieter. An intelligent IC had been integrated into the fan’s PCB to exploit your mainboard’s BIOS software. This technology is more efficient and convenient than using an external fan controller to adjust the voltage.
Each fan impeller has been individually balanced using the latest technology to guarantee steady, unwavering operation. To add to the silence fan mounts replace traditional screws and are made of high quality, temperature resistant, extra long lasting rubber and stop vibrations from the fan motor from traveling into your PC case.
Intelligent GELID PWM ControlPWM (Pulse-width modulation) uses a digital signal to calculate and adjust to the appropriate cooling performance according to CPU and System temperature, without generating any heat during operation. Fan controlled by intelligent GELID PWM is more efficient than the traditional PWM fans.
High PerformanceWith the optimized fan blades, the GELID Solutions FN-PX09-20 92mm case fan delivers air flow of up to 37.89 CFM and high static pressure for impressive heat dissipation.

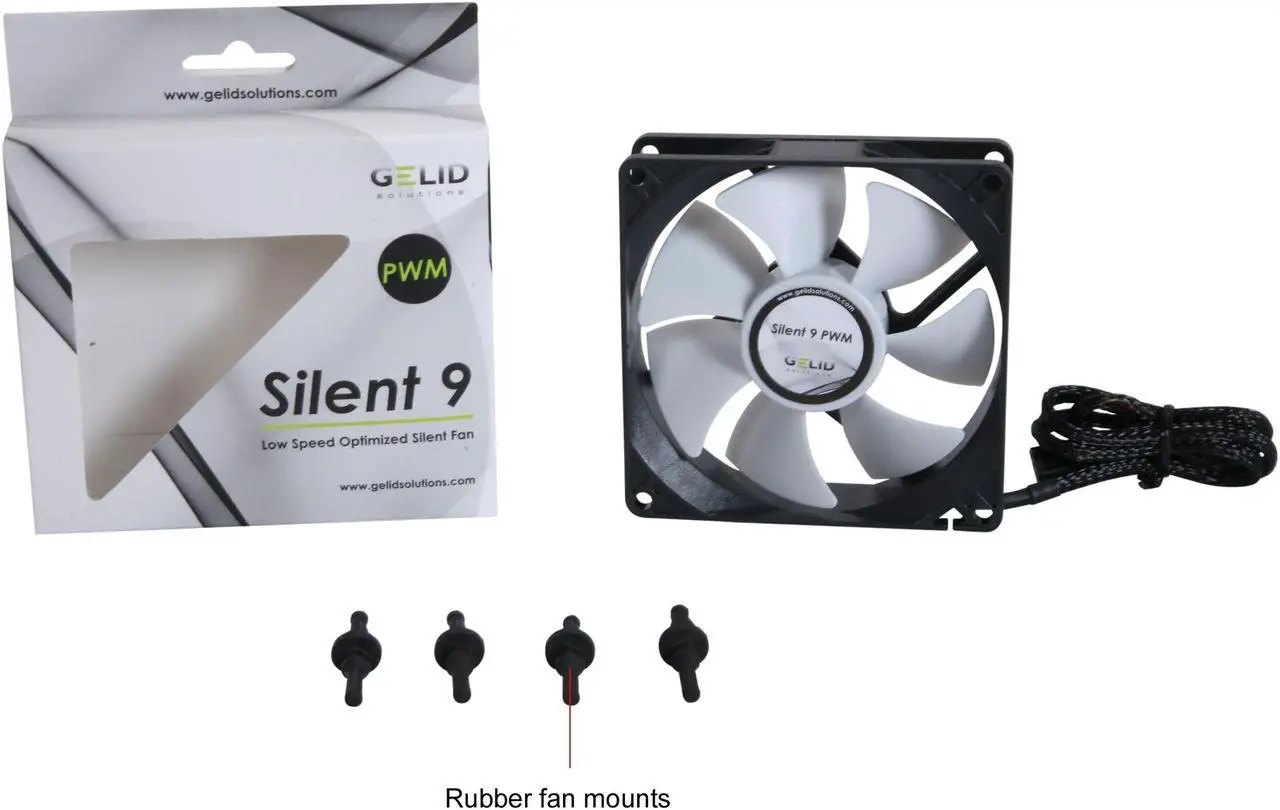

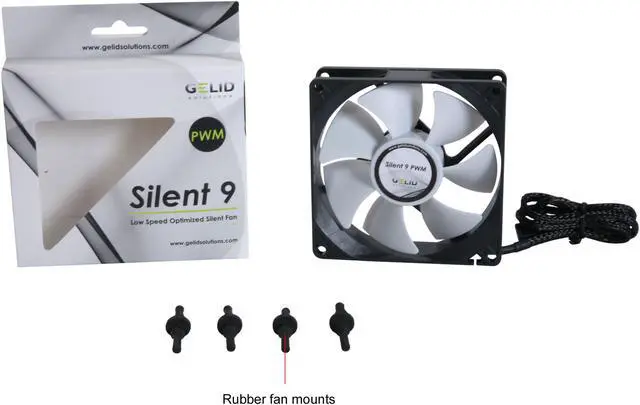

Rubber Fan MountsIncluded rubber mounts have been designed specifically to deal with fan-induced vibrations and are an ideal alternative to standard fan screws, leaving vibrations 100% decoupled from your PC case, ideal for building a very quiet or virtually silent PC.
Learn more about the GELID SOLUTIONS FN-PX09-20
Model
Brand
GELID Solutions
Model
FN-PX09-20
Details
Type
Case Fan
Compatibility
Case
Fan Size
92mm
Bearing Type
Hydro Dynamic Bearing
RPM
900 - 2000 RPM
Air Flow
37.89 CFM
Noise Level
11 - 23.5 dBA
Power Connector
4 Pin Molex
Color
White
Features
Features
Pulse Width Modulation (PWM) Silent Operation w/ Rubber Fan Mounts Optimized Fan Blades High Airflow & High Static Pressure Long Lifetime (50'000 h MTTF at 40°C) Safety Approvals: CE, RoHS Compliant
Dimensions & Weight
Dimensions
92mm x 92mm x 25mm
Additional Information
Date First Available
April 28, 2009
