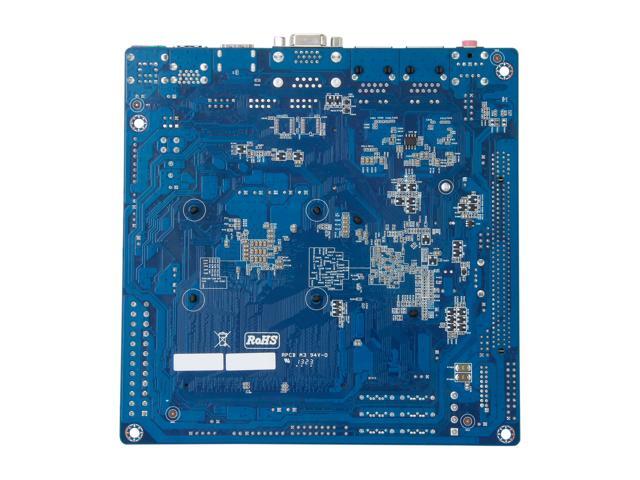

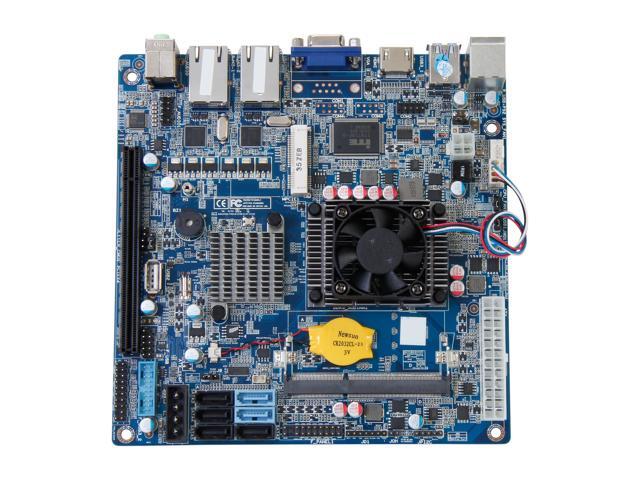

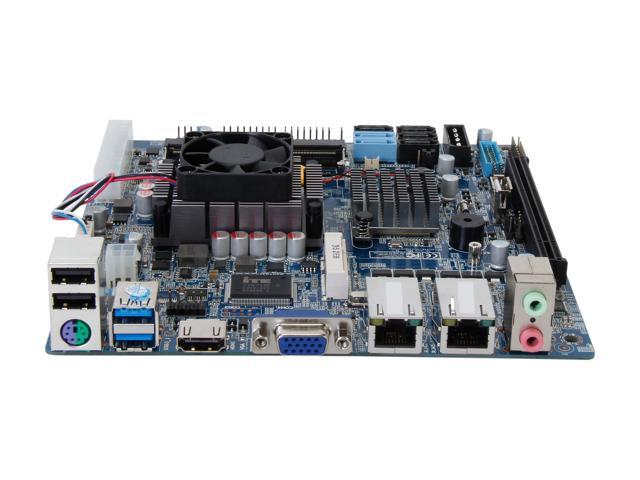

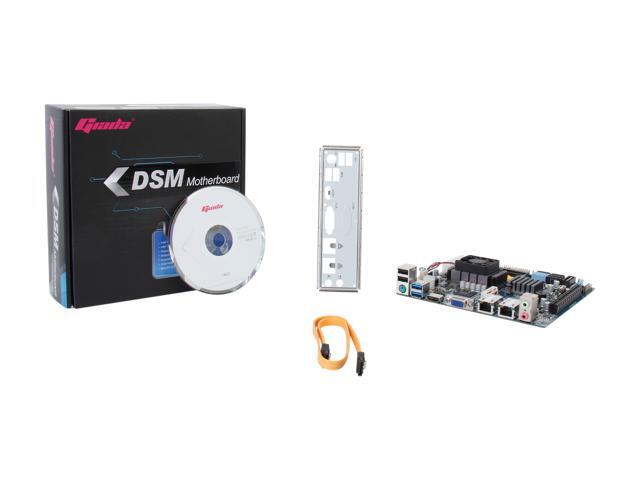

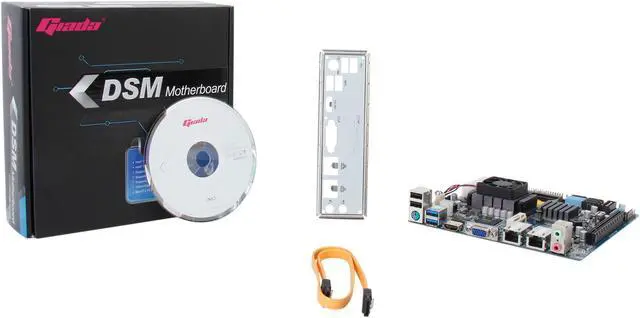

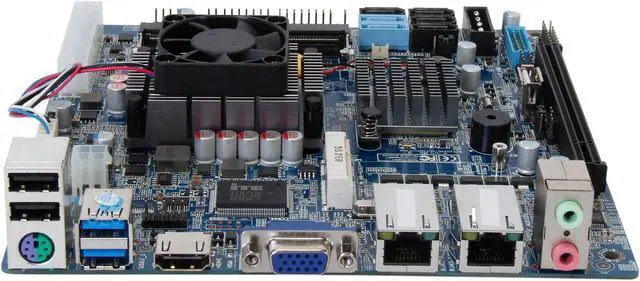

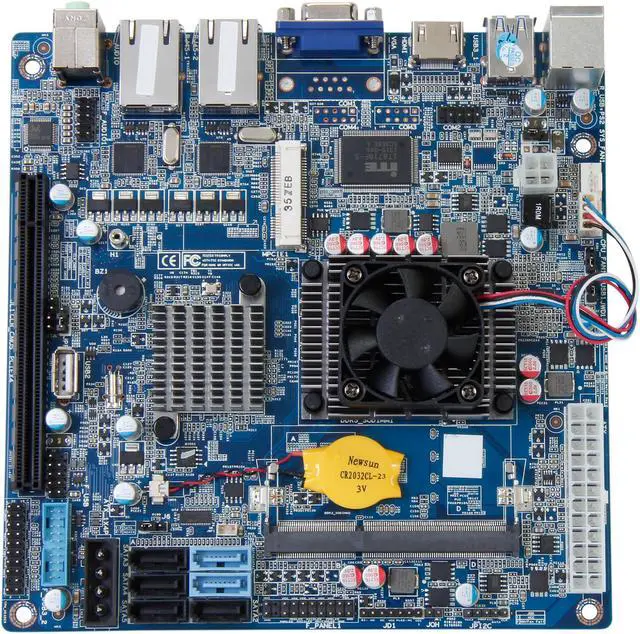

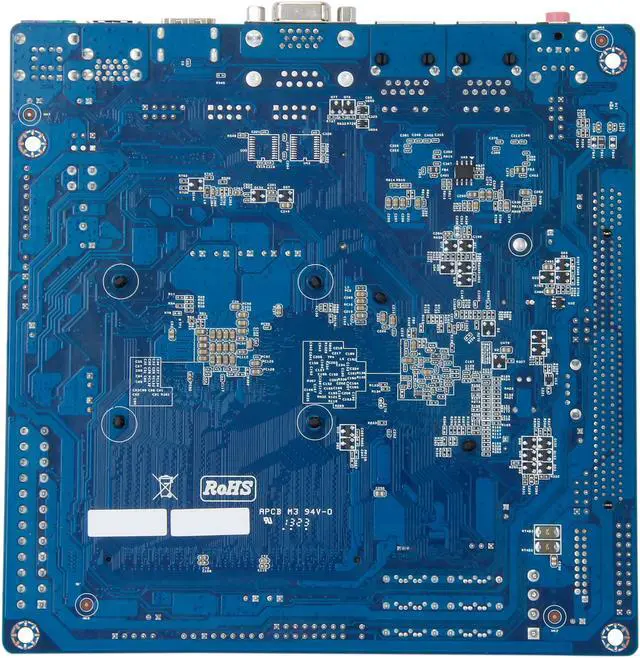

Giada N70E-DR Intel Celeron 1037U Intel HM77 Mini ITX Motherboard / CPU / VGA Combo
OUT OF STOCK.
- Celeron
- DDR3 1600/1333
- Supported only by CPU with integrated graphic
Specs
Reviews
Learn more about the Giada Technology, Inc. N70E-DR
| Brand | Giada |
|---|---|
| Model | N70E-DR |
| Combo Type | Motherboard / CPU / VGA Combo |
| CPU | Intel Celeron 1037U |
|---|---|
| With Cooler | Yes |
| CPU Type | Celeron |
|---|
| North Bridge | Intel HM77 |
|---|
| Number of Memory Slots | 1x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3 1600/1333 |
| Maximum Memory Supported | 8GB |
| PCI Express x16 | 1(running at x4) |
|---|
| SATA | 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 5.1 Channels |
| LAN Chipset | Intel 82574 |
|---|---|
| Second LAN Chipset | Intel 82574 |
| Max LAN Speed | Dual 10/100/1000Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| Audio Ports | 2 Ports |
| Onboard USB | 2 x USB 3.0 + 2 x USB 2.0 |
|---|---|
| Other Connectors | 1 x COM header 1 x USB2.0 port 1 x PCIe_16X slot ( X4 Function ) 1 x4 pin Power Connector for Add-on devices 1 xTPM hearder 1 x 9 pin Front Audio header 1 x Front Panel header 1 x SYS FAN+1x CPU FAN connector 1 x 24pin ATX power 1 x 4pin ATX power 1 x 2pin Chassis Intrusion header 1 x 2pin header for warnings of chassis overheat 1 x 7pin header for External Buzzer/Power LED |
| Features | Mini-ITX -Mini-ITX gives you freedom to choose smaller and coollooking case. It is easy to build your own personalized media centralized PC. Intel Celeron 1037U -Intel Celeron 1037U with Intel Intel HD Graphics graphics (DX11) integrated for entry-level desktops continues to provide innovation, enabling smaller and more energy efficient designs. Support DirectX 11 -DirectX 11 Features the latest technologies of Compute Shaders,Direct 2D,Multithreded Rendering and Tessellation for create worlds realistic characters and more fluid gameplay. HDMI Output -High-definition video formats (720p, 1080p, and 2160p) and the multi-channel digital audio. Gigabit LAN -The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents. USB 3.0 -The standard specifies a maximum transmission speed of up to 5 Gbit/s (625 MB/s), which is more than 10 times as fast as USB 2.0 (480 Mbit/s, or 60 MB/s). Serial ATAIII 6.0 Gb/s The SATA specification doubles bus bandwidth from 3Gb/s to 6Gb/s. PCI EXPRESS 2.0 -The exceptionally increased interconnect bit rate from 2.5GT/s would effectively eliminates the bottle neck of the system performance and brings the most terrific computing experience. ROHS Compliant |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Date First Available | August 30, 2013 |
|---|
Eggxpert ReviewWarranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 2 years
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-415-202-5441
- Support Email: support@GiadaPC.com
- Support Website
- View other products from Giada Technology, Inc.
LOADING...
LOADING...
Pros: This board throws every possible feature you could possibly think of that would fit on a mini-itx board. dual ethernet (Intel 82574L's!), msata, 6 sata ports, 2 USB ports with headers for another 2. Full length PCIE x16 slot (works at x4 speeds) Build quality is good, all solid caps. very reminiscent of industrial motherboards.
Cons: Where to start... 1. Only 1 memory slot. No dual channel memory means slow 2D performance in windows. 2. Very skimpy documentation. It doesn't even come with a manual. Good luck trying to figure out the front panel pin-outs. 3. Very sparse BIOS, no UEFI? No BIOS updates? No BIOS available on their website at all? 4. A GFI parted Windows 8 install doesn't want to recognize this board, no settings to switch between legacy and UEFI (I'm assuming it's legacy all the way) 5. Wrong LAN drivers on their website
Overall Review: It's good for a firewall, or a NAS, not so good for an htpc. Even for all the features it crams in there, it's overpriced at $180. The lack of up-front support is especially troubling. Giada obviously knows how to build hardware, it's too bad they don't know how to sell to the consumer.
