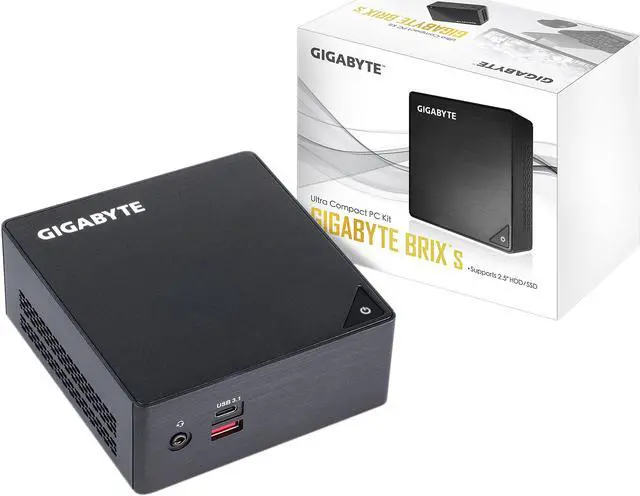

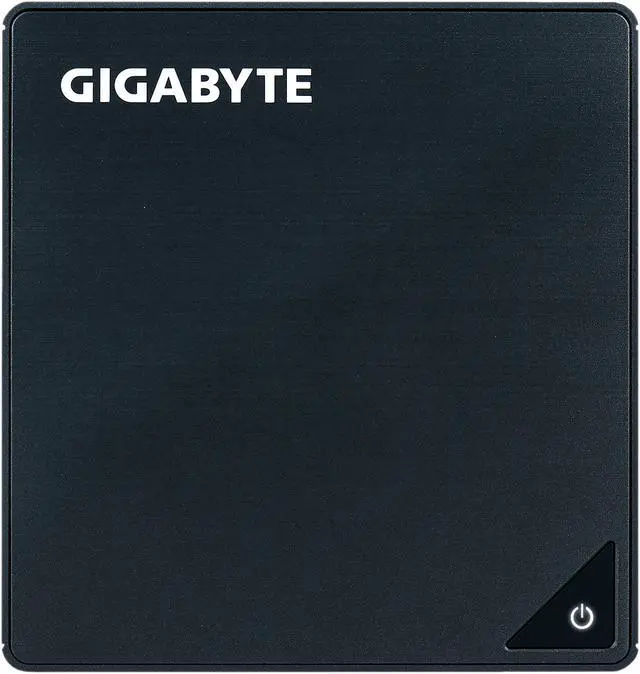

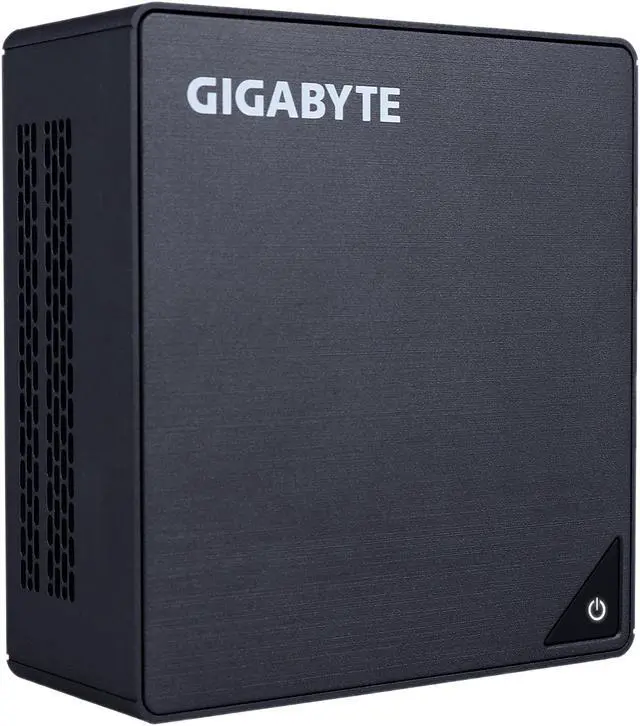

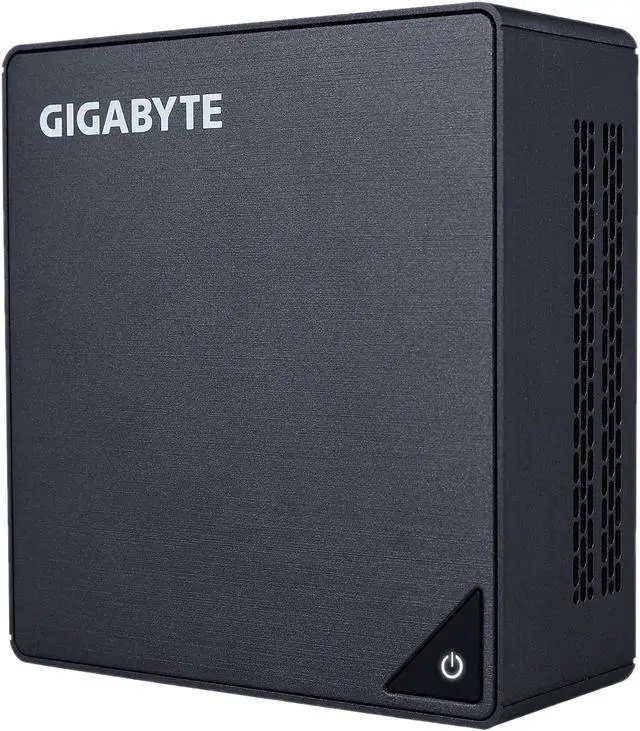

GIGABYTE BRIX GB-BKi3HA-7100 (rev. 1.0) Barebone Systems - Mini / Booksize
- Intel Core i3-7100U, 2.4GHz
- 2 x 260Pin SO-DIMM DDR4 2133
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GB-BKi3HA-7100 (rev. 1.0)
| Brand | GIGABYTE |
|---|---|
| Series | BRIX |
| Model | GB-BKi3HA-7100 (rev. 1.0) |
| CPU Type | Intel Core i3-7100U, 2.4GHz |
|---|
| Memory installed | No Memory |
|---|---|

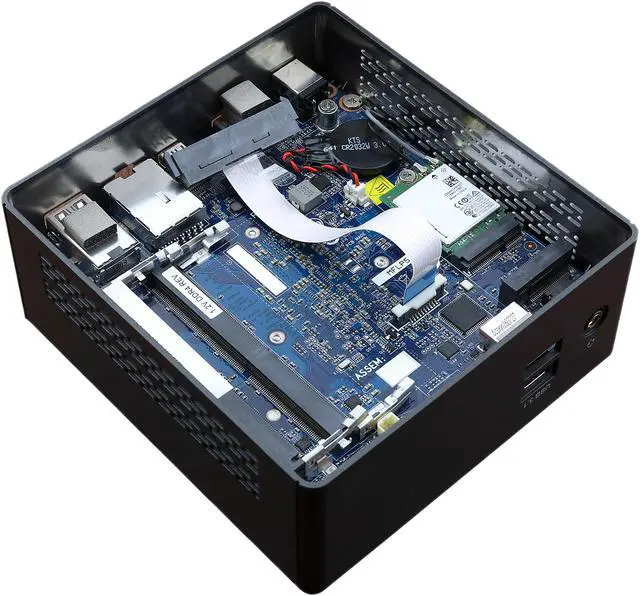

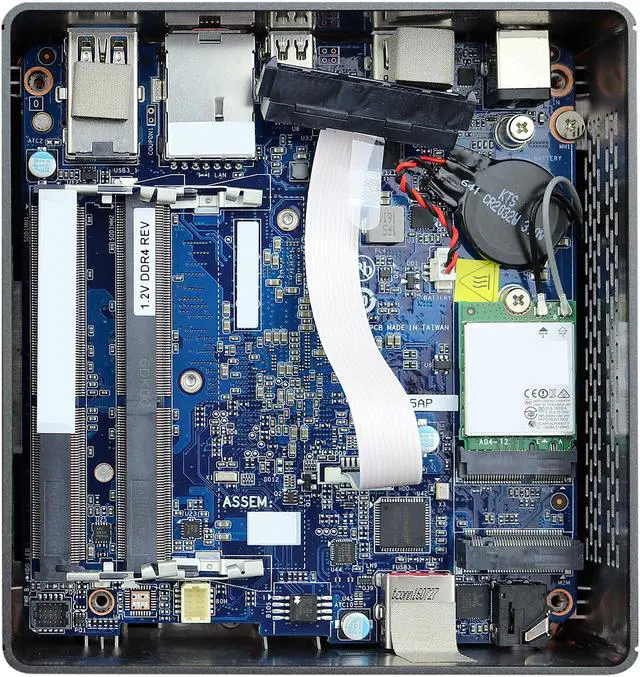

| Memory slot | 2 x 260Pin SO-DIMM |
| Memory Type Supported | DDR4 2133 |
| Max Memory Supported | 32GB |
| Other | 1 x M.2 slot (2280_storage) PCIe / SATA 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card |
|---|
| Hard Drive Installed | No Hard Drive |
|---|---|
| Serial ATA | 1 x SATA 6.0Gb/s |
| Intergrated Graphics | Intel HD Graphics 620 |
|---|
| Onboard Audio | Realtek ALC255 |
|---|
| LAN | Intel i219-LM |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| Wireless LAN | Intel Dual Band Wireless-AC 3168 |
| 2.5" Internal Bays | Supports 2.5" HDD/SSD, 7.0/9.5mm thick |
|---|

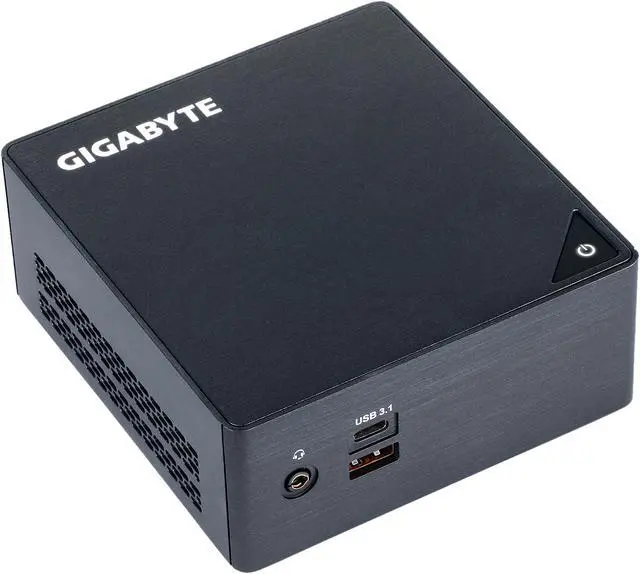

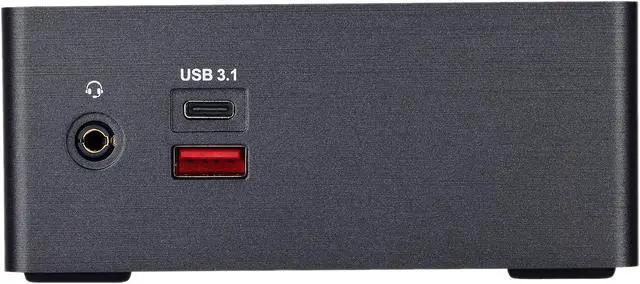

| Front USB | 1 x USB 3.1 type C 1 x USB 3.1 |
|---|---|
| Front Audio Ports | 1 x head phone jack with MIC |
| HDMI | 1 x HDMI (2.0) |
|---|---|
| DisplayPort | 1 x Mini DisplayPort (1.2) |

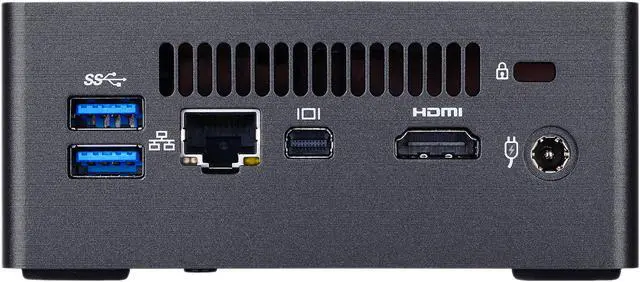

| Rear USB | 2 x USB 3.0 |
| RJ45 | 1 |
| Other Rear Ports | 1 x DC-In 1 x Kensington lock slot |

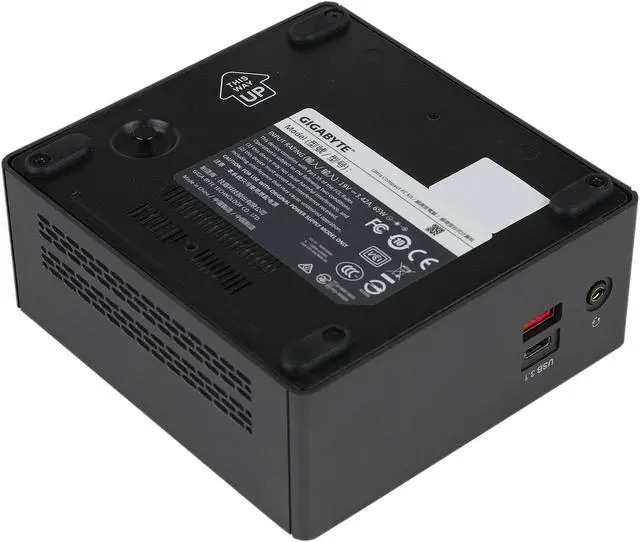

| Input | AC 100-240V |
|---|---|
| Power Supply | Output: DC 19V 3.42A |
| Dimensions | 1.84" x 4.43" x 4.70" |
|---|---|
| Weight | 3.62 lbs. |

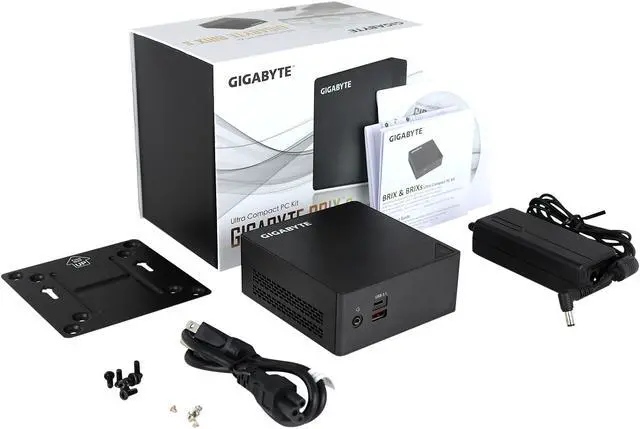

| Features | Features Latest Intel 7th generation Core Processors Ultra compact PC design at only 0.6L (46.8 x 112.6 x 119.4mm) Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6Gbps SATA 3) 1 x M.2 SSD (2280) slot 2 x SO-DIMM DDR4 slot (2133 MHz) Intel IEEE 802.11 ac, Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card Intel HD Graphics 620 2 x USB3.1 (1 x USB Type-C) 2 x USB 3.0 HDMI 2.0 HDMI plus Mini DisplayPort Outputs (Supports dual displays) Intel Gigabit lan Headphone/Microphone Jack VESA mounting Bracket (75 x 75mm + 100 x 100mm) |
|---|
| First Listed on Newegg | November 29, 2016 |
|---|
