GIGABYTE Brix Extreme GB-BEi7H-1260-BWUS Black Mini-PC Barebone, 12th Gen Intel Core i7-1260P processor, Intel Iris Xe Graphic, M.2 + SATA for SSD, Tall Version - Memory and Storage Sold Separately

Be the first to review this product...
  • This item is barebone only. Customer need to purchase Laptop Memory, SSD and Operation System (optional) to combine a completed system
  • All-new chassis design, support HDD Version
  • Intel Core i7-1260P 2.10GHz
  • 4 x 260Pin SO-DIMM DDR4 3200
  • Intel Iris Xe Graphic, 96EU
  • Super Fast 2.5G LAN + Wifi 6E module
  • 4 x 4K outputs, 1 x HDMI 2.1(8K), 2 x HDMI, 1 mini DP and 1 USB type C DP, all support 4K@60P
  • 1 x USB 4.0(Type C), support Intel Thunderbolt 4, Up to 7 USB 3.2 ports (up to 4 front + 3 back)
  • 1 x 2280 M.2 support SSD storages + 1 slot support 2.5" SATA SSD/HDD
  • Optional Next Gen Upgrade Kit: Add Second LAN/ M.2 / RS232 COM port
  • TPM security chip available
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GB-BEi7H-1260-BWUS

General
Brand GIGABYTE
Series BRIX Extreme
Model GB-BEi7H-1260-BWUS
Color Black
CPU Supported
CPU Type Intel Core i7-1260P Processors, 12 Cores (4P+8E) 16 Threads, 12MB L2 Cache, Frequency 2.1GHz-4.7GHz (P Core), 28W
Memory Supported
Memory installed No Memory
Memory slot 2 x 260Pin SO-DIMM
Memory Type Supported DDR4 3200
Max Memory Supported 64GB
Storage
Hard Drive Installed No Hard Drive
Serial ATA 1 x SATA 6.0Gb/s
M.2 1 x PCI-e Gen4 x 4 /SATA M.2 2280 slot
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Audio
Onboard Audio Realtek ALC897
Communications
LAN Intel i225V
Max LAN Speed 10/100/1000/2500Mbps
Wireless LAN 802.11ax
WiFi Generation Wi-Fi 6E
Bluetooth Bluetooth 5.2
Extension Bays
2.5" Internal Bays 1 x 2.5" HDD/SSD, 7.0mm thick (1 x 6 Gbps SATA 3)

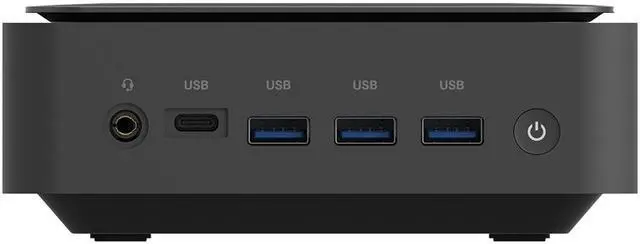

Front Panel Ports
Front USB 1 x USB 3.2 type C (Gen2)
3 x USB 3.2 type A (Gen2)
Front Audio Ports 1 x Head Phone jack with MIC

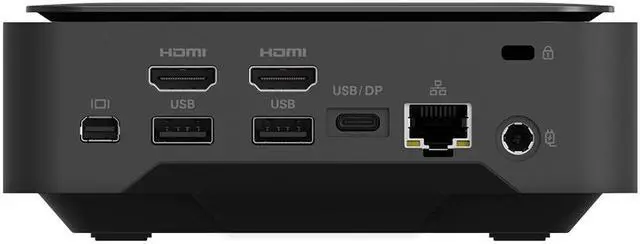

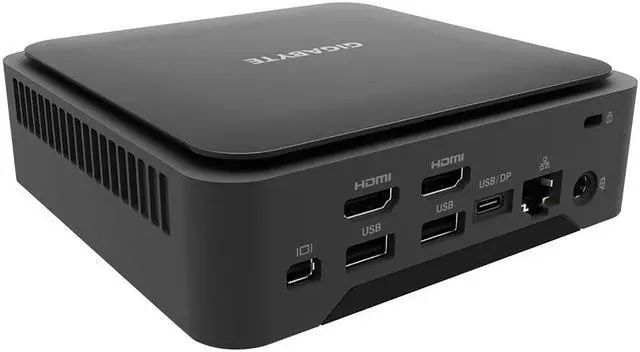

Back Panel Ports
HDMI 1 x HDMI (2.1)
1 x HDMI (2.0b)
DisplayPort 1 x Mini DisplayPort
Rear USB 1 x USB 4.0 (Support Intel Thunderbolt 4) w/ DP alt mode
2 x USB 2.0 type A
RJ45 1
Other Rear Ports 1 x DC-In
1 x Kensington lock slot
Power Supply
Input AC 100-240V
Power Supply Output: DC 19.5V / 6.92A, 135W
Physical SPEC
Dimensions 5.30" x 5.40" x 2.00"
Weight 1.44 lbs.
Additional Information
First Listed on Newegg September 27, 2023

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
