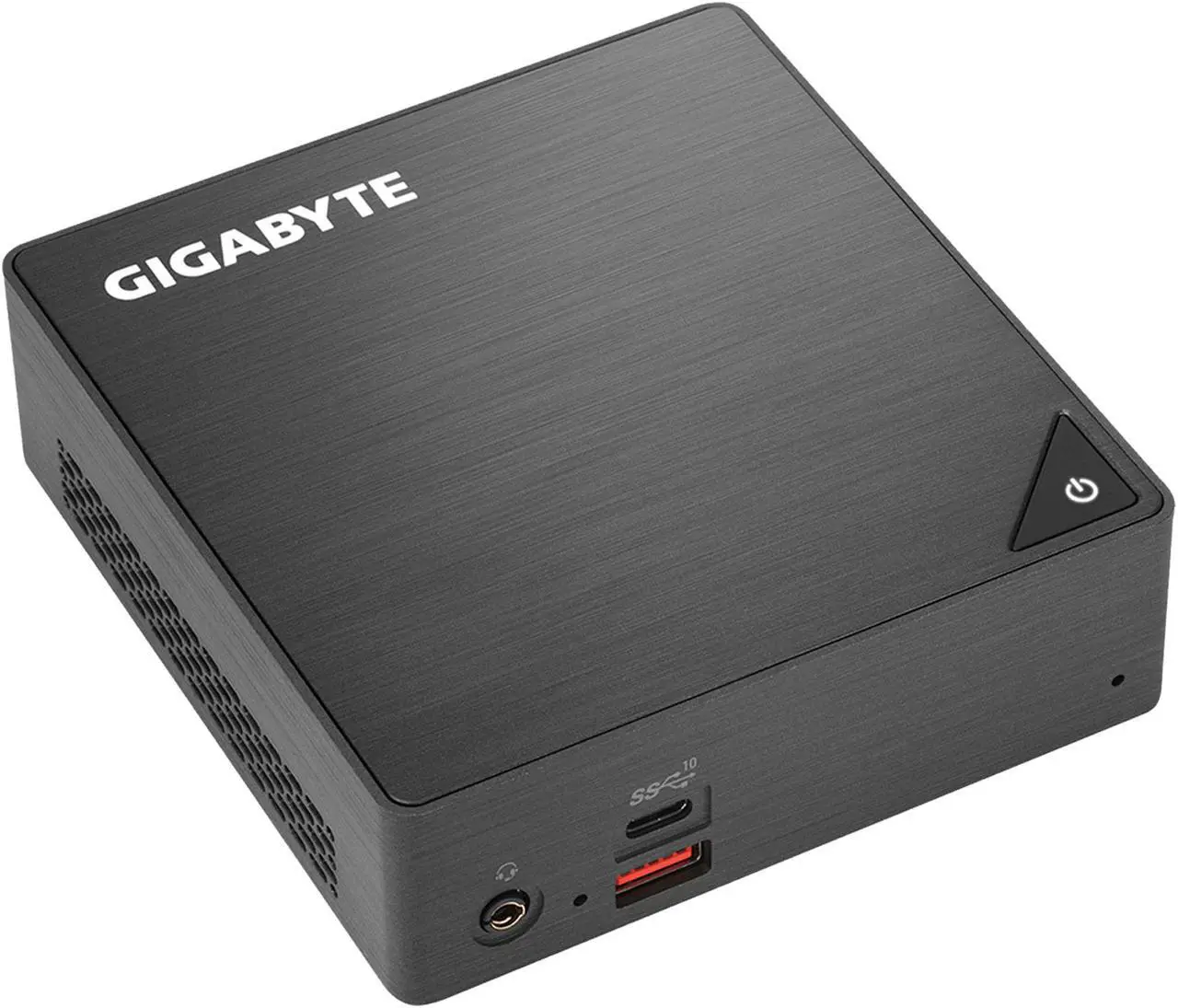

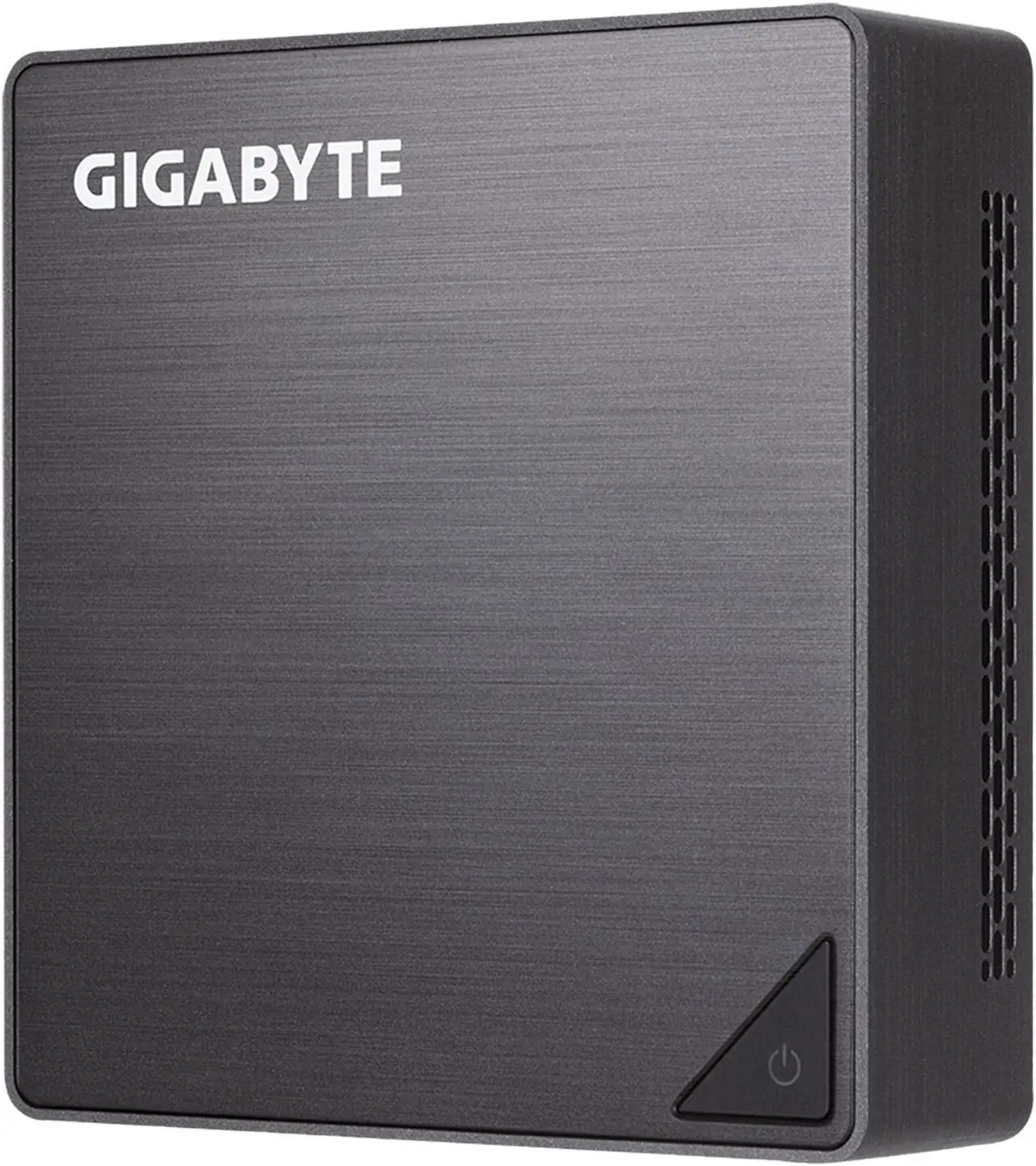

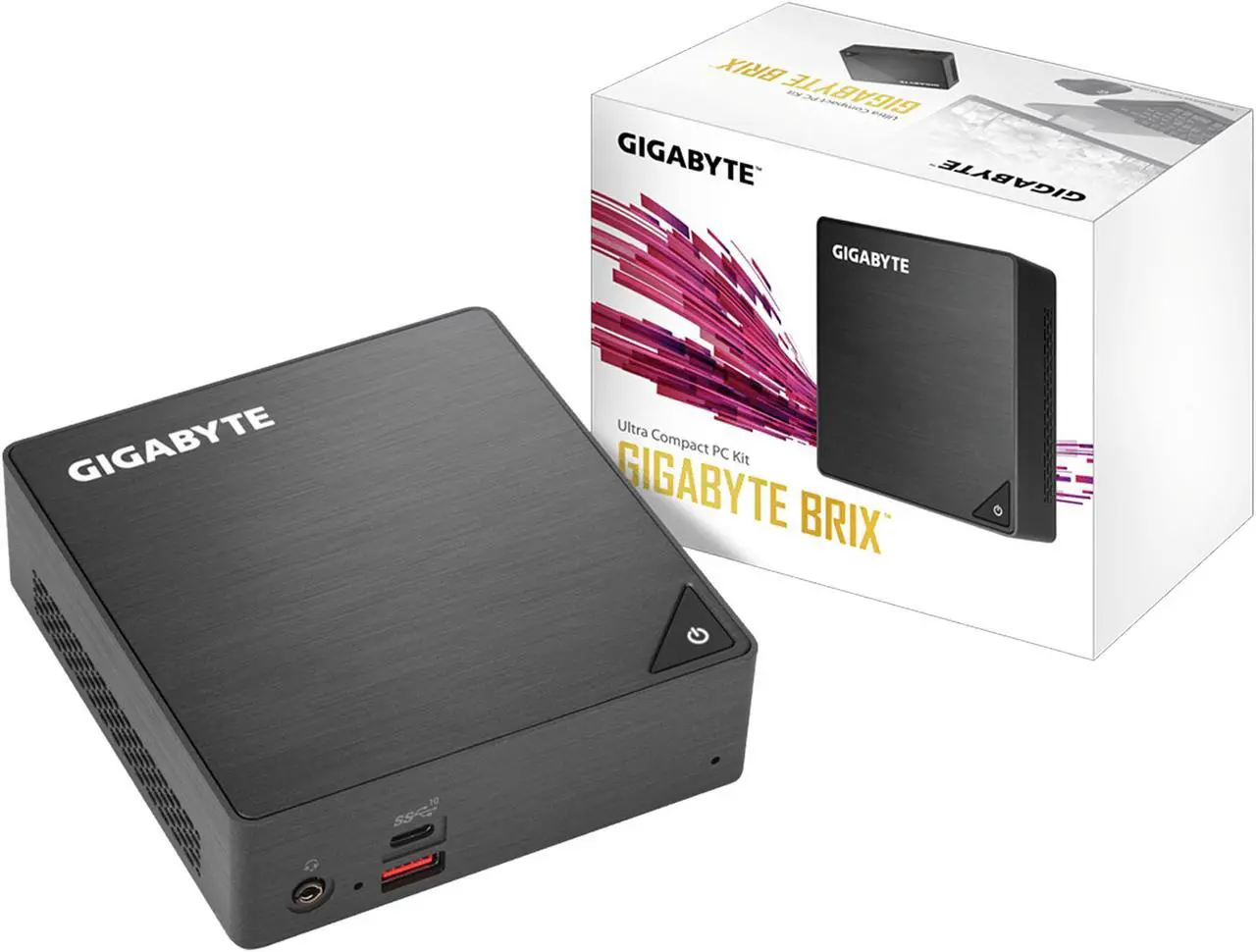

GIGABYTE BRIX GB-BRi5-8250-BW Mini / Booksize Barebone System
OPEN BOX Product Type
- Intel Core Quad Core i5-8250U, 3.4 GHz
- 2 x 260Pin SO-DIMM DDR4 2400
Specs
Learn more about the GIGABYTE GB-BRi5-8250-BW
| Brand | GIGABYTE |
|---|---|
| Series | BRIX |
| Model | GB-BRi5-8250-BW |
| CPU Type | Intel Core Quad Core i5-8250U, 3.4 GHz |
|---|
| Memory installed | No Memory |
|---|---|
| Memory slot | 2 x 260Pin SO-DIMM |
| Memory Type Supported | DDR4 2400 |
| Max Memory Supported | 32GB |
| Other | 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the Wi-Fi+BT card |
|---|
| Hard Drive Installed | No Hard Drive |
|---|---|
| M.2 | 1 x M.2 slot (2280_storage) PCIe X4 / SATA |
| Intergrated Graphics | Intel UHD Graphics 620 |
|---|
| Onboard Audio | Realtek ALC255 |
|---|
| LAN | Intel i219V |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| Wireless LAN | Intel Dual Band Wireless-AC 3168 |

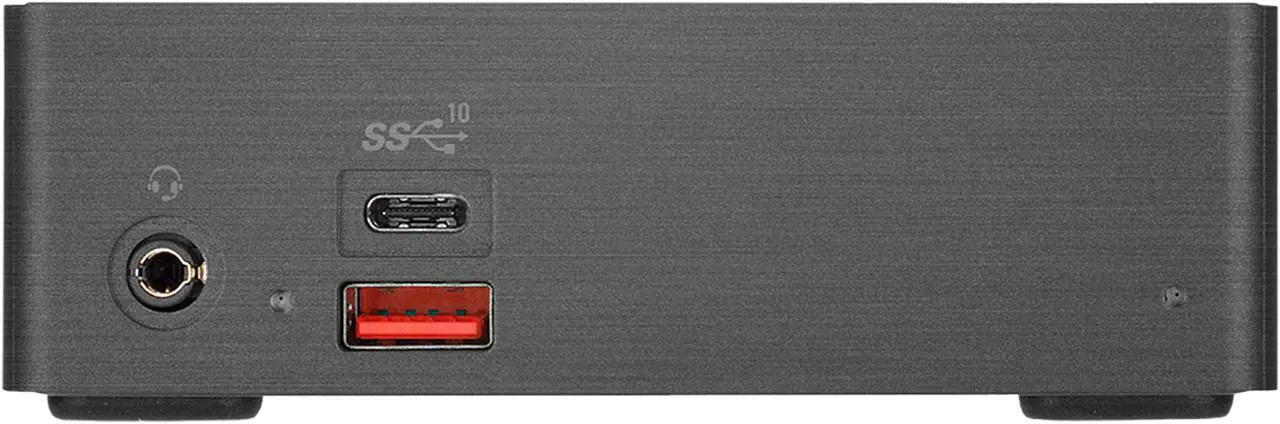

| Front USB | 1 x USB 3.1 type C 1 x USB 3.1 |
|---|
| HDMI | 1 x HDMI (2.0a) |
|---|---|
| DisplayPort | 1 x Mini DisplayPort (1.2) |

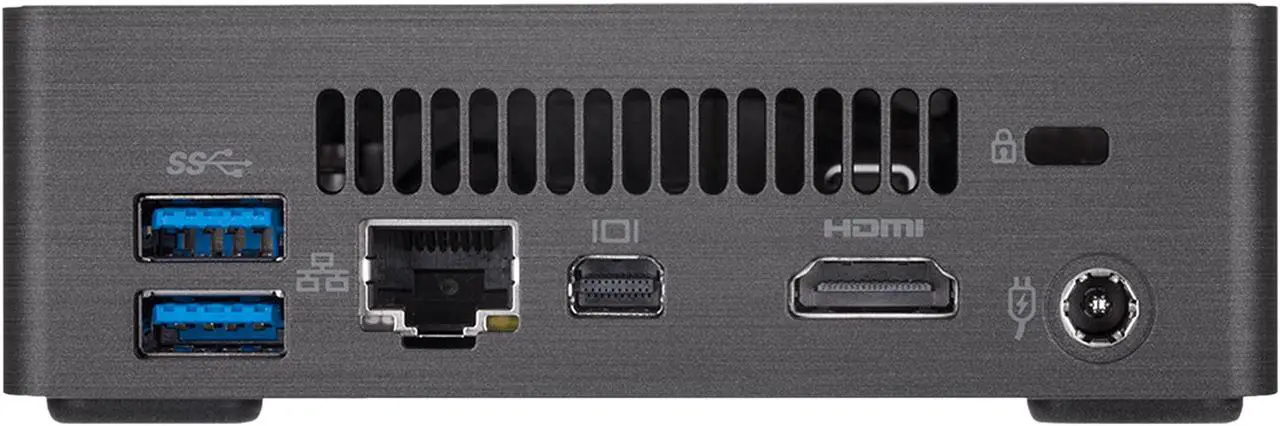

| Rear USB | 2 x USB 3.0 |
| RJ45 | 1 |
| Other Rear Ports | 1 x DC-In 1 x Kensington lock slot |
| Input | AC 100-240V |
|---|---|
| Power Supply | Output: DC 19V, 3.42A |
| Dimensions | 1.35" x 4.43" x 4.70" |
|---|
| Features | Features Intel Core Quad core i5-8250U Processor Ultra compact PC design at only 0.46L (34.4 x 112.6 x 119.4mm) 1 x M.2 SSD (2280) slot 2 x SO-DIMM DDR4 slots Intel IEEE 802.11 ac, Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card HDMI plus Mini DisplayPort Outputs (Supports dual displays) 2 x USB 3.1 (1 x USB Type-C) 2 x USB 3.0 Intel Gigabit LAN Dual Array Microphone Headphone Jack VESA Mounting Bracket (75 x 75mm + 100 x 100mm) * Wireless module inclusion may vary based on local distribution. |
|---|
| Date First Available | September 06, 2018 |
|---|
