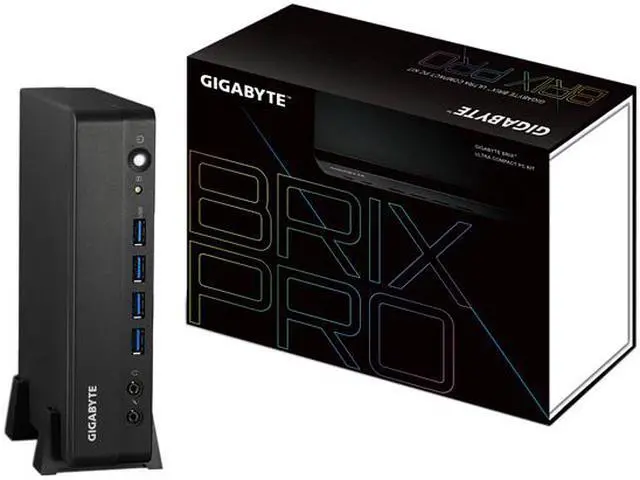

GIGABYTE BRIX PRO GB-BSi5-1135G7-BWUS Black Mini-PC Barebone, 11th Gen Intel Core i5-1135G7 processor, Intel Iris Xe Graphic, M.2 for SSD - Memory and Storage Sold Separately
- This item is barebone only. Customer need to purchase Laptop Memory, SSD and Operation System (optional) to combine a completed system
- Intel Core i5-1135G7, Quad-Core Processor, 4 Core/8 Threads, 8M Cache, 0.9-4.2 GHz, 28W
- Intel Iris Xe Graphics
- 2 x 260Pin SO-DIMM DDR4 3200
- 4 x HDMI port, supporting a maximum resolution 4K/60P
- 1 x Thunderbolt 4 Port
- Intel AX201 Wifi 6 + BT5.2
- Intel 2.5G + Gigabit Ethernet (225V+219V)
- ALC255 Audio Codec
- 2 x M.2 for SSD (1 x PCIe Gen 4 x4 + 1 x PCIe x4/SATA Mode)
- Infineon TPM onboard
- 4 x USB 3.2 (Front), 2 x USB 3.2 (Back)
- Headphone/microphone jack
- Support VESA Mount
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GB-BSi5-1135G7-BWUS
| Brand | GIGABYTE |
|---|---|
| Series | BRIX PRO |
| Model | GB-BSi5-1135G7-BWUS |
| Color | Black |
|---|
| CPU Type | Intel Core i5-1135G7, Quad-Core Processor, 4 Core/8 Threads, 8M Cache, 0.9-4.2 GHz, 28W |
|---|
| Memory installed | No Memory |
|---|---|
| Memory slot | 2 x 260Pin SO-DIMM |
| Memory Type Supported | DDR4 3200 |
| Max Memory Supported | 64GB |
| Dual Channel Memory Supported | Yes |
| Hard Drive Installed | No Hard Drive |
|---|---|
| M.2 | 1 x M.2 2280 support PCIe Gen4 x 4 NVMe SSD 1 x M.2 2280 support PCIe Gen3 x 4 NVMe SSD or SATA SSD |
| Intergrated Graphics | Intel Iris Xe Graphics |
|---|
| Onboard Audio | Realtek ALC255 |
|---|
| LAN | Intel 219V+225V (GbE+2.5G) |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps + 10/100/1000Mbps |
| Wireless LAN | Intel AX201 Wi-Fi 6 |
| WiFi Generation | Wi-Fi 6 |
| Bluetooth | Bluetooth 5.2 |
| Front USB | 4 x USB 3.2 |
|---|---|
| Front Audio Ports | 1 x Headphone / Mic Jack |
| Other Front Ports | 1 x Power Button |
| HDMI | 4 x HDMI 2.0a @4K/60P |
|---|---|

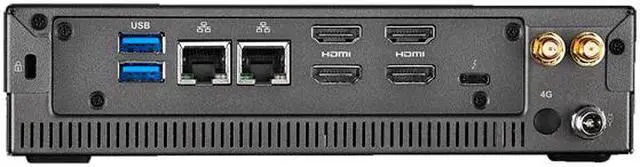

| Rear USB | 1 x Thunderbolt 4/USB4.0 2 x USB 3.2 Gen 2 |
| RJ45 | 2 |
| Other Rear Ports | 1 x DC-In |
| Input | 100-240V |
|---|---|
| Power Supply | Output 7.1A 19V, 135W |
| Dimensions | 7.72" x 1.75" x 5.51" |
|---|
| First Listed on Newegg | October 07, 2021 |
|---|
