Elegant design with enhanced computing power


Space-saving
Ultra compact PC design. Particularly useful in environments with limited space.
Low power
Energy savings and lower electricity bills.
Portability
Easily carried around for use in different locations.
Low noise
Quieter operation, which is particularly appreciated in quiet working environments.
Suitability for specific purposes
Designed for specific purposes, such as home theater PCs, smart home controllers, data storage servers, etc.
Low maintenance costs
With a simple design and fewer components, it reduces maintenance costs and makes upgrades or repairs easier.
Intel® Core™ Ultra 7/5 Intel® Arc™ GPU
Premium Consumer and Commercial Laptops

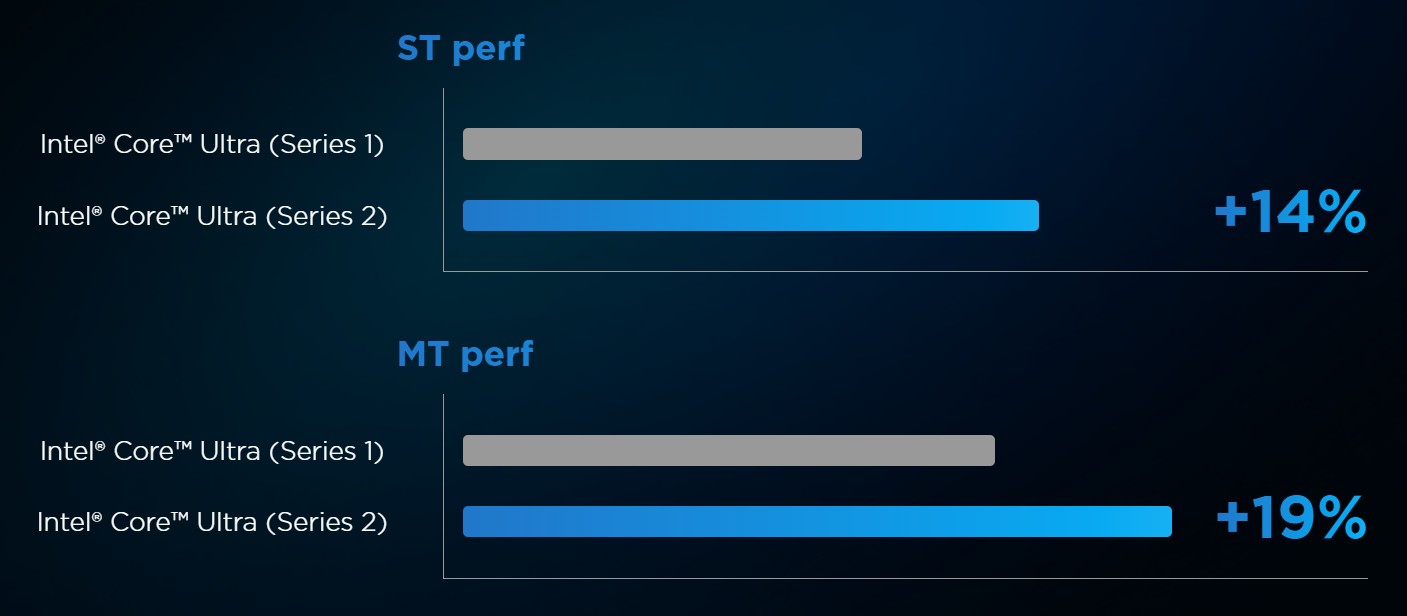

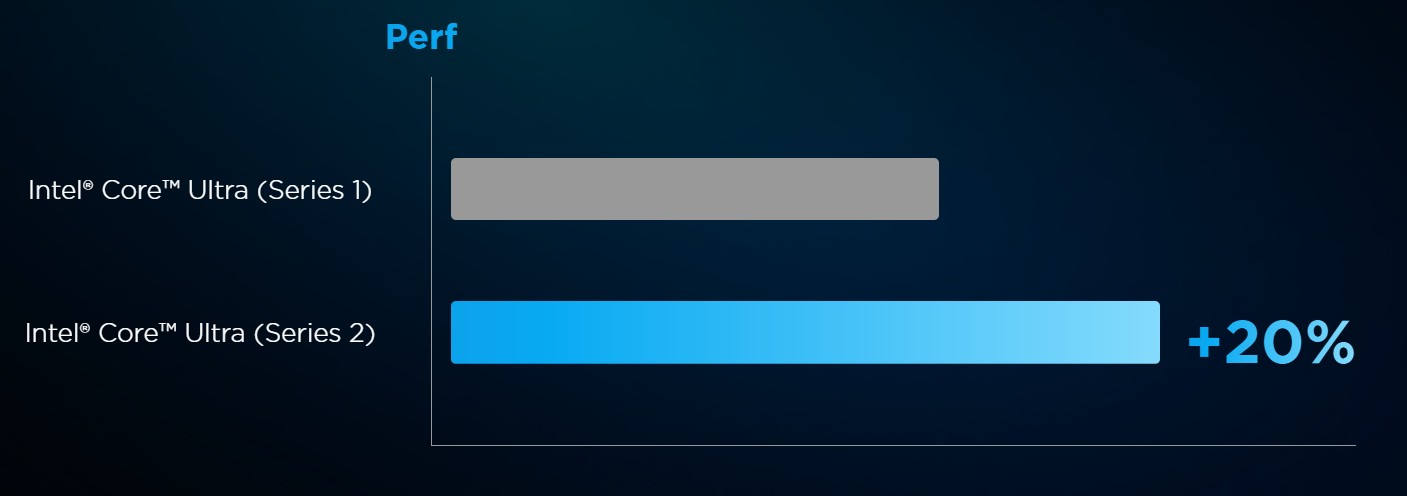

Next Gen Cores
New Lion Cove and Skymont P and E Cores

Latest iGFX
New LPG+Architecture, Up to 8 Xe-cores
Improved Graphics Fidelity with XeSS Full rate ray-tracing

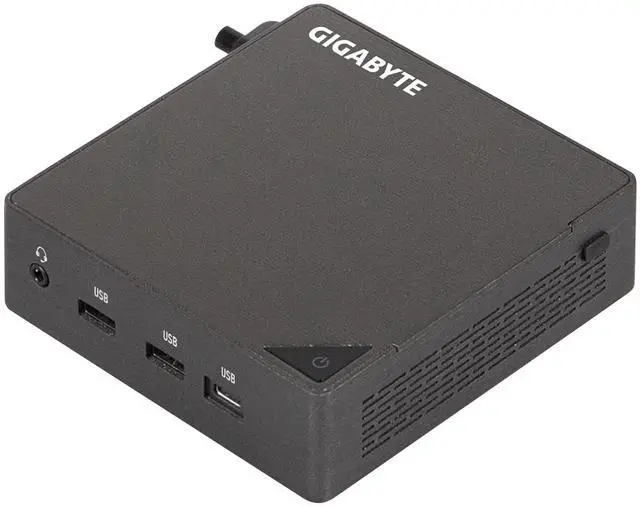

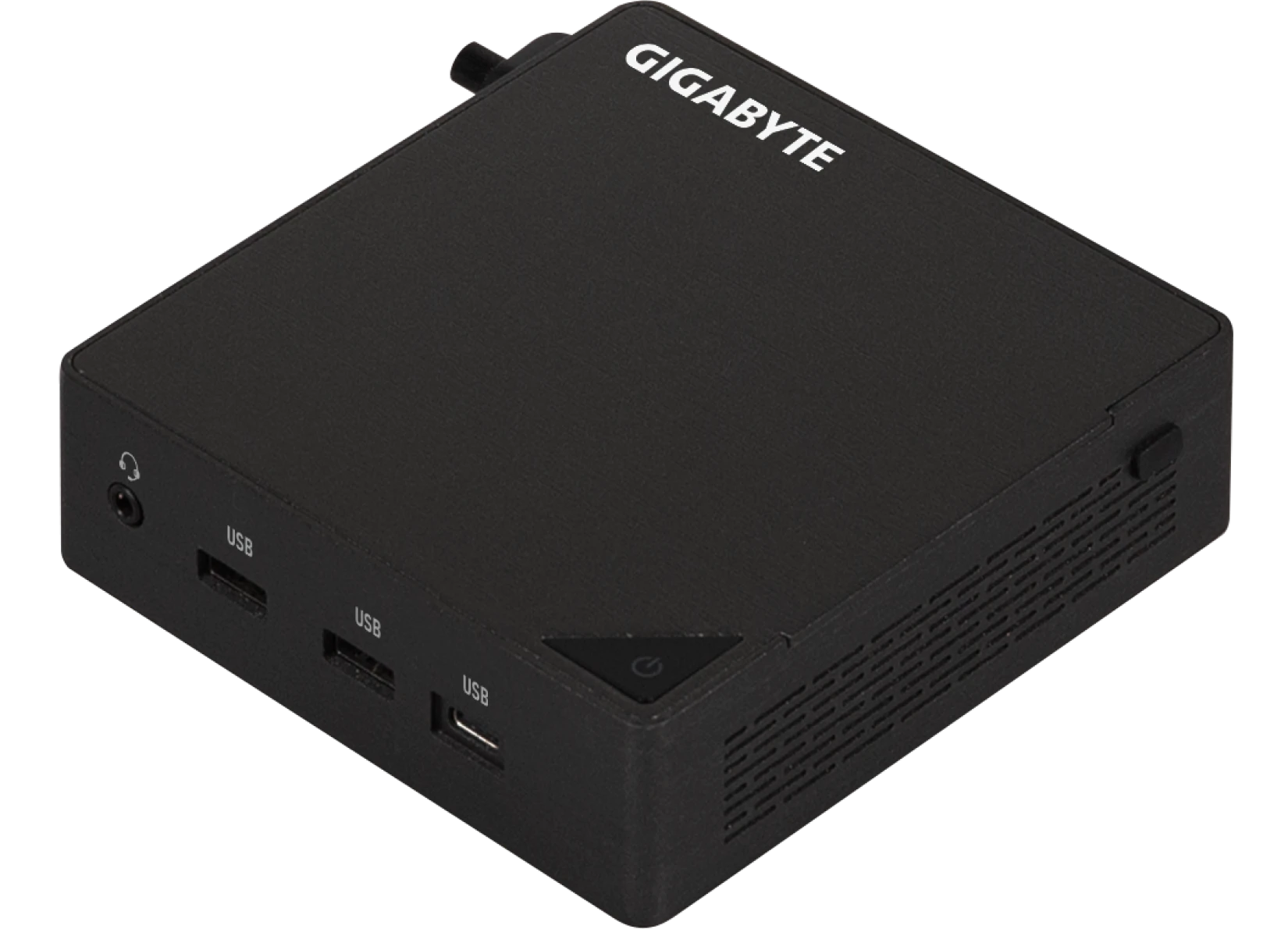

GB-BRU5-225H
Great Hardware Configuration

CPU
Intel® Core™ Ultra 5 processor 225H, 28W
14 Core 4P + 8E + 2LPE

Graphics
Intel Xe-LPG + graphics architecture
Adds 4-deep systolic support
Doubled local cache
Full Rate Ray-tracing

Media & Display
Integrated DP2.1 (USB-C), HDMI 2.1
Dedicated AVI encode HW
Intel® Intelligent Display

Artificial Intelligence
Intel NPU AI accelerator
GNA3.5 ultra-low power

Security
Linear Address Space Separation (LASS) for advanced side-channel attack protection

Memory
SO-DIMM DDR5 6400 max 96GB

Storage & I/O
M.2 2280 PCIe Gen5 x 4 / Gen4 x 4 + SATA
TROUBLE-FREE SETUP
Power Adapter
All BRIX units come with a power cord and adapter that undergo rigorous safety and reliability testing, ensuring they meet government safety standards worldwide.
VESA Bracket
Bundled with a VESA bracket supporting 75 x 75 mm and 100 x 100 mm mounts, the BRIX provides a simple and elegant solution to transform any VESA-compliant display or TV into a fully functional PC or digital signage unit.

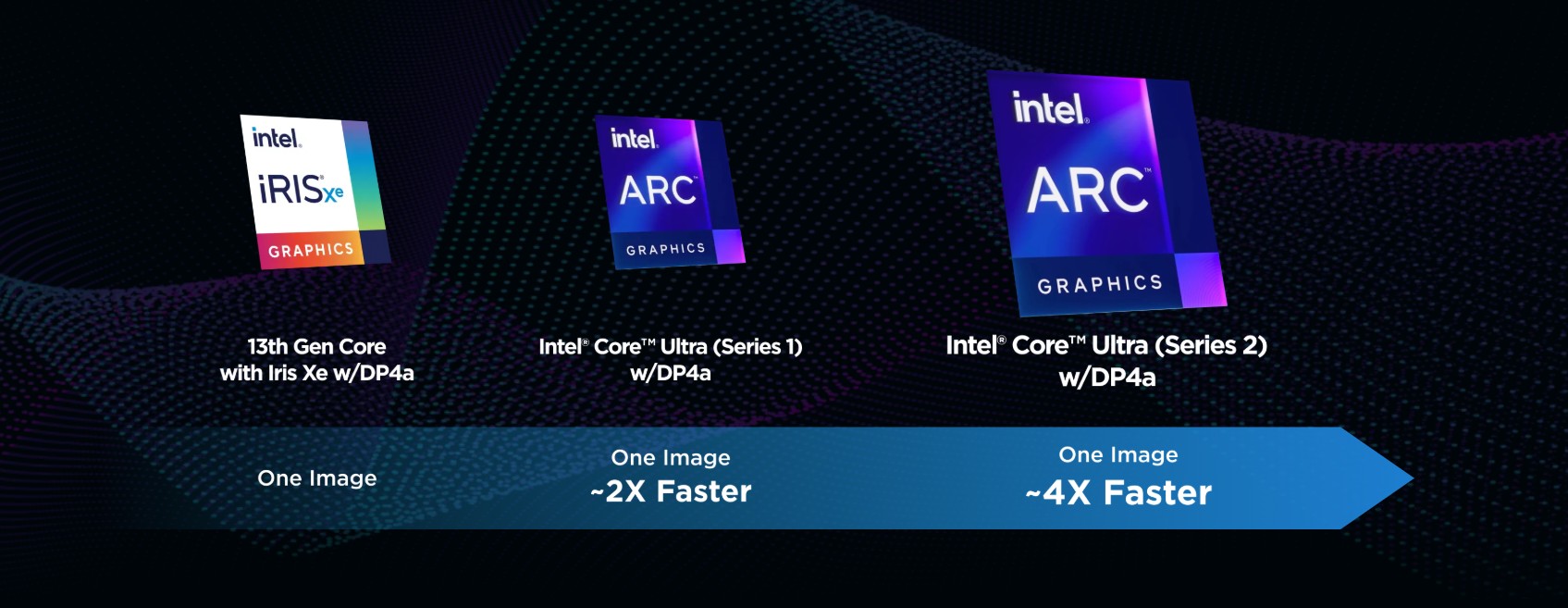

Fast and High-Fidelity Generative AI with Intel® Arc™ Graphics


Key Trends
Improving efficiency in graphics cores, adding hardware support for key features
- 4 x AI through-put improvement
- Up to 4K60 display support
NEW BRIX SPECIFICATION

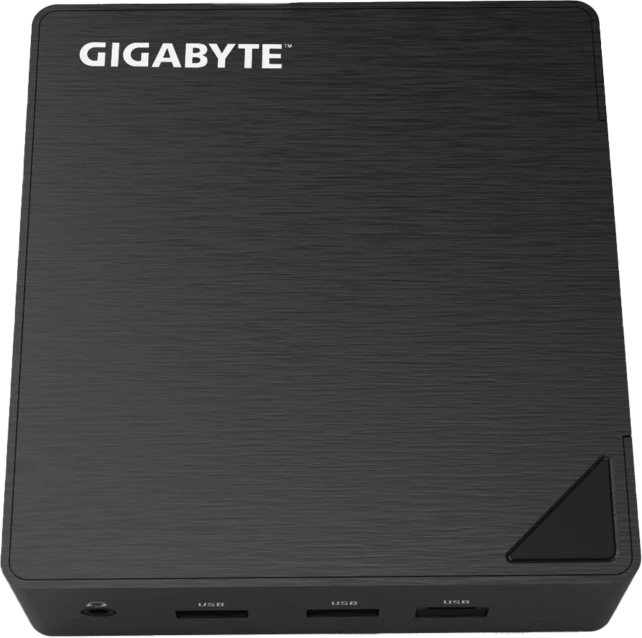

Light and Flexible Compact PC Kit
Despite its compact footprint compared to traditional desktop PCs, the BRIX outperforms other small form factors while still offering room for expansion. It features 2 x M.2 high-speed NVMe (PCIe x 4)/SATA interfaces, supports high-speed PCIe/SATA storage, AI accelerator modules (NPU), and Intel RAID storage capabilities—all within a slim chassis design.


Product Design Feature
- Top case easy swap and change by manual for White box and ODM purpose.

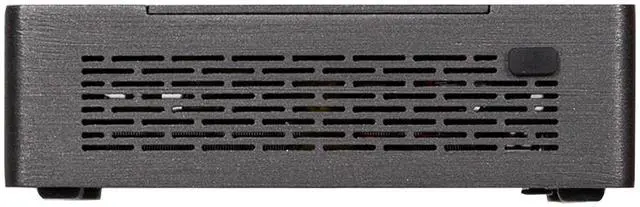

- Slim type chassis design and dual M.2 SSD support
- Intel® Core™ Ultra processor H series, TDP 28W
- Intel® ARC™ graphic

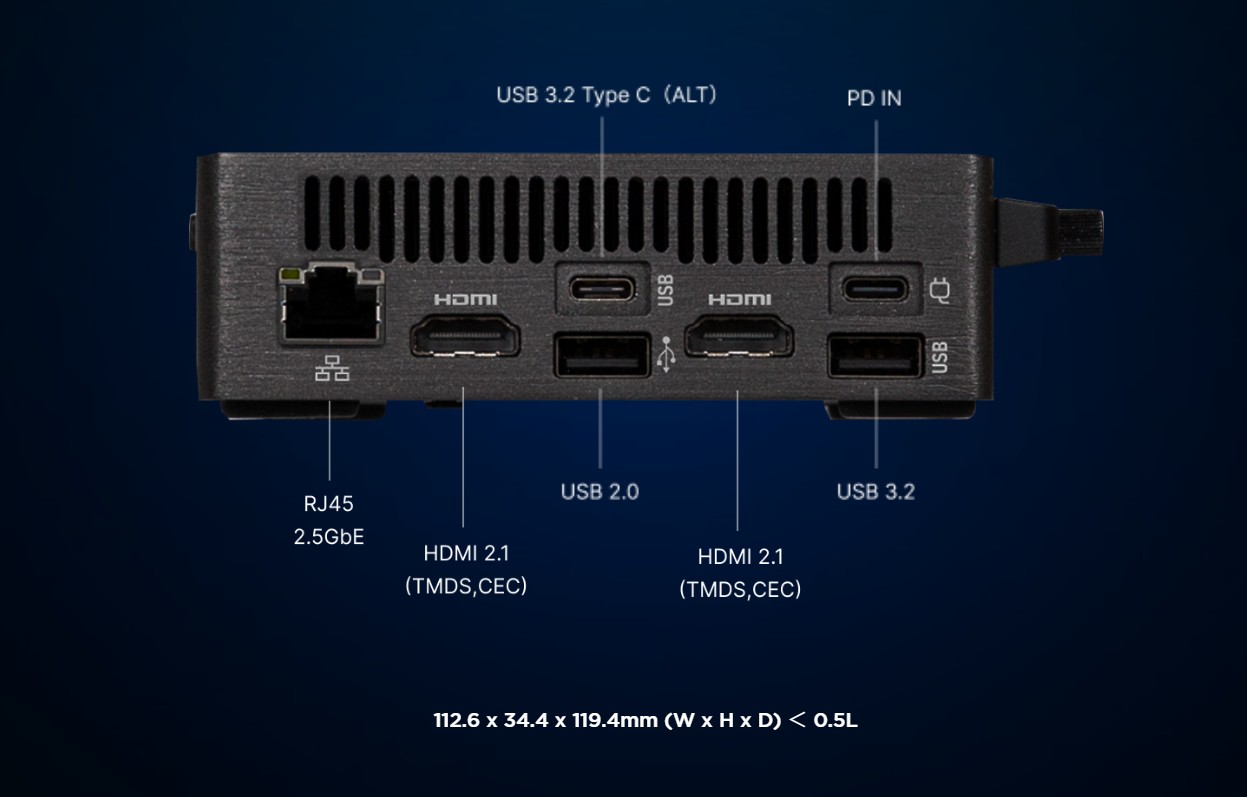

- HDMI 2.1 TMDS & CEC

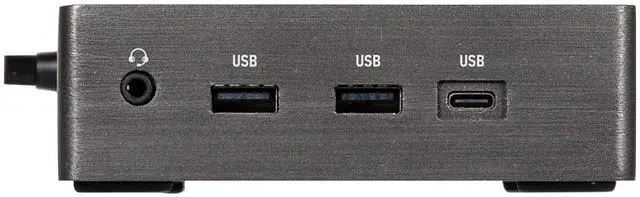

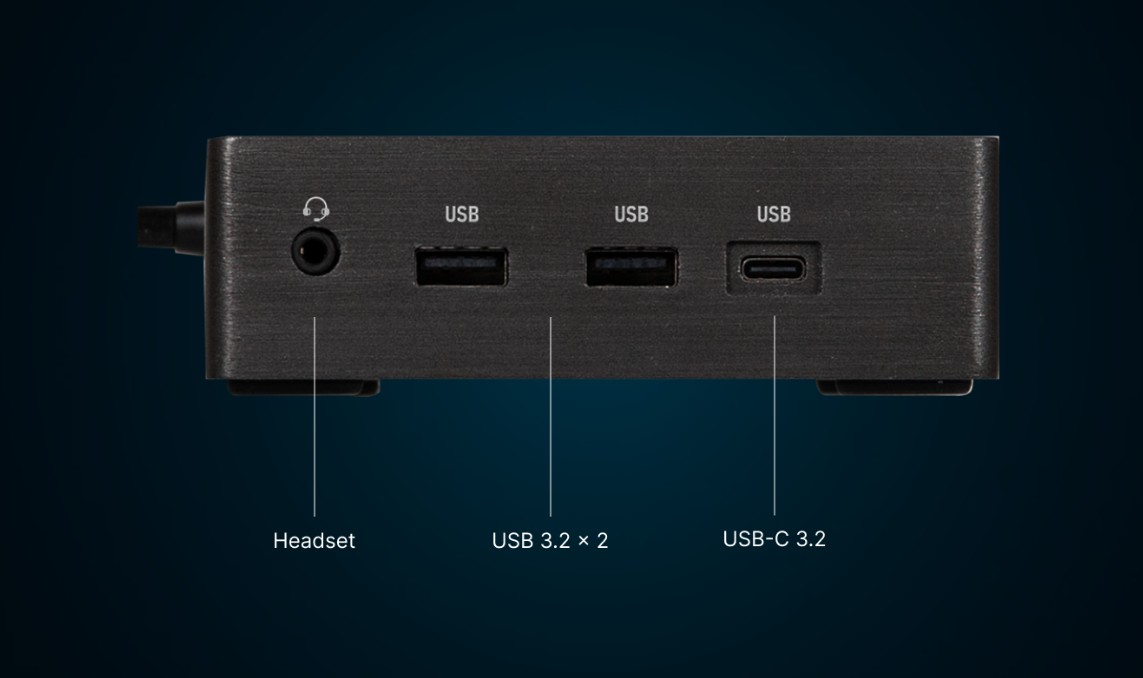

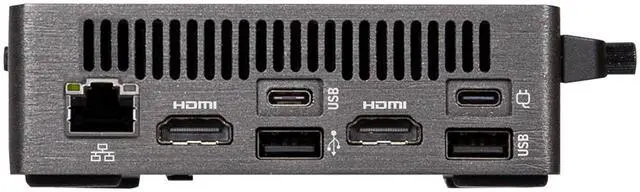

- UP to 7 x USB ports
- Up to 4 x Display outputs
- Dual M.2 PCIe x 4 support
- PCIe x 4 for AI module support
- USB PD power supply

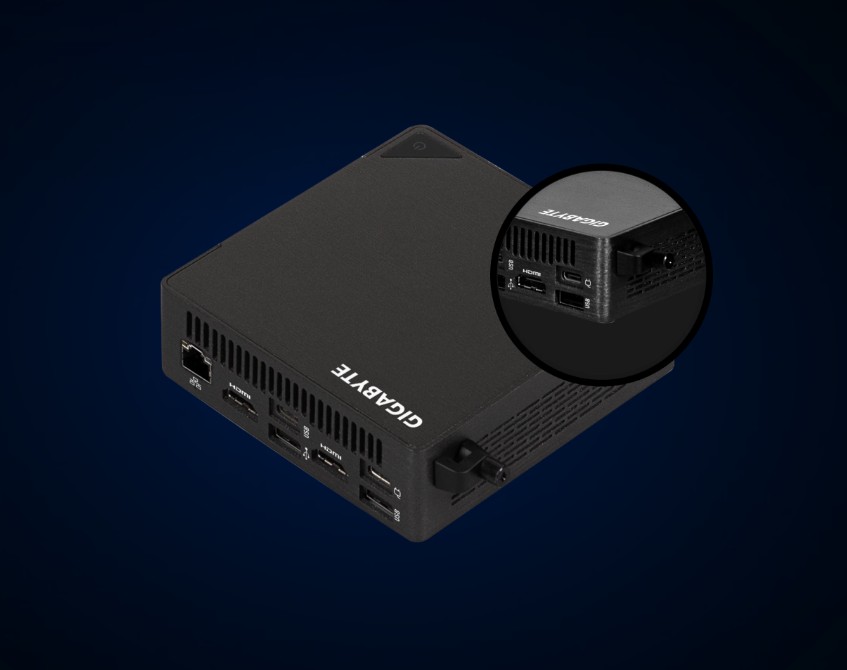

- Cable locking ARM design

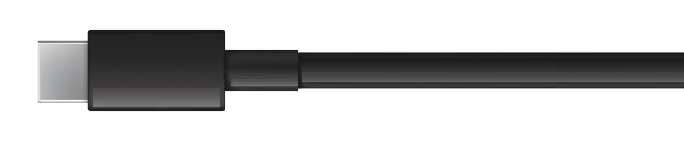

USB PD Power Supply
The European Union Directive (EU) 2022/2380 mandates that portable battery-powered devices and chargers be charged uniformly using a USB Type-C connector, and adds a new set of basic requirements to the provision. This clause is based on the EN IEC 62680 standard, which came into force on December 28, 2024, and will apply to laptops starting April 28, 2026.
In 2019, a total of 53.6 million tonnes of e-waste was generated globally, an increase of more than half in five years.
Advantage for Environment:
- Reduction of Electronic Waste
- Extended Charger Lifespan
- Conservation of Resources
- Lower Carbon Footprint
- Improved Energy Efficiency
