Out of stock

$5,094^.99

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Main image of GIGABYTE G292-280 2U Rackmount Server Barebone LGA 4189 Intel C621A DDR4 3200

Alt view image 2 of 5 - GIGABYTE G292-280 2U Rackmount Server Barebone LGA 4189 Intel C621A DDR4 3200

Alt view image 3 of 5 - GIGABYTE G292-280 2U Rackmount Server Barebone LGA 4189 Intel C621A DDR4 3200

Alt view image 4 of 5 - GIGABYTE G292-280 2U Rackmount Server Barebone LGA 4189 Intel C621A DDR4 3200

Alt view image 5 of 5 - GIGABYTE G292-280 2U Rackmount Server Barebone LGA 4189 Intel C621A DDR4 3200

Shop All GIGABYTE Products

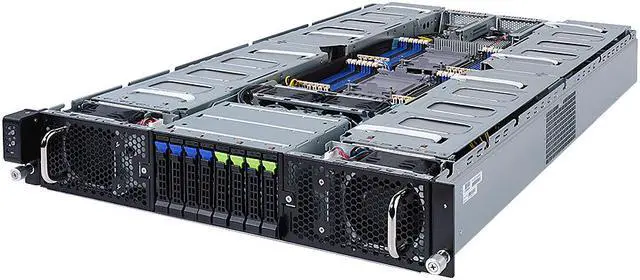

GIGABYTE G292-280 2U Rackmount Server Barebone LGA 4189 Intel C621A DDR4 3200

Be the first to review this product...

Supports up to 8 x Dual slot Gen4 GPU cards
3rd Gen Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
8-Channel RDIMM/LRDIMM DDR4 per processor, 24 x DIMMs
Supports Intel® Optane™ Persistent Memory 200 series
Dual ROM Architecture
Intel® C621A Chipset
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
1 x Dedicated management port
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays

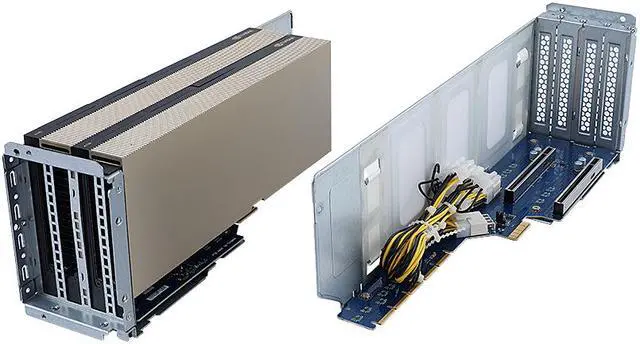

8 x FHFL PCIe Gen4 x16 slots for GPUs
2 x LP PCIe Gen4 x16 slots for add-on cards
Dual 3200W 80 PLUS Platinum hot-swap power supply

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

General
Brand	GIGABYTE
Model	G292-280
Form Factor	2U Rackmount

CPU Supported
CPU Type	Supports 3rd Generation Intel Xeon Scalable Processors
CPU Socket	LGA 4189
Installed CPU	No CPU Installed
Max Processors	2

Chipset
North Bridge	Intel C621A

Memory Supported
Memory Slots	24 x 288Pin
Installed Memory Size	No Memory Installed
Max Memory Supported	256GB
Memory Type Supported	DDR4 3200
Channel Supported	8 Channel

Storage Supported
Installed HDD	No Storage Installed
Serial ATA	8 x SATA/SAS/Gen4 NVMe ports
SATA RAID	RAID 0/1/5/10

Graphics
GPU/VPU	Aspeed AST2600

Expansion Slots
PCI Express	8 x PCIe Gen4 expansion slots for GPUs 2 x PCIe x16 Half-length low-profile slots for add-on cards

Communications
First LAN	Intel X710-AT2
Max. LAN Speed	10 Gigabit

Expansion Bays
Hot-Swap Bays	8 x 2.5" hot-swappable HDD/SSD bays - 4 x blue HDD trays compatible with SATA/SAS devices only - 4 x green HDD trays compatible with SATA/SAS/Gen4 NVMe devices SAS card is required for SAS devices support

Panel Ports
VGA	1
Rear USB	2 x USB 3.0
RJ45	2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2) 1 x 10/100/1000 management LAN
Other Ports	Internal I/O 1 x 18-pin power connector 1 x 14-pin power connector 2 x 8-pin power connectors 2 x 4-pin power connectors 1 x USB 3.0 header 1 x TPM header 1 x VROC connector 1 x HDD back plane board header 1 x 12-pin front panel header 1 x 23-pin front panel header 1 x JTAG header 2 x SATA SGPIO headers 1 x Front VGA header 1 x Serial header 1 x IPMB connector 1 x P12V standby connector 1 x PMBus selection jumper 1 x Clear CMOS jumper 1 x LT debug jumper

Power Supply
Max. Power	2 x 3200W 80 PLUS Platinum power supply

Dimensions & Weight
Dimensions	17.64" x 3.44" x 31.50"

Packaging
Package Contents	1 x G292-280 2 x CPU heatsinks 1 x Rail kit

Additional Information
First Listed on Newegg	August 11, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for replacement - Contact Manufacture for Assistance

This item is covered by Newegg.com's Manufacturer Only Return Policy.
Read full return policy for details.
