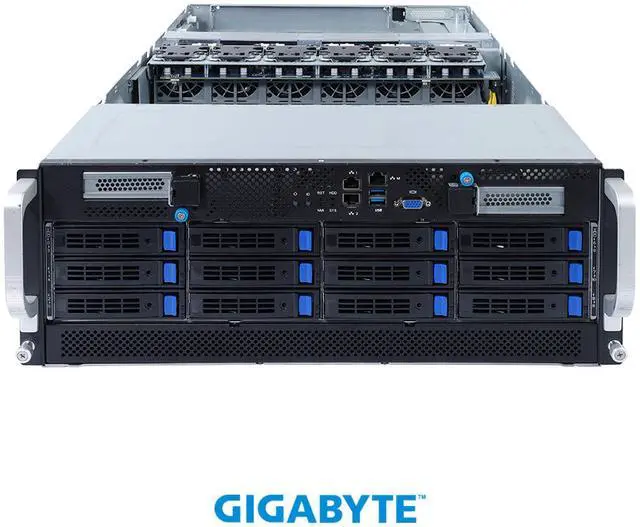

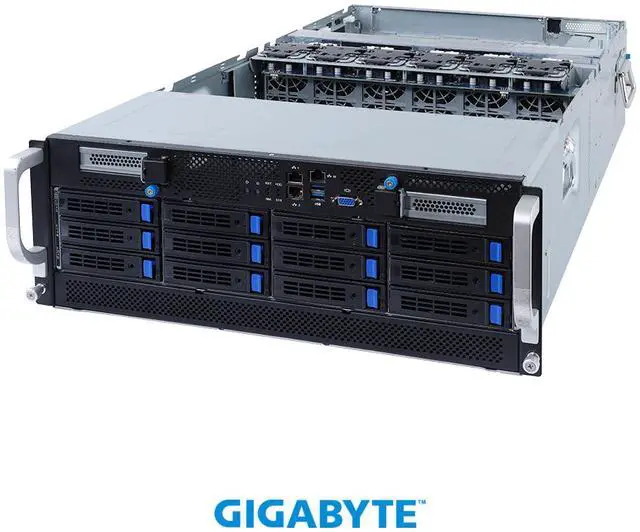

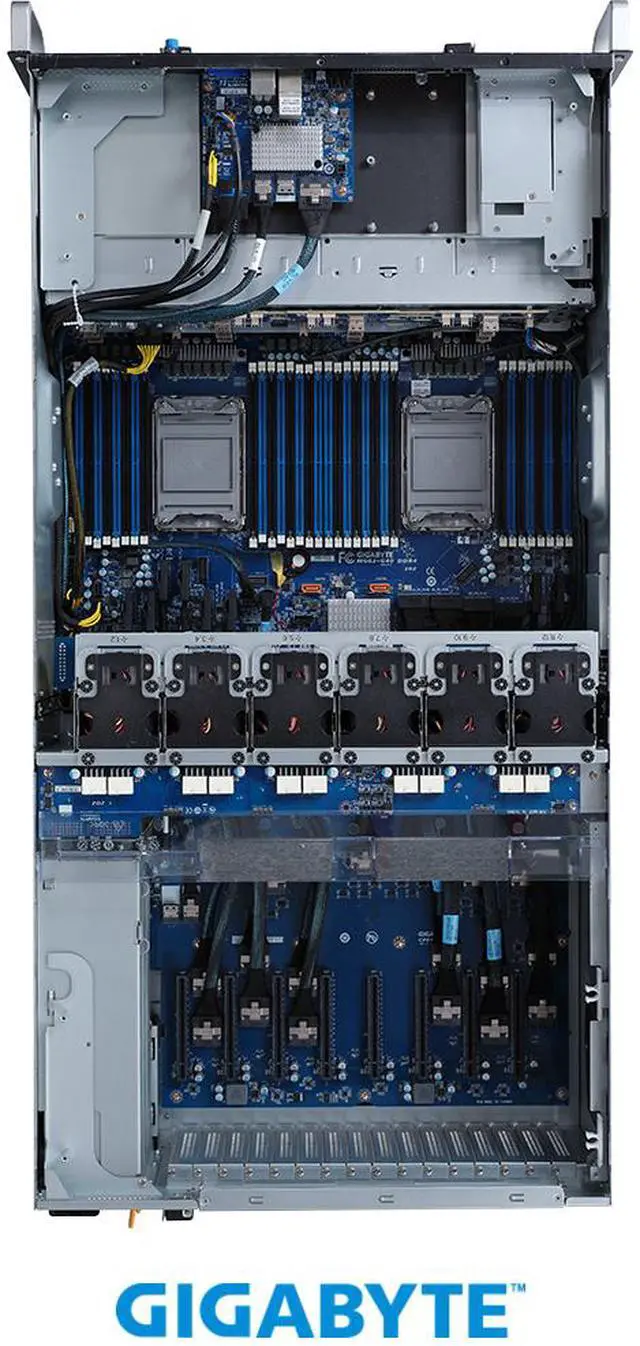

GIGABYTE G492-H80 HPC/AI Server - 3rd Gen Intel® Xeon® Scalable - 4U DP 8 x PCIe Gen4 GPUs

Be the first to review this product...
  • NVIDIA-Certified Systems™ - Data Center Servers
  • NVIDIA-Certified Systems™ - High-Density VDI Servers
  • Supports up to 8 x Dual slot Gen4 GPUs
  • Dual 3rd Gen Intel® Xeon® Scalable Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel® X550-AT2
  • 12 x 3.5"/2.5" SATA hot-swappable bays
  • 8 x FHFL PCIe Gen4 x16 slots for GPUs
  • 2 x SATA DOM supported
  • 2+1 2200W 80 PLUS Platinum redundant power supplies
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE G492-H80

General
Brand GIGABYTE
Model G492-H80
Form Factor 2U Rackmount
CPU Supported
CPU Type Supports 3rd Generation Intel Xeon Scalable Processors
CPU Socket LGA 4189
Installed CPU No CPU Installed
Max Processors 2
Chipset
North Bridge Intel C621A
Memory Supported
Memory Slots 32 x 288Pin
Installed Memory Size No Memory Installed
Max Memory Supported 256GB
Memory Type Supported DDR4 3200
Channel Supported 8 Channel
Storage Supported
Installed HDD No Storage Installed
Serial ATA 12 x SATA 600
SATA RAID RAID 0/1/5/10
Graphics
GPU/VPU Aspeed AST2600
Expansion Slots
PCI Express 8 x PCIe x16 slots (Gen4 x16 bus) for GPUs
Communications
First LAN Intel X550-AT2
Max. LAN Speed 10 Gigabit
Expansion Bays
Hot-Swap Bays 12 x 3.5" or 2.5" SATA hot-swappable HDD/SSD bays
SATA device supported only

Onboard 2 x SATA DOM supported
Panel Ports
Front USB 2 x USB 3.0
VGA 1
RJ45 2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2)
1 x 10/100/1000 management LAN
Other Ports Internal I/O
1 x TPM header
1 x VROC connector
2 x SATA DOM connectors
1 x Front VGA header
1 x Serial header
Power Supply
Max. Power 3 x 2200W redundant PSUs, 80 PLUS Platinum
Dimensions & Weight
Dimensions 17.60" x 6.90" x 34.65"
Packaging
Package Contents 1 x G492-H80
2 x CPU heatsinks
1 x Rail kit
Additional Information
First Listed on Newegg February 04, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within - Contact Manufacture for Assistance
  • Return for replacement - Contact Manufacture for Assistance
  • This item is covered by Newegg.com's Manufacturer Only Return Policy. Read full return policy for details.
