Question 1

thinking of having this a replacement for my old comp with vista, is it compatible with vista?

Accepted Answer

The drivers page at gigabyte has drivers for xp,7 and 8. I am running 7 myself. Vista is iffy. The big hurdle is going to be if intel made chipset drivers. A few years ago I tried to put 2000 on an NM10 based board (atom) and couldn't because intel didn't make drivers.

Short answer: Use Win7 and be happy.

Question 2

Does the eSATA connection on the rear panel affect the onboard SATA? In other words is the eSATA an alternate interface for one of the onboard interfaces?

Accepted Answer

The NM70 chipset (Panther Point-M) supports 1 port @ 6 Gbit/s, and 3 ports @ 3 Gbit/s. Can anyone confirm that the eSATA interface on the rear panel is indeed an independent interface for it's own SATA channel?

Please ONLY respond if you *own* this motherboard. No speculation, just facts.

Question 3

Does this have the proper header connections to support the 2xUSB 3.0 ports on the front panel of this?:

IN WIN Z583T.CQ350TB3L Black Steel MicroATX Mini Tower Computer Case 350W Power SupplyModel #:Z583T.CQ350TB3L

Accepted Answer

No. USB 3.0 is not present.

Question 4

Is anyone running Vmware ESXi on this?

Accepted Answer

No, this board would be way underpowered.

I  don't think the onboard CPU supports virtualization either, but I didn't check

I maxed out the CPU running WIndows 7 and 2 IP camera's on it. Unless you are wanting to run a very small linux kernel, virtualization isn't going to be great on this board

Question 5

I see this unit has both VGA and HDMI connectors - Can it be used with 2 displays connected at the same time, such that they're seen as separate monitors?

Accepted Answer

According to Intel, the Celeron 1037U's integrated graphics supports three displays. So it should in theory. I'd test it out on mine, but I can't seem to find a VGA cable at the moment (it's been a year or more since I used one).

Question 6

Has anyone successfully installed this in a 1U?  In Angelino B. comments he claims it won’t fit, that the spring loaded fan mounting screws hit the bottom of the case.  I’d like to buy a few of these but not if they won’t fit in a 1U.

Accepted Answer

The heatsink's profile is lower than the I/O ports, so it's technically possible. I'd be worried about the CPU cooler, though, as it's a top-down cooler. Most 1U cooling solutions are designed to cool laterally, with air moving in one direction. A motherboard with a passive cooler and a 1U case with fans pushing air laterally through the case might be better choices.

Question 7

Has anyone used this / know if it works with a 20pin ATX PSU? Thanks!

Accepted Answer

Yes this will work with a 20 pin atx power supply. am using an 80 watt pico right now to power mine. still need the 4 pin 12v though.

Question 8

Is this combo compatible with win7 or win8??

Accepted Answer

Windows 7, yes.  I see no reason why Windows 8 would not work on this motherboard.

Question 9

Can anyone confirm if Wake On Lan is available in the BIOS and if it actually works?

Accepted Answer

Wake On LAN is present with this motherboard.  It should work.

Question 10

How are the Intel Linux VGA drivers and X11 for this?

Accepted Answer

Perfect. I run Xubuntu on mine and it just works. No tinkering needed.

Brand	GIGABYTE
Model	GA-C1037UN
Combo Type	Motherboard / CPU / VGA Combo

Number of Memory Slots	2x240pin
Memory Standard	DDR3 1600/1333
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

PS/2	1 x PS/2 keyboard port 1 x PS/2 mouse port
COM	1
Video Ports	1 x D-Sub port
HDMI	1 x HDMI
USB 1.1/2.0	4 x USB 2.0
eSATA	1 x eSATA 3Gb/s
Audio Ports	3 Ports

Onboard USB	4 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x IDE connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x parallel port header 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header

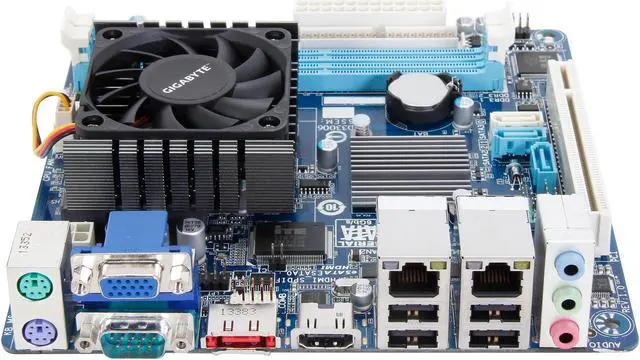

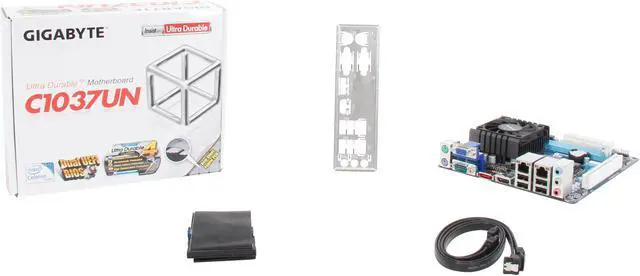

GIGABYTE GA-C1037UN Intel Dual-core Celeron 1037U (1.8 GHz) Intel NM70 Mini ITX Motherboard / CPU / VGA Combo

Learn more about the GIGABYTE GA-C1037UN

Customer Reviews of the GIGABYTE GA-C1037UN

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Physical Spec
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"
