Question 1

Can I really drive 6 panels at the same time with this card?

Accepted Answer

Hello,

No this cannot drive 6 panels, please see the specifications tab for more details as this can only drive 4 panels with a MAX resolution of 7680 x 4320 @ 60 Hz.  Hope this helps!

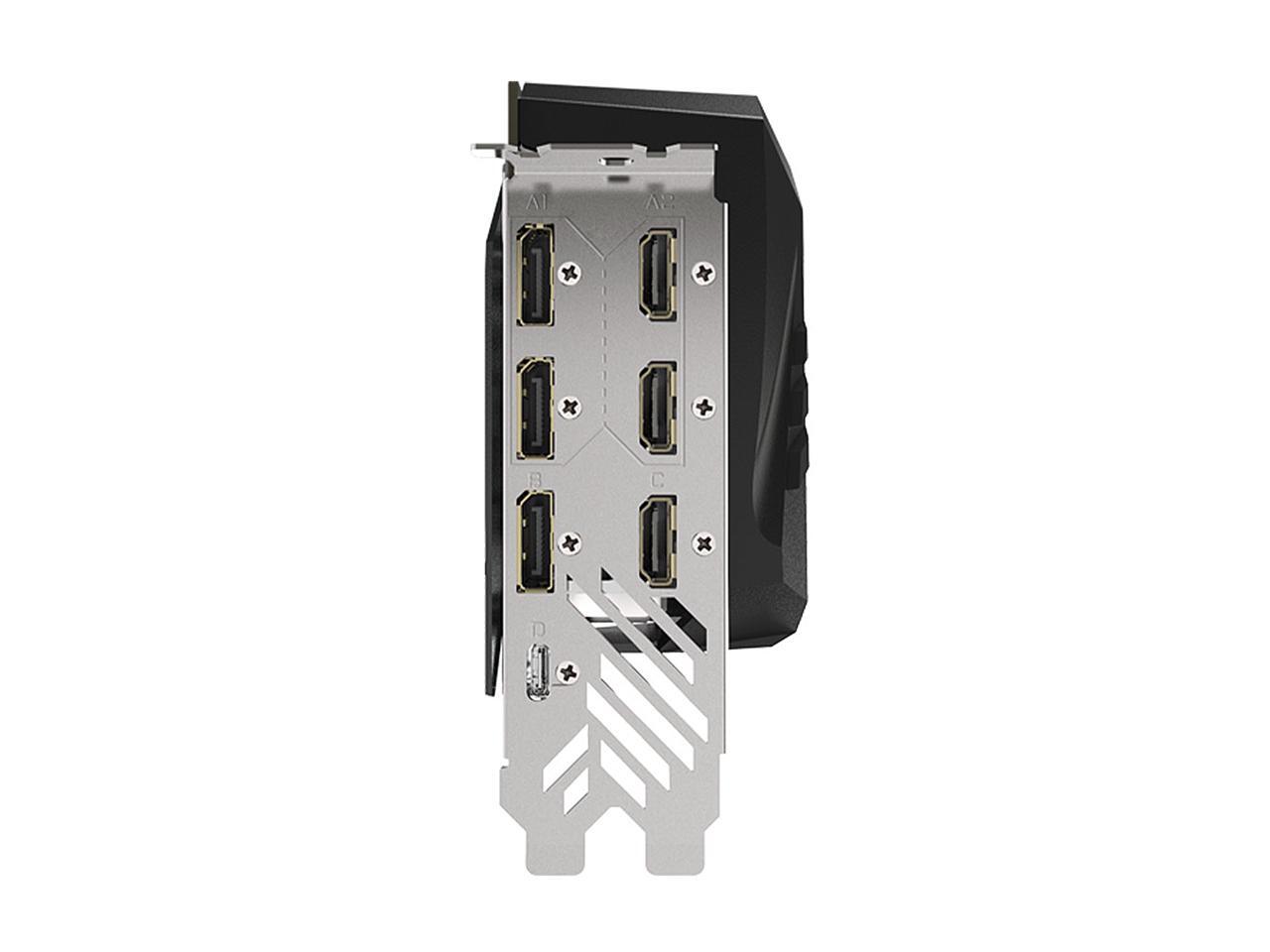

Ports
HDMI
3 x HDMI 2.0b
Multi-Monitor Support
4
DisplayPort
3 x DisplayPort 1.4
Other Ports
1 x USB Type-C (support VirtualLink)

Question 2

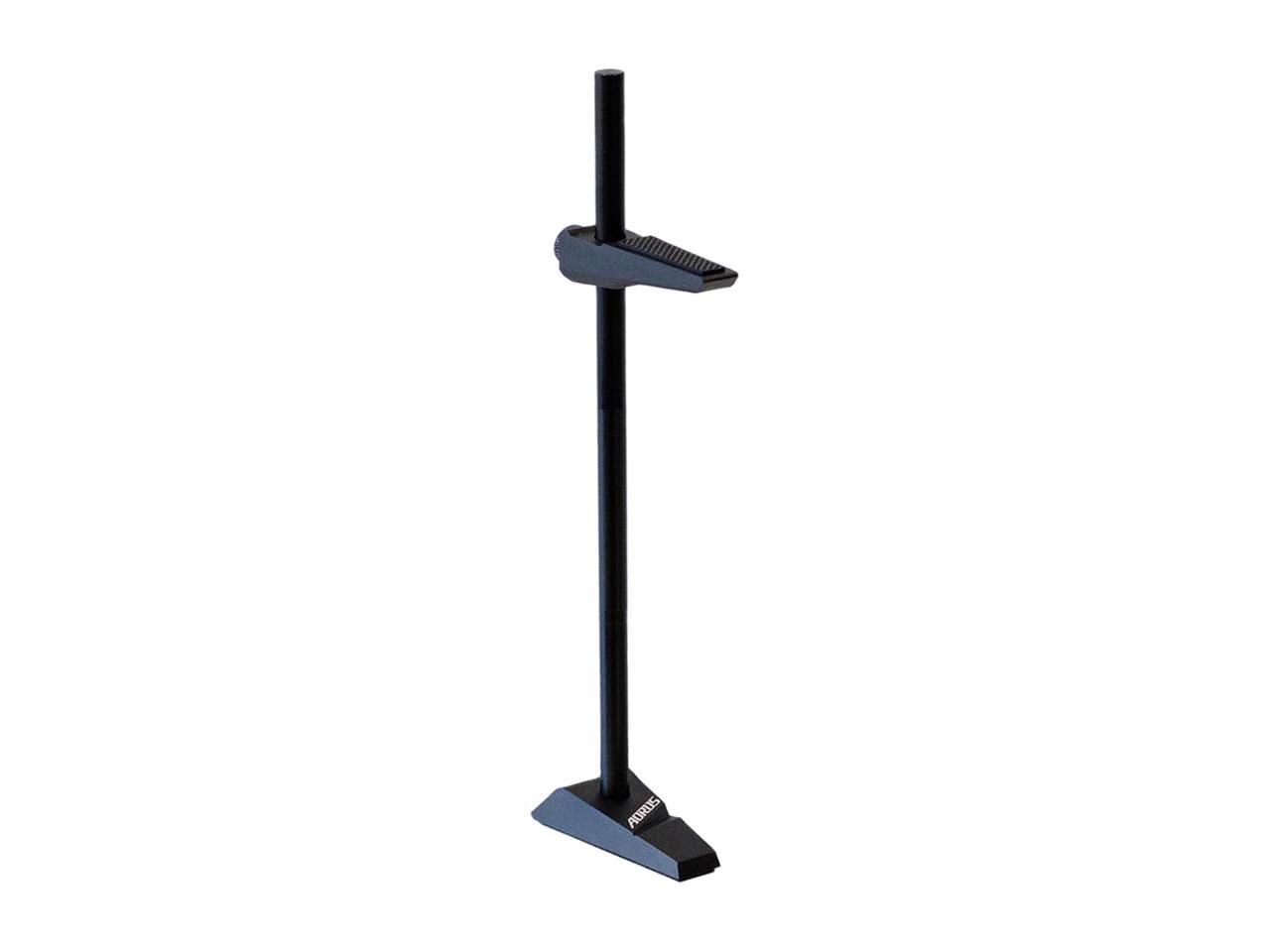

What's the stand thing in the 7th picture? Is this so heavy that there is a need for a supporting arm to hold it up?

Accepted Answer

I'm not using the stand, my motherboard has a steel PCI-E frame (MSI MAG z390 Tomahawk)

Question 3

what is the clock speed? and boost clock? They arent listed

Accepted Answer

Core Clock: 1815 MHz (Reference Card: 1620 MHz)
RTX-OPS: 48
CUDA® Cores: 2304
Memory Clock: 14142 MHz
Memory Size: 8 GB
Memory Type: GDDR6
Memory Bus: 256 bit
Memory Bandwidth (GB/sec): 448 GB/s
Card Bus: PCI-E 3.0 x 16
Digital max resolution: 7680x4320@60Hz
Multi-view: 4
Card size: L=290 W=134.31 H=59.9 mm
PCB Form: ATX
DirectX: 12
OpenGL: 4.5
Recommended PSU: 550W
Power Connectors: 8 Pin*1, 6 Pin*1
OutputDisplayPort 1.4 *3
HDMI 2.0b *3
USB Type-CTM(support VirtualLinkTM) *1

Question 4

does this card have 2x8 pin power connectors or 6+8 pin power connectors the second photo shows 2x8 but the description says it has a 6+8 pin?

Accepted Answer

6+8
