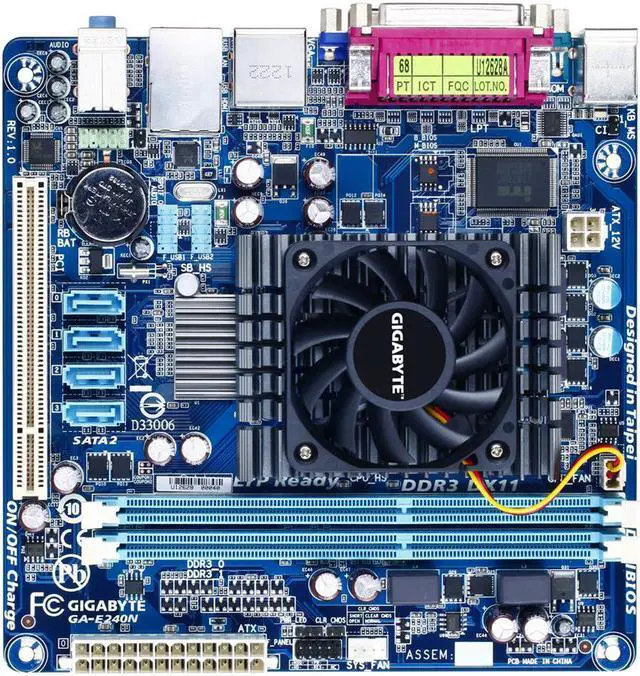

GIGABYTE GA-E240N DDR3 MINI-ITX Motherboard Radeon HD 6310 graphics (DirectX11)

Built in with an AMD E-240 Single-Core processor Built in with an AMD Radeon™ HD 6310 (DirectX 11) graphics core Chipset AMD A45 FCH Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1) Single channel memory architecture Support for DDR3 1333 (O. C. )/1066 MHz memory modules (Please refer "CPU Support List" for more information. ) Onboard Graphics Integrated in the
APU: 1 x D-Sub port 1 x HDMI port, supporting a maximum resolution of 1920x1200 Audio Realtek ALC887 codec High Definition Audio 2/4/ 5.1 / 7.1 -channel (Note 2) Support for S/PDIF Out LAN Realtek GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI slot
Storage Interface Chipset: 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

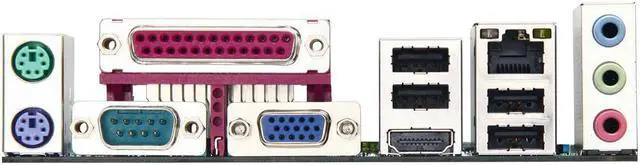

USB Chipset: Up to 8 USB 2.0 / 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0 / 1.1 headers 1 x chassis intrusion header 1 x power LED header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 1 x HDMI port 4 x USB 2.0 / 1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone) I/O Controller iTE I/O Controller Chip H/W Monitoring System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU overheating warning CPU/System fan fail warning CPU/System fan speed control (Note 3)
